Seat - Exploded View, Front

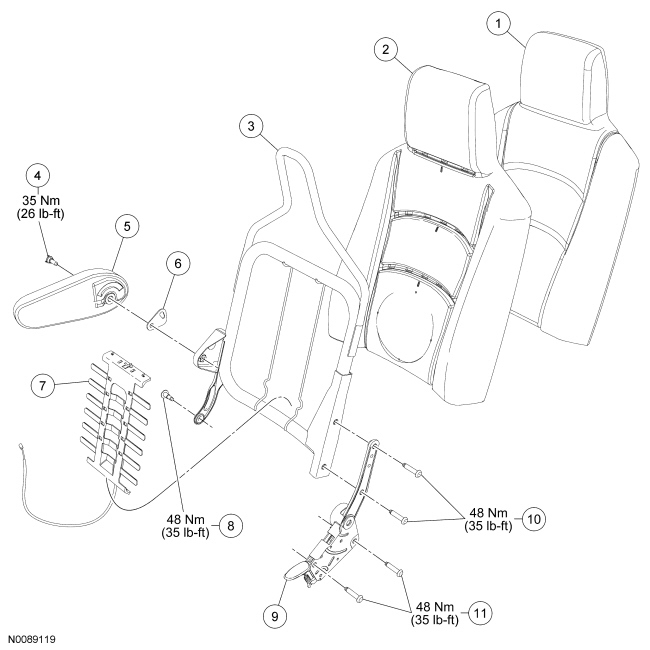

Seat - Exploded View, Front

Seat Backrest

NOTE: LH shown, RH similar.

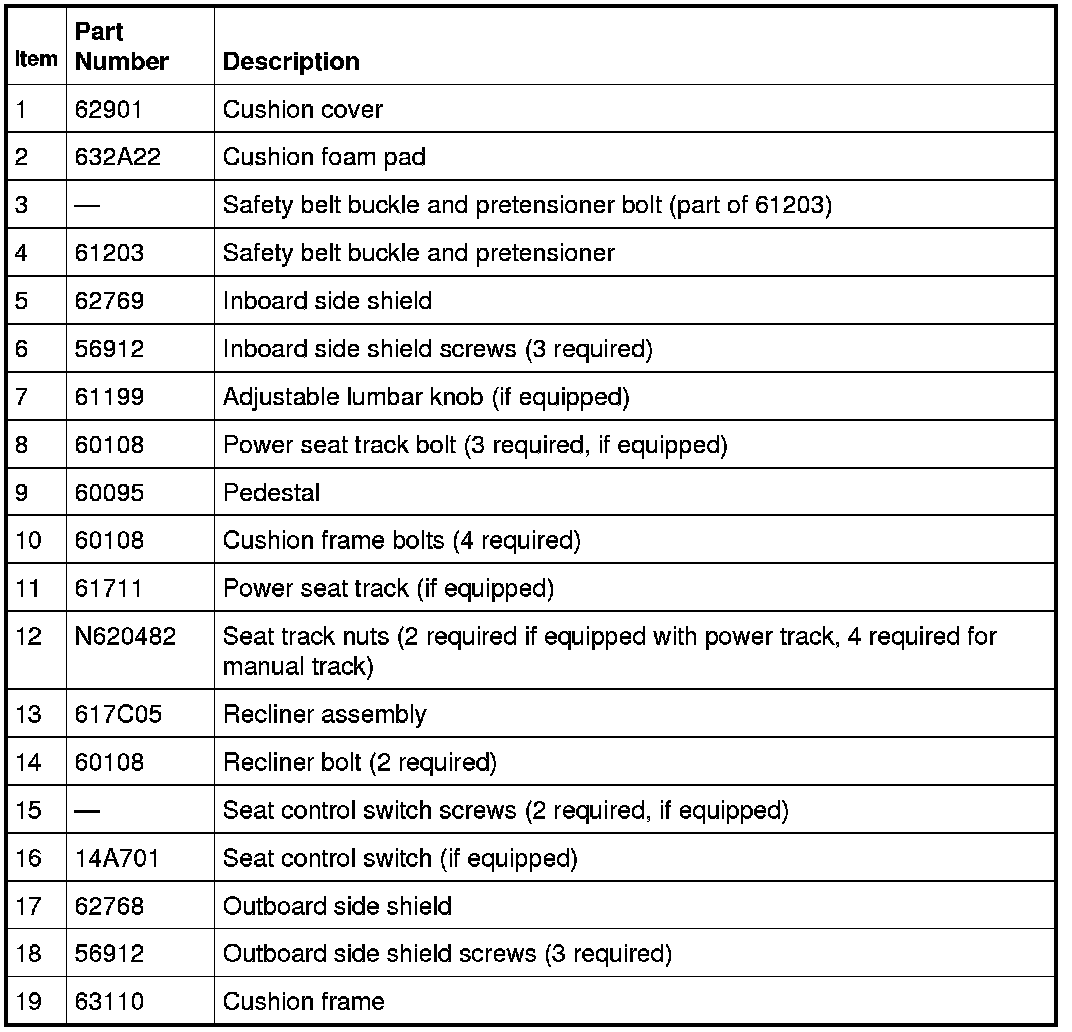

Seat Cushion - Driver










Seat Cushion - Front Passenger
