Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
E 450 V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine Lubrication
Engine Lubrication
Engine Lubrication

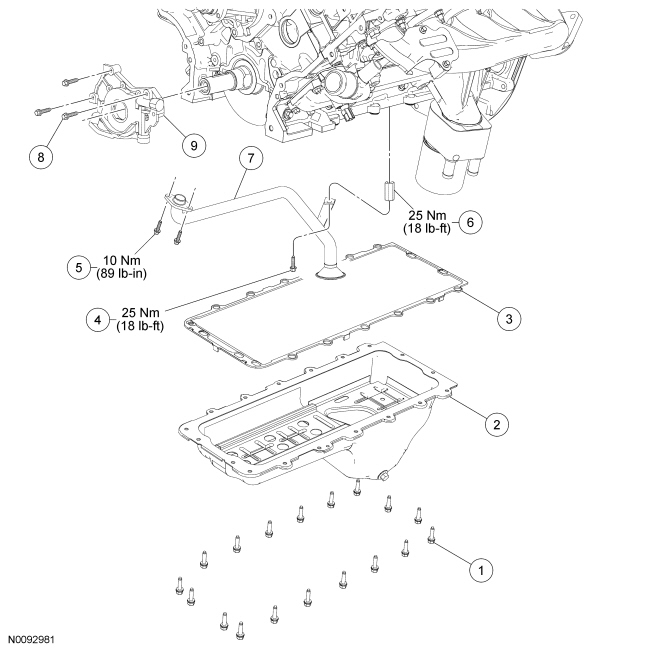

Components - Exploded View
