Brake Fluid Reservoir: Service and Repair

Brake Fluid Reservoir













Removal and Installation

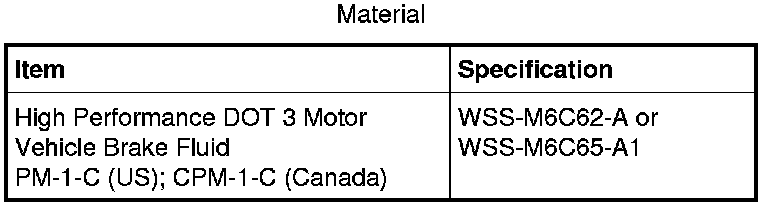

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

1. Remove the battery.

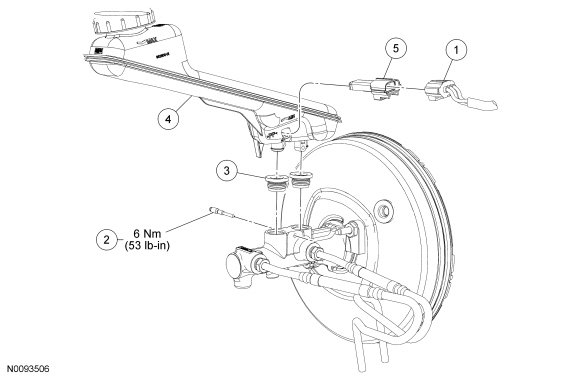

2. Remove the reservoir pin bolt and the brake fluid reservoir.
- To install, tighten to 6 Nm (53 lb-in).


3. Remove and discard the 2 seals.

4. NOTE: Install new seals. Lubricate the seals with clean, specified brake fluid.
To install, reverse the removal procedure.

- Bleed the brake master cylinder. For additional information, refer to Component Bleeding in Brakes and Traction Control.
