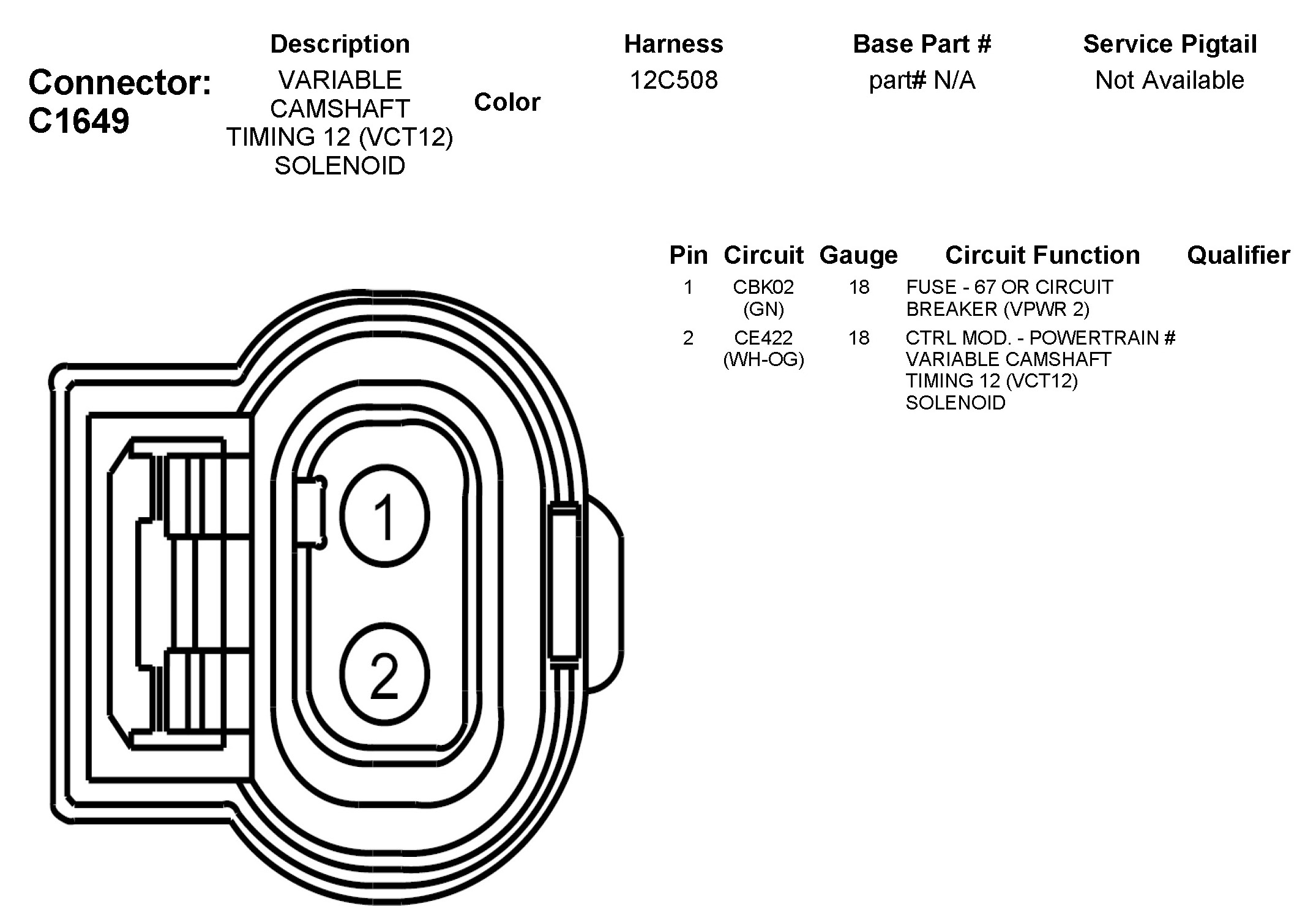

C1649 Variable Camshaft Timing #12 (VCT12) Solenoid
C1649 Variable Camshaft Timing #12 (VCT12) Solenoid
