Home >> Ford >> 2012 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3326 Climate Controlled Seat Backrest Module, Passenger Side

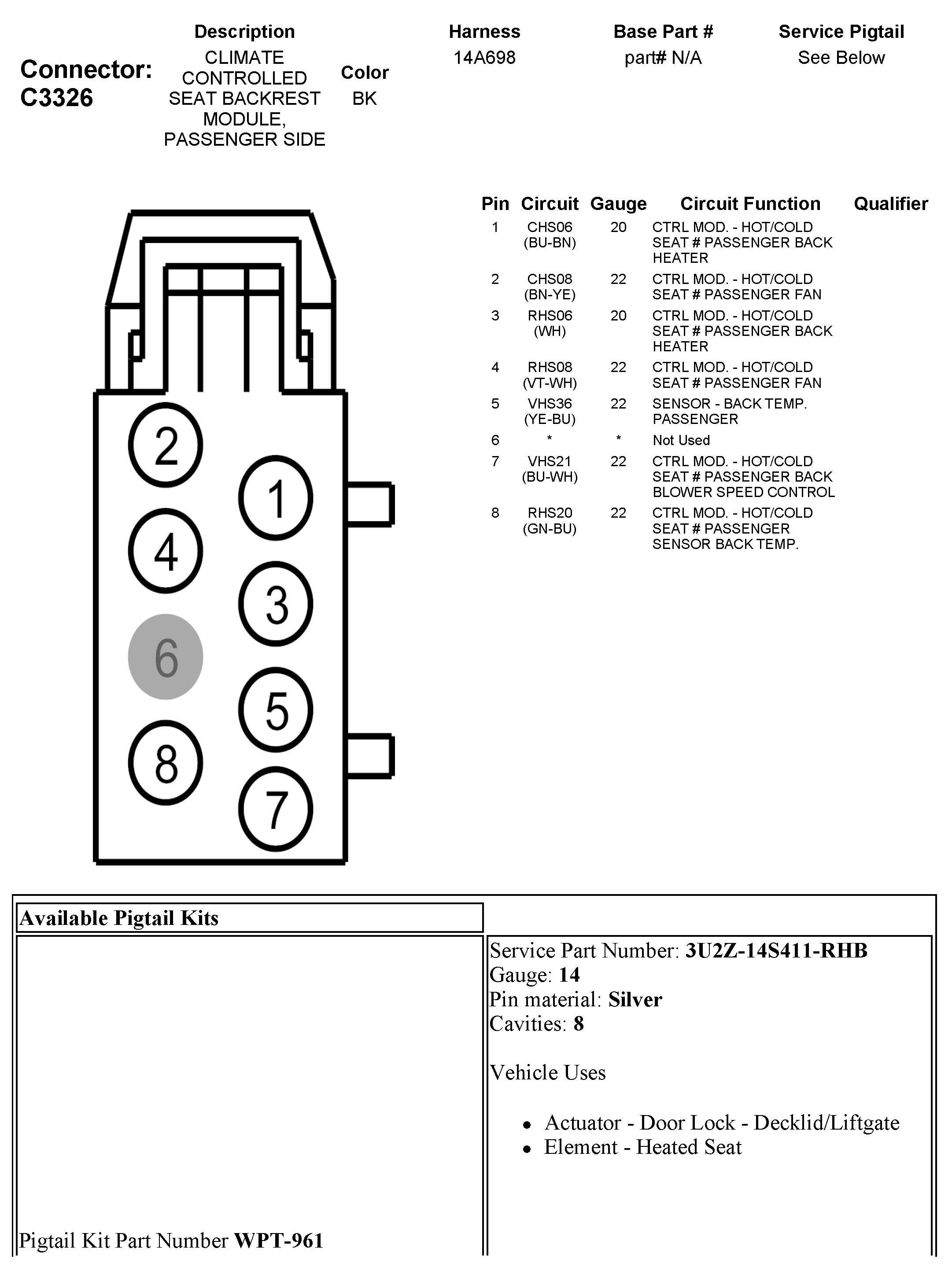

C3326 Climate Controlled Seat Backrest Module, Passenger Side
