Evaporative Emissions Hose: Service and Repair

Fuel Vapor Tube Assembly






















Removal and Installation

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

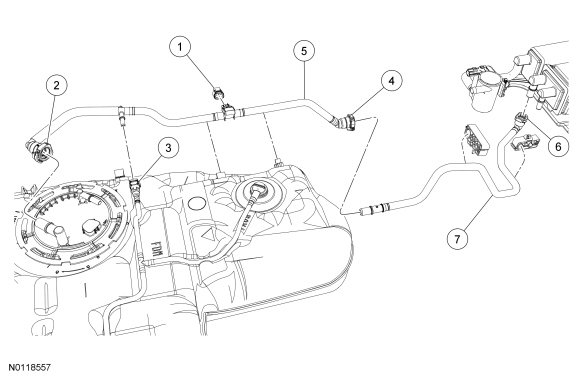

NOTE: The fuel vapor tube assembly is a 2 part assembly. One tube connects to the fuel tank and includes the fuel tank pressure sensor. Another tube connects to the Evaporative Emission (EVAP) canister. The 2 tubes are connected by a quick connect coupling.

Both fuel vapor tube assemblies

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the battery ground cable.

3. Remove the 4 bolts, the 4 trim pins, the 2 push pins, and the aero shield.
- To install, tighten to 10 Nm (89 lb-in).






Evaporative Emission (EVAP) canister fuel vapor tube assembly

4. Disconnect the fuel tank fuel vapor tube-to-EVAP (Evaporative Emission) canister fuel vapor tube quick connect coupling.

5. Disconnect the EVAP (Evaporative Emission) canister fuel vapor tube-to-EVAP (Evaporative Emission) canister quick connect coupling.

6. Disconnect the EVAP (Evaporative Emission) canister fuel vapor tube from the fuel bundle retainers and remove the EVAP (Evaporative Emission) canister fuel vapor tube assembly.

Fuel tank fuel vapor tube assembly

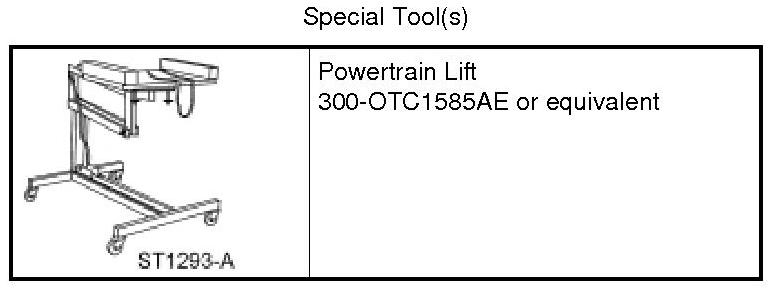

7. Position the Powertrain Lift under the fuel tank.

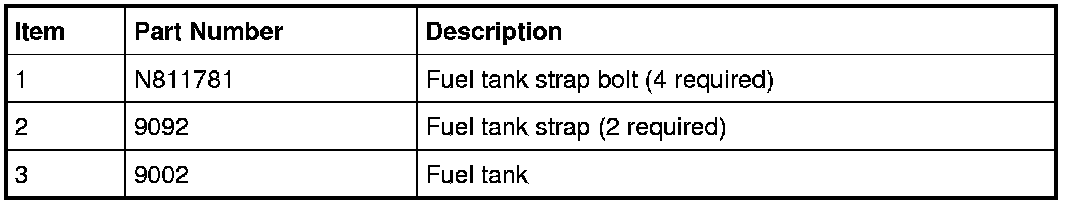

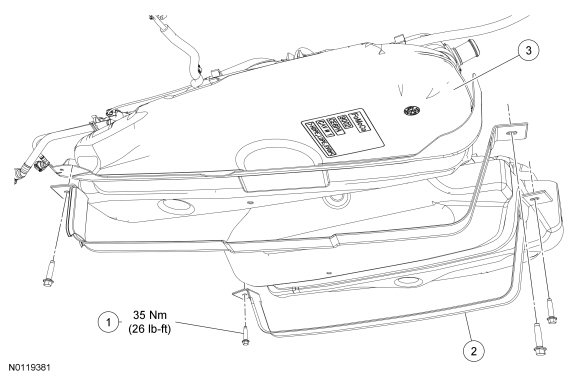

8. Remove the 4 fuel tank strap bolts and partially lower the fuel tank.
- To install, tighten to 35 Nm (26 lb-ft).

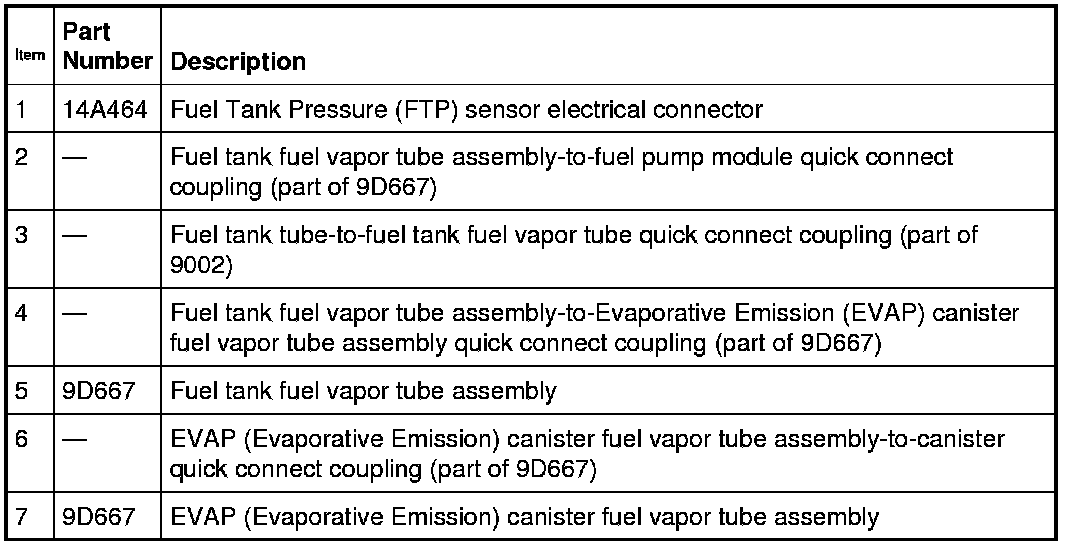

9. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.

10. Disconnect the fuel tank fuel vapor tube-to-Evaporative Emission (EVAP) canister fuel vapor tube quick connect coupling.

11. Disconnect the fuel tank fuel vapor tube assembly-to-fuel pump module quick connect coupling.

12. Disconnect the fuel tank tube-to-fuel tank fuel vapor tube quick connect coupling.

13. Disconnect the fuel tank fuel vapor tube assembly from the retainers and remove the fuel tank fuel vapor tube assembly.

Both fuel vapor tube assemblies

14. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
