Steering Column Multifunction Switch

Steering Column Multifunction Switch

NOTE: Steering wheel removed for clarity.









Removal and Installation

1. Remove the steering column shrouds.

2. Turn the steering wheel 90 degrees to the left to access the multifunction switch screws.

3. If equipped, remove the steering column control switch. For additional information, refer to Steering Column Control Switch .

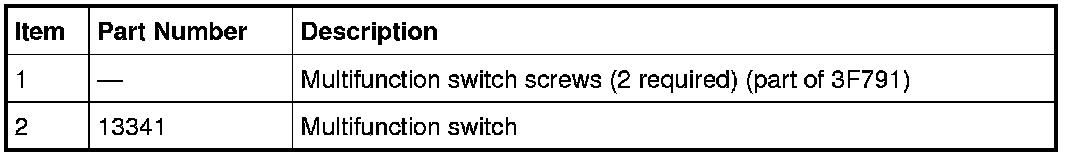

4. Remove the multifunction switch screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).


5. To install, reverse the removal procedure.
