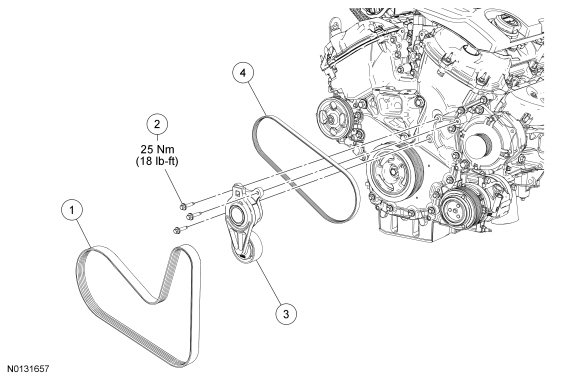

Front End Accessory Drive (FEAD) - Exploded View

Front End Accessory Drive (FEAD) - Exploded View

2.0L GTDI (Gasoline Turbocharged Direct Injection)

NOTE: The accessory drive belt is routed behind the accessory drive belt tensioner. It is necessary to remove the accessory drive belt tensioner to remove the accessory drive belt.
