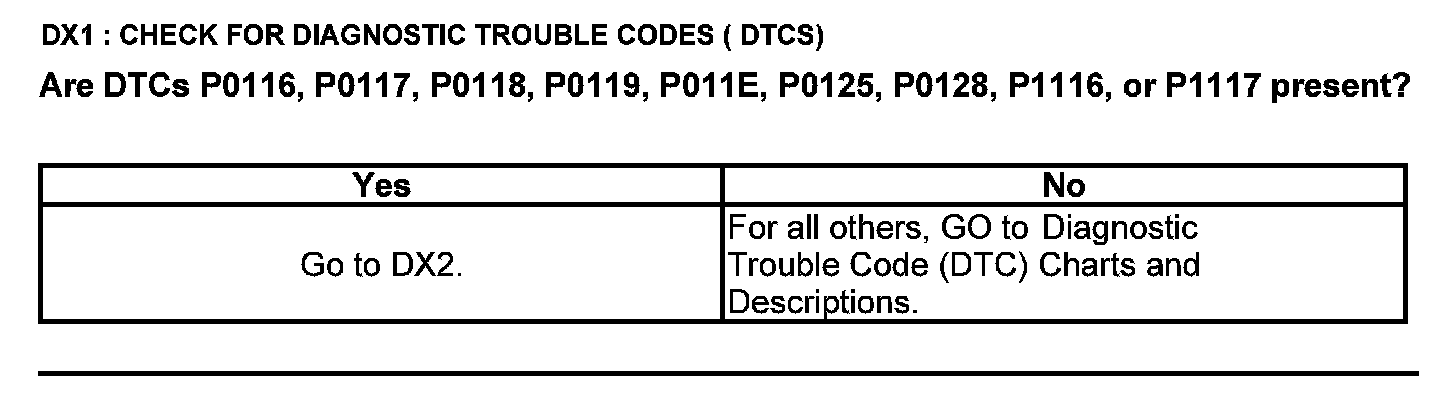

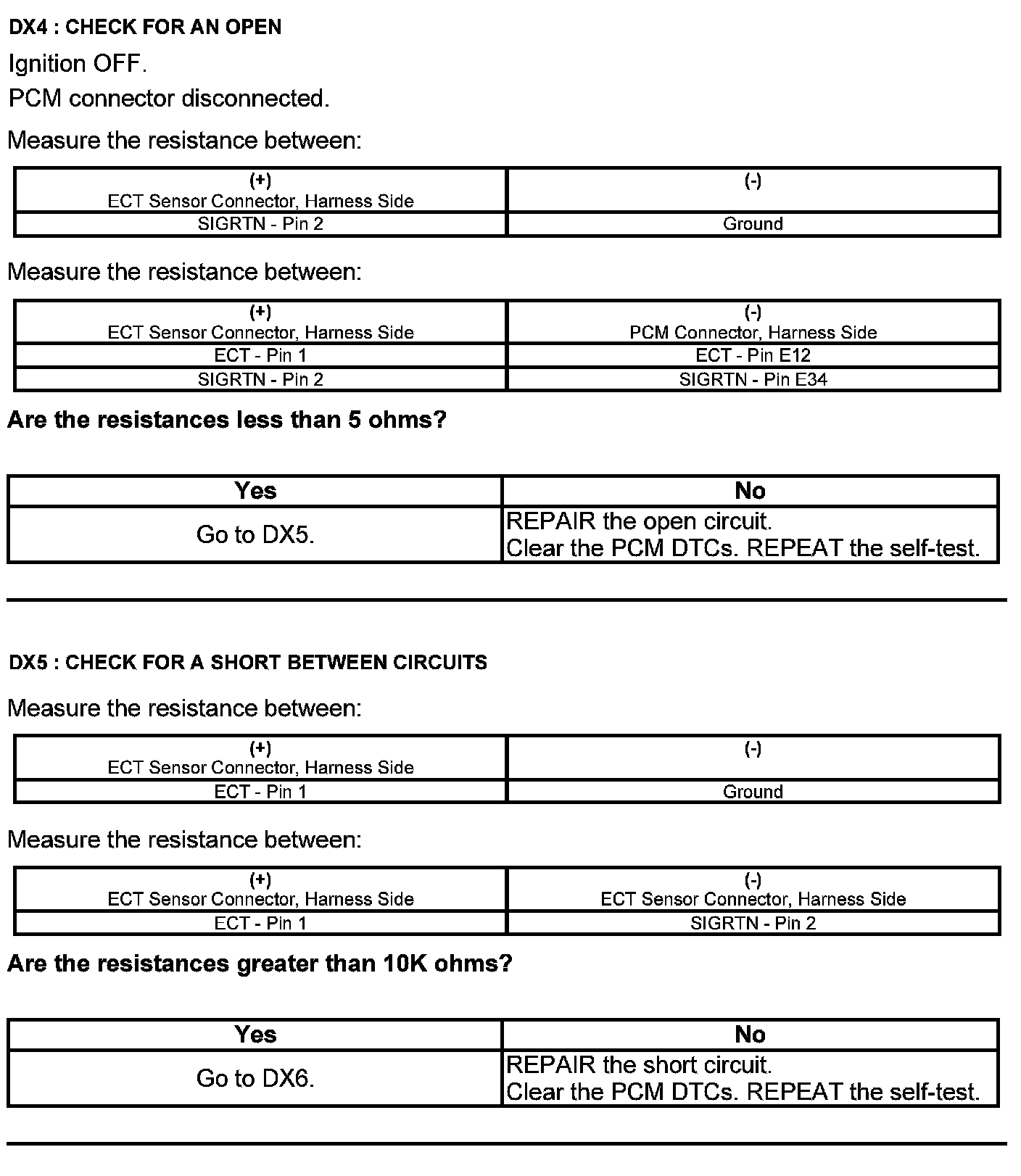

Test DX: Engine Coolant Temperature (ECT) Sensor



Engine Coolant Temperature (ECT) Sensor






















Engine Coolant Temperature (ECT) Sensor Connector





Harness Side







Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
