Vacuum Pump: Service and Repair

Brake Vacuum Pump

Removal and Installation

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the air cleaner outlet pipe.

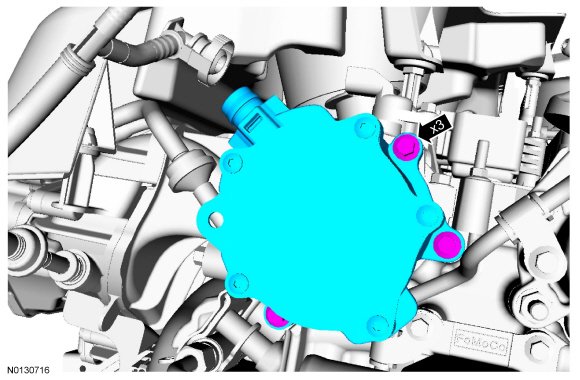

2. .





3. .
- To install, tighten to 10 Nm (89 lb-in).






4. Inspect and, if necessary, install a new brake vacuum pump gasket.





5. To install, reverse the removal procedure.
