Register - Driver and Passenger Side

Register - Driver and Passenger Side, Edge


















Removal and Installation

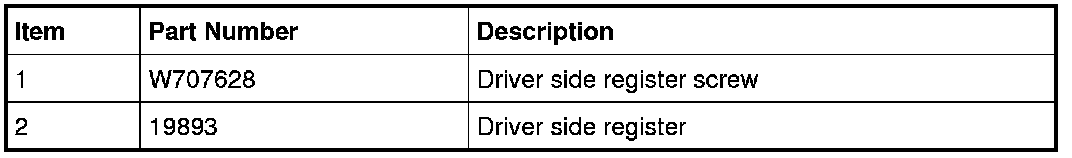

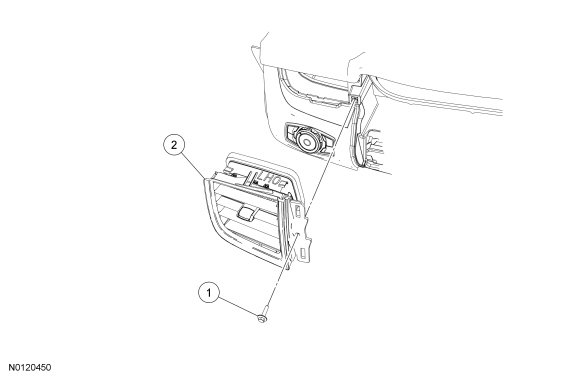

Driver side register

1. Remove the Instrument Panel Cluster (IPC) lower finish panel.

2. Remove the Front Lighting Control Module (FLM).

3. Remove the driver side register screw.

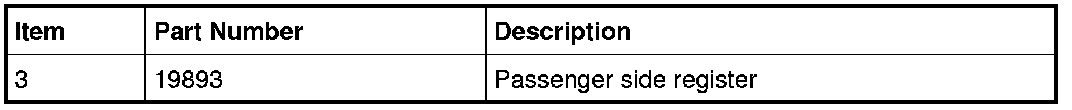

Passenger side register

4. Lower the glove compartment.
1. Detach the glove compartment damper from the glove compartment.

2. Release the stops by pressing them toward the center of the glove compartment while lowering the glove compartment.






Driver side register and passenger side register

5. Release the register lower clips and remove the register.

6. To install, reverse the removal procedure.
