Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Escape 2WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>

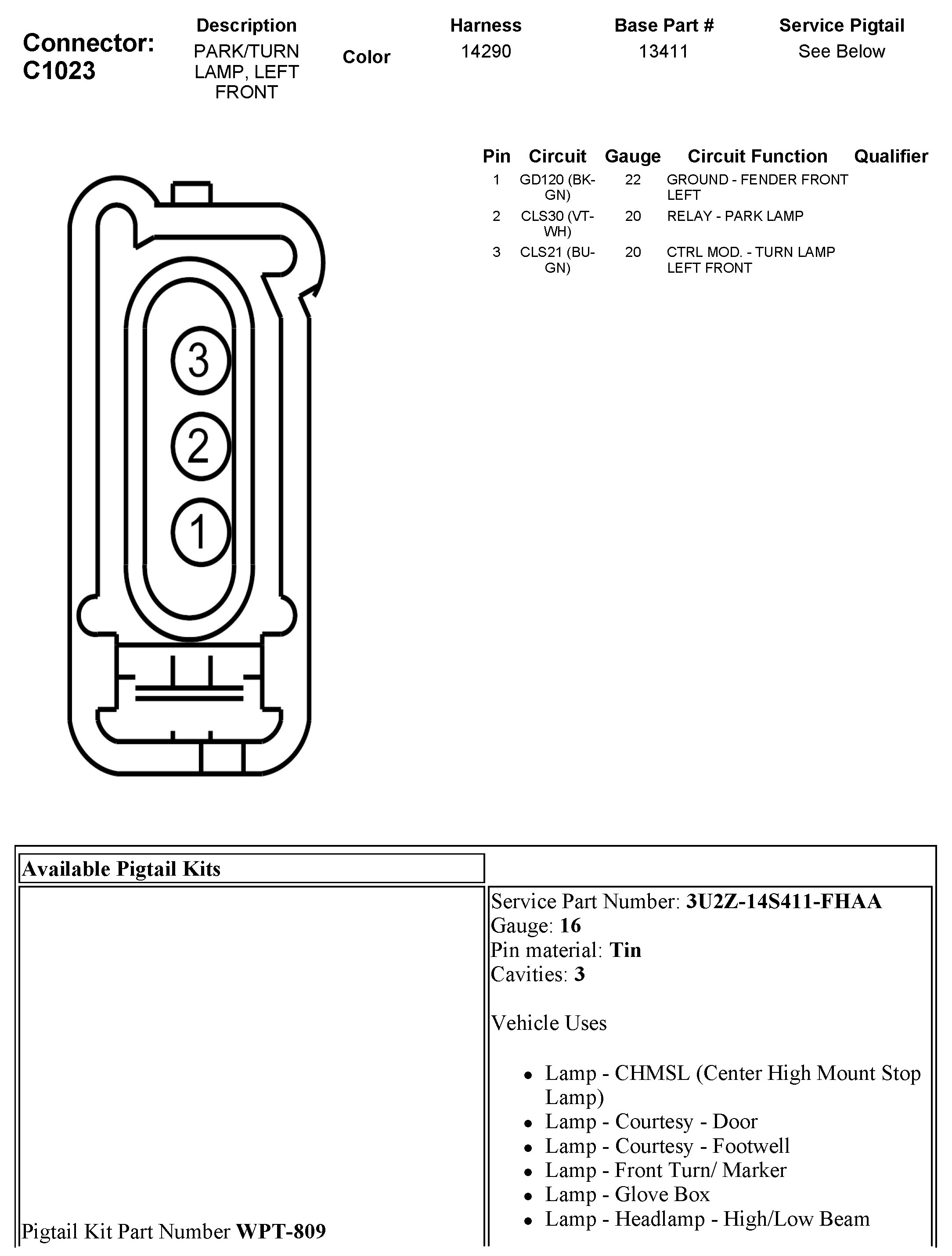

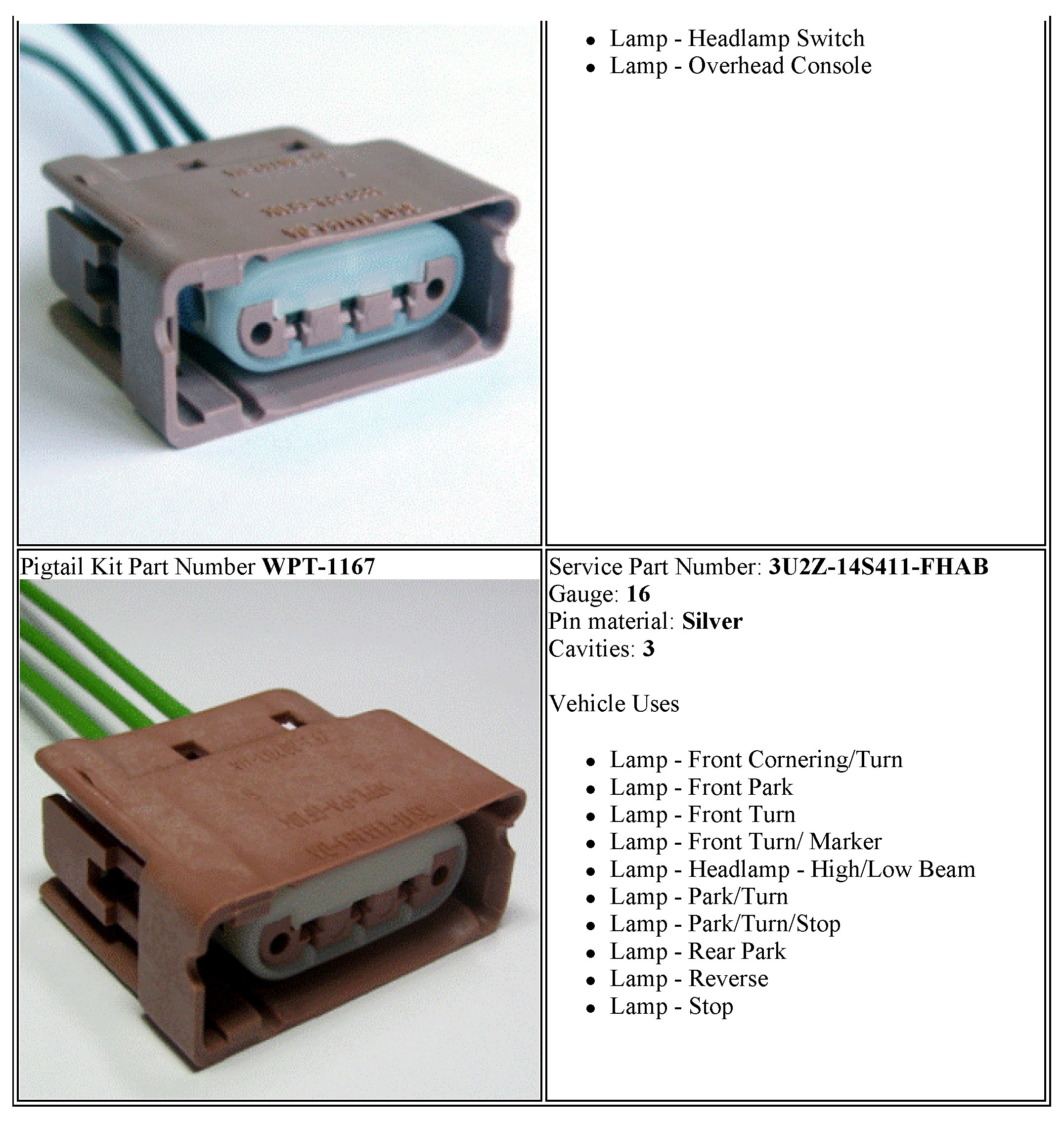

C1023 Park/turn Lamp, Left Front
C1023 Park/turn Lamp, Left Front
