Test B: Powertrain Control Module

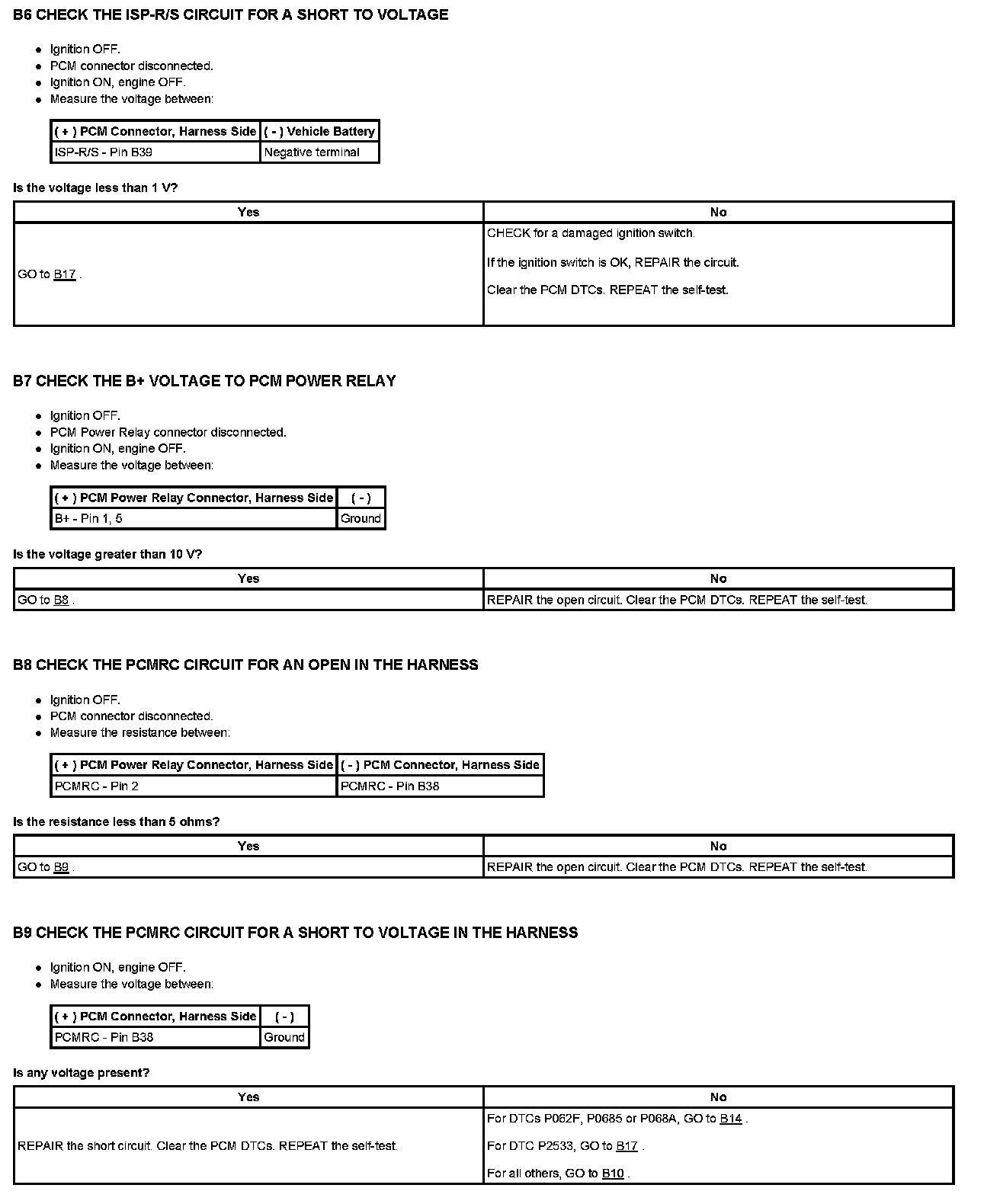

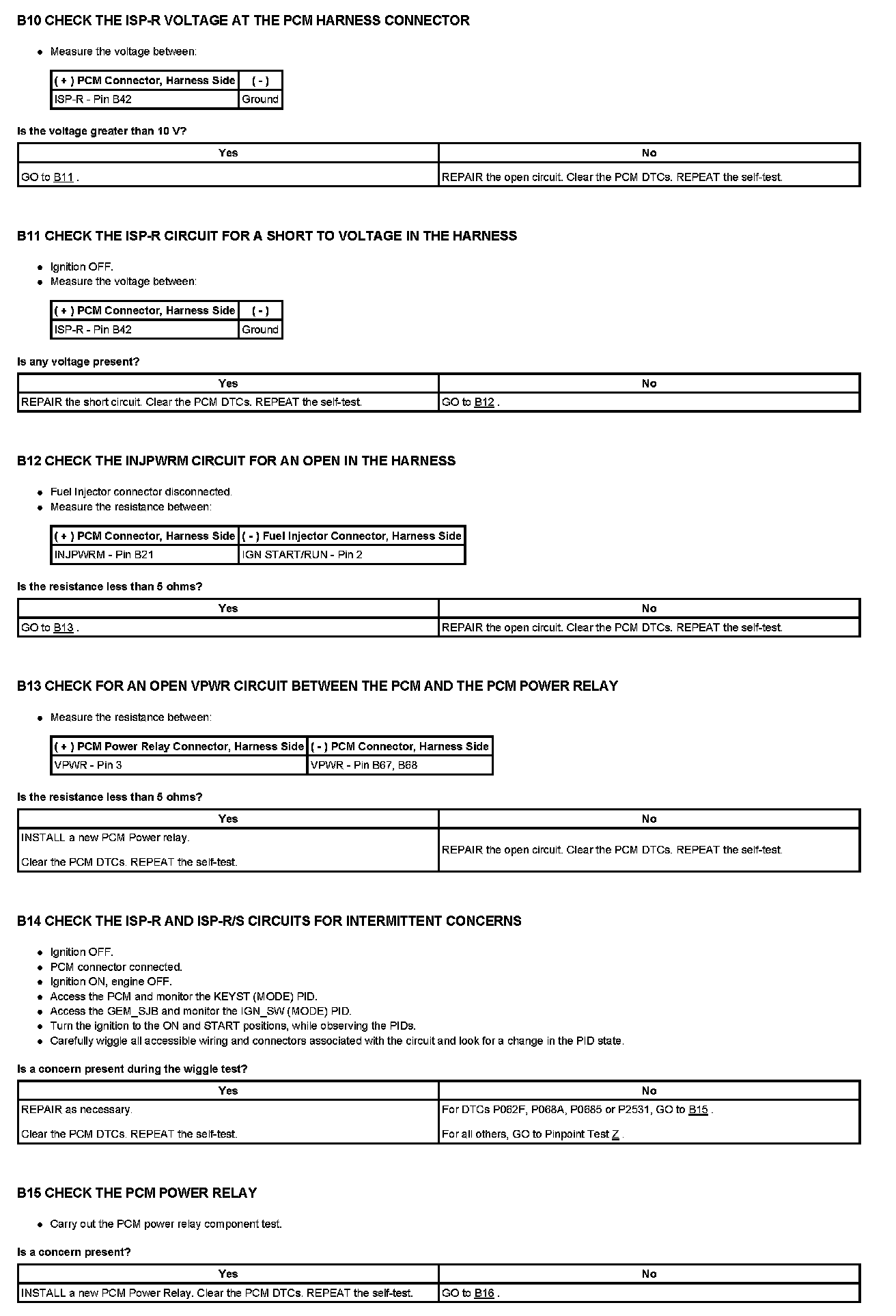

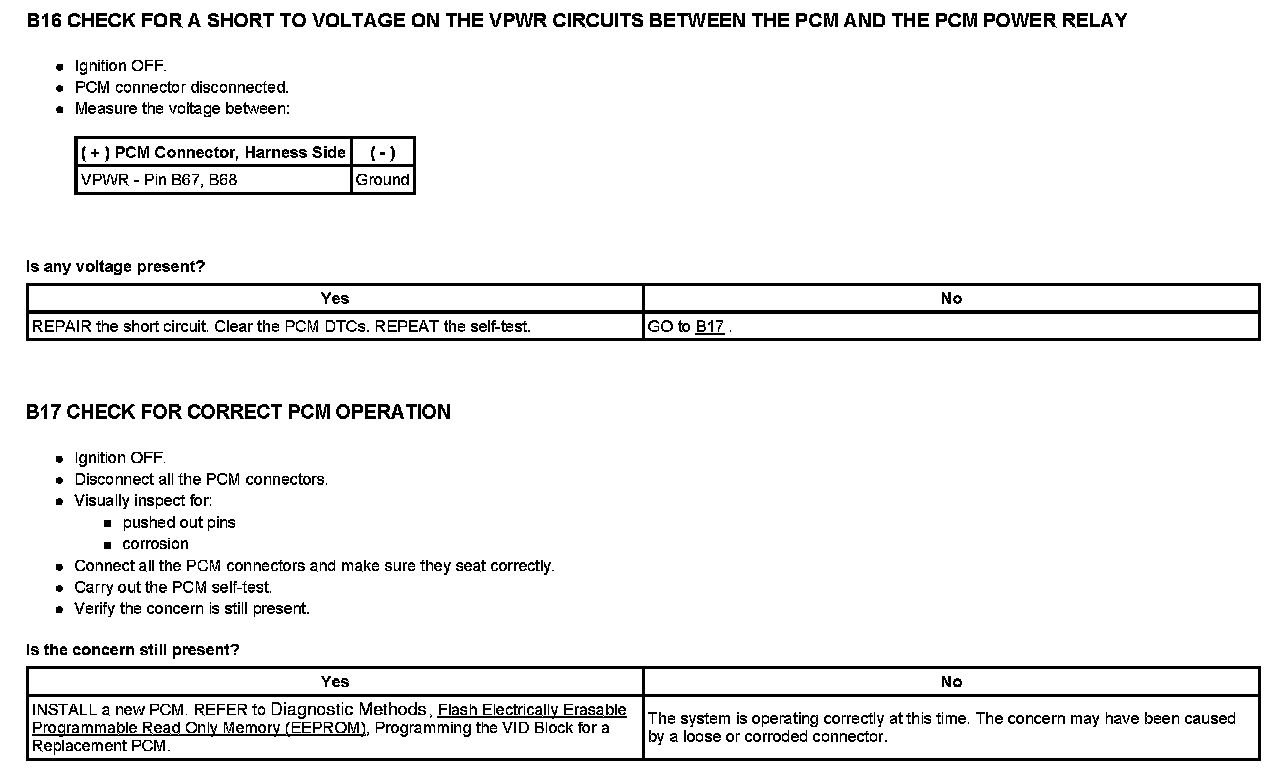

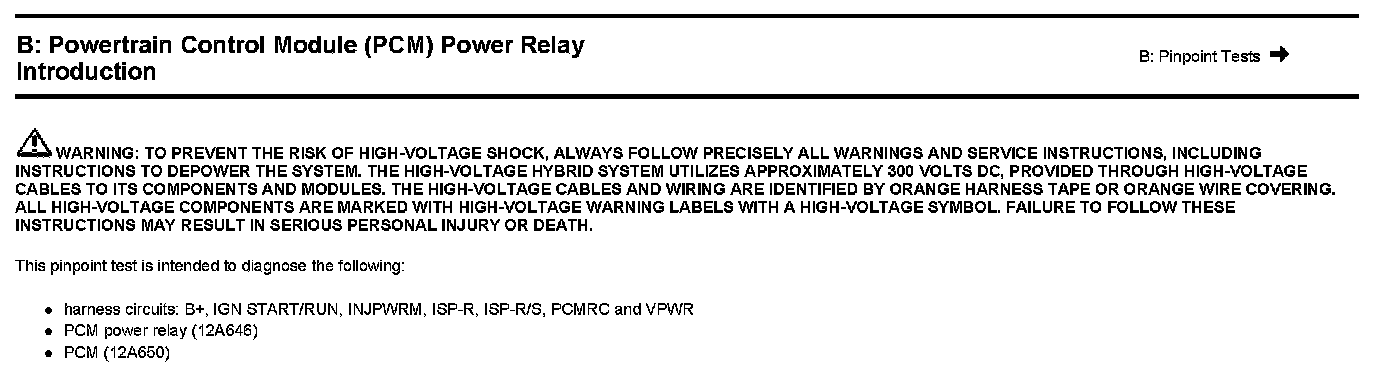

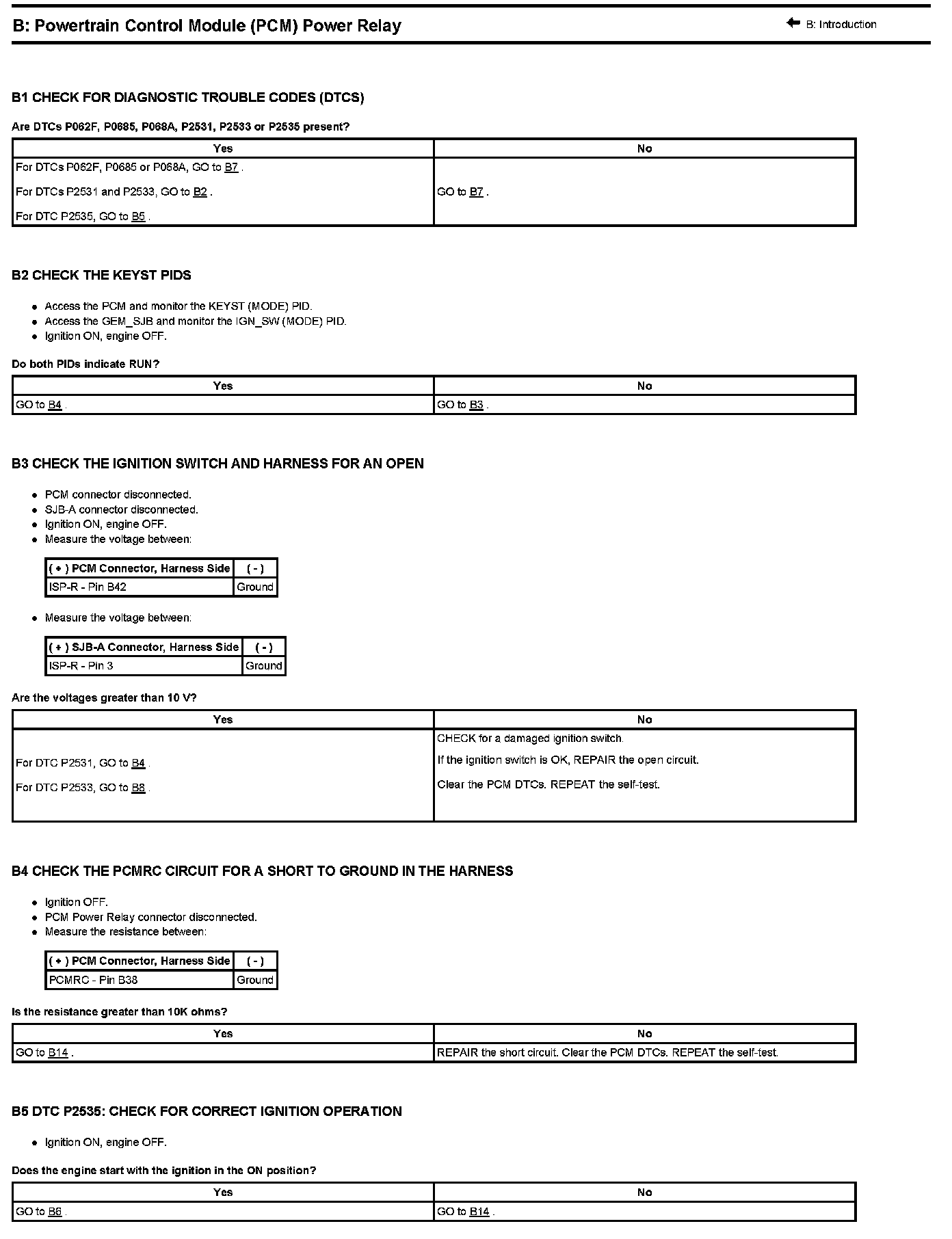

B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY







Fuel Injector Connector

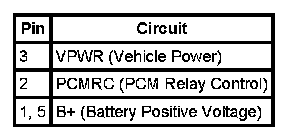

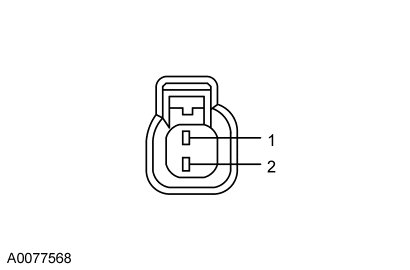

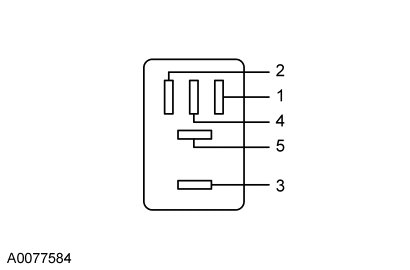

Powertrain Control Module Power (PCM Power) Relay Connector












SJB-A Connector

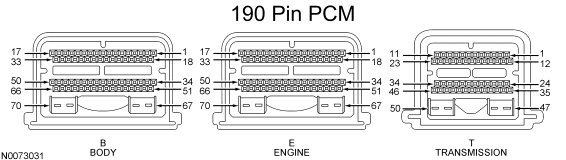

Powertrain Control Module (PCM) Connector
