Home >> Ford >> 2012 >> Escape 4WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> C931 Interior/map Lamps Assembly, Front

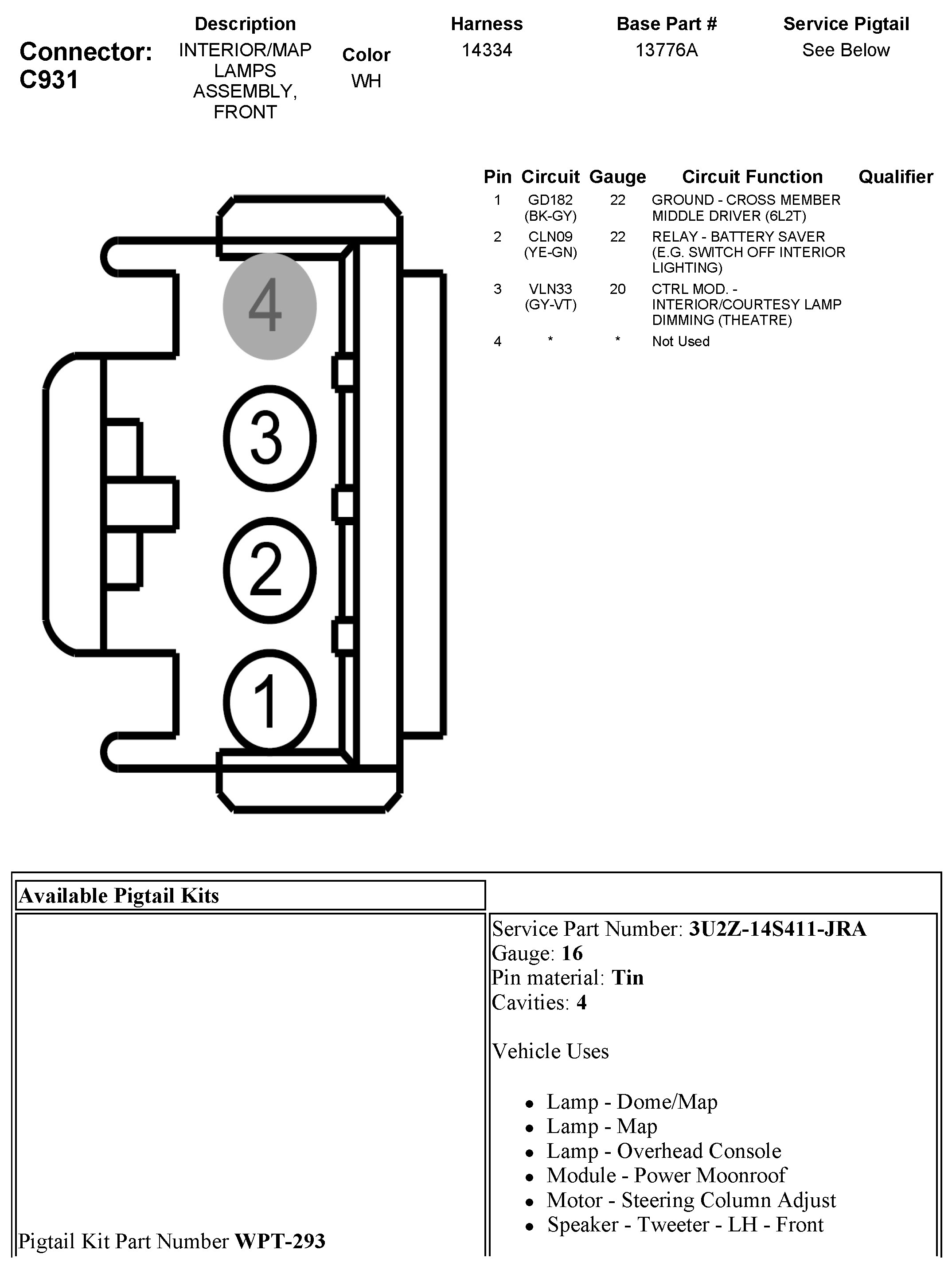

C931 Interior/map Lamps Assembly, Front
