Connectors
Connectors

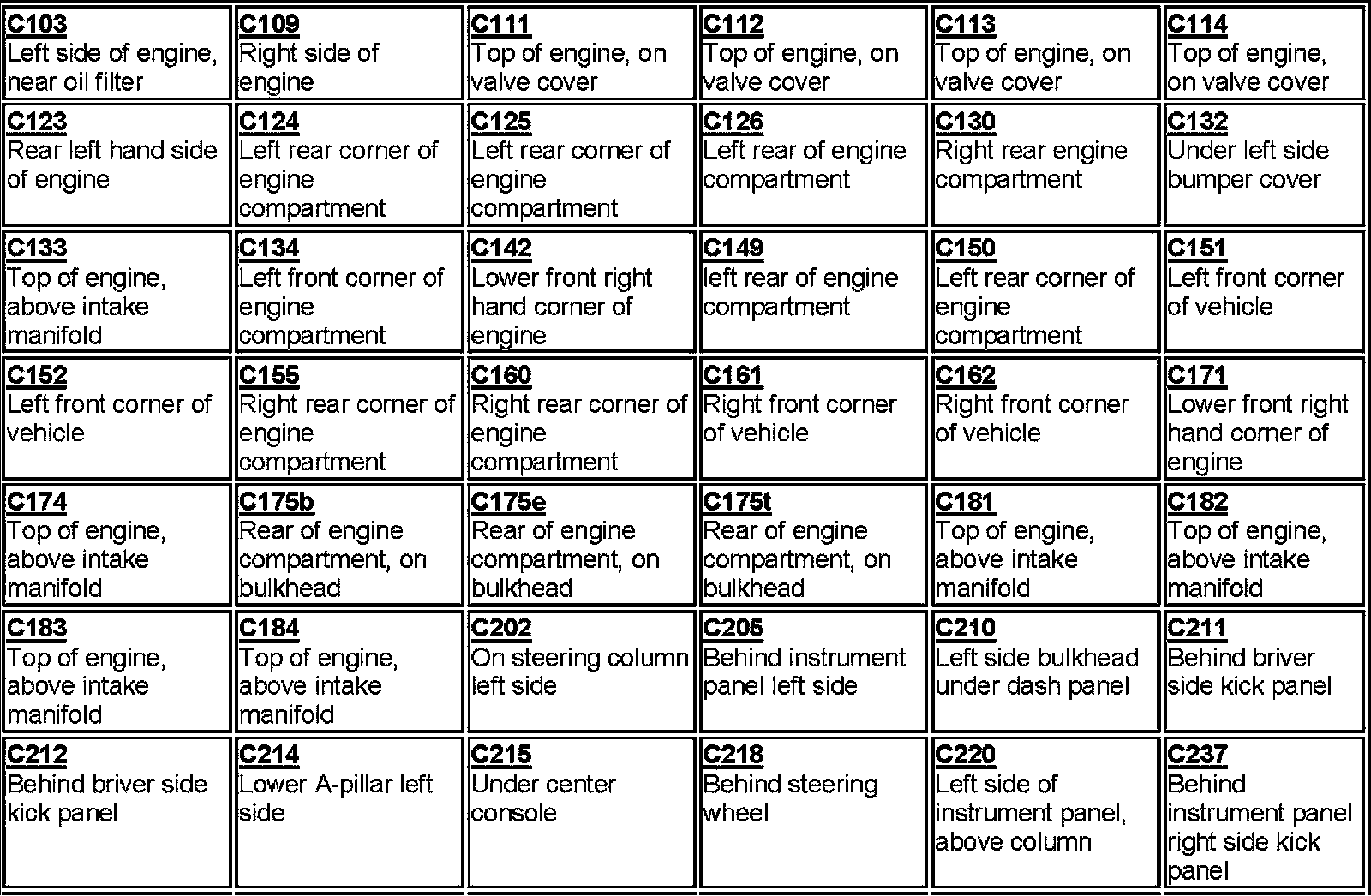

C103-C237:

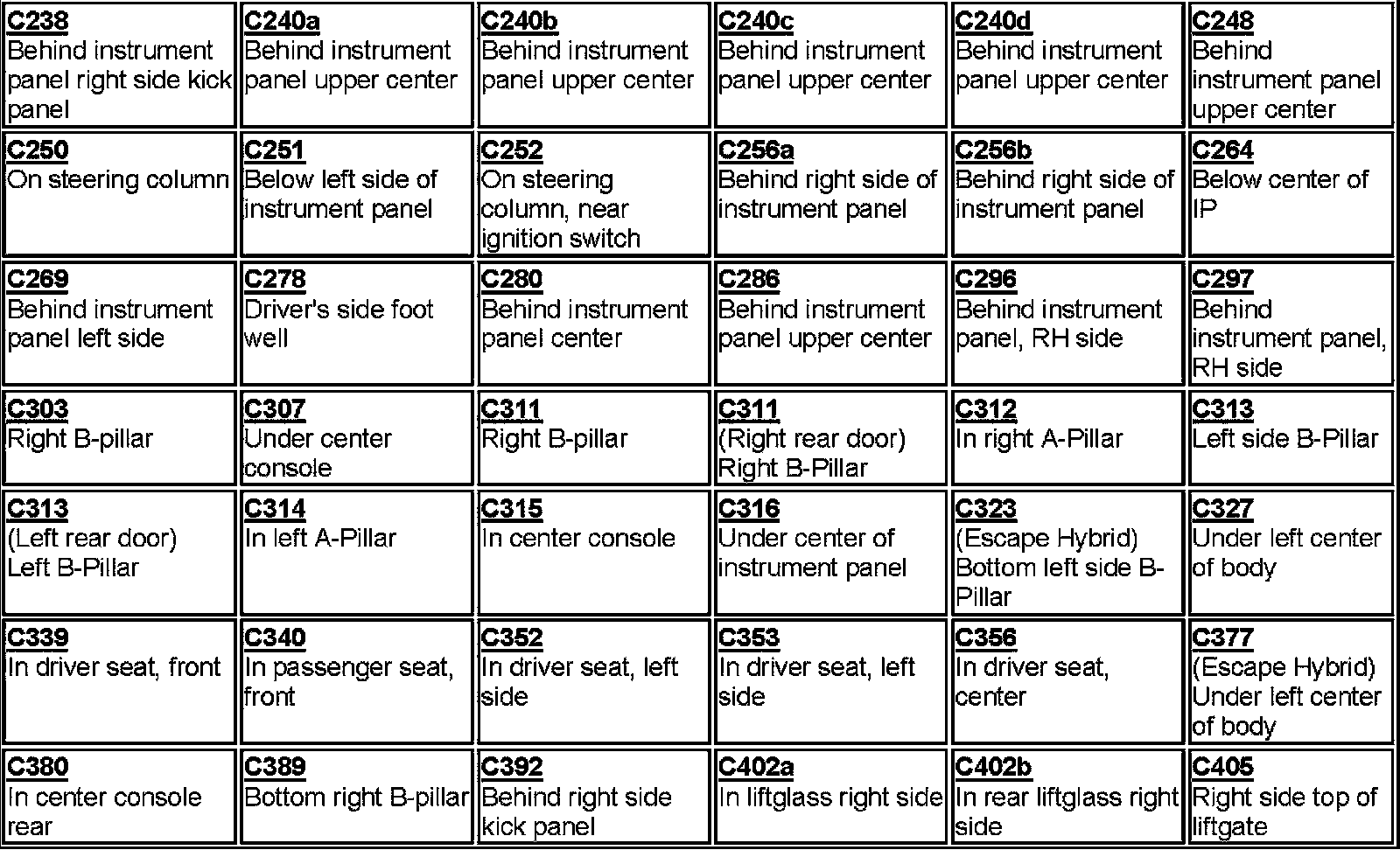

C238-C405:

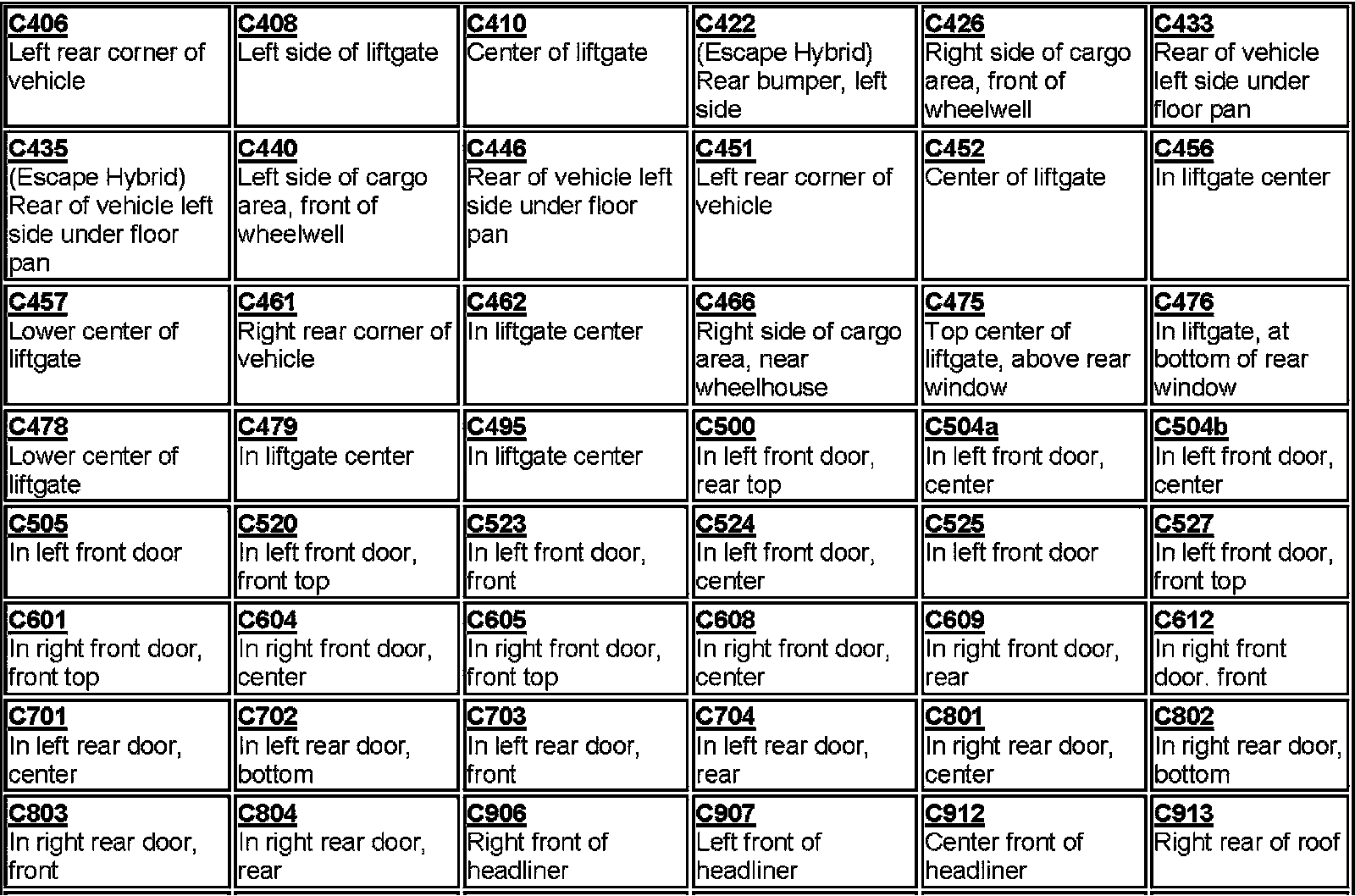

C406-C913:

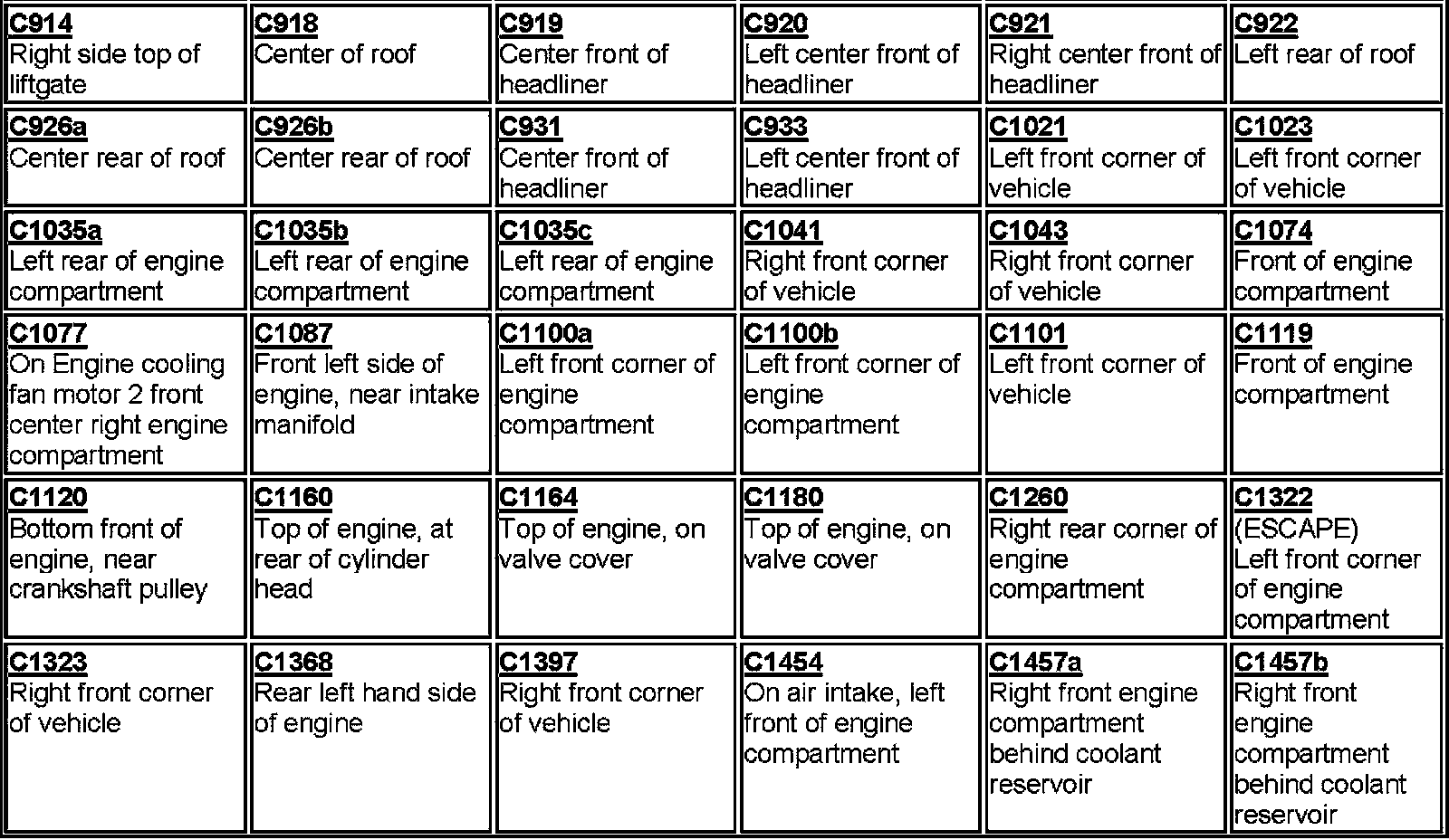

C914-C1457b:
C1457c-C2280e:

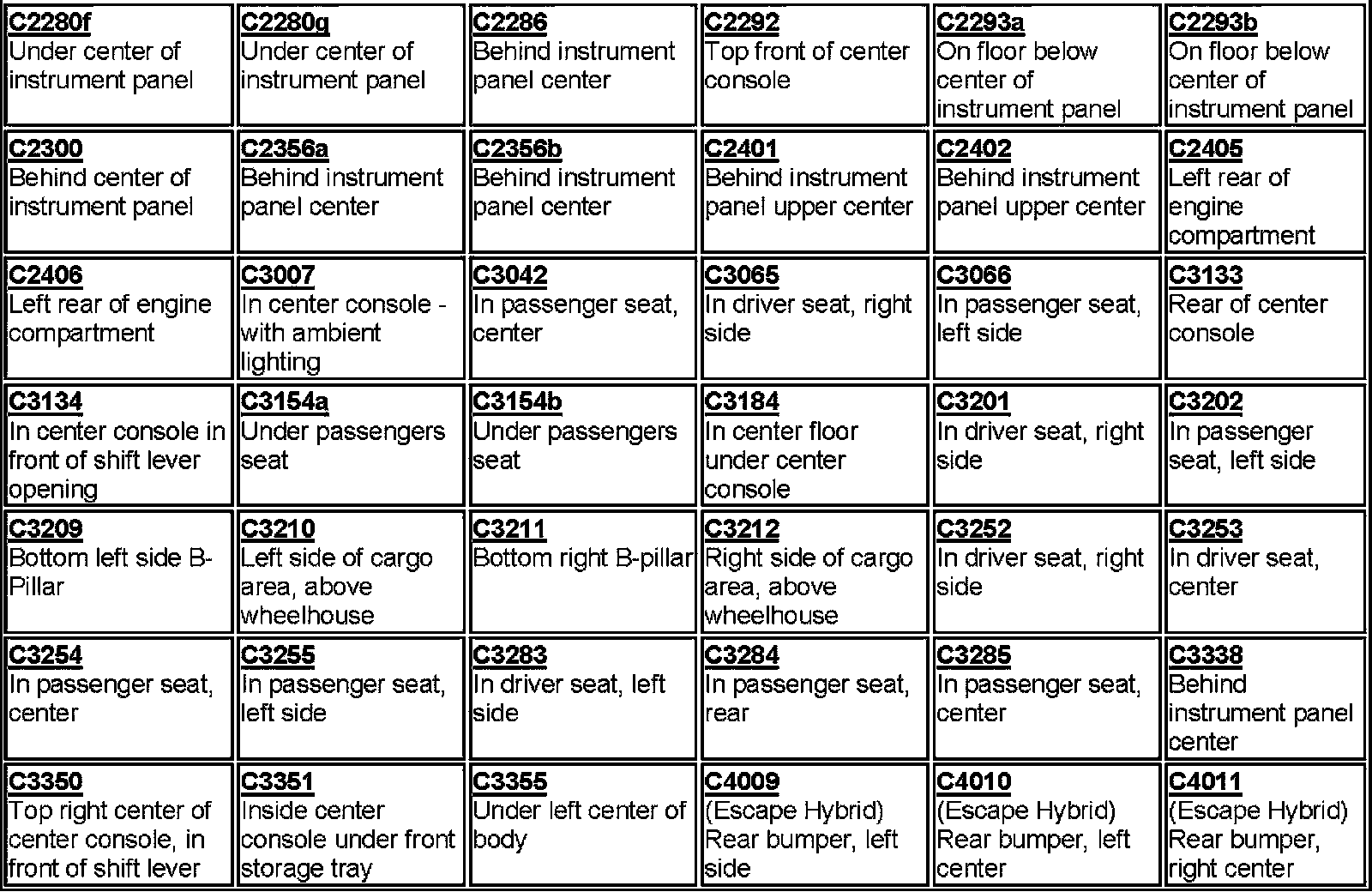

C2280f-C4011:

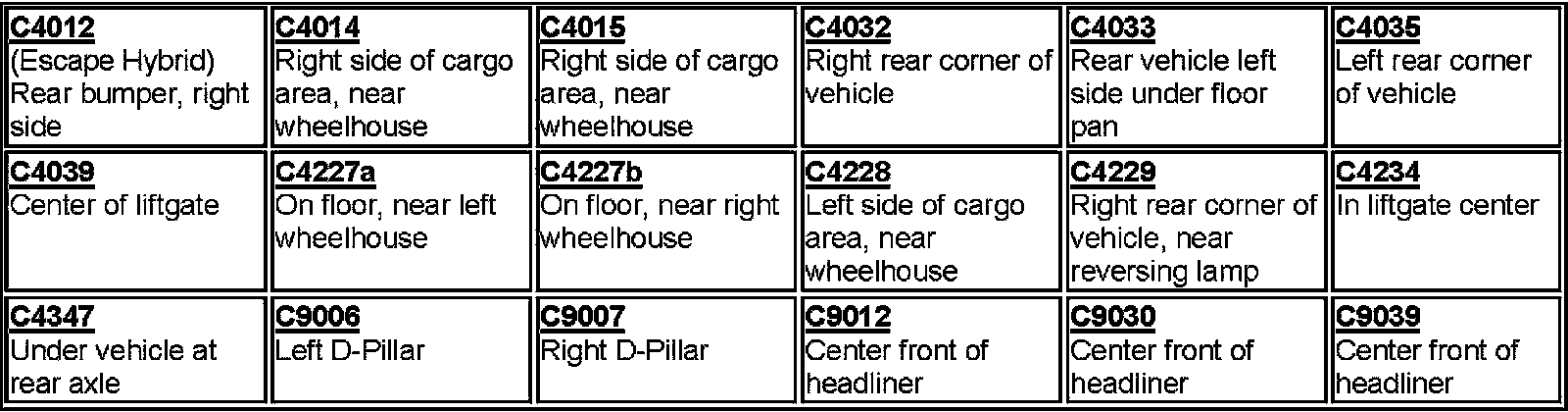

C4012-C9039:
