Exterior
Mirrors

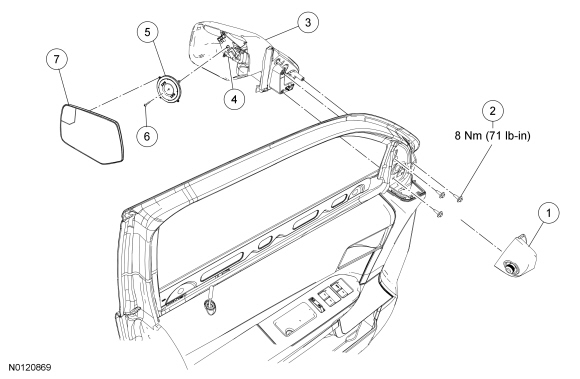

- Exploded View
Exterior Mirror And Fasteners
NOTE:
LH side shown, RH side similar.
