Home
>>
Ford
>>
2012
>>
Escape 4WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Location Views
>>

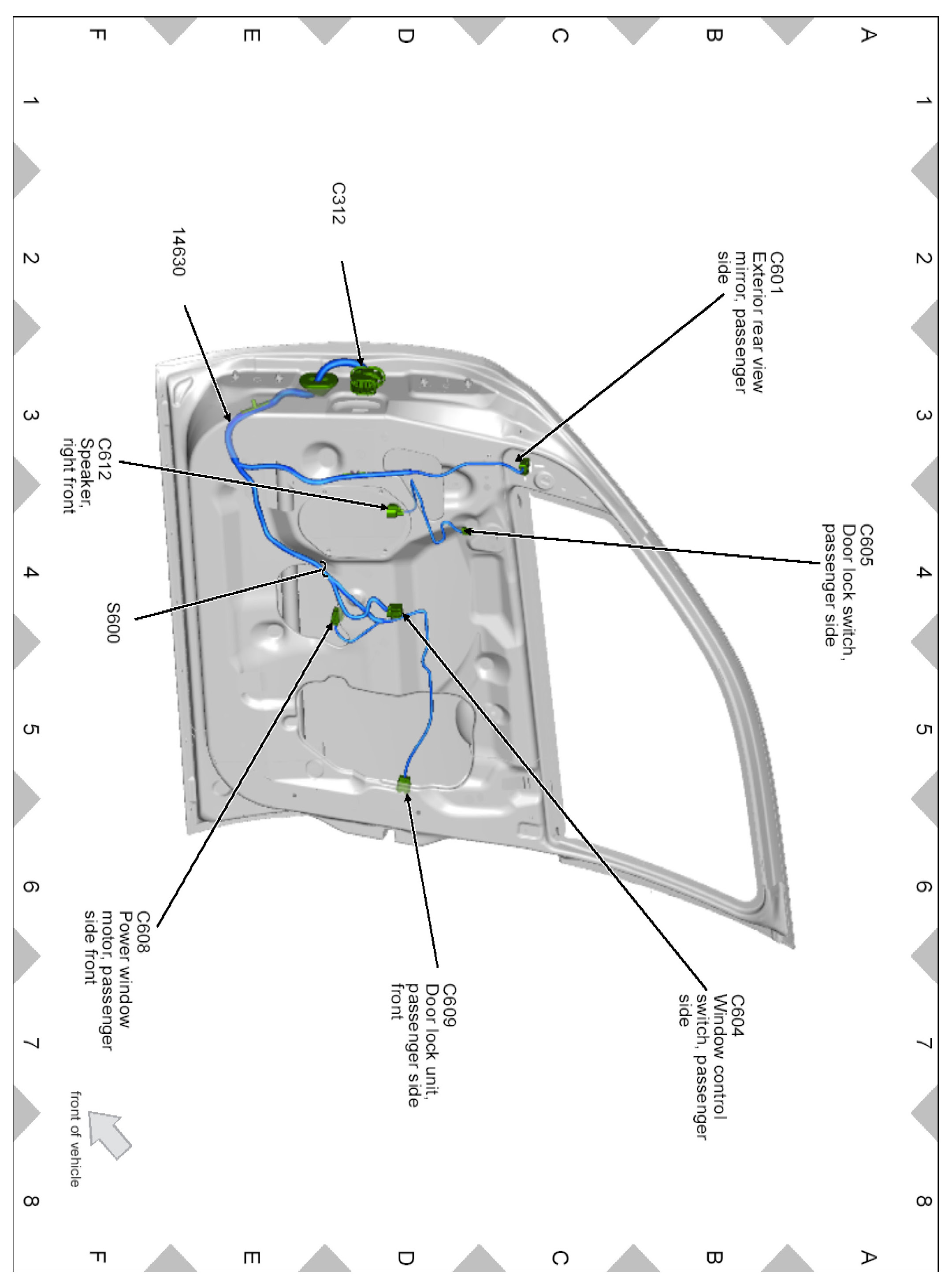

View 151-15 (Door, Passenger)
View 151-15 (Door, Passenger)
