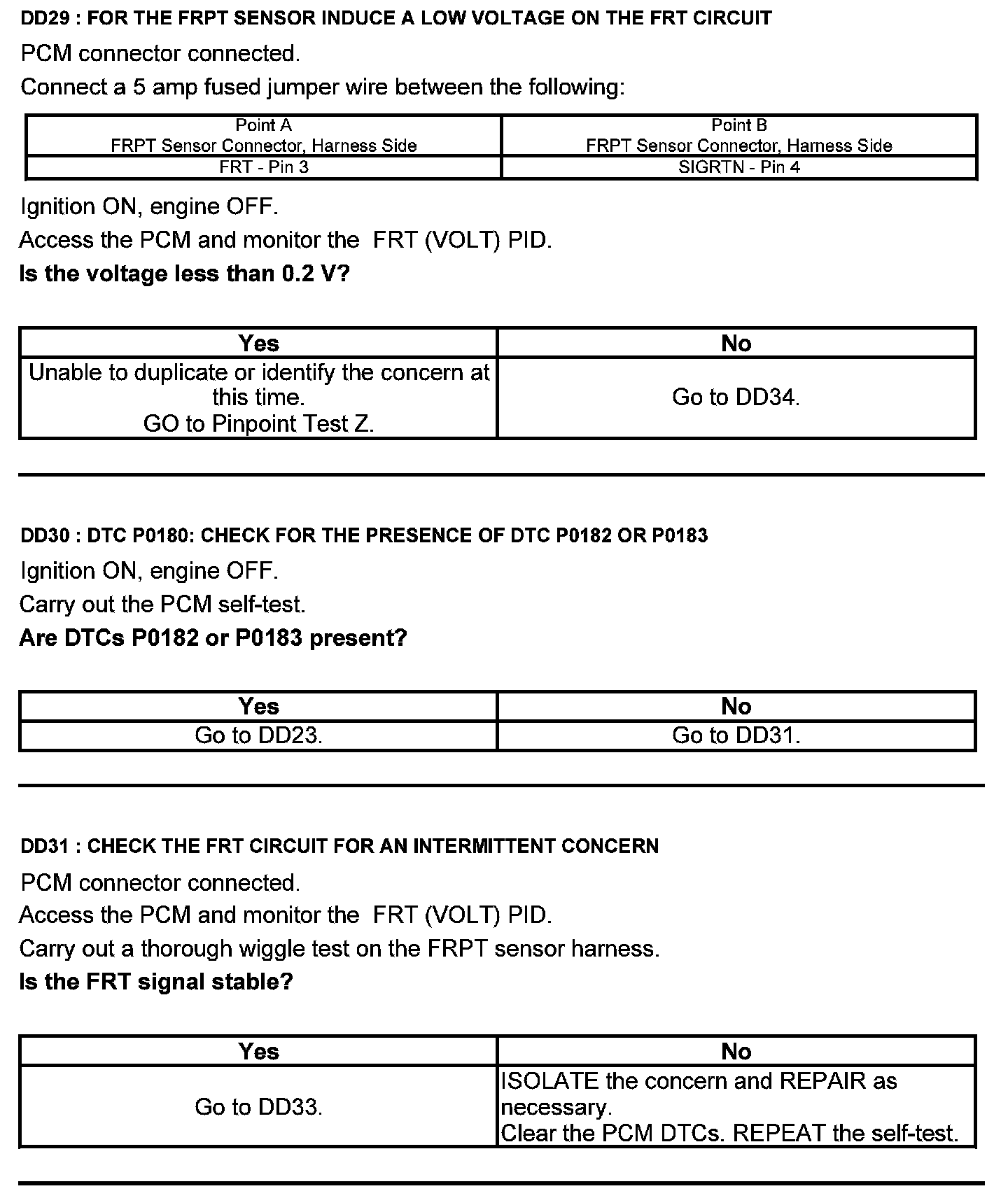

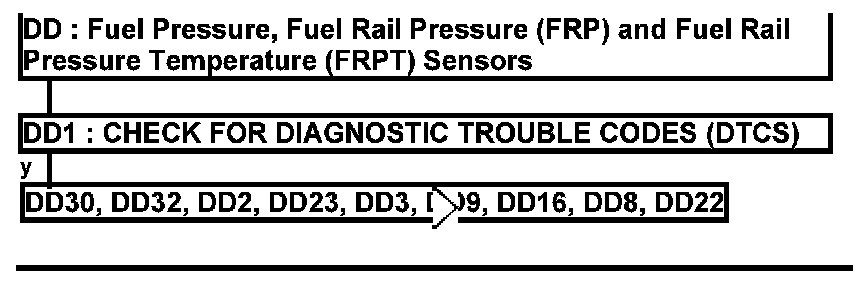

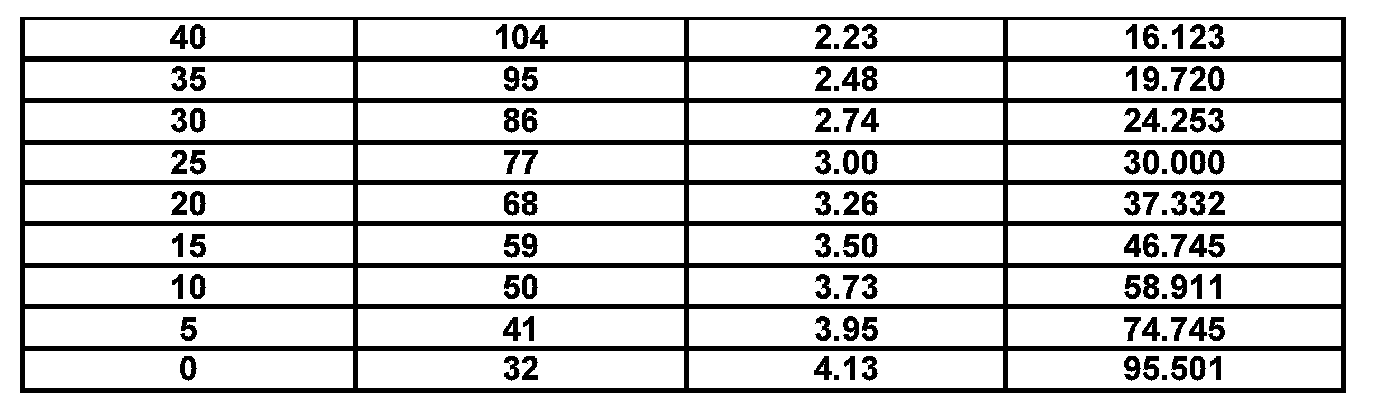

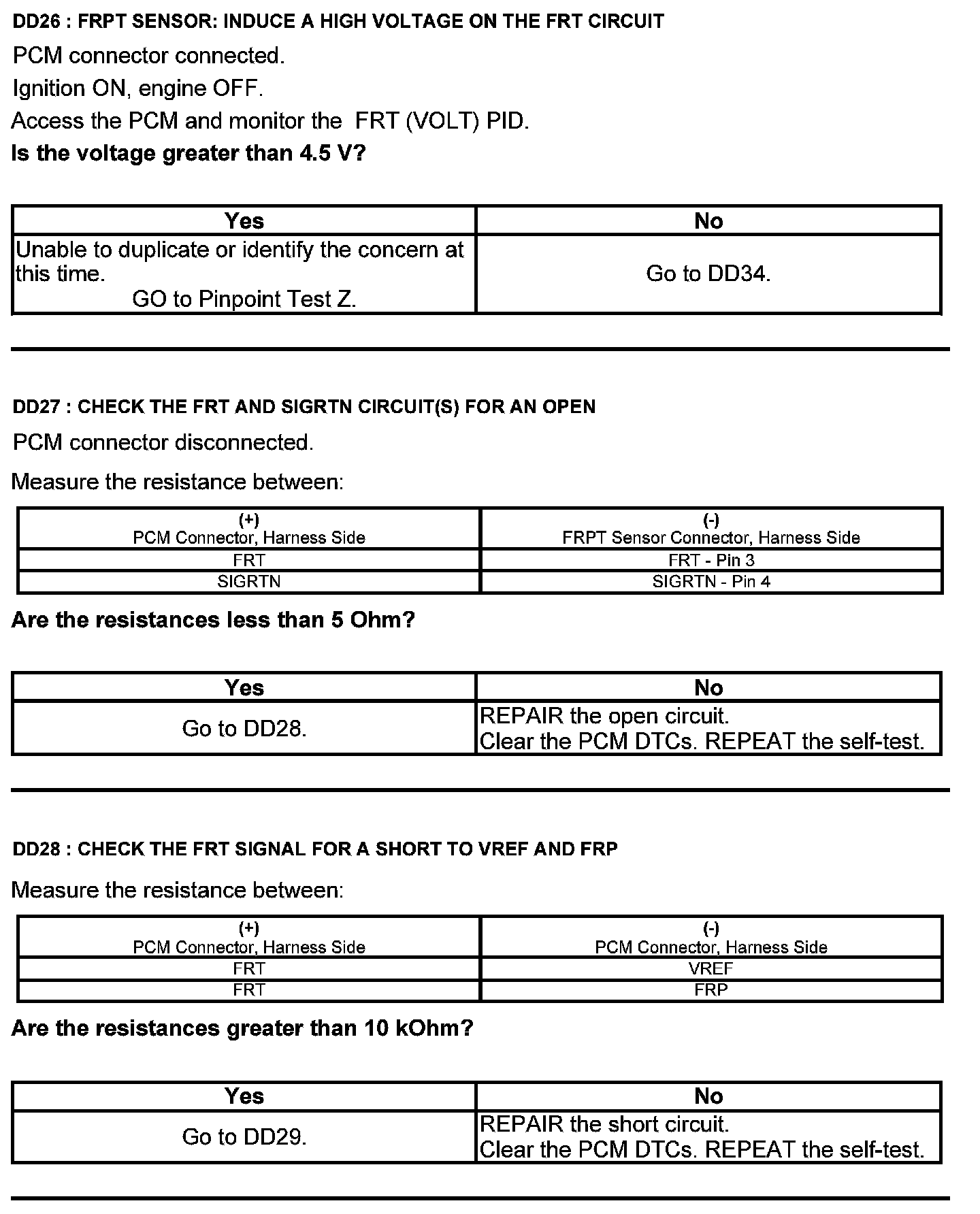

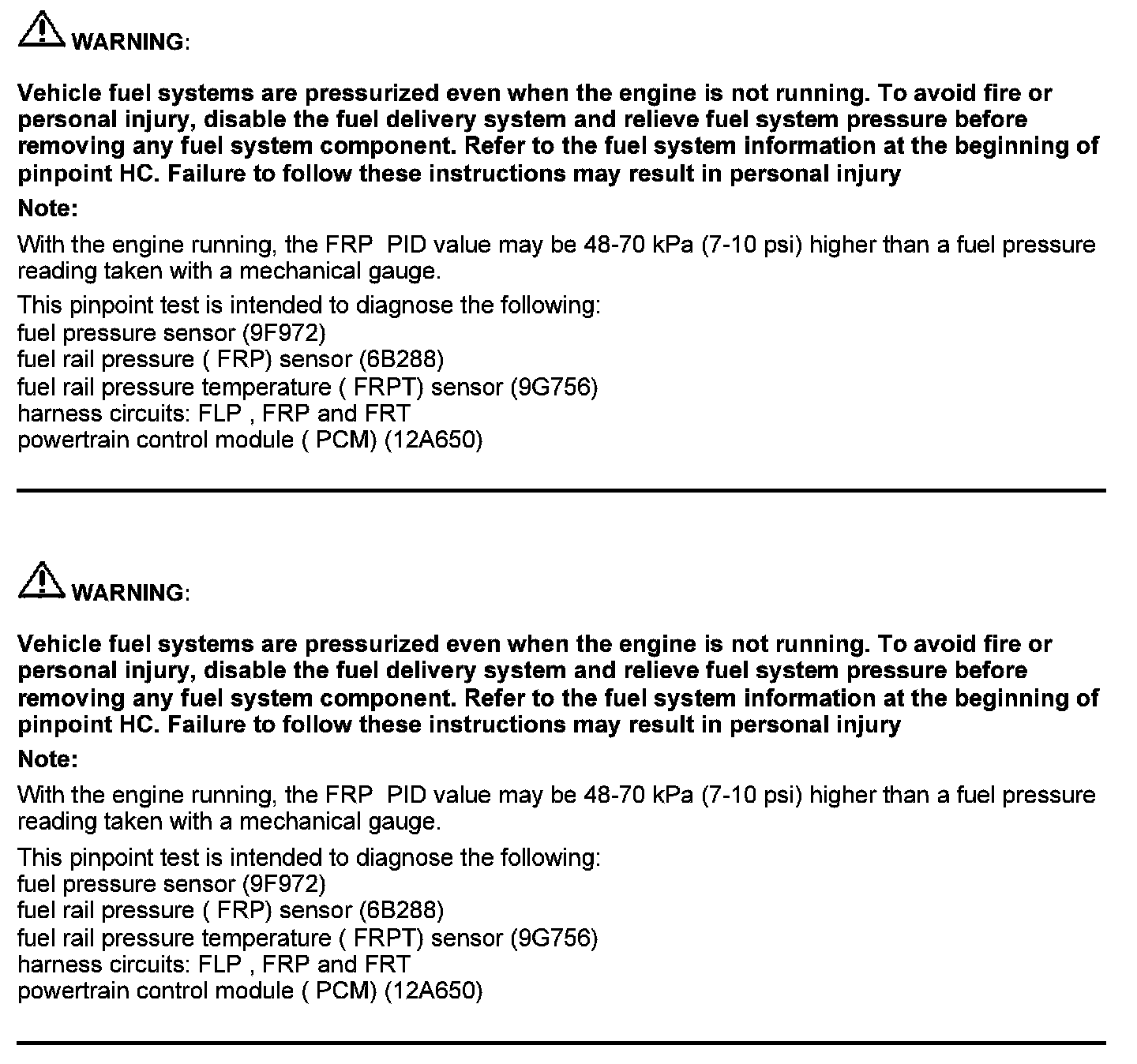

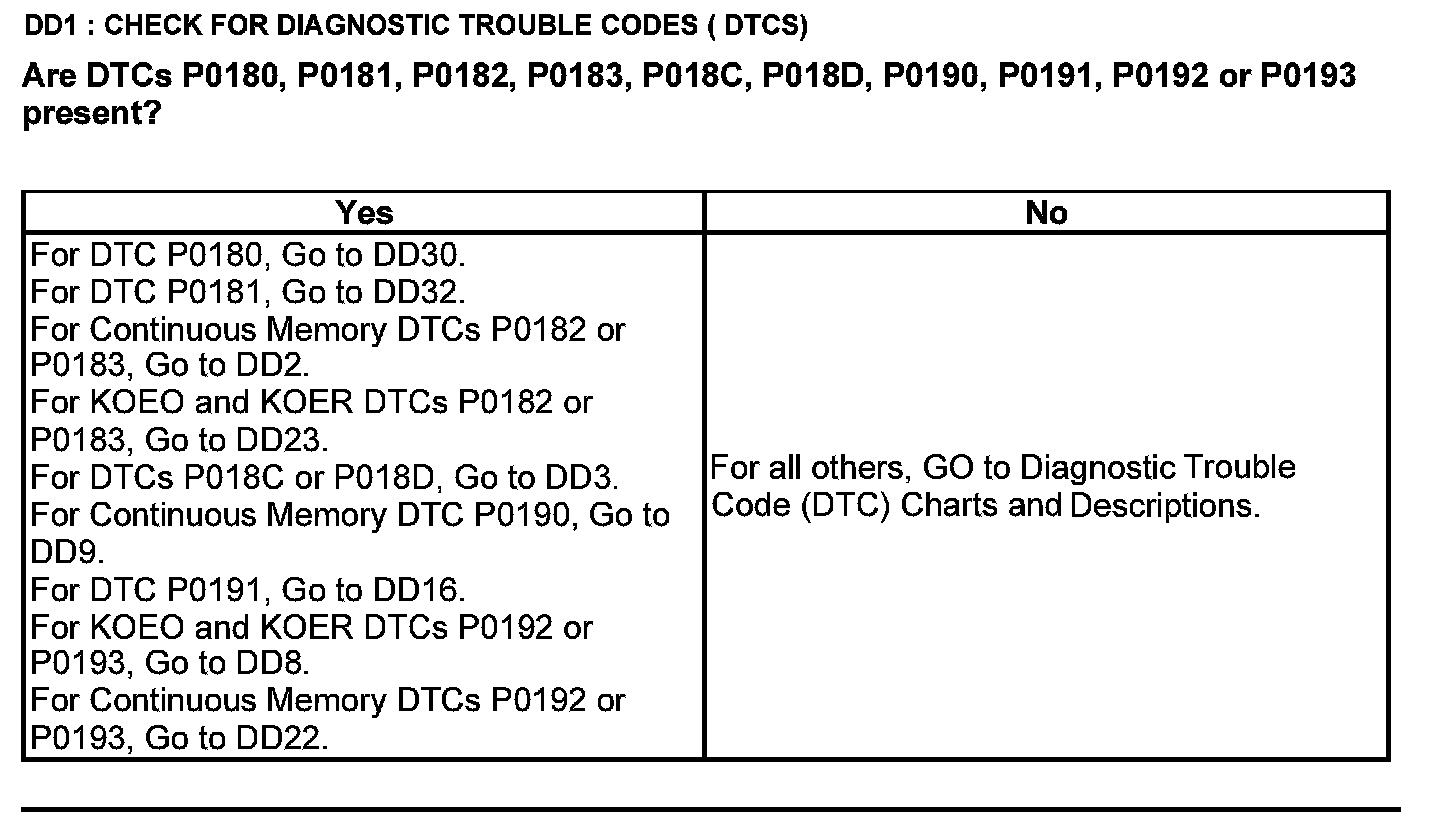

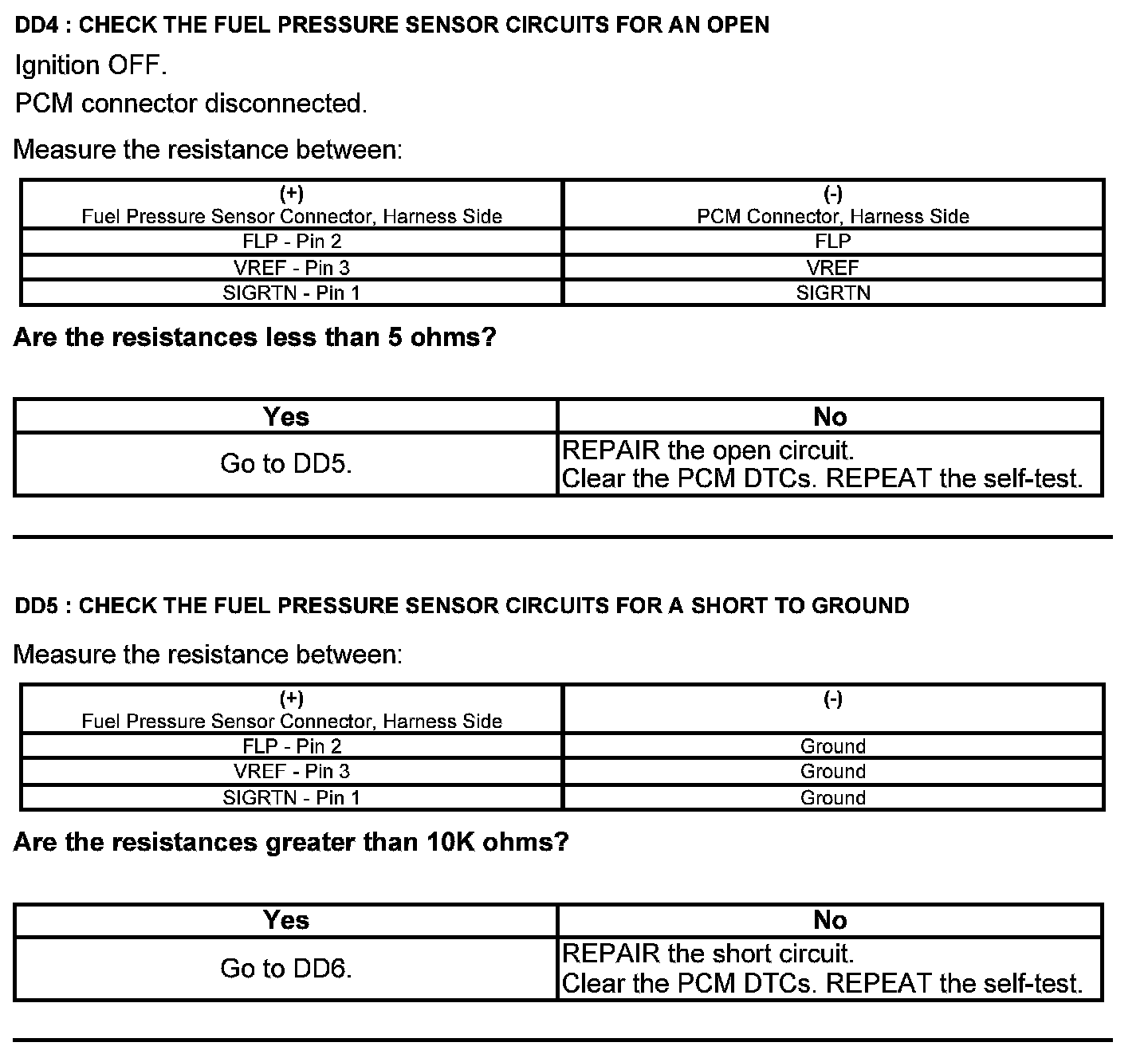

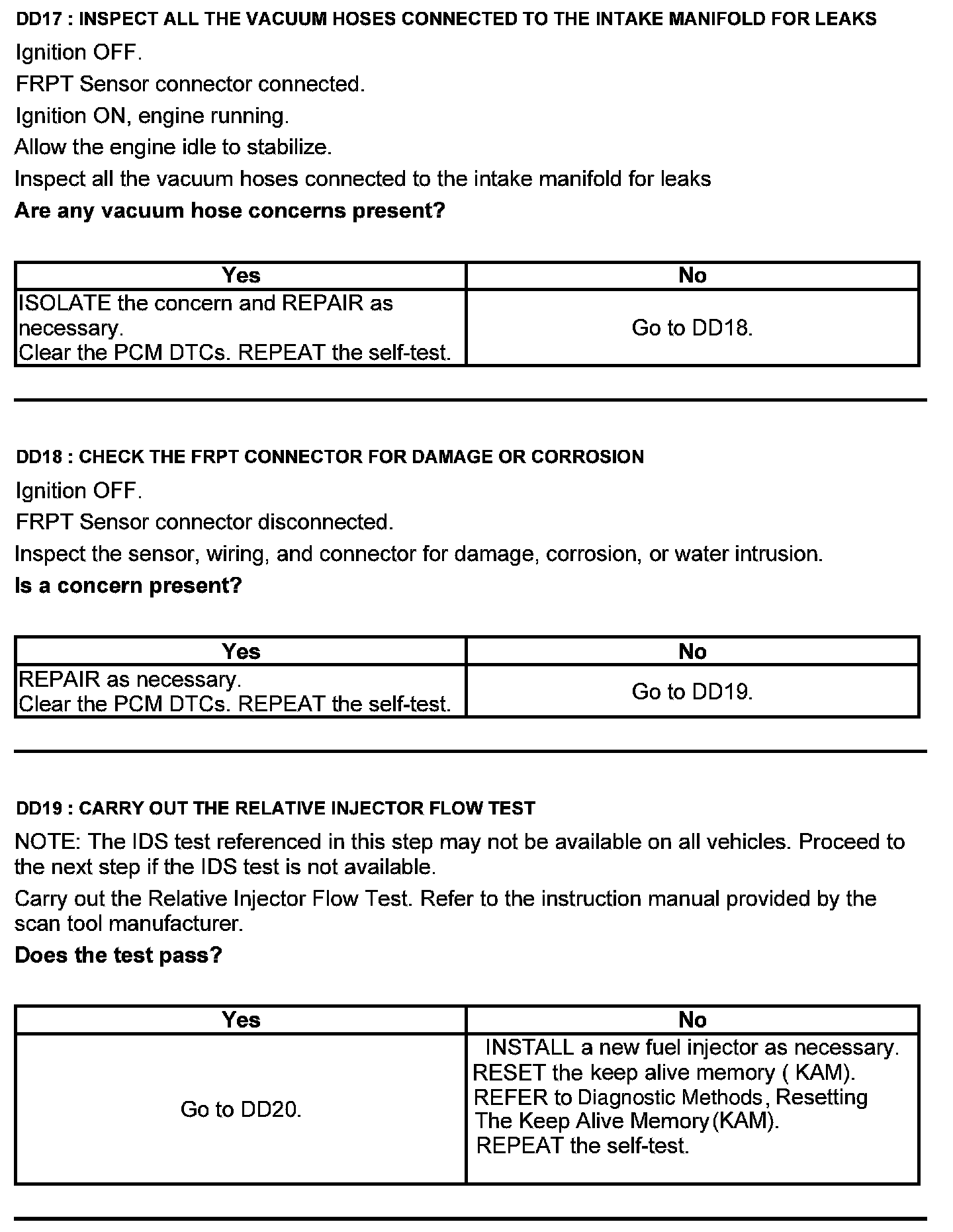

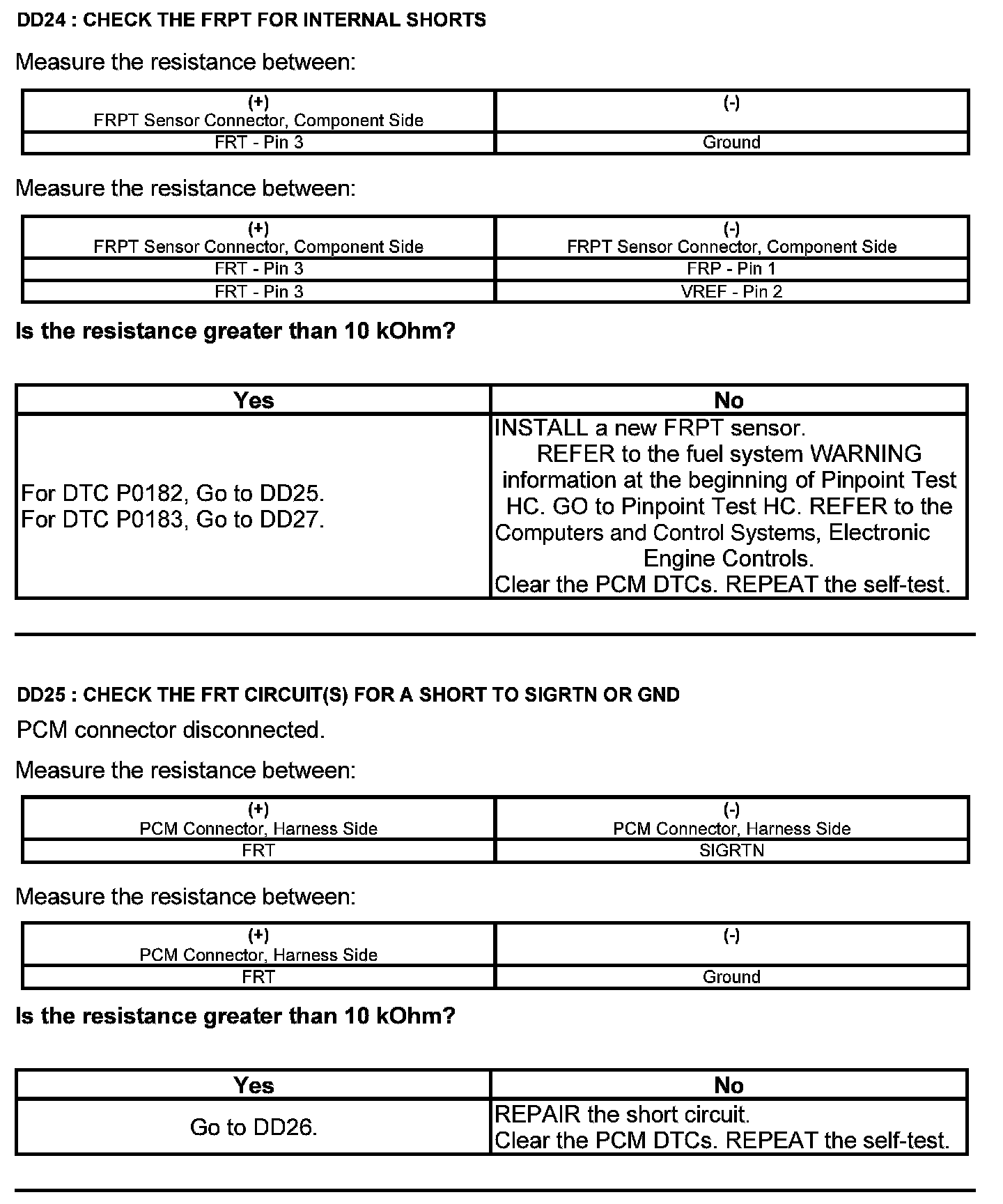

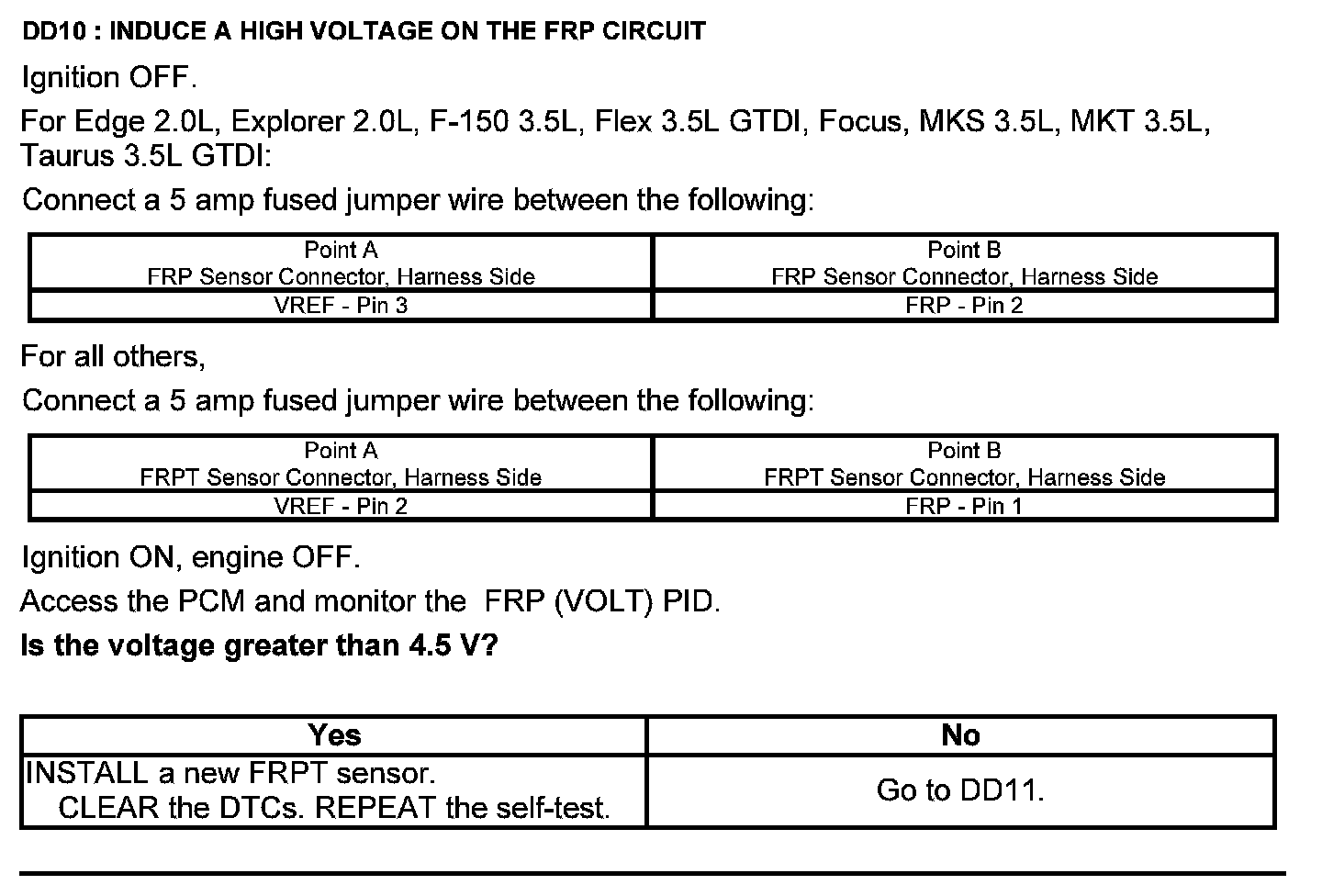

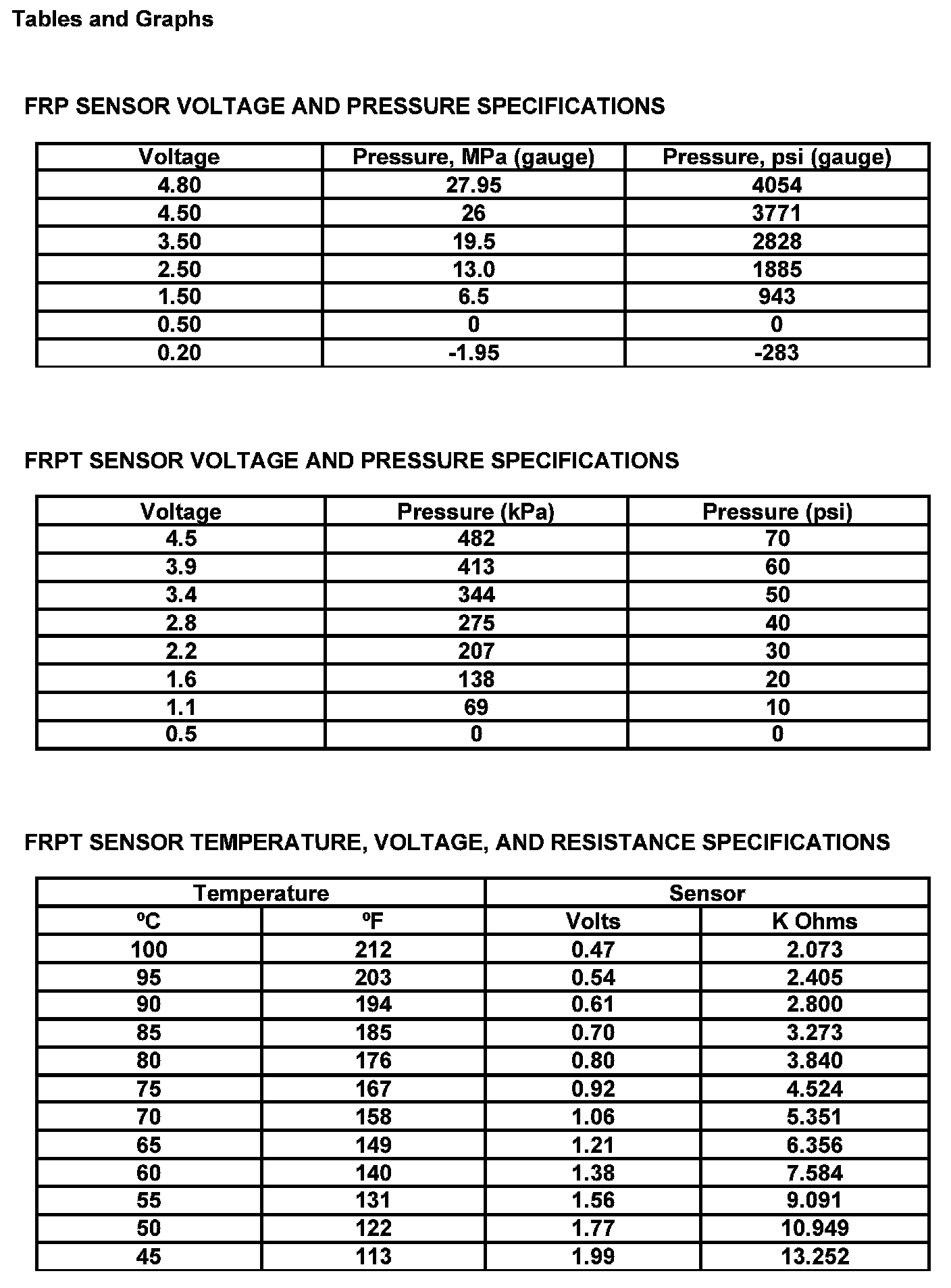

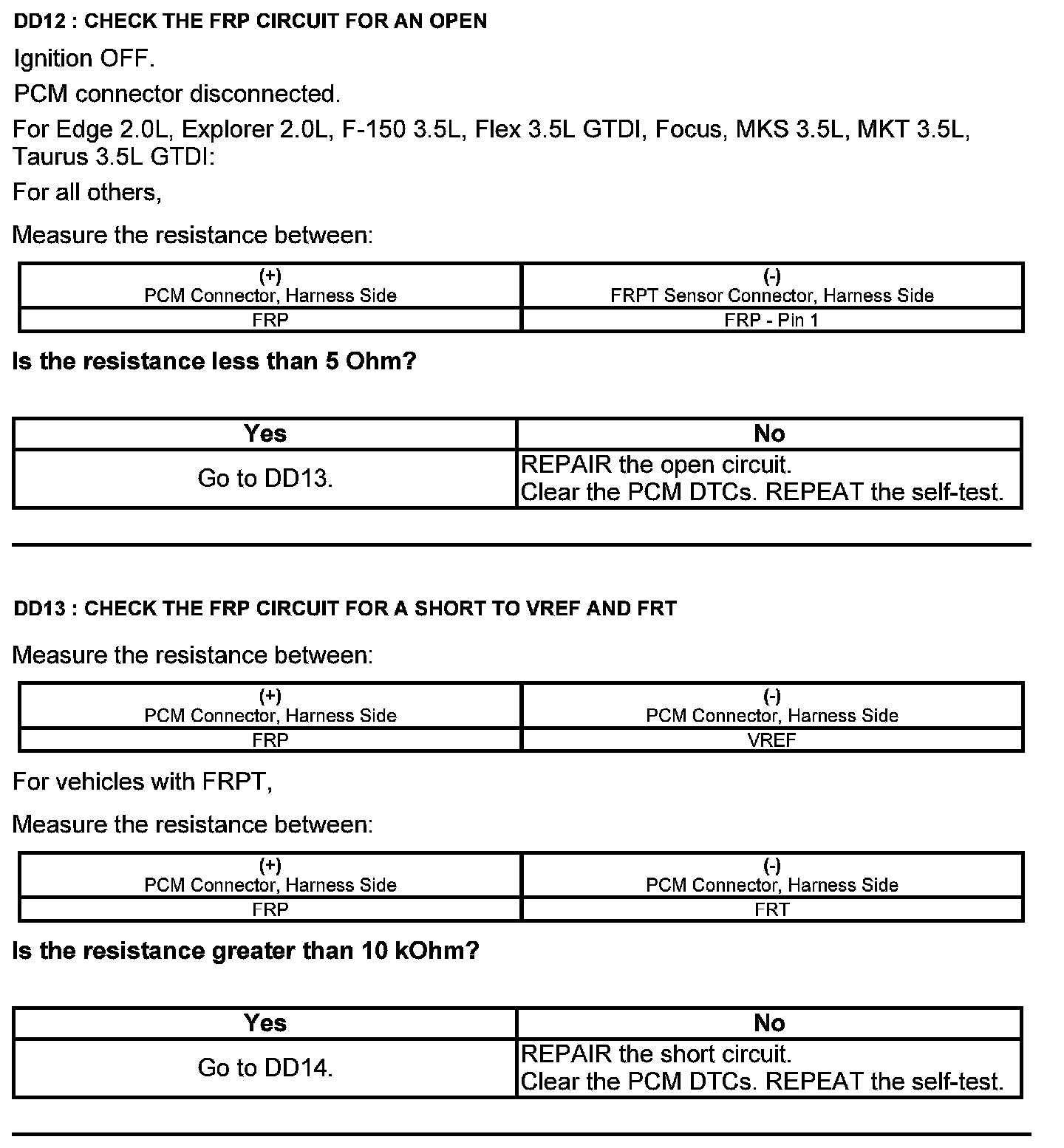

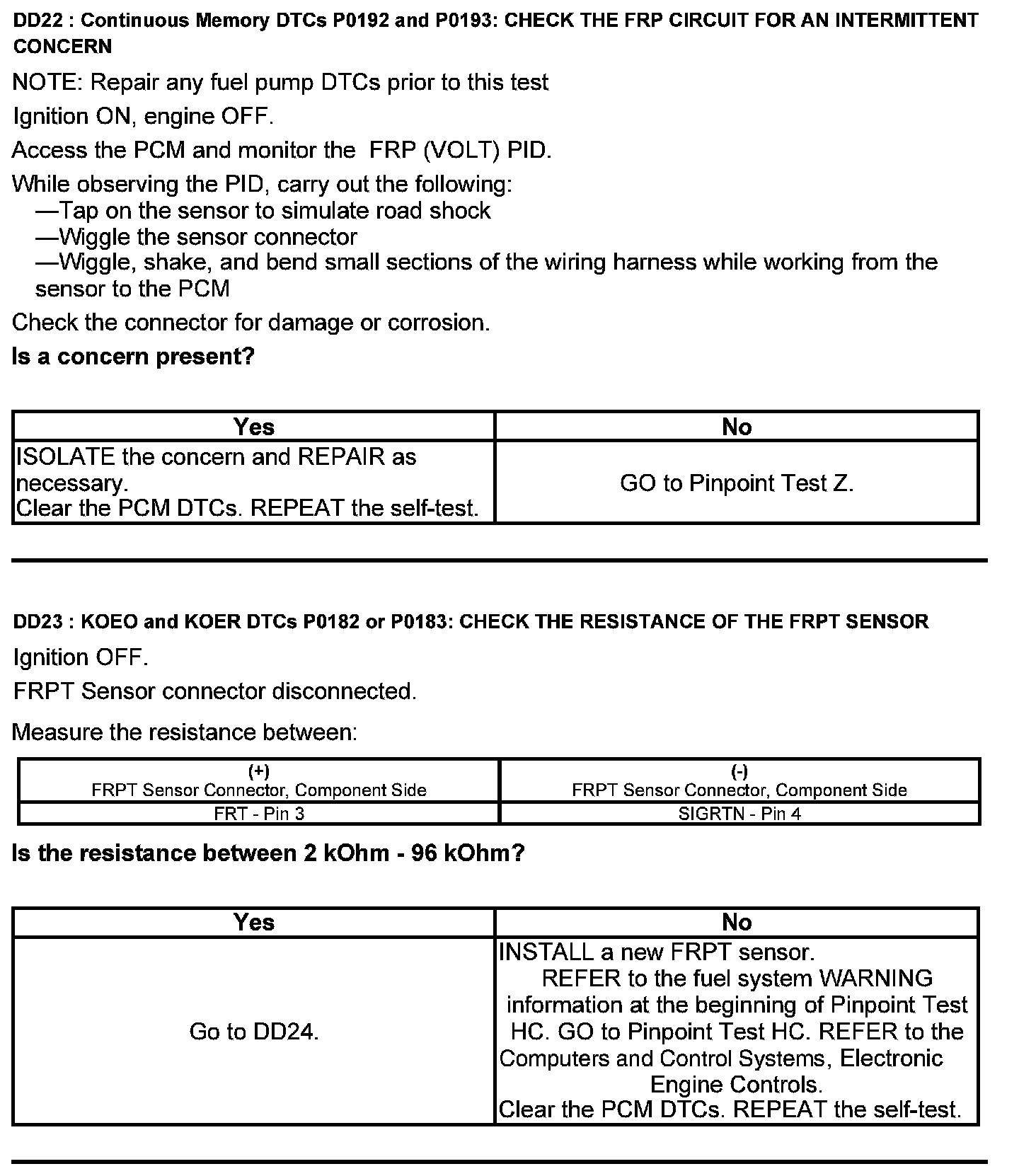

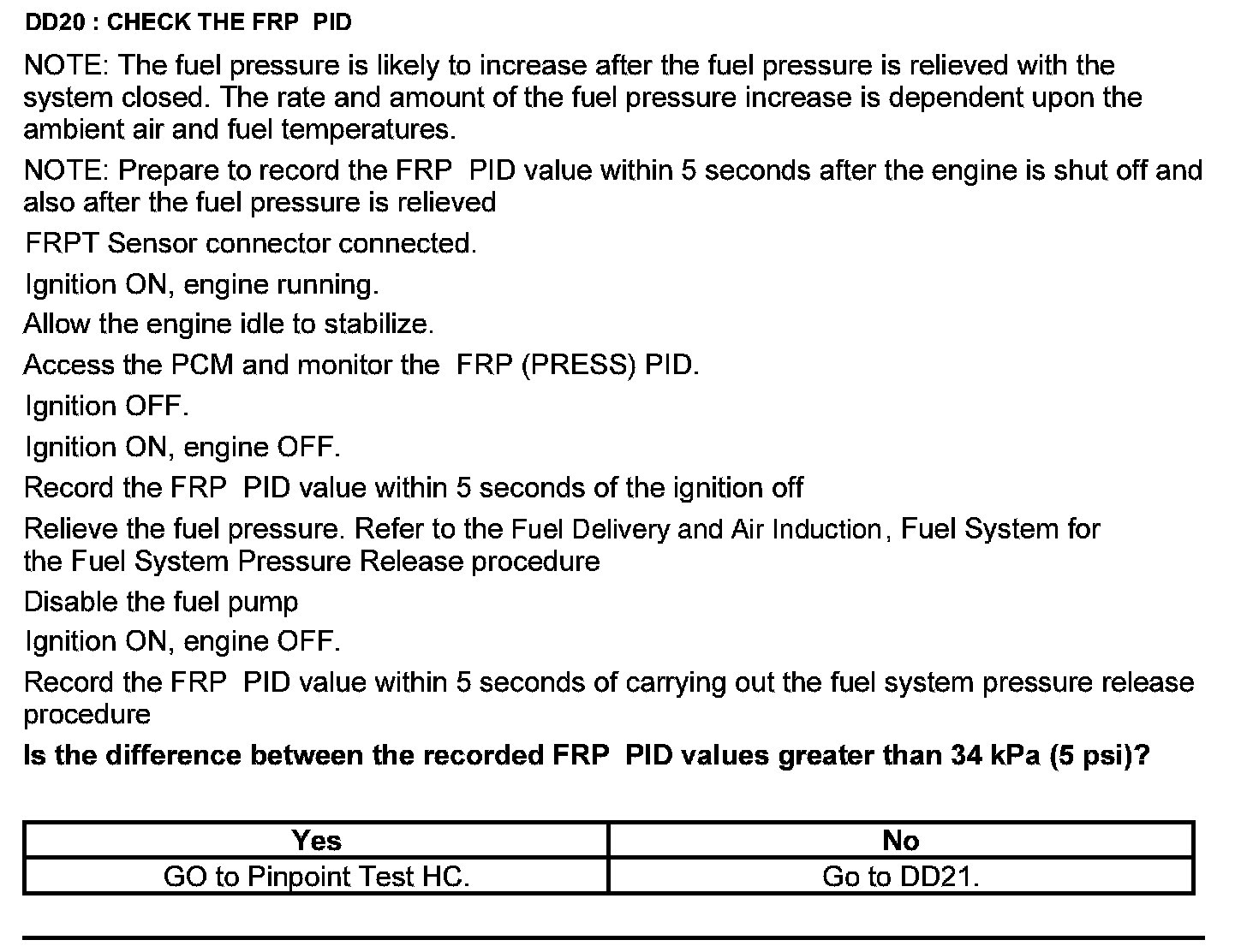

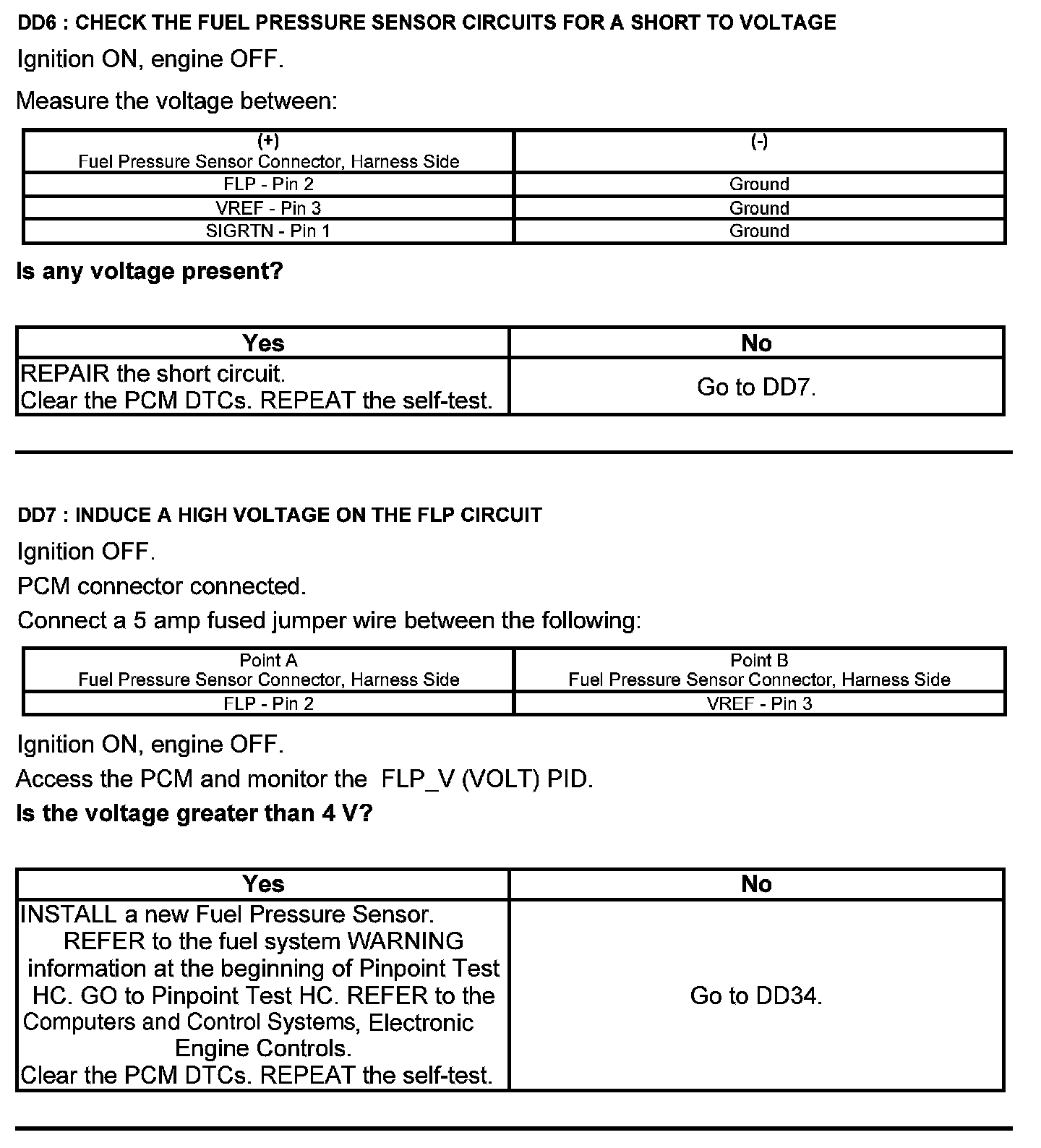

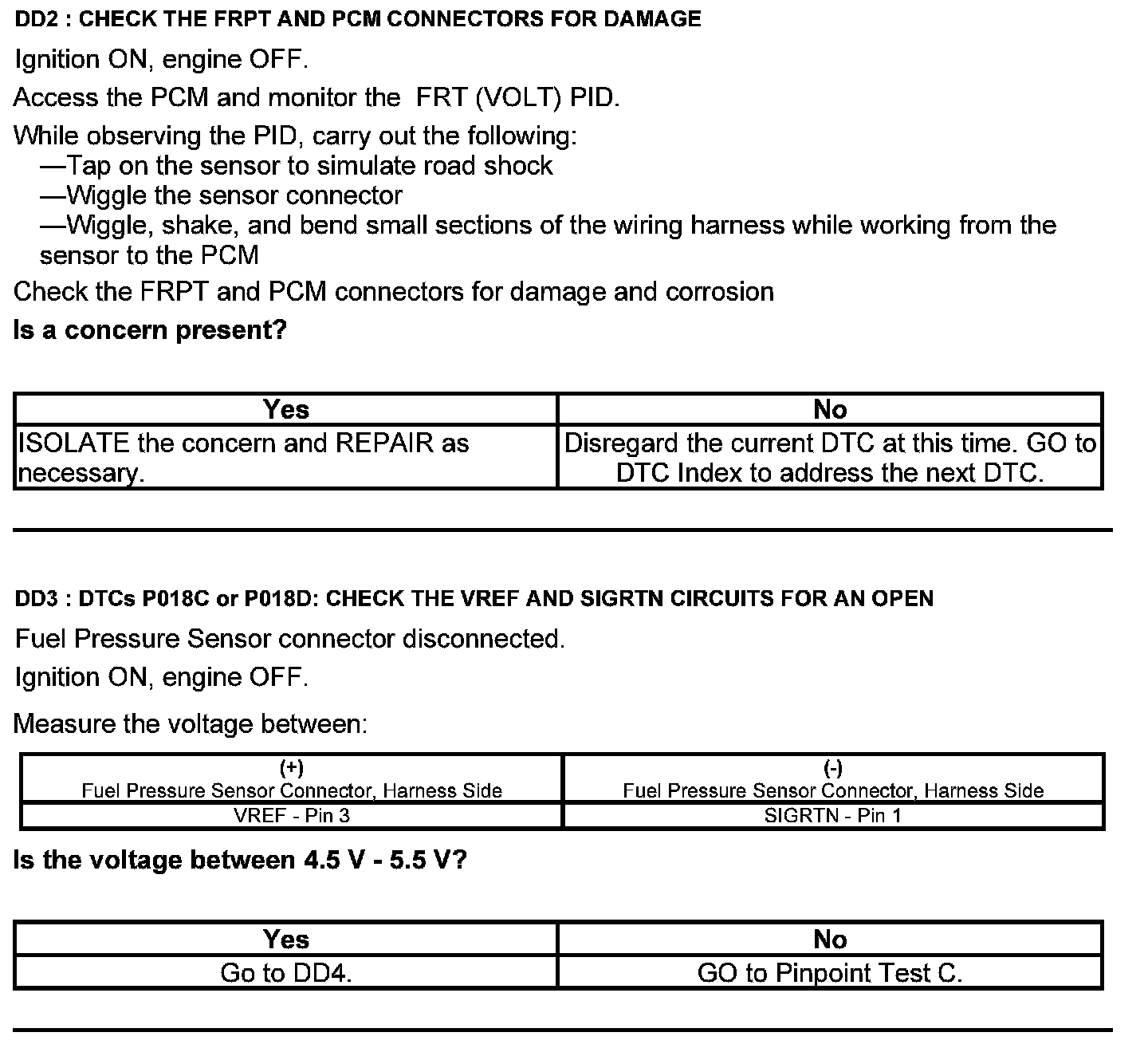

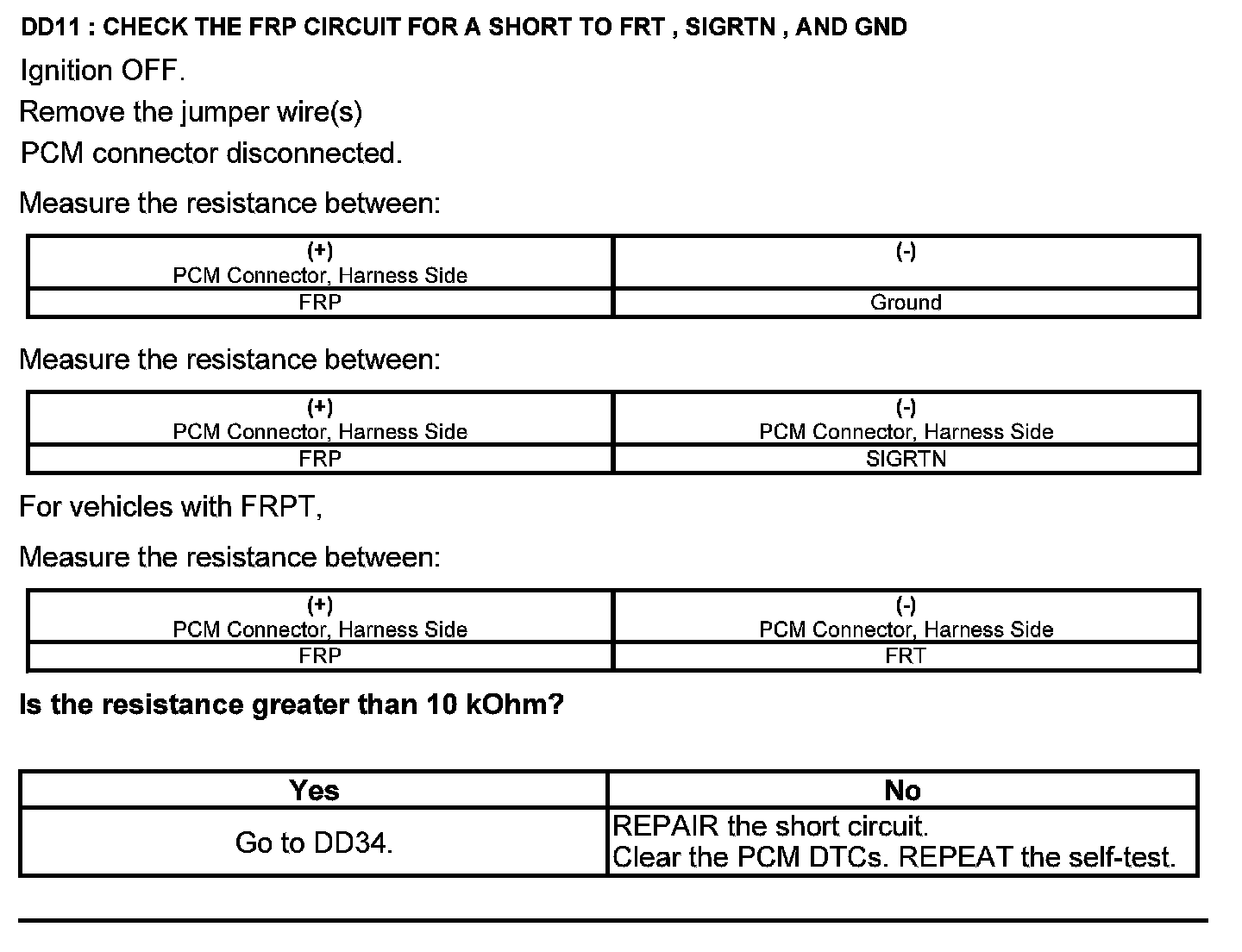

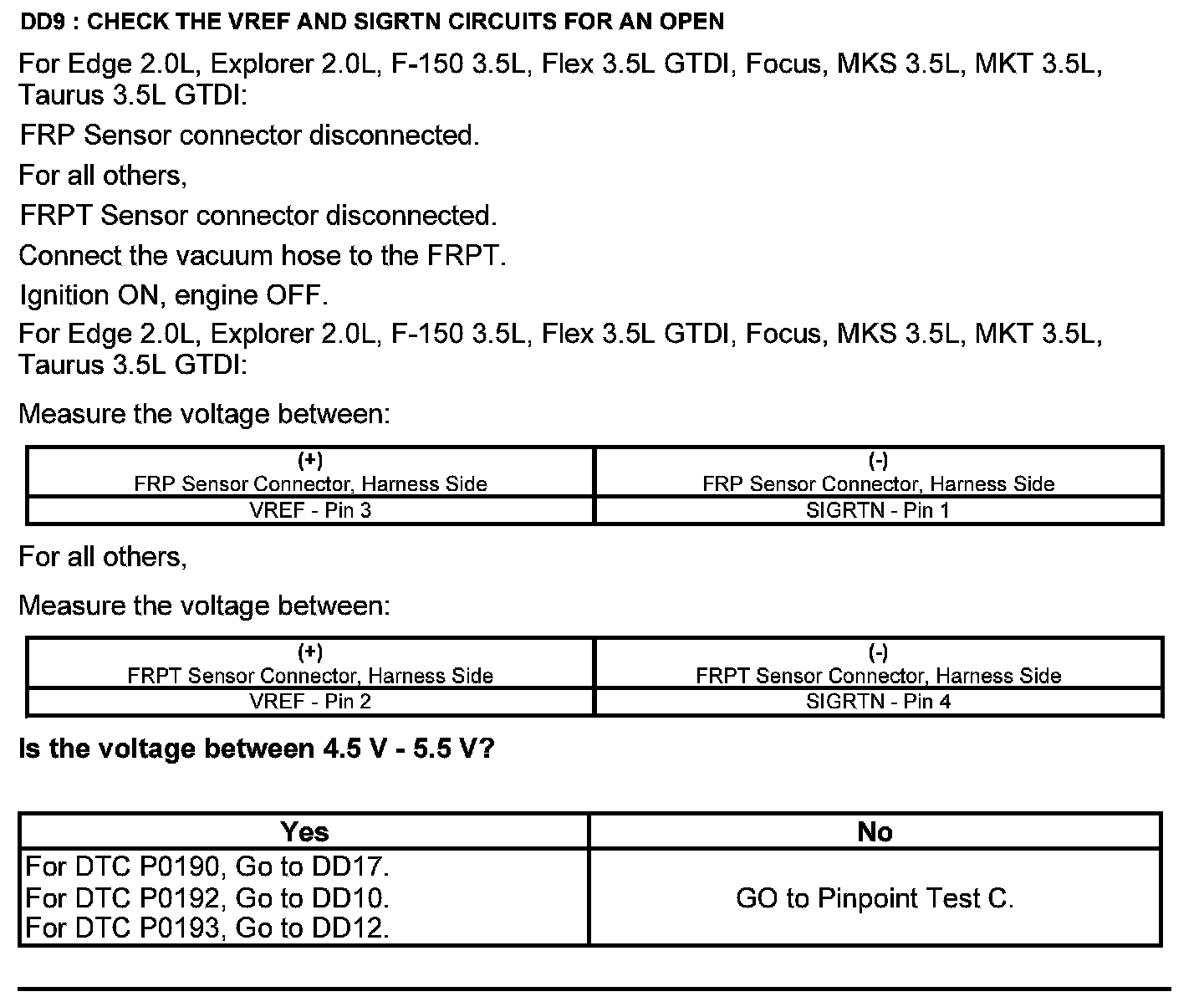

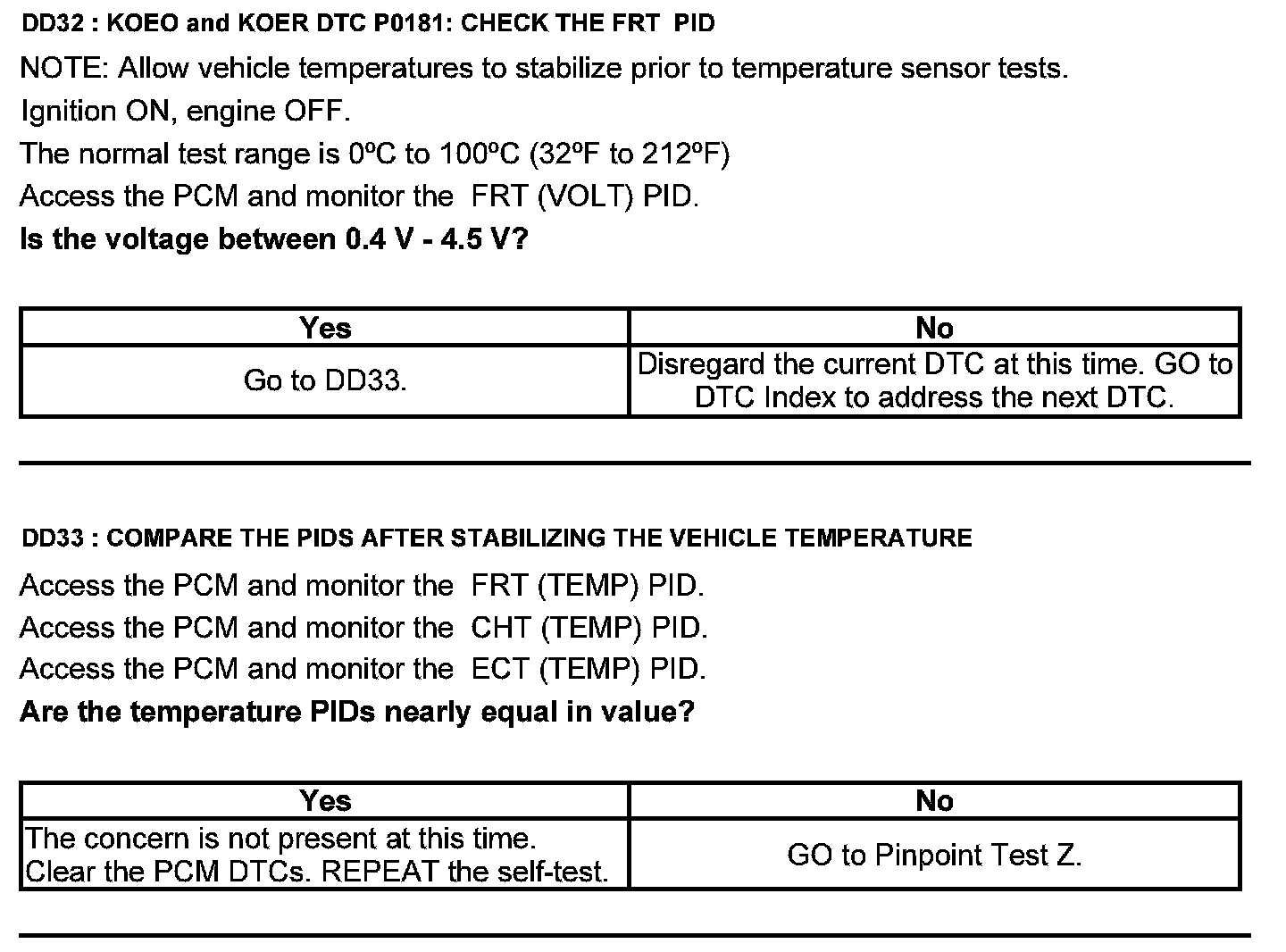

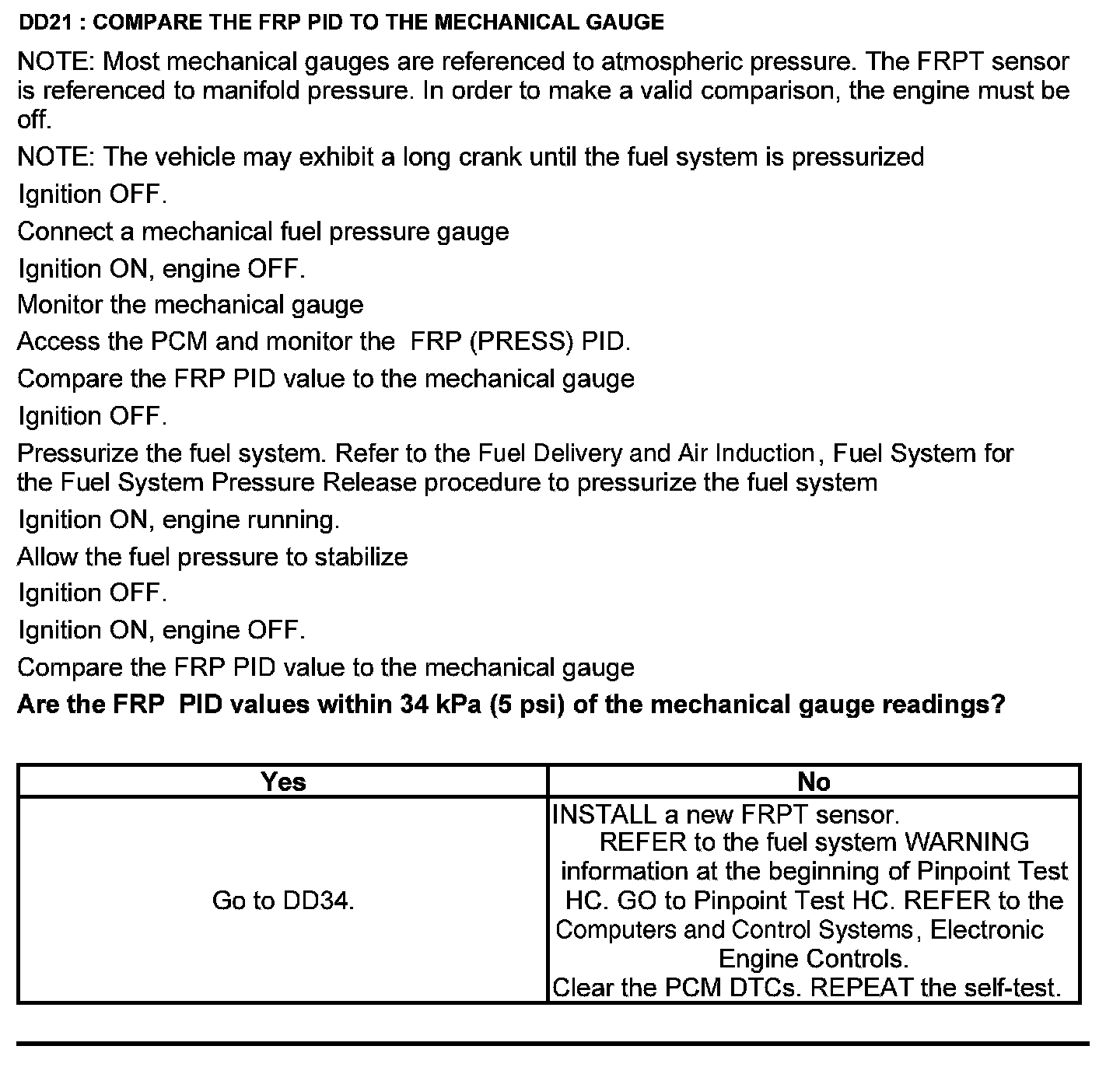

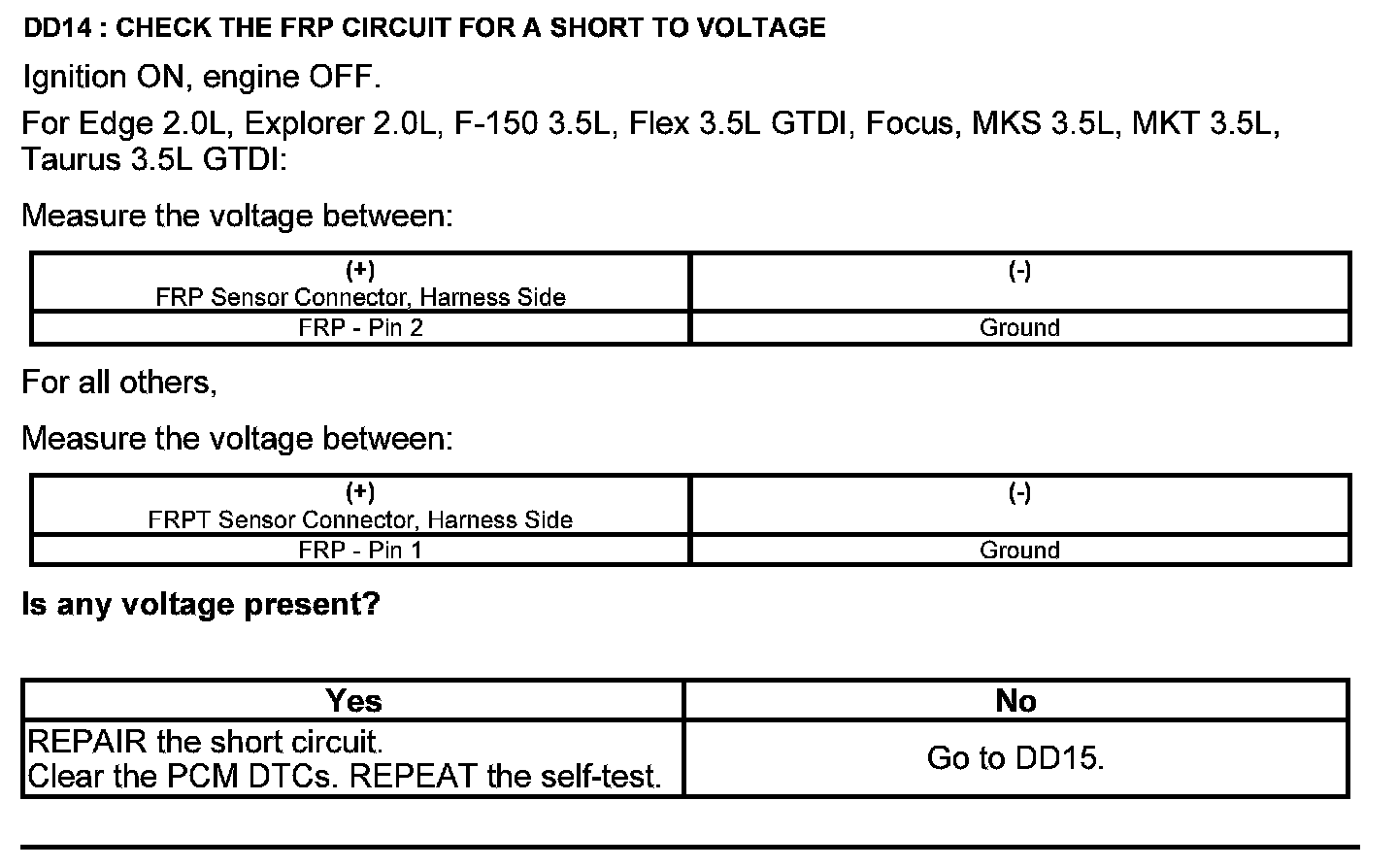

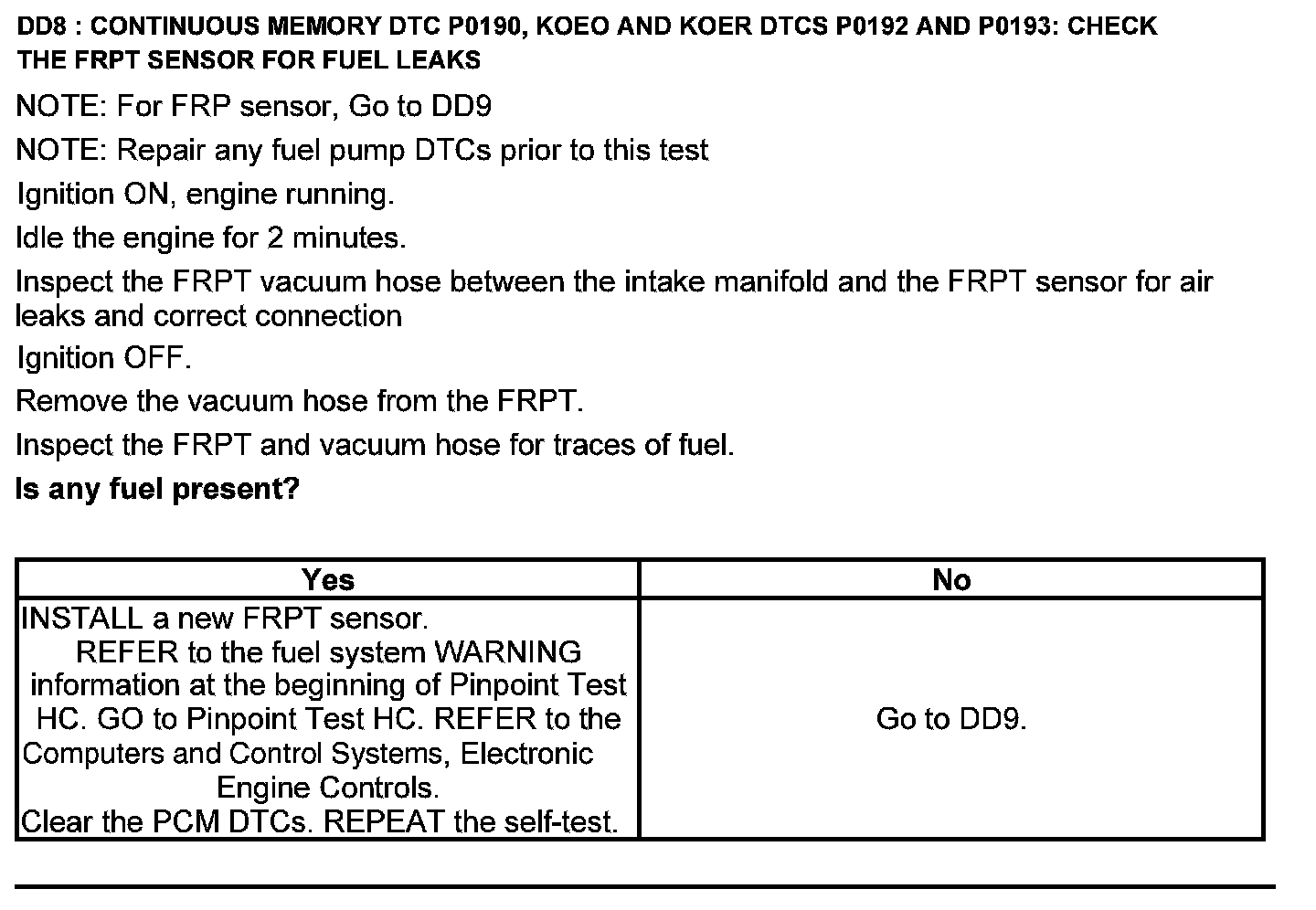

Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors - All Others.

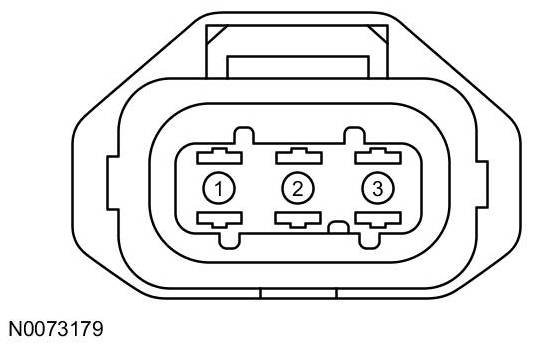

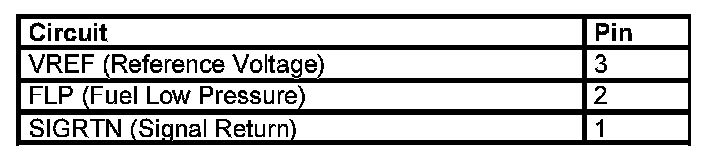

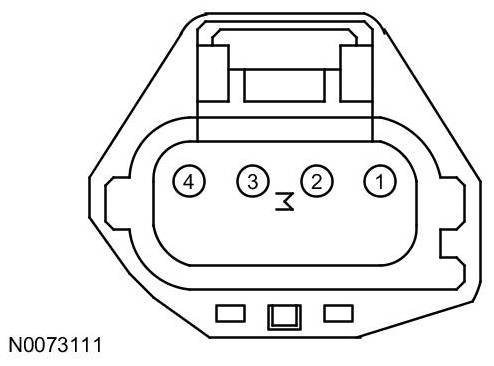

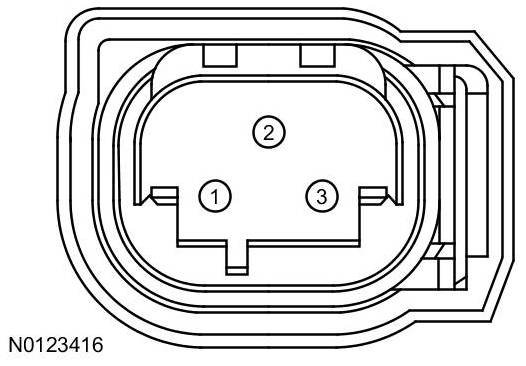

Fuel Pressure Sensor Connector





Harness Side

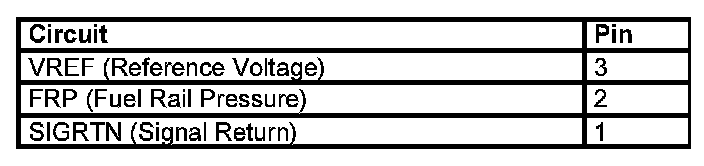

Fuel Rail Pressure (FRP) Sensor Connector





Harness Side

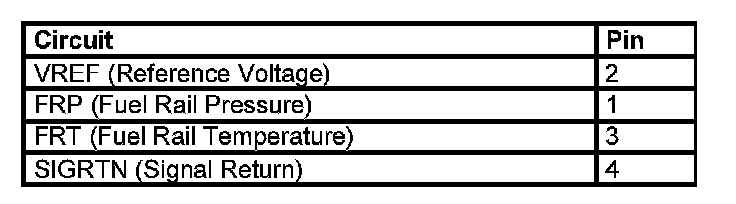

Fuel Rail Pressure Temperature (FRPT) Sensor Connector





Harness Side
