Brake Caliper Anchor Plate

Brake Caliper Anchor Plate





Removal and Installation

1. Remove the brake pads. For additional information, refer to Brake Pads Front Disc Brake.

2. Remove and discard the 2 brake caliper anchor plate bolts.
- To install, tighten the new bolts to 250 Nm (184 lb-ft).


3. Clean any rust or foreign material from the anchor plate and wheel knuckle.

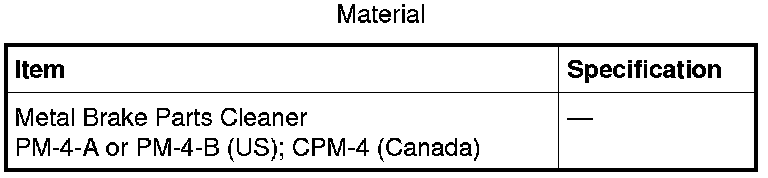

- Use specified parts cleaner to clean mating surfaces.


4. To install, reverse the removal procedure.
