Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

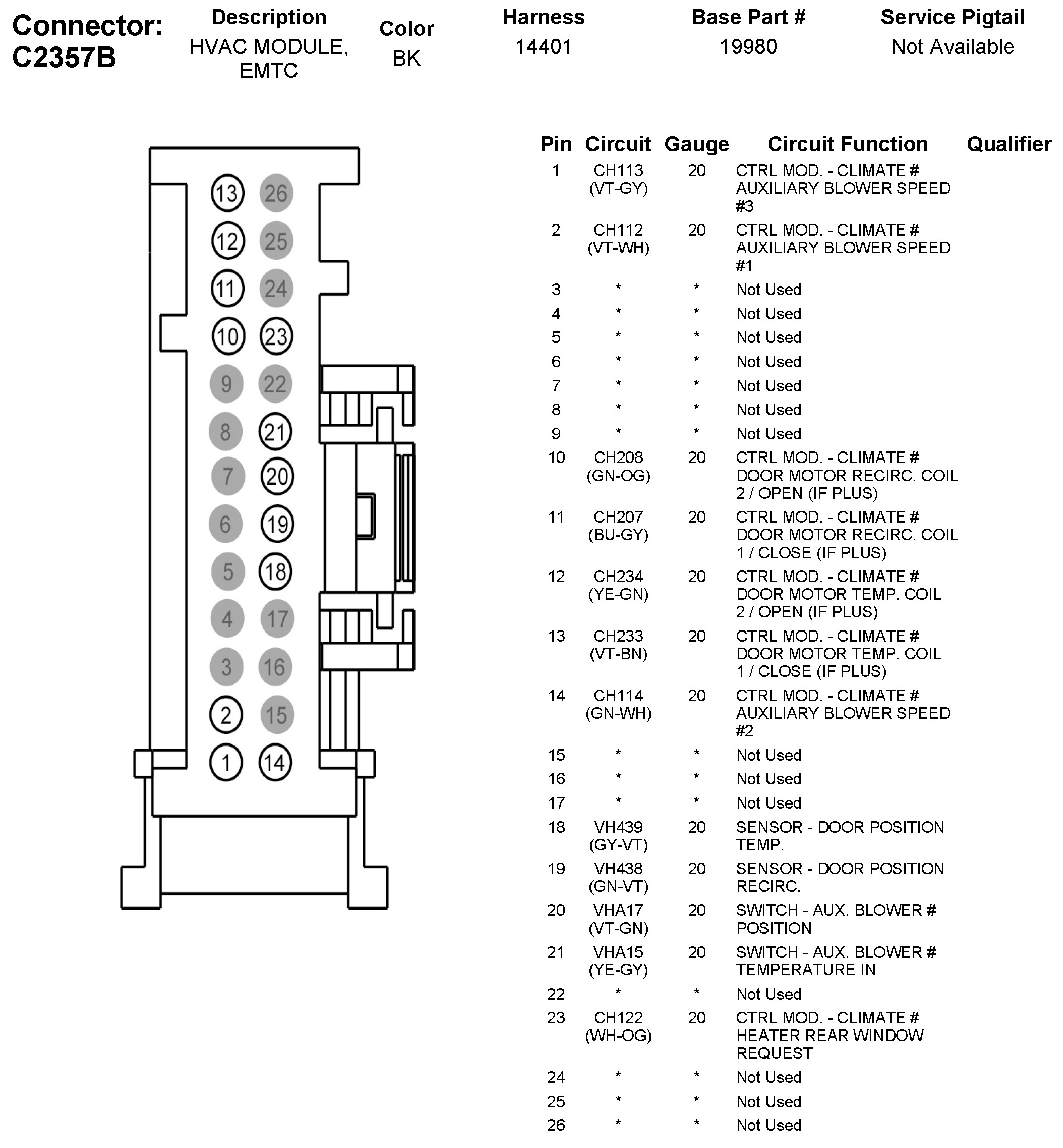

C2357B HVAC Module, EMTC
C2357B HVAC Module, EMTC
