Floor Duct

Floor Duct

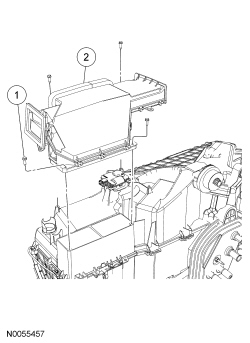

Removal and Installation

1. Remove the heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing .

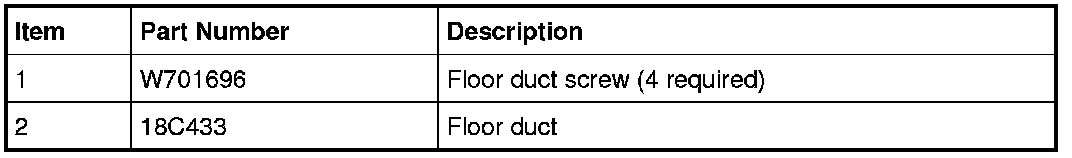

2. Remove the 4 floor duct screws.

3. Remove the floor duct.

4. To install, reverse the removal procedure.
