Rear Drive Axle/Differential - Ford 9.75-Inch Ring Gear
Rear Drive Axle/Differential - Ford 9.75-Inch Ring Gear

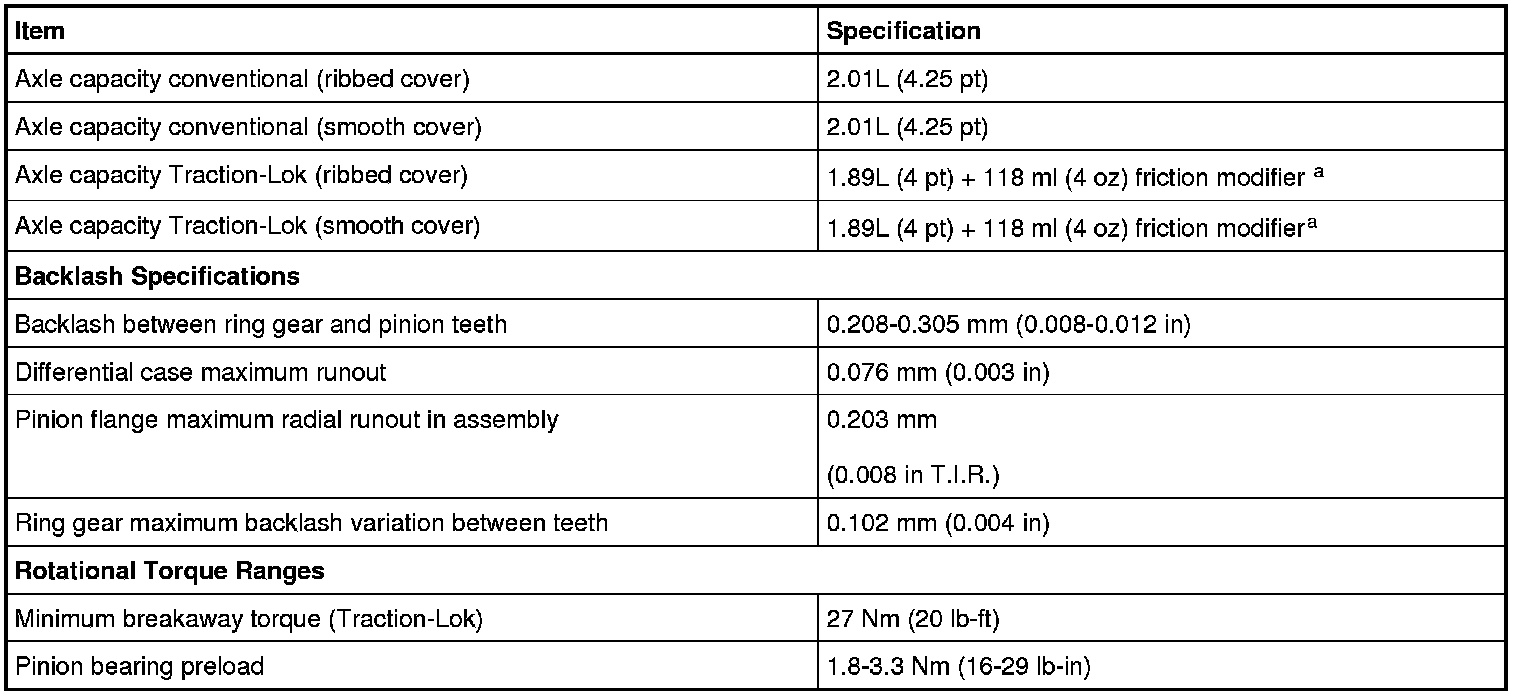

General Specifications
a Install friction modifier in axle before installing lubricant.
