Power Steering Pump: Service and Repair

Power Steering Pump

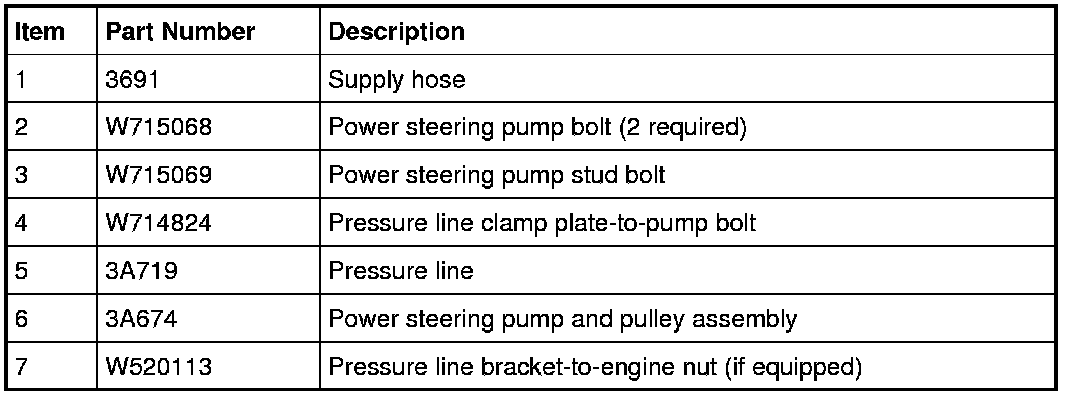

Removal and Installation

NOTICE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Using a suitable suction device, remove the power steering fluid from the fluid reservoir.

3. Release the clamp and disconnect the supply hose.

4. If equipped, remove the pressure line bracket-to-engine nut.
- To install, tighten to 40 Nm (30 lb-ft).


5. Remove and discard the pressure line clamp plate-to-pump bolt and disconnect the pressure line from the pump.
- To install, tighten to 25 Nm (18 lb-ft).


6. Disconnect the wiring harness retainer from the power steering pump stud bolt.

7. Remove the 2 power steering pump bolts, the power steering pump stud bolt and the power steering pump.
- To install, tighten to 25 Nm (18 lb-ft).


8. To install, reverse the removal procedure.

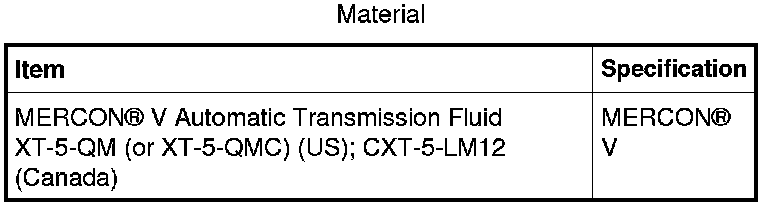

9. Fill the power steering system.
