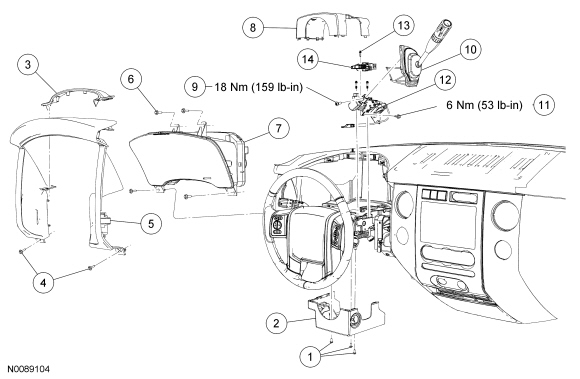

Selector Lever Mechanism

Selector Lever Mechanism









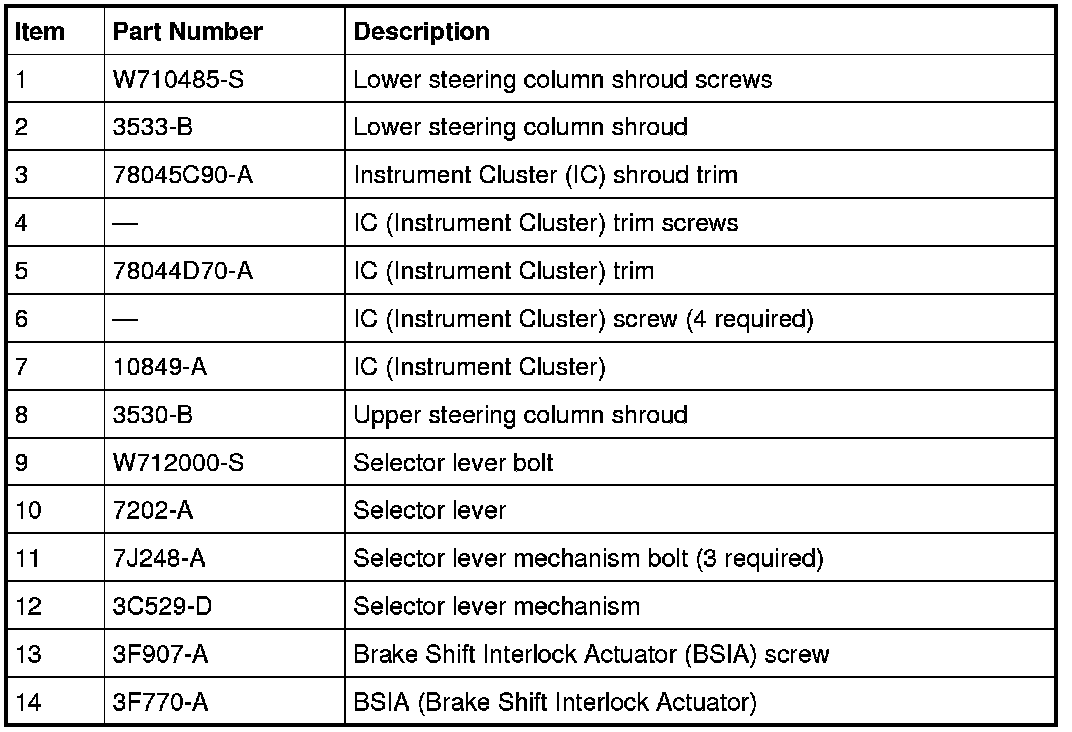

Removal

1. Remove the instrument panel lower finish panel.





2. NOTICE: To prevent damage to the selector lever boot, do not pull on the top of the boot frame.

Remove the selector lever boot from the steering column shroud by pressing in on the selector lever boot frame.






3. Position the selector lever boot up the selector lever.





4. NOTE: Steering wheel removed for clarity.

Unsnap and remove the upper steering column shroud from the lower shroud.






5. Remove the steering column lower shroud.
1. Remove the screws and the lower shroud.






6. Remove the Instrument Cluster (IC) shroud trim.





7. Remove the RH IC (Instrument Cluster) trim screw.





8. Remove the LH IC (Instrument Cluster) trim screw and pull the IC (Instrument Cluster) trim from the instrument panel.





9. If equipped, disconnect the in-vehicle temperature sensor connector.





10. Disconnect the dimmer switch electrical connector and remove the IC (Instrument Cluster) trim.





11. Remove the upper IC (Instrument Cluster) screws.





12. Remove the RH lower IC (Instrument Cluster) screw.





13. Remove the LH lower IC (Instrument Cluster) screw and position the IC (Instrument Cluster) aside.





14. NOTICE: To prevent cable damage, do not apply force to the selector lever cable assembly between the steering column selector lever arm and the steering column bracket.

Disconnect the selector lever cable.






15. Remove the locking pin and the park lock cable.
1. Remove and discard the locking pin.

2. Disconnect the park lock cable.






16. Disconnect the electrical connector and remove the screw that retains the harness clip to the steering column.





17. Remove the selector lever bolt.





18. Remove the selector lever.





19. Remove the selector lever mechanism lower bolt.





20. Disconnect the Brake Shift Interlock Actuator (BSIA) electrical connector and remove the selector lever mechanism upper bolts and the selector lever mechanism from the vehicle.





21. Remove the BSIA (Brake Shift Interlock Actuator) from the selector lever mechanism.
1. Pull the BSIA (Brake Shift Interlock Actuator) override button.

2. Remove the BSIA (Brake Shift Interlock Actuator) screw.

3. Gently pry the clip up and remove the BSIA (Brake Shift Interlock Actuator).






Installation

1. Install the BSIA (Brake Shift Interlock Actuator) onto the selector lever mechanism.
1. Pull the BSIA (Brake Shift Interlock Actuator) override button.

2. Align the selector lever tab into the BSIA (Brake Shift Interlock Actuator).

3. Position and secure the BSIA (Brake Shift Interlock Actuator) with the clip.

4. Install the screw.






2. Install the selector lever mechanism into the vehicle, install the upper bolts and connect the BSIA (Brake Shift Interlock Actuator) electrical connector.
- Tighten to 6 Nm (53 lb-in).






3. Install the selector lever mechanism lower bolt.
- Tighten to 6 Nm (53 lb-in).






4. Install the selector lever.
- Tighten to 18 Nm (159 lb-in).






5. Install the screw that retains the harness clip to the steering column and connect the electrical connector.





6. Install the locking pin and the park lock cable.
1. Connect the park lock cable.

2. Install a new locking pin.






7. NOTICE: To prevent cable damage, do not apply force to the selector lever cable assembly between the steering column selector lever arm and the steering column bracket.

Connect the selector lever cable.






8. Position the IC (Instrument Cluster) and install the LH lower IC (Instrument Cluster) screw.





9. Install the RH lower IC (Instrument Cluster) screw.





10. Install the upper IC (Instrument Cluster) screws.





11. Position the IC (Instrument Cluster) trim and connect the dimmer switch electrical connector.





12. If equipped, connect the in-vehicle temperature sensor connector.





13. Install the LH IC (Instrument Cluster) trim screw.





14. Install the RH IC (Instrument Cluster) trim screw.





15. Install the IC (Instrument Cluster) shroud trim.





16. Install the steering column upper and lower shroud.
1. Install the lower shroud and the screws, then snap the upper shroud to the lower shroud.






17. Install the instrument panel lower finish panel.
