Blower Motor: Service and Repair

Blower Motor









Removal and Installation

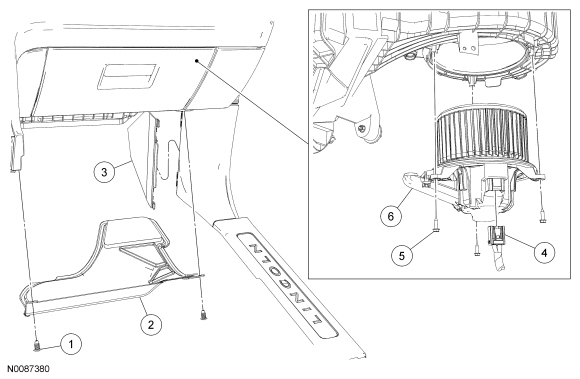

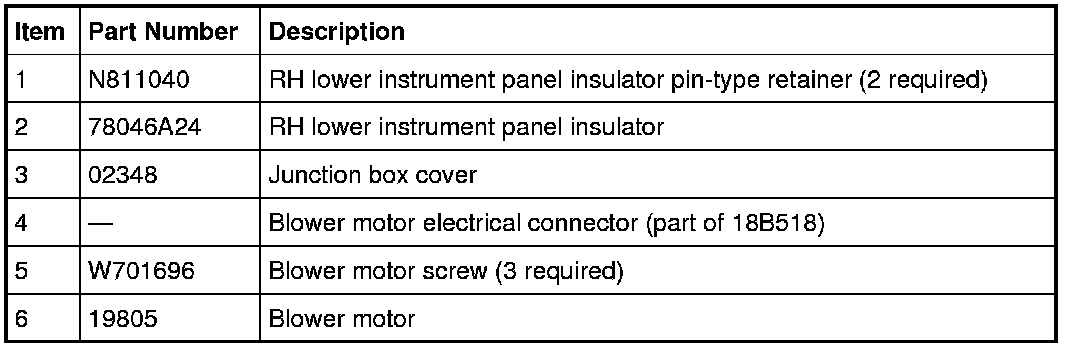

1. Remove the 2 RH lower instrument panel insulator pin-type retainers and remove the insulator (if equipped).

2. Remove the RH lower A-pillar junction box cover.

3. Disconnect the blower motor electrical connector.

4. Remove the 3 blower motor screws.

5. NOTE: The carpet below the blower motor must be repositioned, the blower motor will have to be carefully manipulated along the dash panel insulator, and the dash panel insulator will have to be slightly deflected to allow the blower motor to clear the heater core and evaporator core housing.

Remove the blower motor in the following sequence.

1. Rotate the blower motor housing until the vent tube opening is facing the rear of the vehicle.

2. Depress the ridges in the dash panel insulator to allow the blower motor to be removed.

3. Remove the blower motor.


6. To install, reverse the removal procedure.
