Dome Lamp: Service and Repair

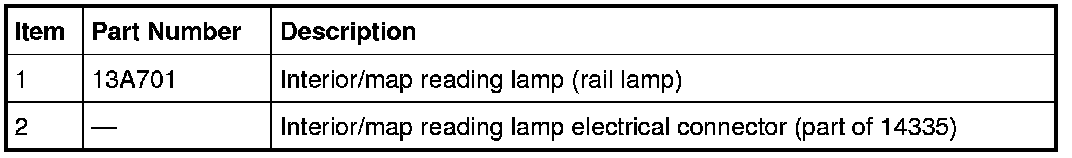

Interior/Map Reading Lamp

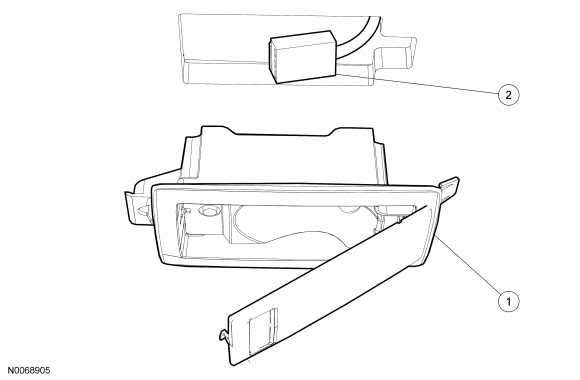

Removal and Installation

1. Release the tab on the front side of the lens.

2. Tilt the front of the lens down.

3. Remove the lamp.
- Disconnect the electrical connector.


4. To install, reverse the removal procedure.
