Diagnostic Routine I




Diagnostic Routine I

Diagnostic Overview

B0050:11, B0050:12, B0050:13 and B0050:1D

Refer to Wiring Diagram Set 46 for schematic and connector information Electrical Diagrams.

The RCM (Restraints Control Module) monitors the driver safety belt buckle switch circuits for the following faults:

- Open circuit

- Short to voltage

- Short to ground

- Current out of range

- Faulted driver safety belt buckle switch

If a fault is detected, the RCM (Restraints Control Module) stores DTC (Diagnostic Trouble Code) B0050:11, B0050:12, B0050:13 or B0050:1D in memory and sends a message to the IPC (Instrument Panel Cluster) to illuminate the air bag warning indicator.

DTC Fault Trigger Conditions






Visual Inspection and Diagnostic Pre-checks

- Inspect for a damaged driver safety belt buckle

- Inspect for damaged wiring harness(es)

- Inspect for loose or damaged connectors

Pinpoint Test

WARNING: Do not handle, move or change the original horizontal mounting position of the RCM (Restraints Control Module) while the RCM (Restraints Control Module) is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy(R) and cause serious personal injury or death.

WARNING: Never disassemble or tamper with seat belt deployable components, including pretensioners, load limiters and inflators. Never back probe deployable device electrical connectors. Tampering or back probing may cause an accidental deployment and result in personal injury or death.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.

NOTE:Only disconnect or reconnect SRS (Supplemental Restraint System) components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS (Supplemental Restraint System).

NOTE: Always make sure the correct SRS (Supplemental Restraint System) component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage or equivalent to make sure the correct component is being installed. If an incorrect SRS (Supplemental Restraint System) component is installed, DTCs (Diagnostic Trouble Codes) may set.

NOTE: The SRS (Supplemental Restraint System) must be fully operational and free of faults before releasing the vehicle to the customer.

1. RETRIEVE RCM (Restraints Control Module) DTCs (Diagnostic Trouble Codes)

1. Ignition ON.

2. Using a scan tool, perform RCM (Restraints Control Module) self-test to retrieve DTCs (Diagnostic Trouble Codes).

Was DTC (Diagnostic Trouble Code) B0050:11, B0050:12, B0050:13 or B0050:1D retrieved on-demand during self-test?








2. CHECK THE DRIVER SEATBELT SENSOR DTC (Diagnostic Trouble Code) FOR A FAULT STATUS CHANGE (SHORT TO GROUND OR CURRENT OUT OF RANGE INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM (Restraints Control Module) by inducing a different fault condition. If the reported fault changes, this indicates the RCM (Restraints Control Module) is functioning correctly and is not the source of the fault.

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Disconnect Driver Safety Belt Buckle Switch C3065.

4. Repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

5. Ignition ON.

6. Using a scan tool, perform RCM (Restraints Control Module) self-test to retrieve DTCs (Diagnostic Trouble Codes).

7. DIAGNOSTIC TIP: When viewing DTCs (Diagnostic Trouble Codes) with the driver safety belt buckle switch disconnected, an open circuit fault is normally retrieved. An open circuit fault is also normally retrieved for the driver safety belt buckle pretensioner circuits.

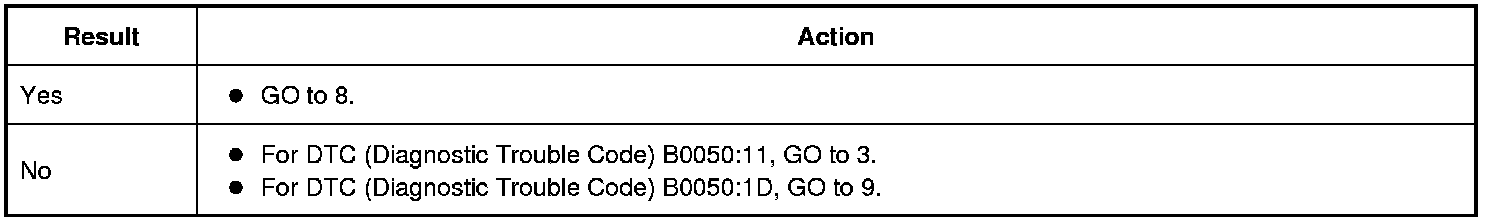

Did the on-demand DTC (Diagnostic Trouble Code) change from B0050:11 or B0050:1D to B0050:13?








3. CHECK THE DRIVER SAFETY BELT BUCKLE SWITCH CIRCUIT FOR A SHORT TO GROUND

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Disconnect RCM (Restraints Control Module) C310A and C310B.

4. Measure:





Is the resistance greater than 10,000 ohms?








4. CHECK THE DRIVER SAFETY BELT BUCKLE SWITCH CIRCUIT FOR A SHORT TO VOLTAGE

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Disconnect RCM (Restraints Control Module) C310A and C310B.

4. Disconnect Driver Seat Side Air Bag Module (Inline) C3051.

5. Disconnect Driver Safety Belt Buckle Switch C3065.

6. Repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

7. Ignition ON.

8. Measure:





Is any voltage present?








5. CHECK THE DRIVER SEATBELT SENSOR DTC (Diagnostic Trouble Code) FOR A FAULT STATUS CHANGE (OPEN INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM (Restraints Control Module) by inducing a different fault condition. If the reported fault changes, this indicates the RCM (Restraints Control Module) is functioning correctly and is not the source of the fault.

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Disconnect Driver Seat Side Air Bag Module (Inline) C3051.

4. Disconnect Driver Safety Belt Buckle Switch C3065.

5. Connect a fused jumper wire:





6. Repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

7. Ignition ON.

8. Using a scan tool, perform RCM (Restraints Control Module) self-test to retrieve DTCs (Diagnostic Trouble Codes).

9. DIAGNOSTIC TIP: When viewing DTCs (Diagnostic Trouble Codes) with the driver safety belt buckle switch circuits shorted together, a short to ground fault is normally retrieved. An open circuit fault is also normally retrieved for the driver safety belt buckle pretensioner circuits.

Did the on-demand DTC (Diagnostic Trouble Code) change from B0050:13 to B0050:11?








6. CHECK THE DRIVER SAFETY BELT BUCKLE SWITCH CIRCUIT FOR AN OPEN

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Disconnect RCM (Restraints Control Module) C310A and C310B.

4. Measure:





Is the resistance less than 0.5 ohm?








7. CHECK THE DRIVER SAFETY BELT BUCKLE SWITCH GROUND CIRCUIT FOR AN OPEN

1. Measure:





Is the resistance less than 3 ohms?








8. CONFIRM THE DRIVER SAFETY BELT BUCKLE SWITCH FAULT

NOTE: Make sure all SRS (Supplemental Restraint System) components and the RCM (Restraints Control Module) electrical connectors are connected before carrying out the self-test. If not, DTCs (Diagnostic Trouble Codes) will be recorded.

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Prior to reconnecting any previously disconnected SRS (Supplemental Restraint System) component:

- inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
- inspect wire harness for any damaged, pinched, cut or pierced wires.
- inspect RCM (Restraints Control Module) C310A and C310B CPA (Connector Position Assurance) lever/lock for correct operation. REFER to Restraints Control Module (RCM) .
- repair any concerns found. Refer to Wiring Diagram Set 5 for schematic and connector information Electrical Diagrams.


4. Connect Driver Seat Side Air Bag Module (Inline) C3051 (if previously disconnected).

5. Connect RCM (Restraints Control Module) C310A and C310B (if previously disconnected).

6. Connect Driver Safety Belt Buckle Switch C3065.

7. Repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

8. Ignition ON.

9. Using a scan tool, perform RCM (Restraints Control Module) self-test to retrieve DTCs (Diagnostic Trouble Codes).

Was the original DTC (Diagnostic Trouble Code) retrieved on-demand during self-test?








9. CONFIRM THE RCM (Restraints Control Module) FAULT

NOTE: Make sure all SRS (Supplemental Restraint System) components and the RCM (Restraints Control Module) electrical connectors are connected before carrying out the self-test. If not, DTCs (Diagnostic Trouble Codes) will be recorded.

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Prior to reconnecting any previously disconnected SRS (Supplemental Restraint System) component:

- inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
- inspect wire harness for any damaged, pinched, cut or pierced wires.
- inspect RCM (Restraints Control Module) C310A and C310B CPA (Connector Position Assurance) lever/lock for correct operation. REFER to Restraints Control Module (RCM) .
- repair any concerns found. Refer to Wiring Diagram Set 5 for schematic and connector information Electrical Diagrams.


4. Connect Driver Seat Side Air Bag Module (Inline) C3051 (if previously disconnected).

5. Connect RCM (Restraints Control Module) C310A and C310B (if previously disconnected).

6. Connect Driver Safety Belt Buckle Switch C3065.

7. Repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

8. Ignition ON.

9. Using a scan tool, perform RCM (Restraints Control Module) self-test to retrieve DTCs (Diagnostic Trouble Codes).

Was the original DTC (Diagnostic Trouble Code) retrieved on-demand during self-test?








10. CHECK FOR AN INTERMITTENT FAULT

1. Ignition OFF.

2. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

3. Disconnect Driver Safety Belt Buckle Switch C3065.

- Inspect connector(s) (including any inline connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
- Inspect wire harness for any damage, pinched, cut or pierced wires.
- Repair any concerns found. Refer to Wiring Diagram Set 5 for schematic and connector information Electrical Diagrams.


4. Inspect RCM (Restraints Control Module) C310A and C310B CPA (Connector Position Assurance) lever/lock for correct operation. REFER to Restraints Control Module (RCM) .

5. Connect all previously disconnected component(s)/connector(s).

6. Repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

7. Ignition ON.

8. Using a scan tool, perform RCM (Restraints Control Module) self-test to retrieve DTCs (Diagnostic Trouble Codes).

Was DTC (Diagnostic Trouble Code) B0050:11, B0050:12, B0050:13 or B0050:1D retrieved on-demand during self-test?








11. CHECK FOR ADDITIONAL SRS (Supplemental Restraint System) DTCs (Diagnostic Trouble Codes)

1. Ignition OFF.

WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

2. Reconnect all SRS (Supplemental Restraint System) components (if previously disconnected).

3. If previously directed to depower the SRS (Supplemental Restraint System), repower the SRS (Supplemental Restraint System). Do not prove out the SRS (Supplemental Restraint System) at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

4. Ignition ON.

5. Using a scan tool, perform Restraints self-test to retrieve DTCs (Diagnostic Trouble Codes).

NOTE: When selecting Restraints from the Self Test menu, DTCs (Diagnostic Trouble Codes) are retrieved from the RCM (Restraints Control Module) and OCSM (Occupant Classification System Module).

Are any RCM (Restraints Control Module) and/or OCSM (Occupant Classification System Module) DTCs (Diagnostic Trouble Codes) retrieved on-demand during self-test?
