Suspension: Diagrams

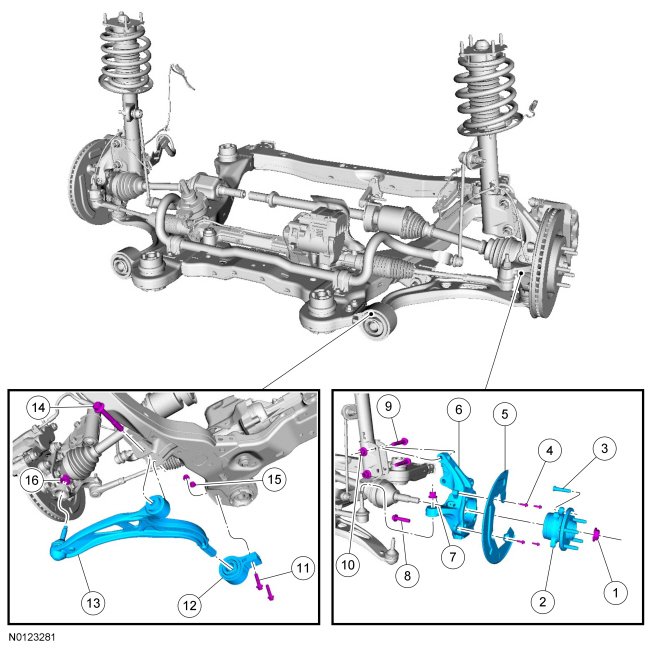

Front Suspension - Exploded View

Exploded View

Front Suspension - Exploded View
