Splices

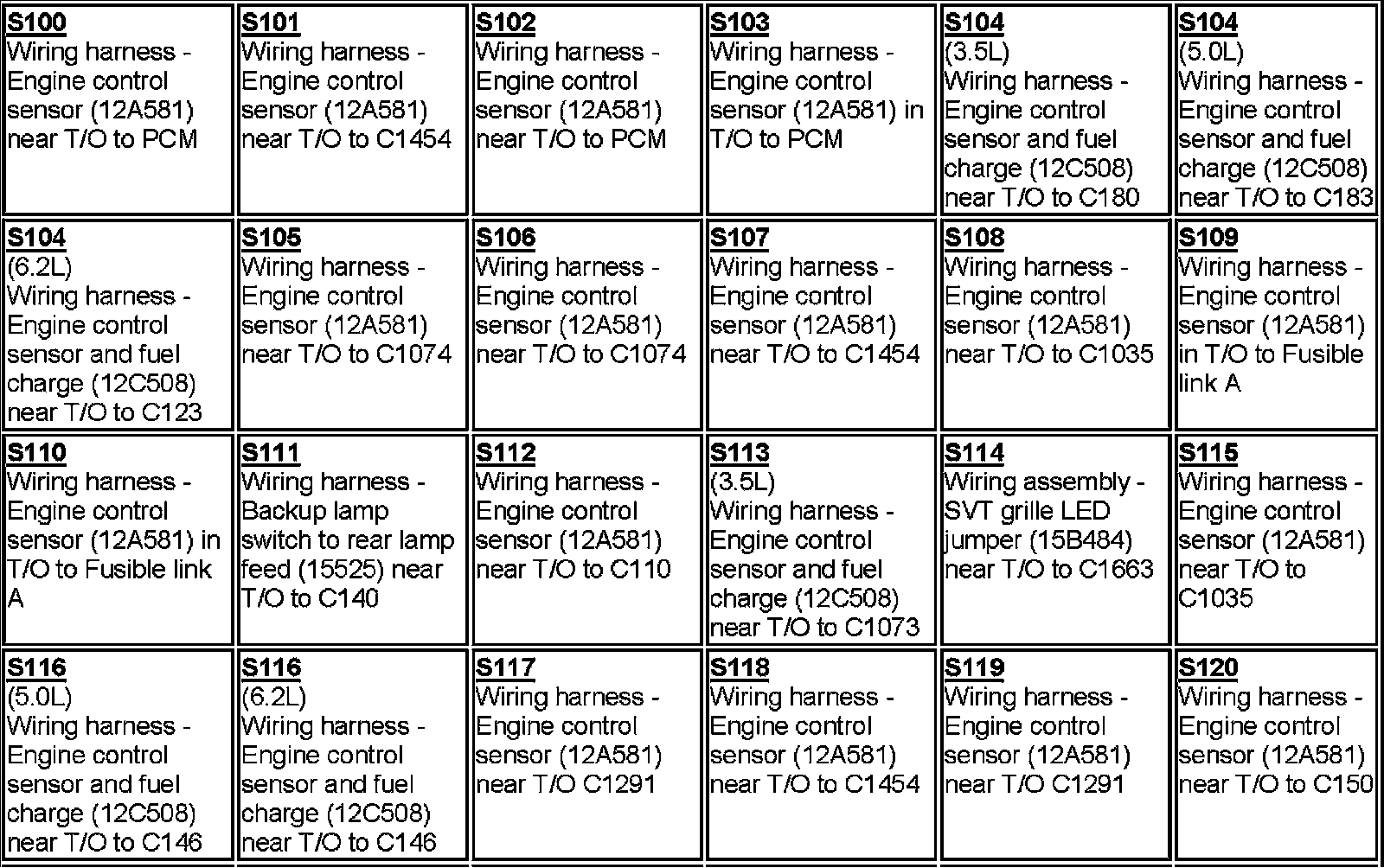

S100-S120:

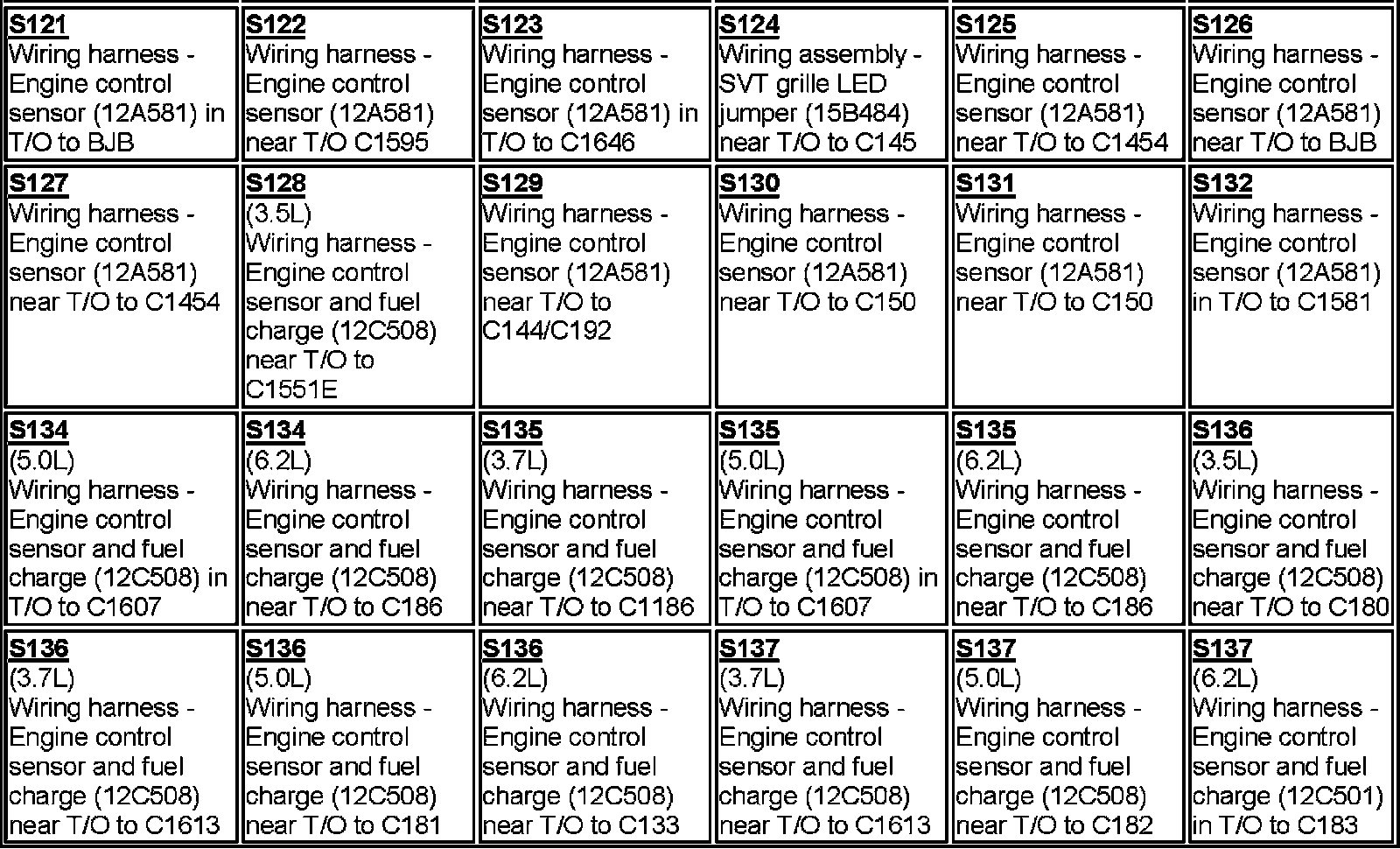

S121-S137:

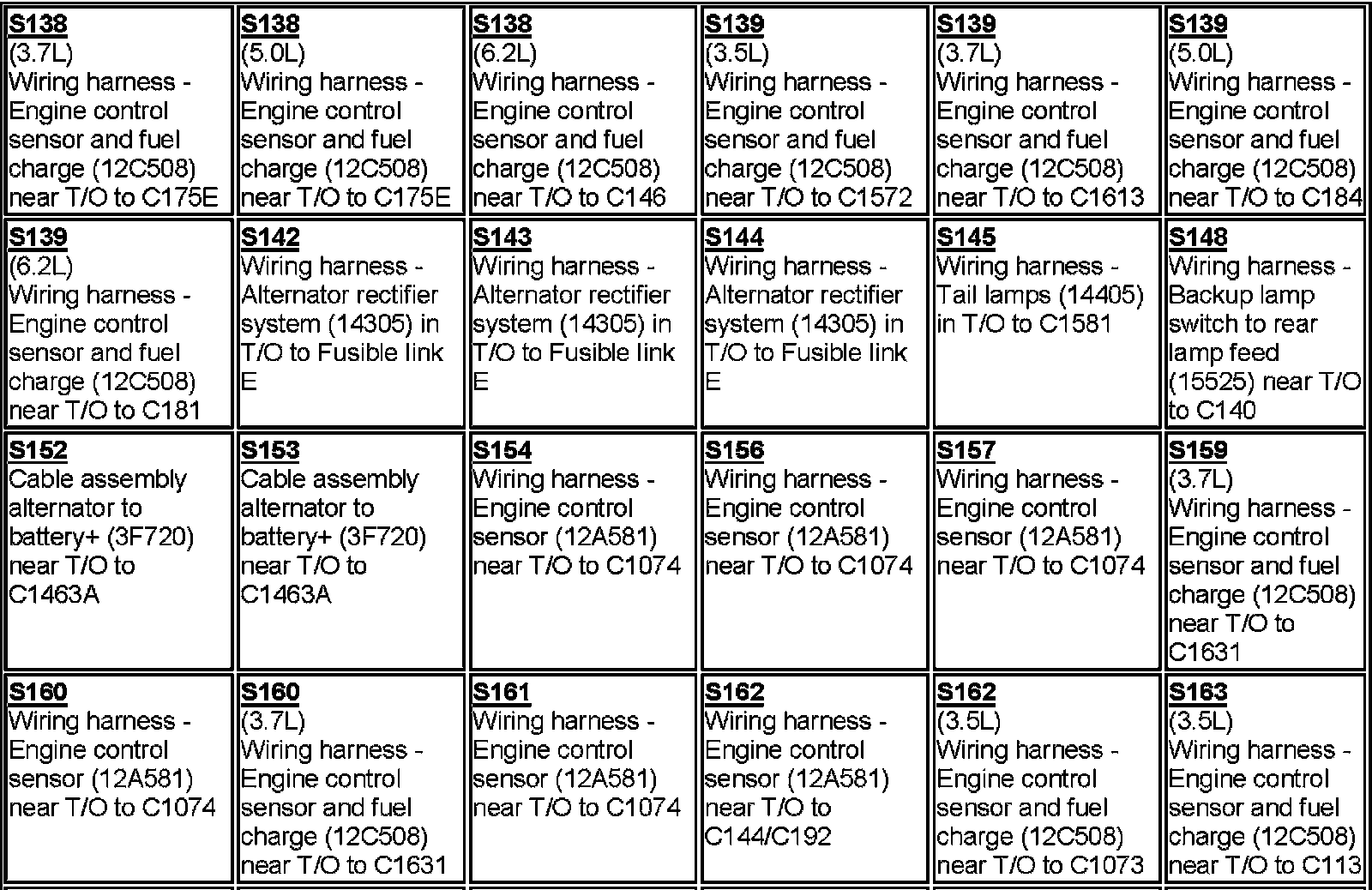

S138-S163:

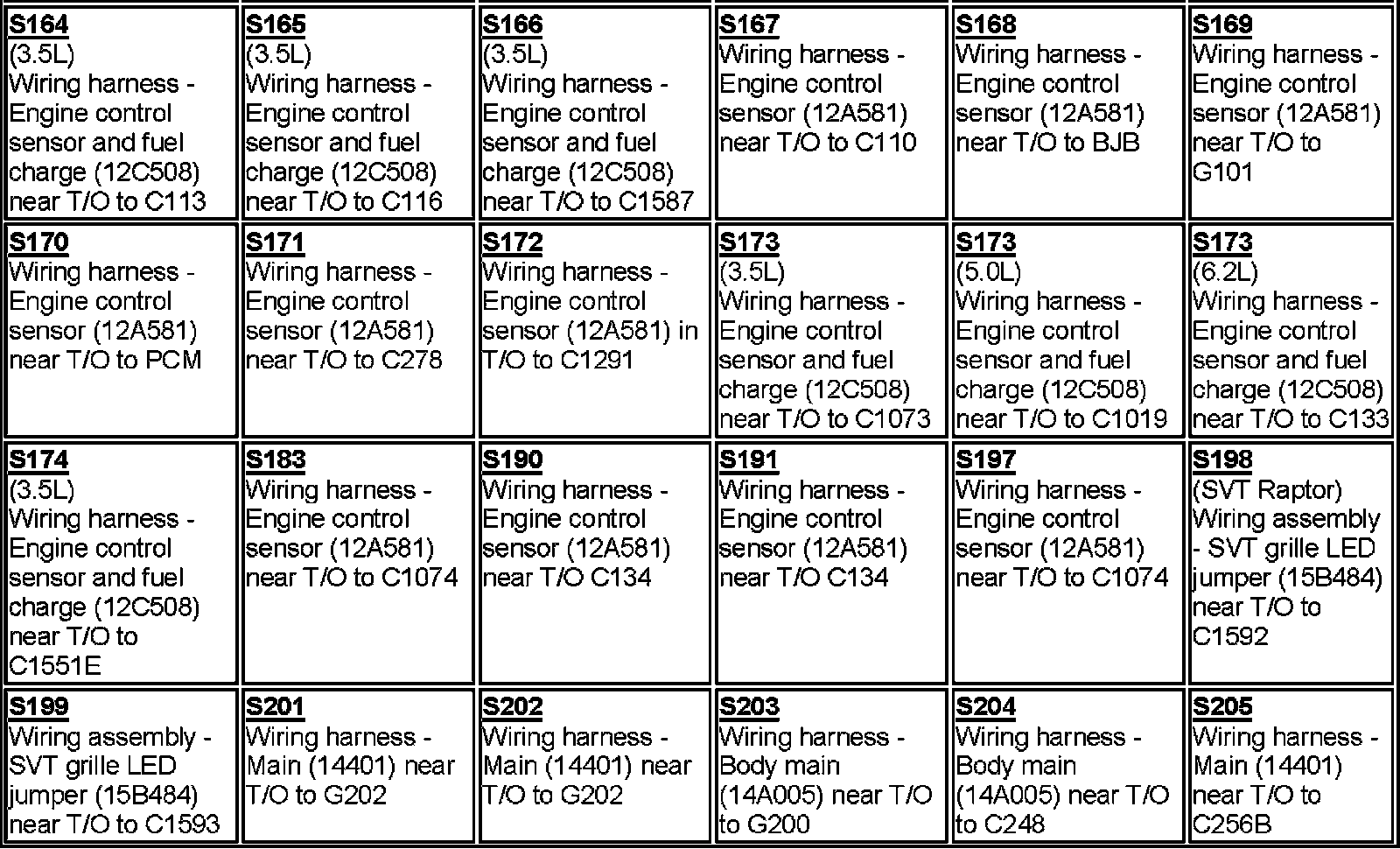

S164-S205:

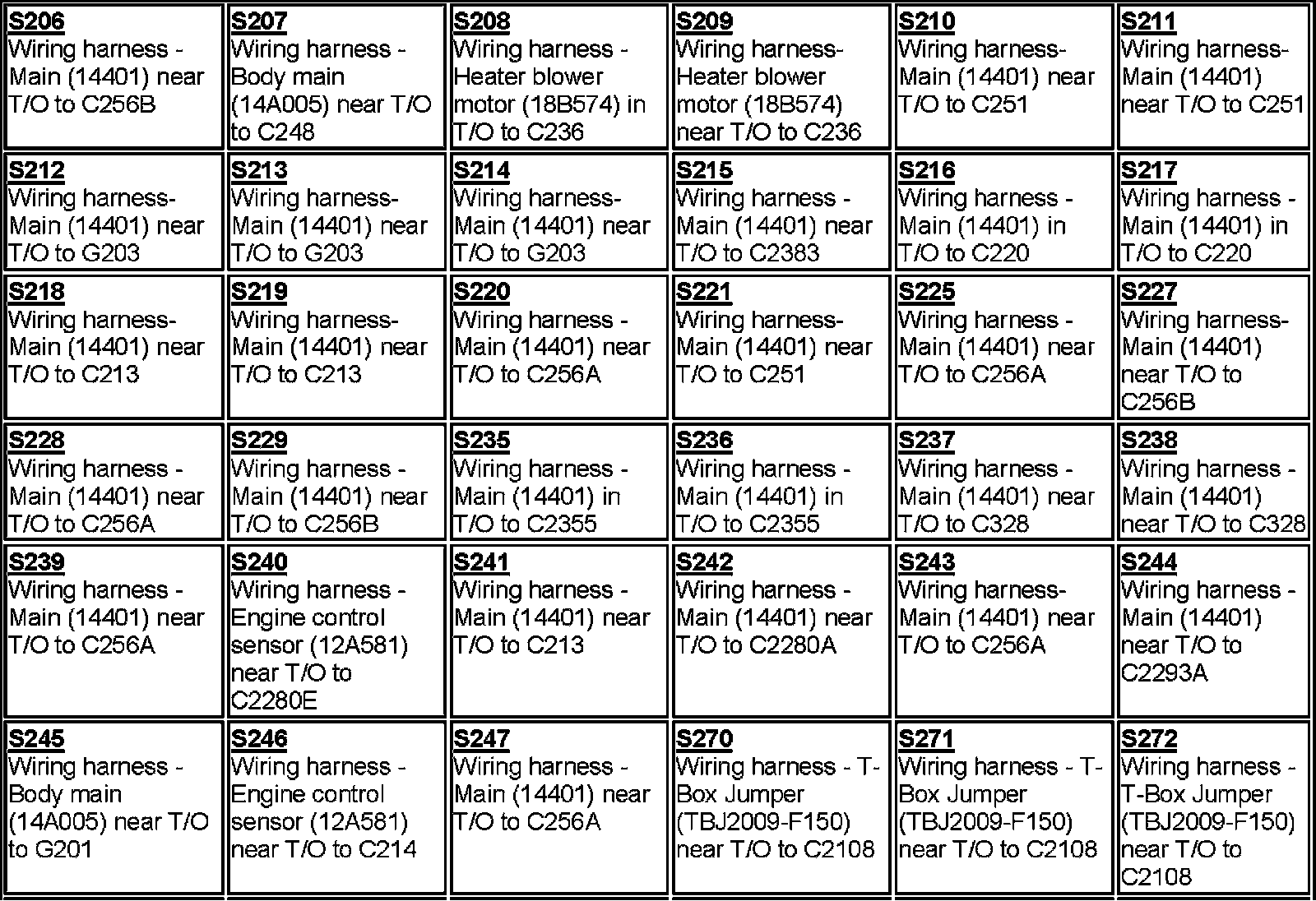

S206-S272:

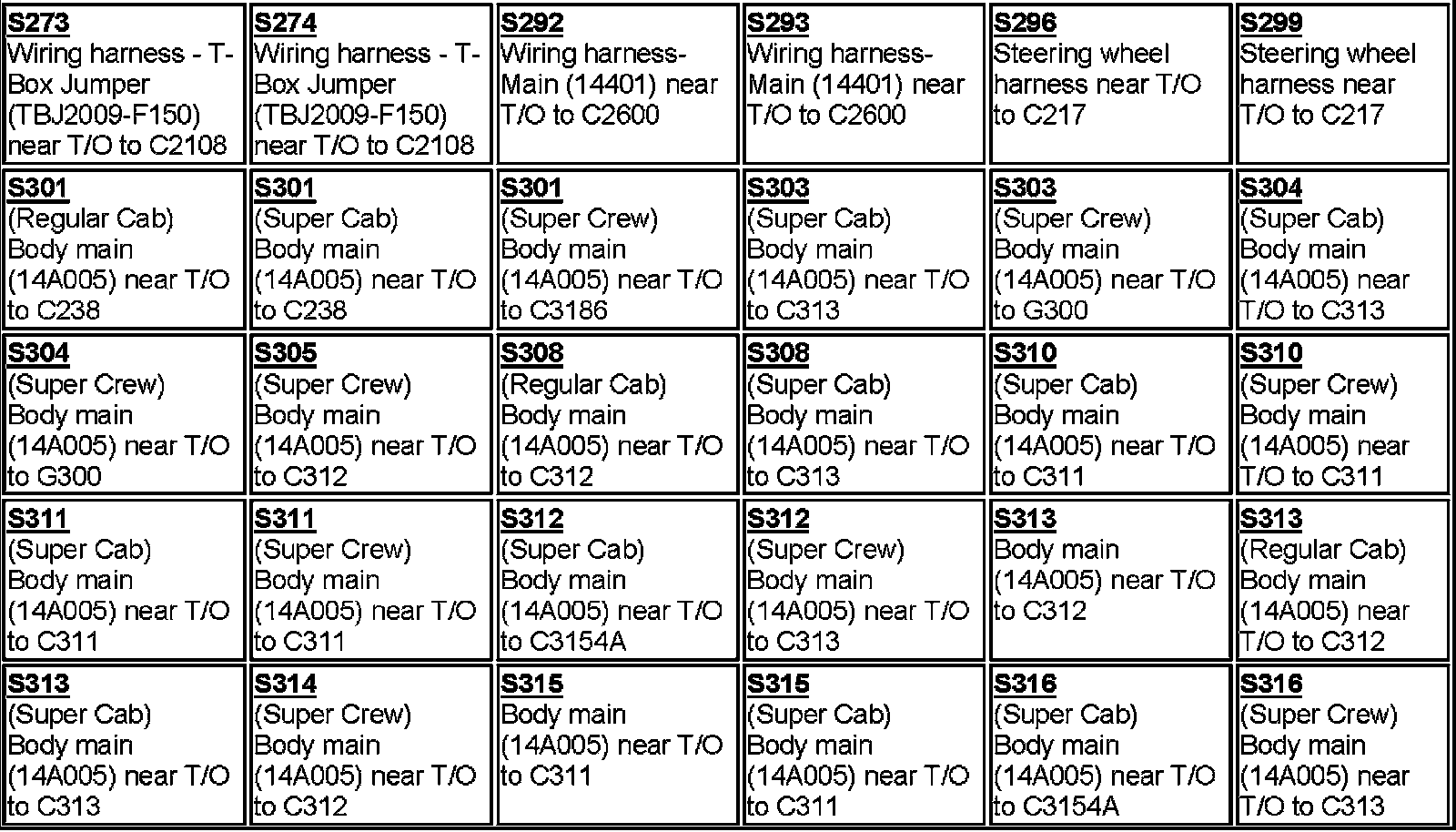

S273-S318:

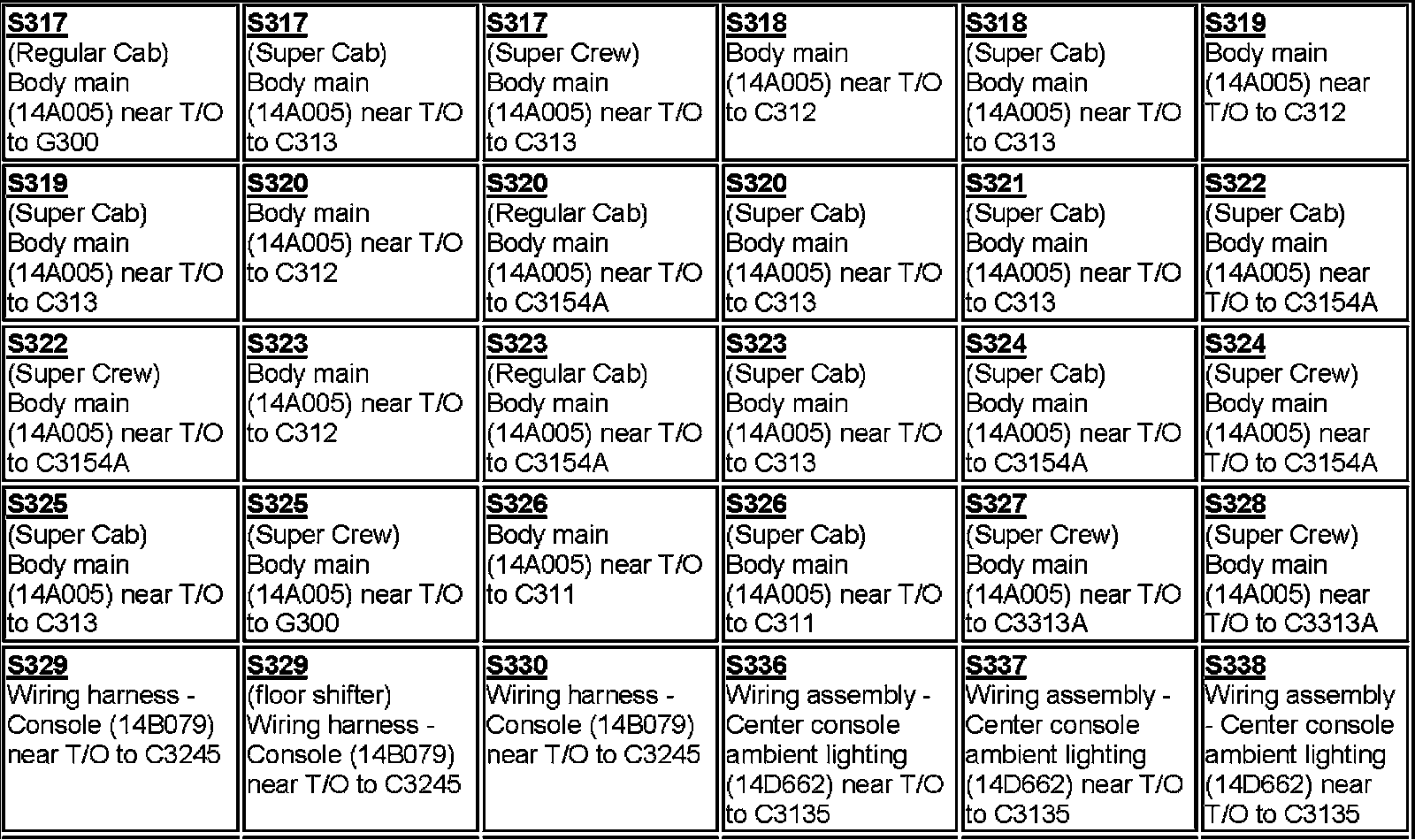

S317-S338:

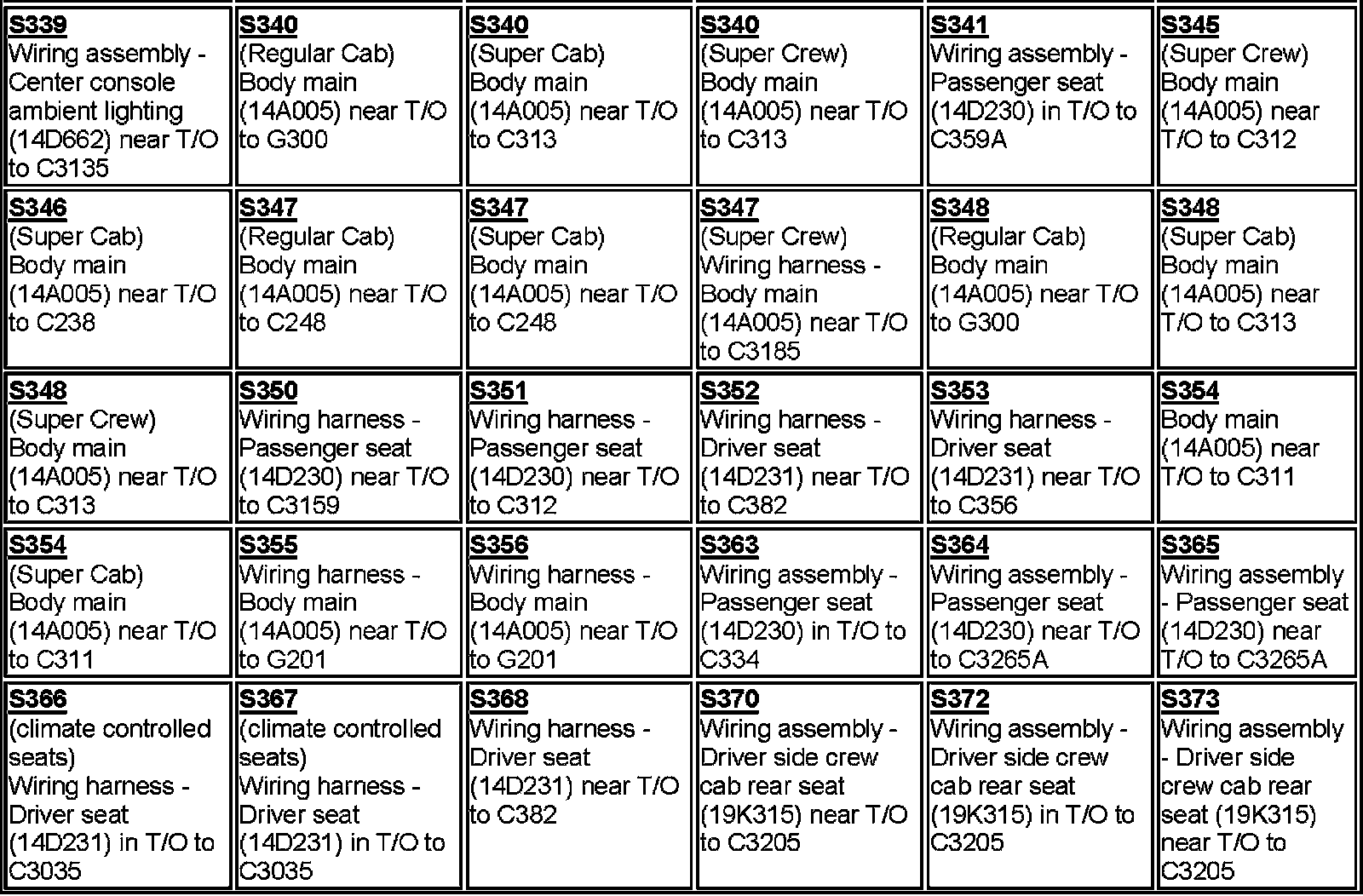

S339-S373:

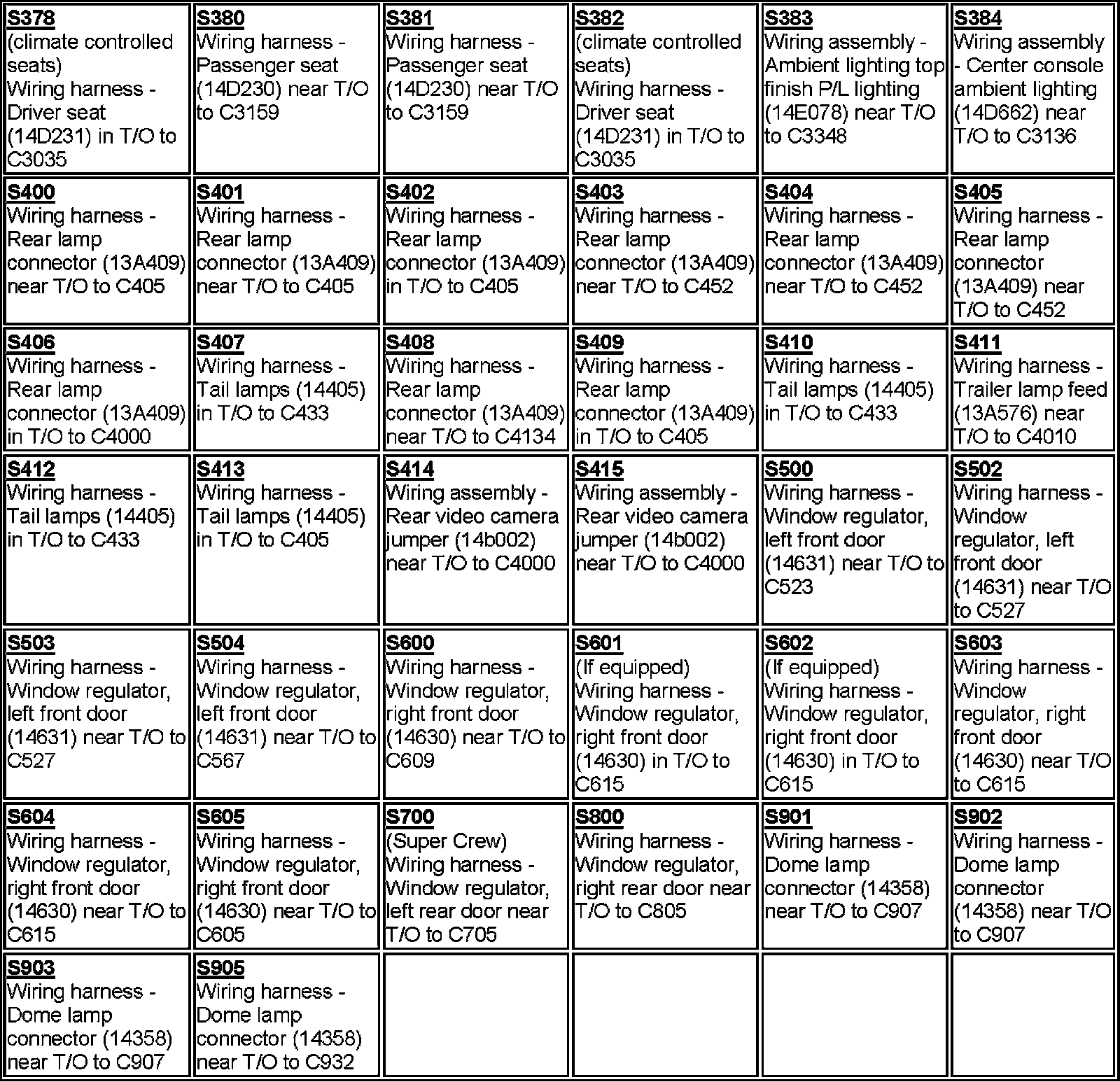

S378-S905:
