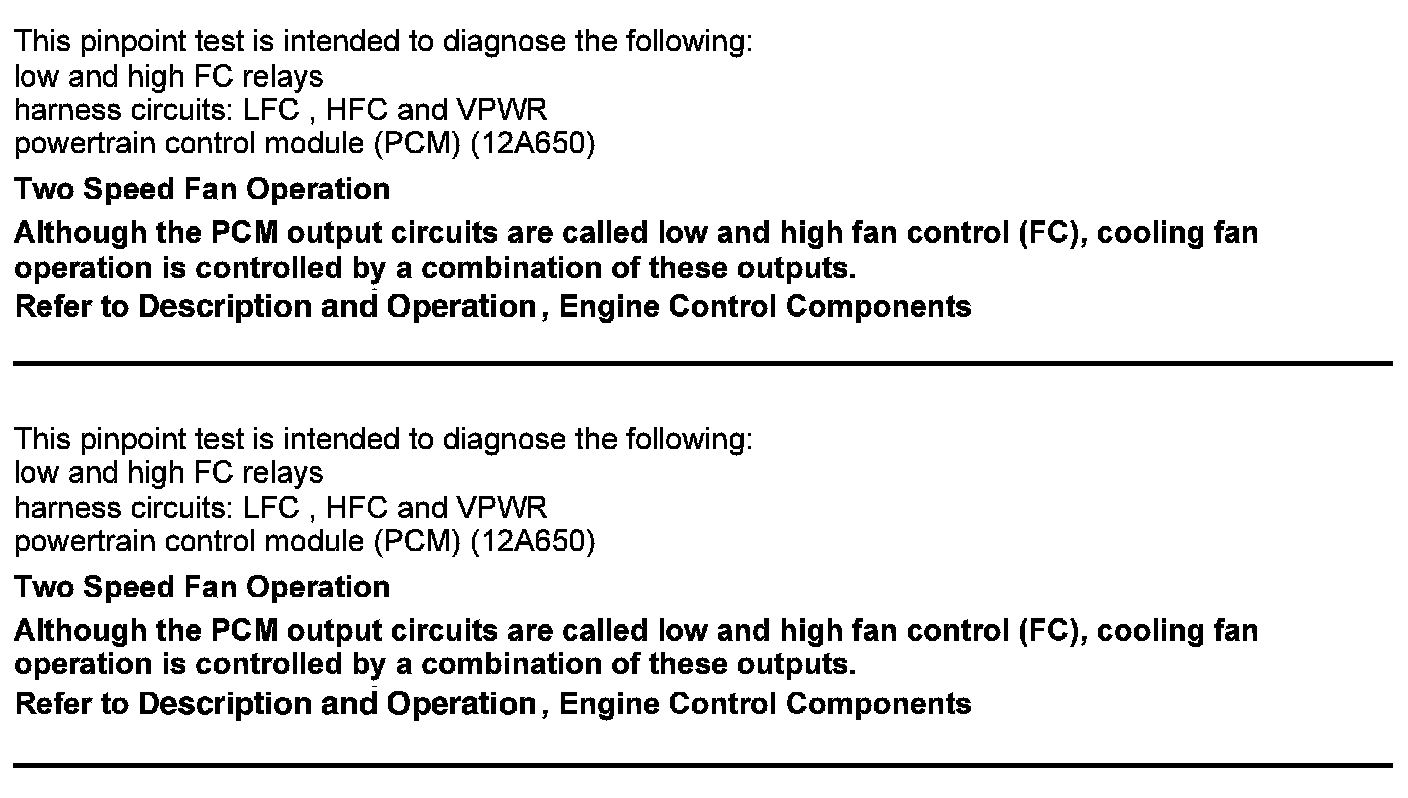

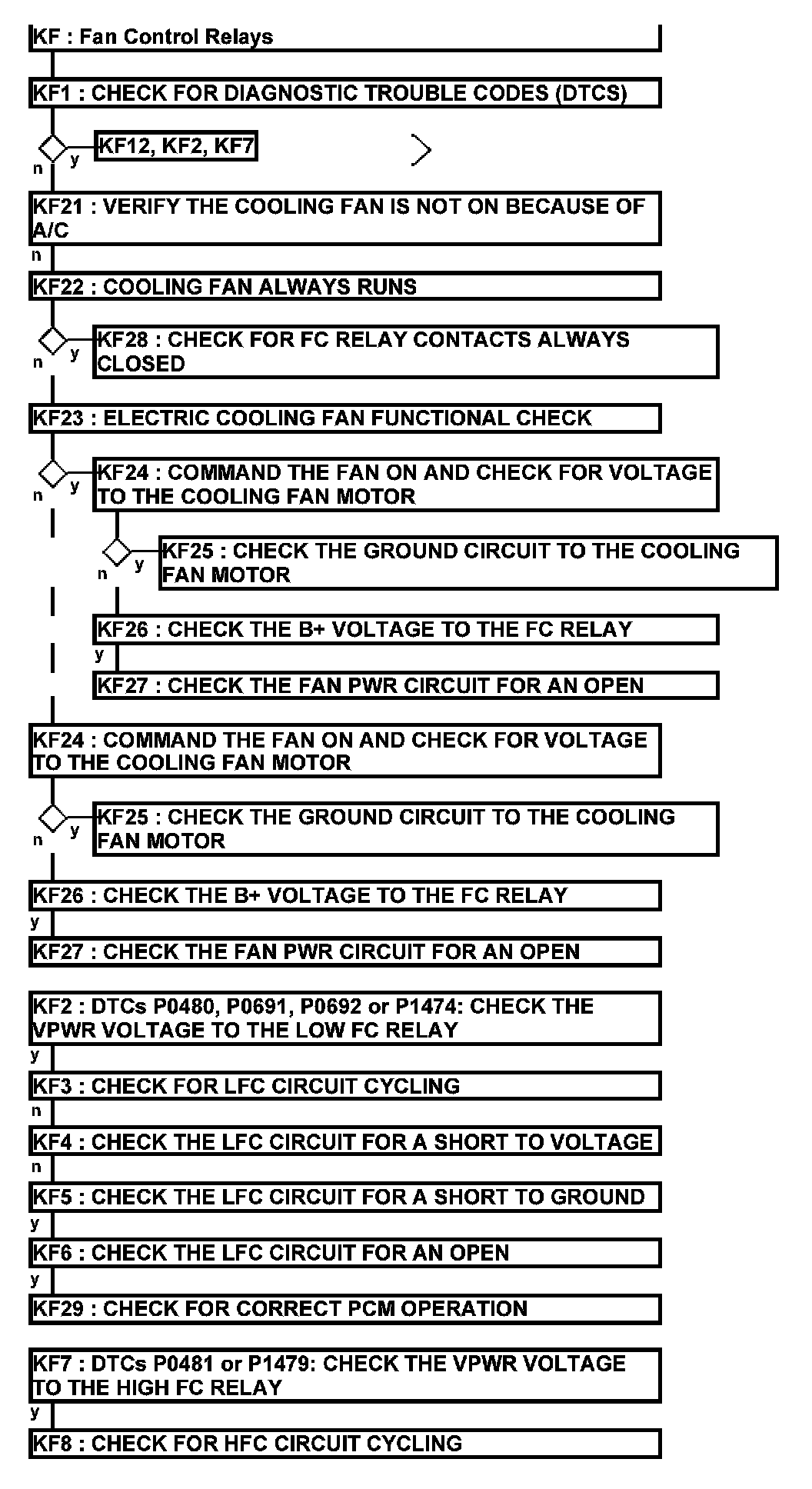

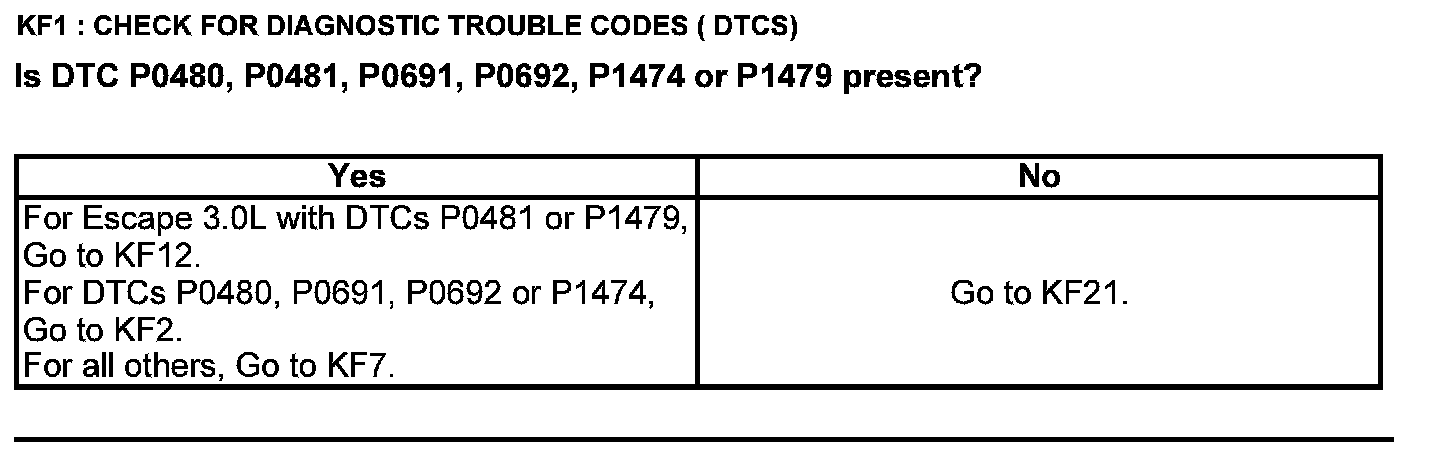

Test KF: Fan Control Relays



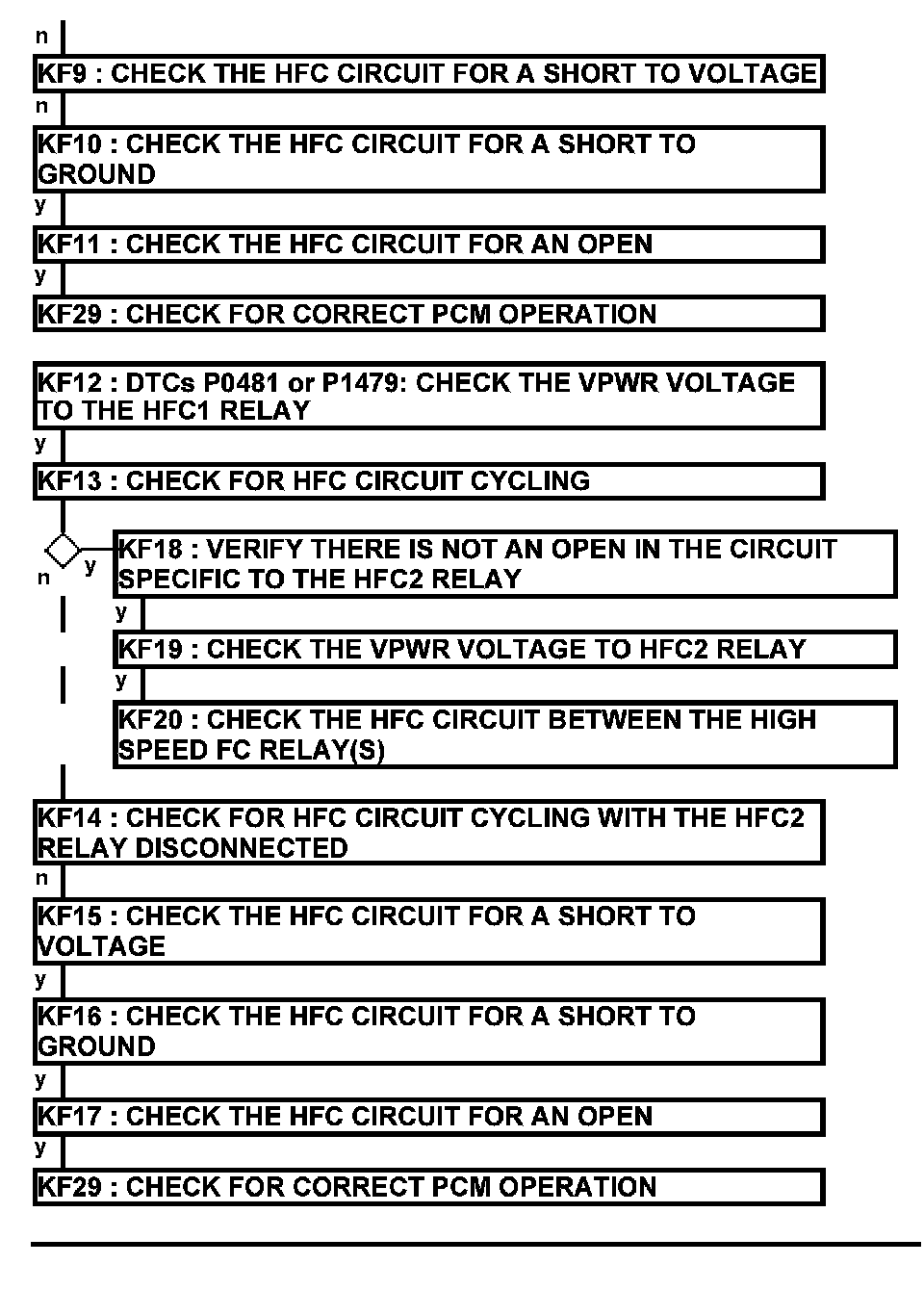

Fan Control Relays

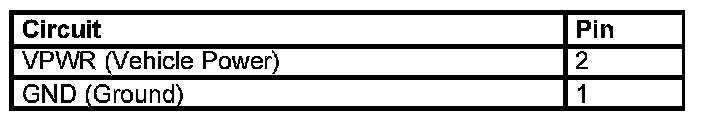

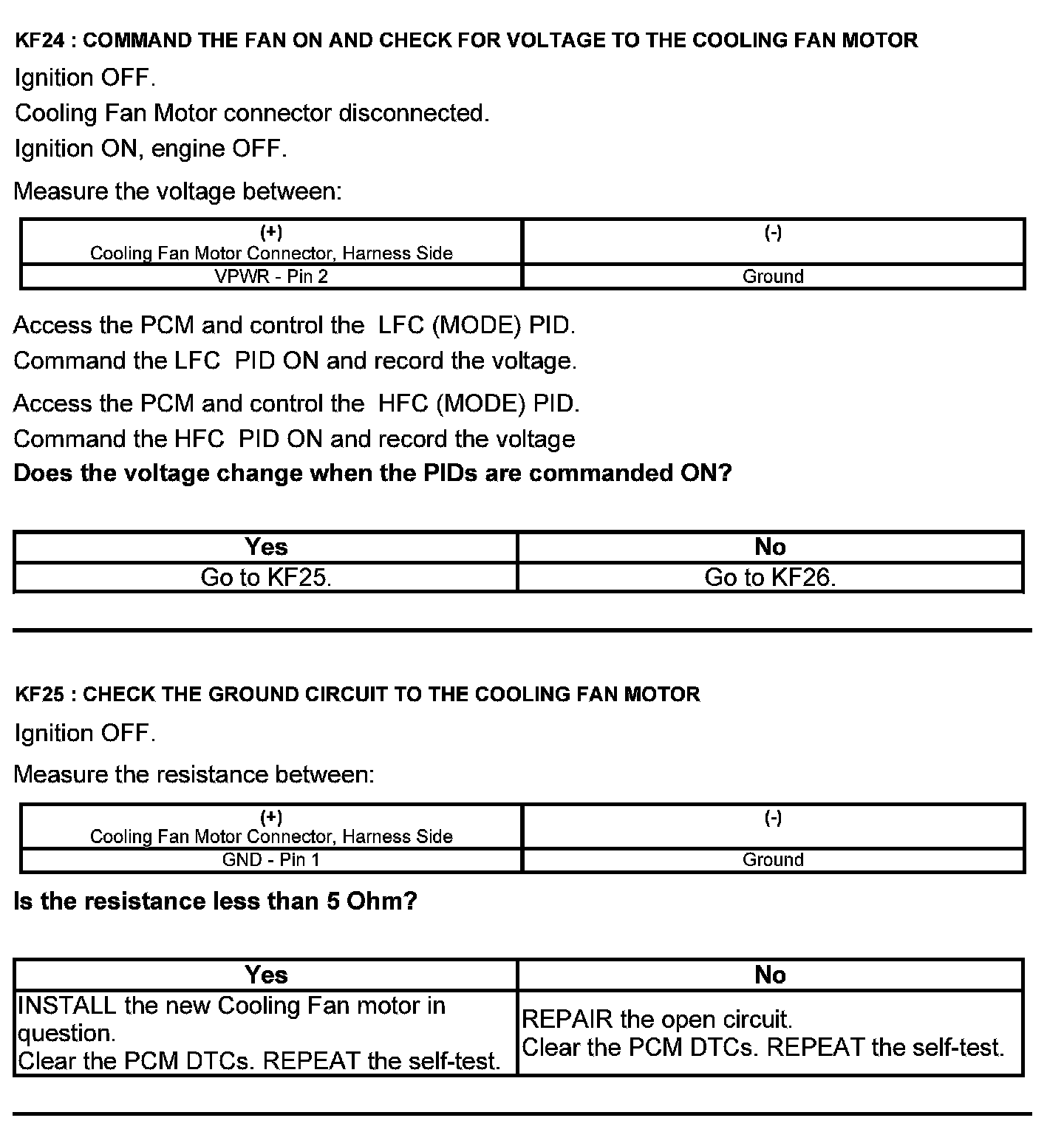

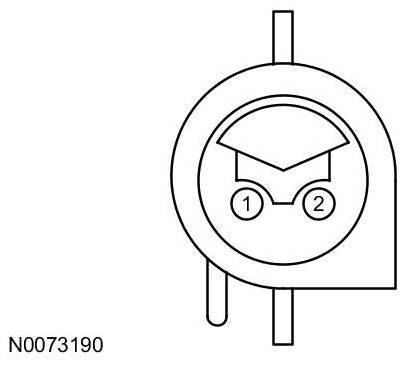

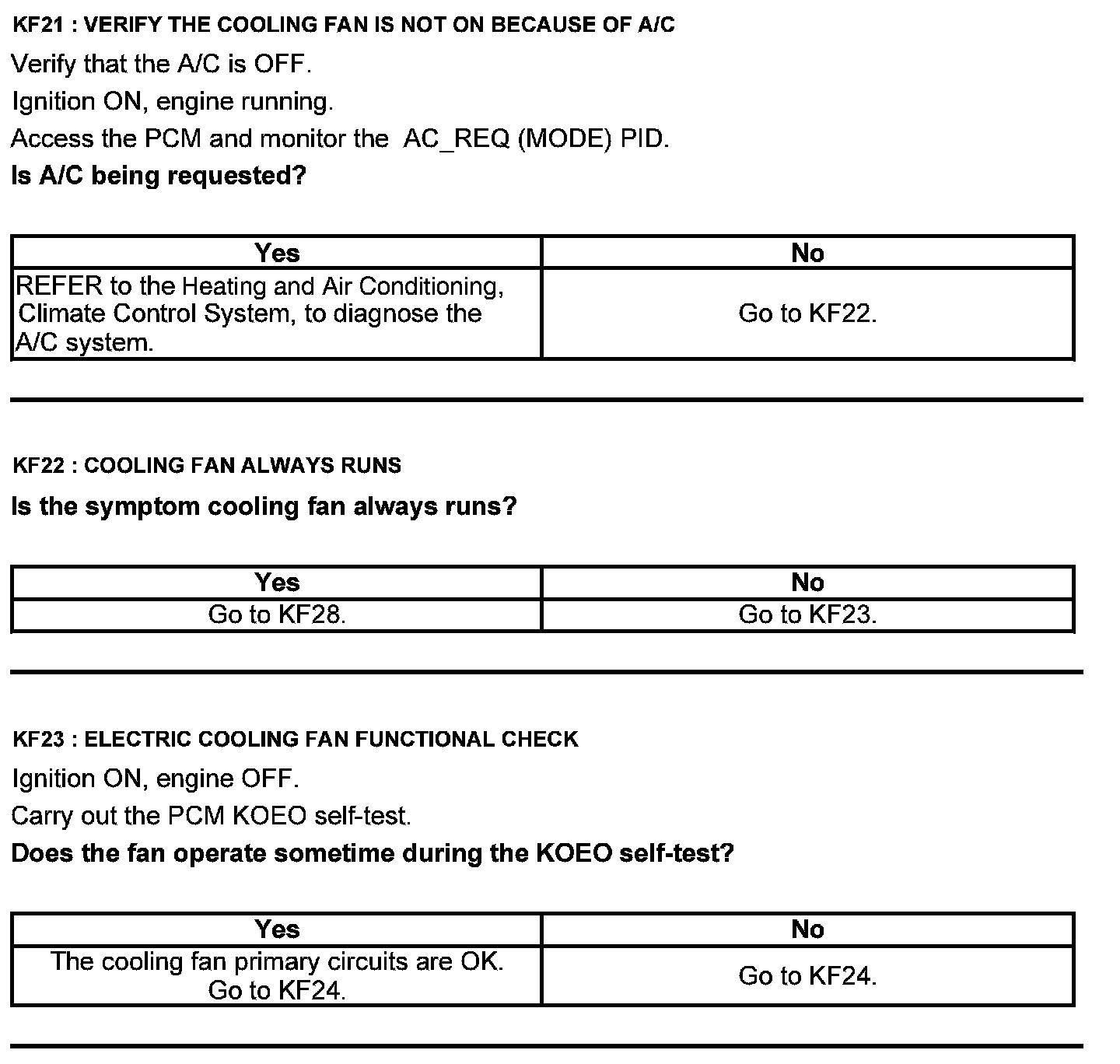

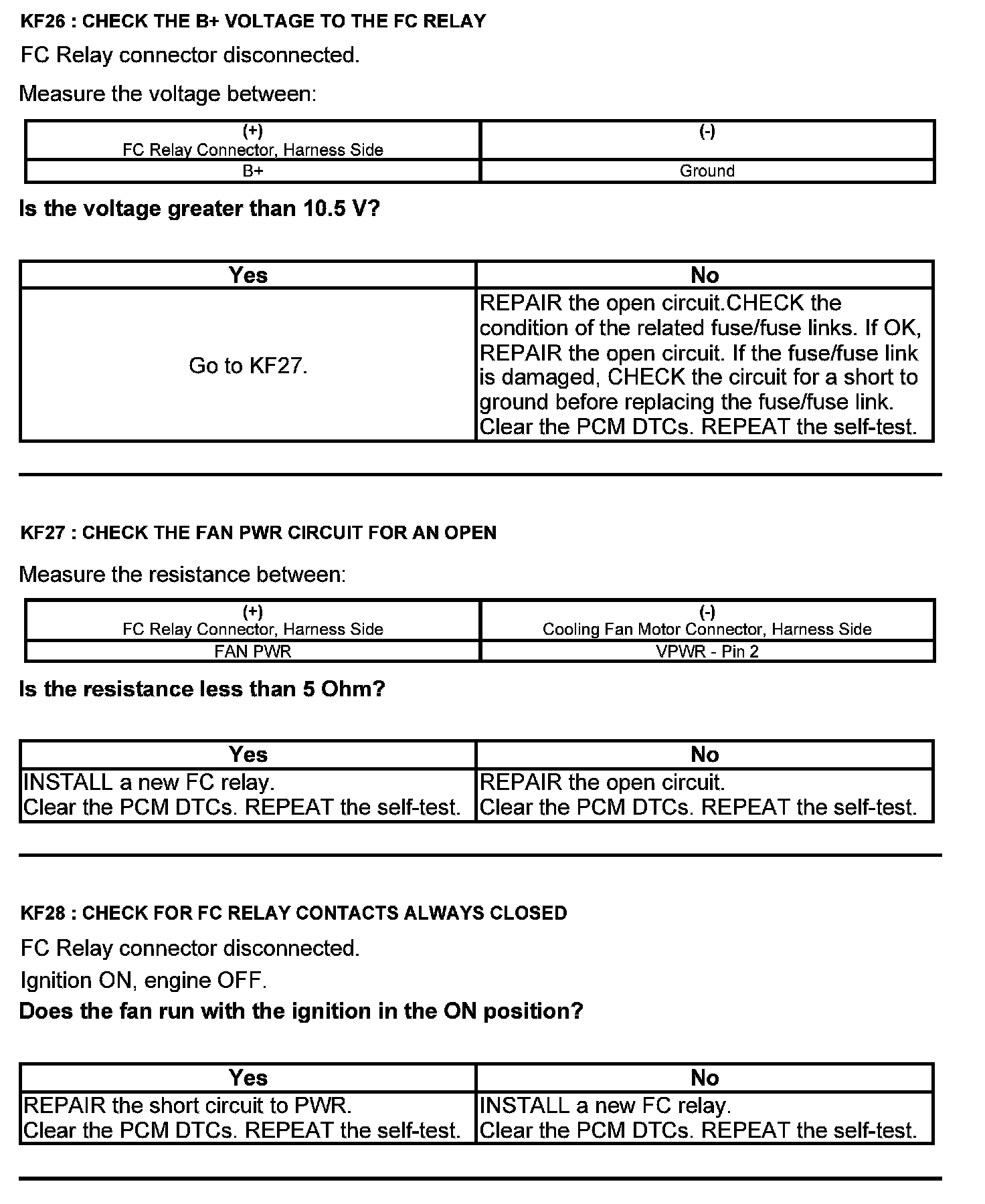

Cooling Fan Motor Connector






Harness Side

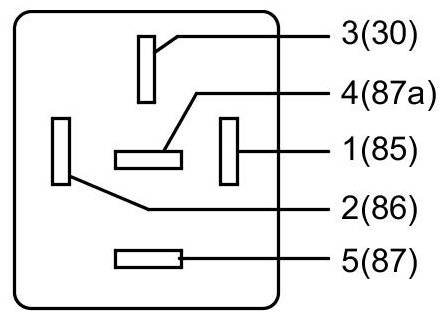

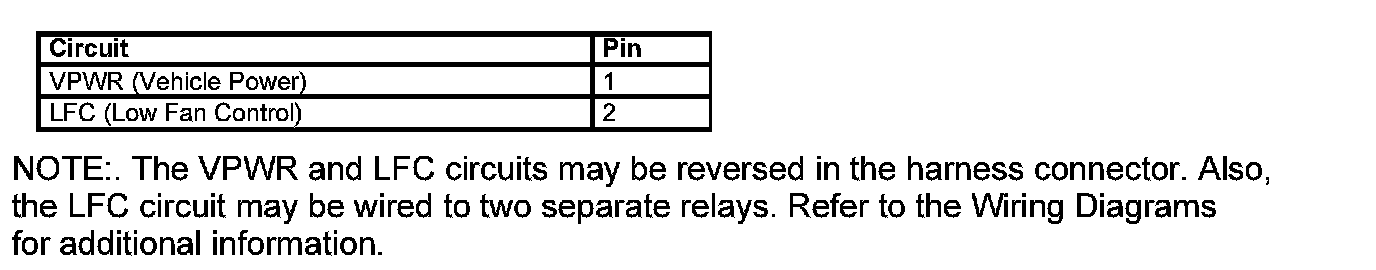

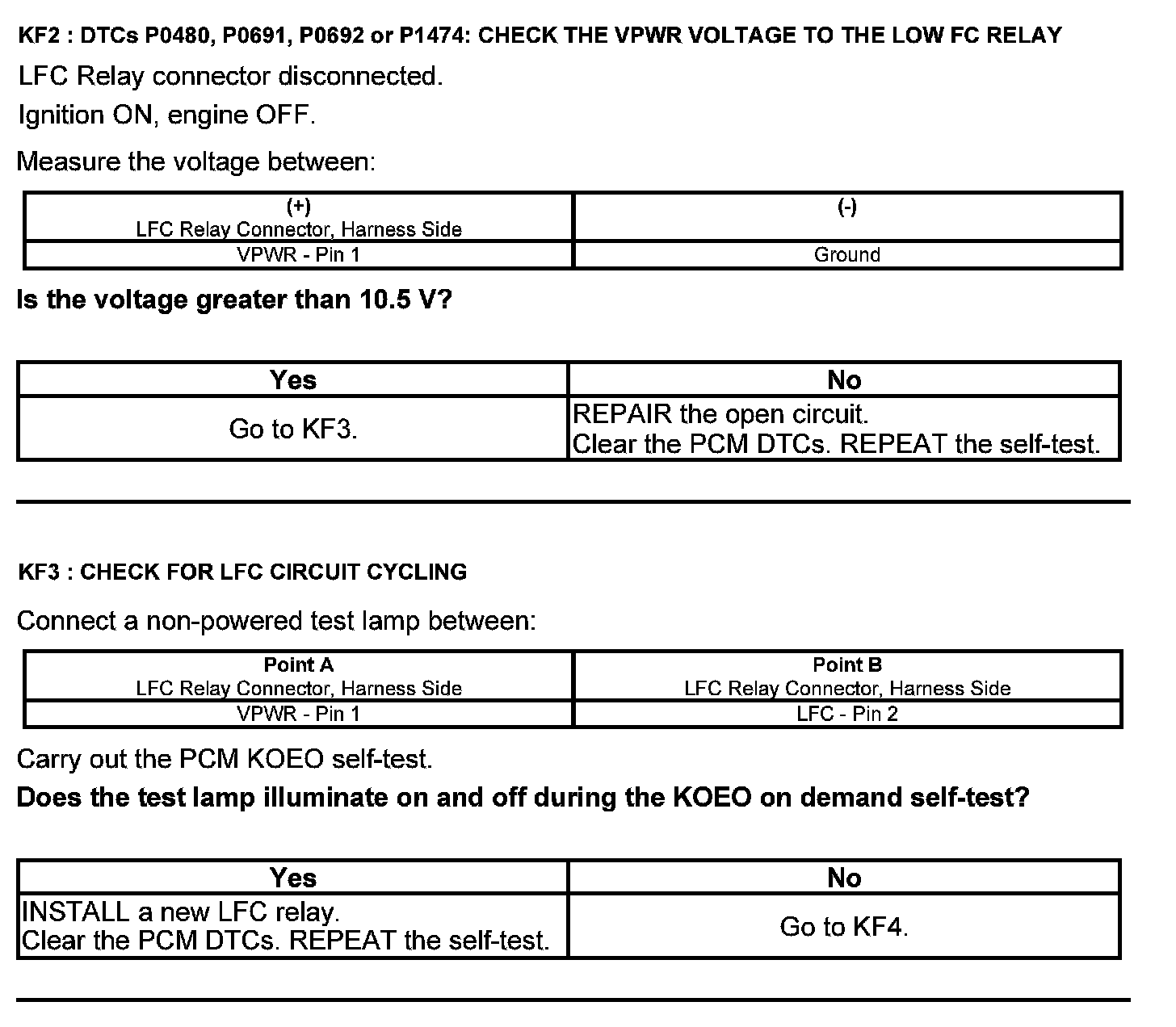

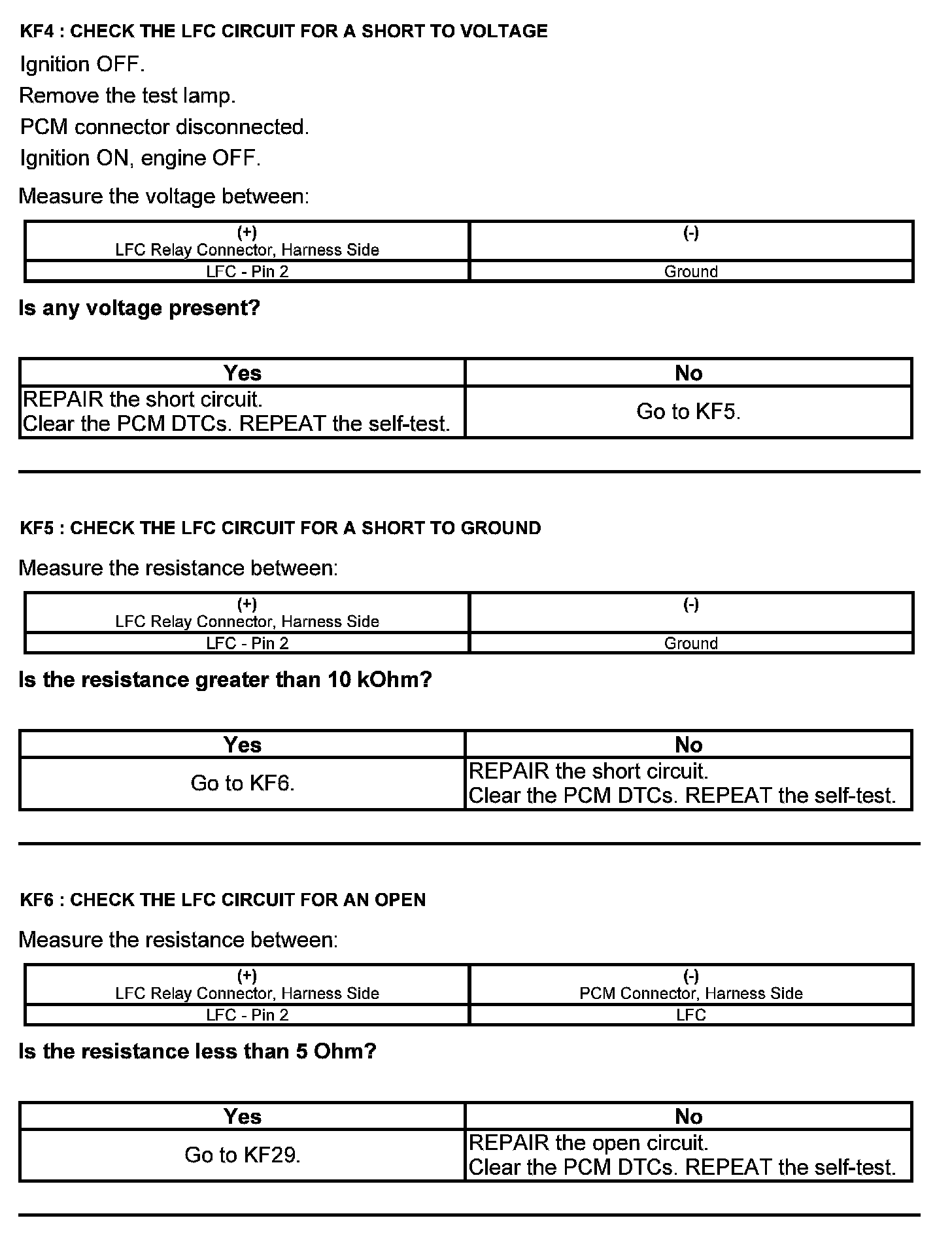

Low Fan Control (LFC) Relay Connector





Harness Side

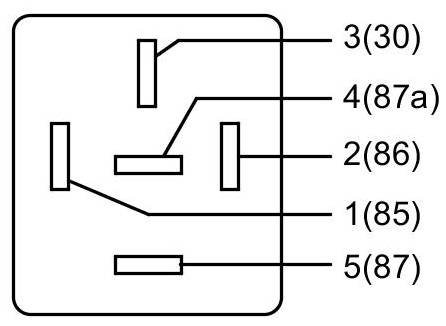

Component side

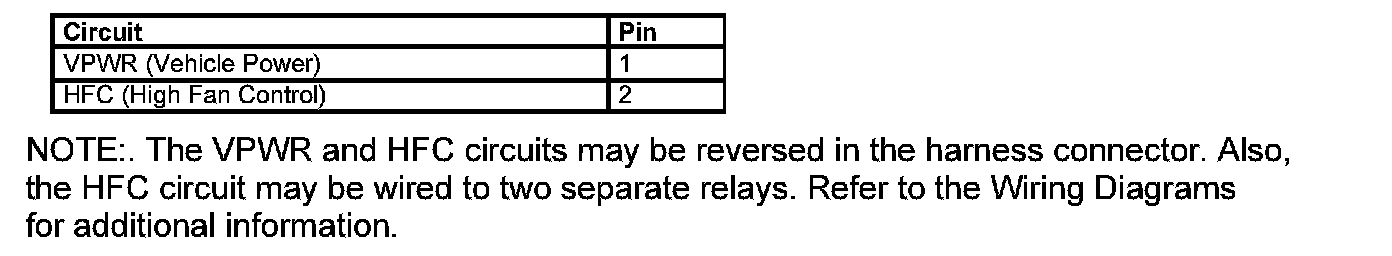

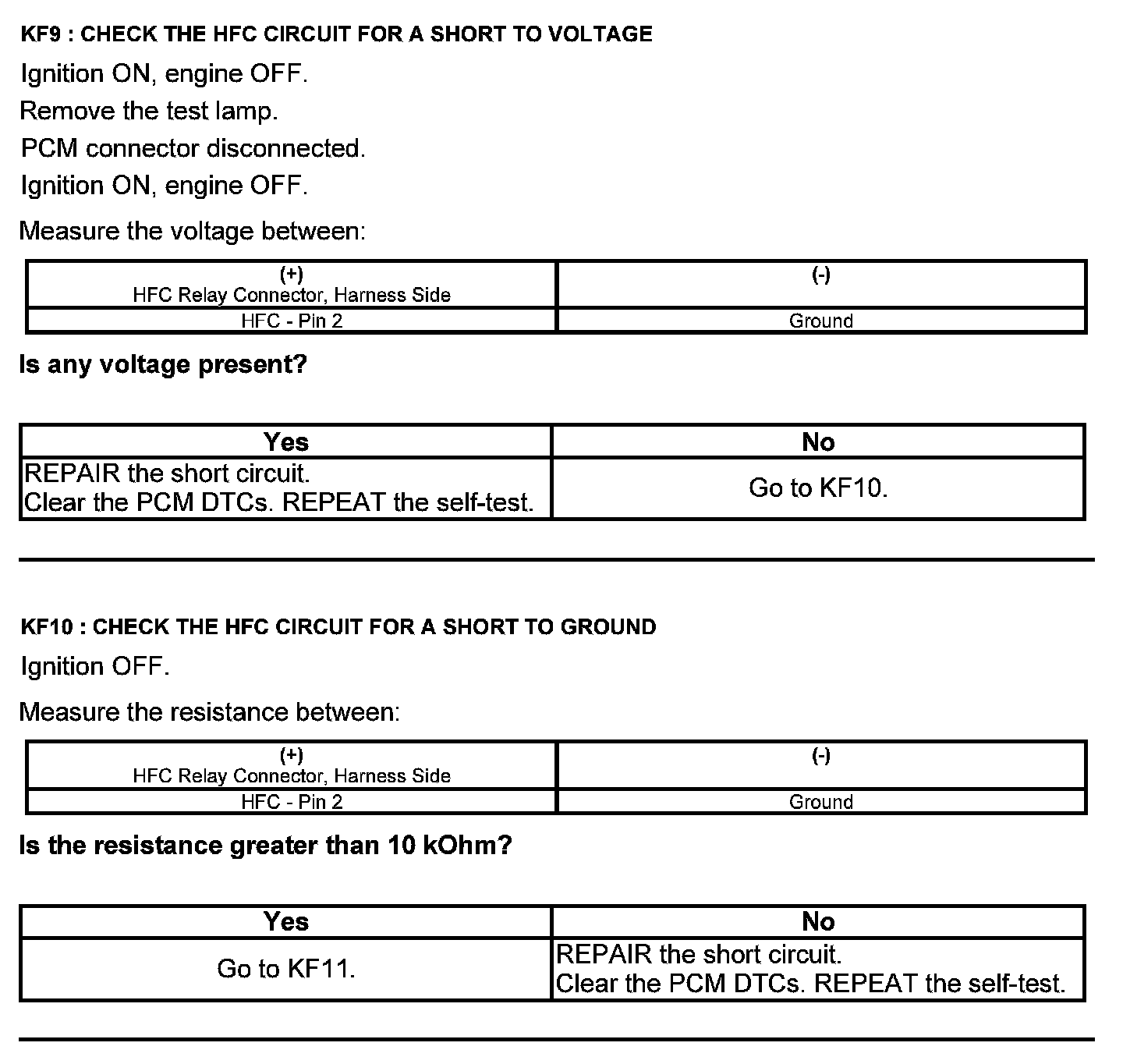

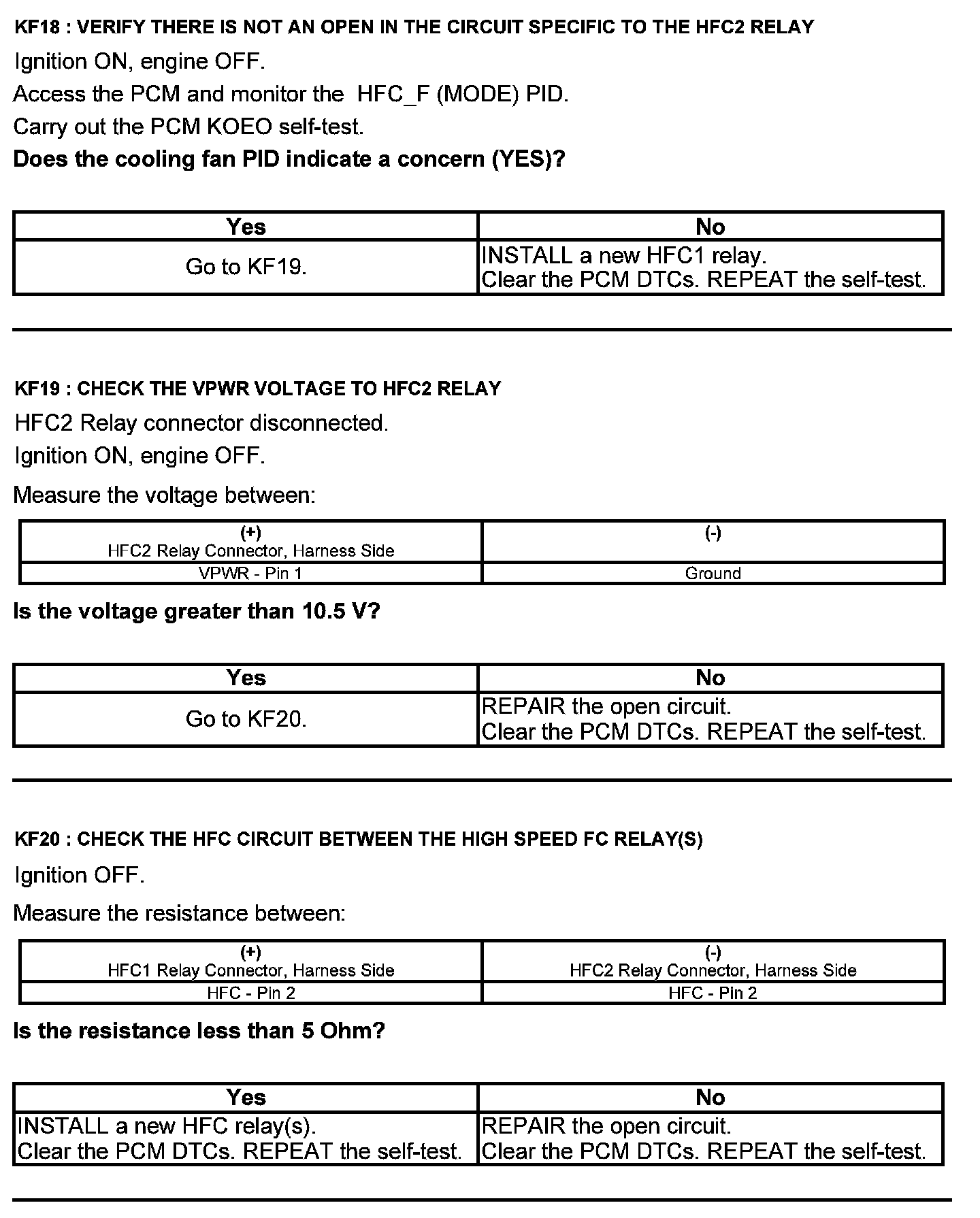

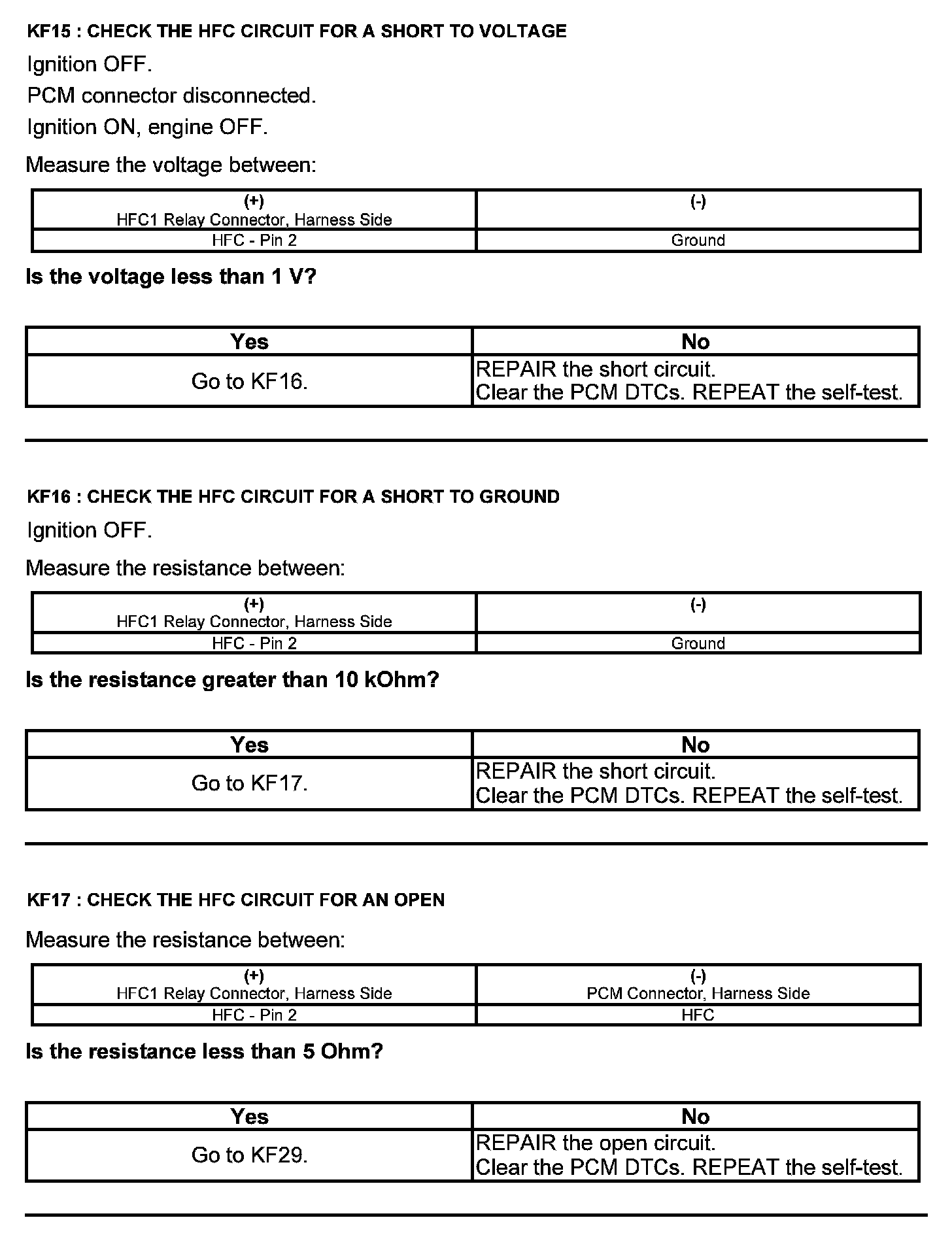

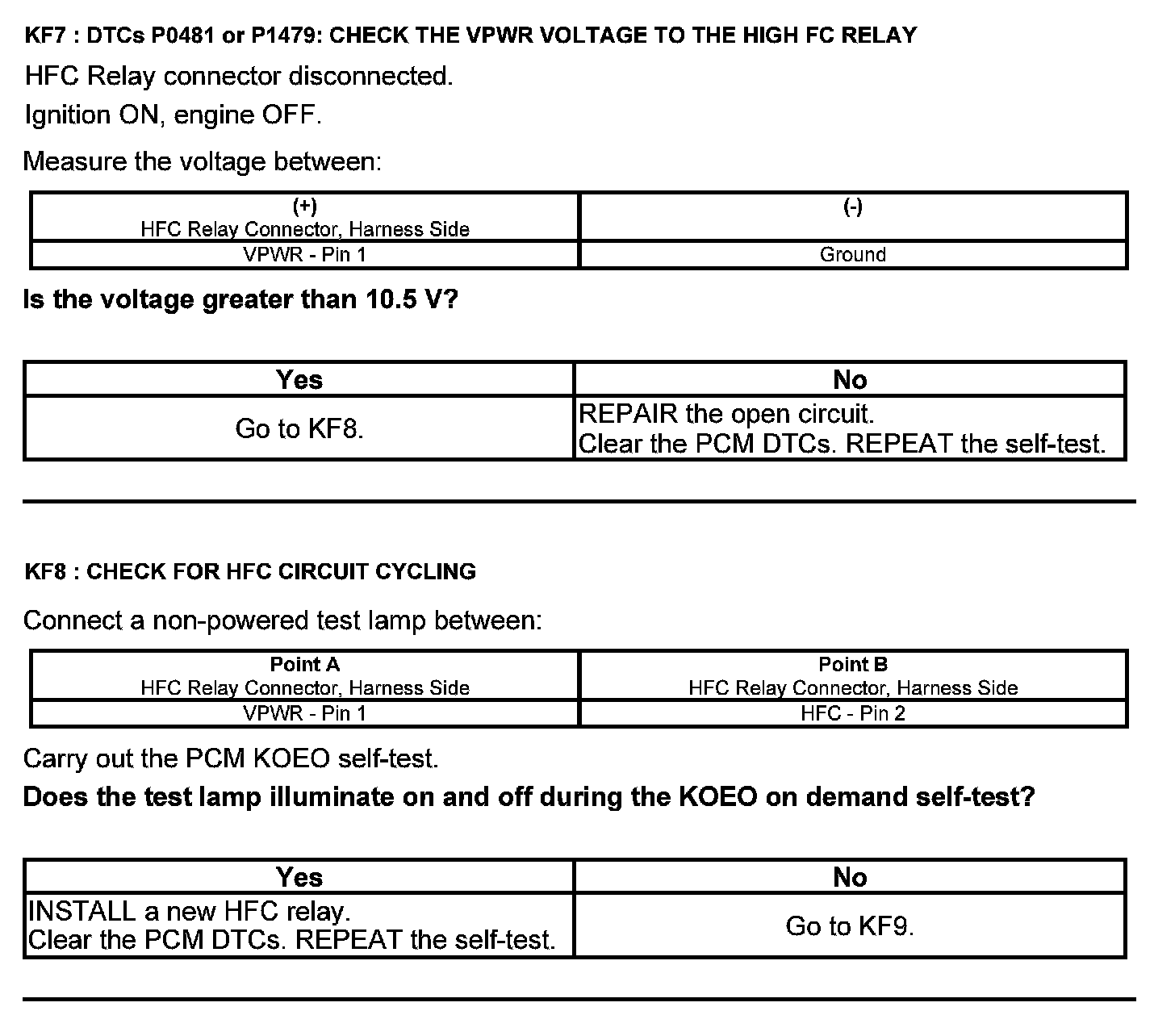

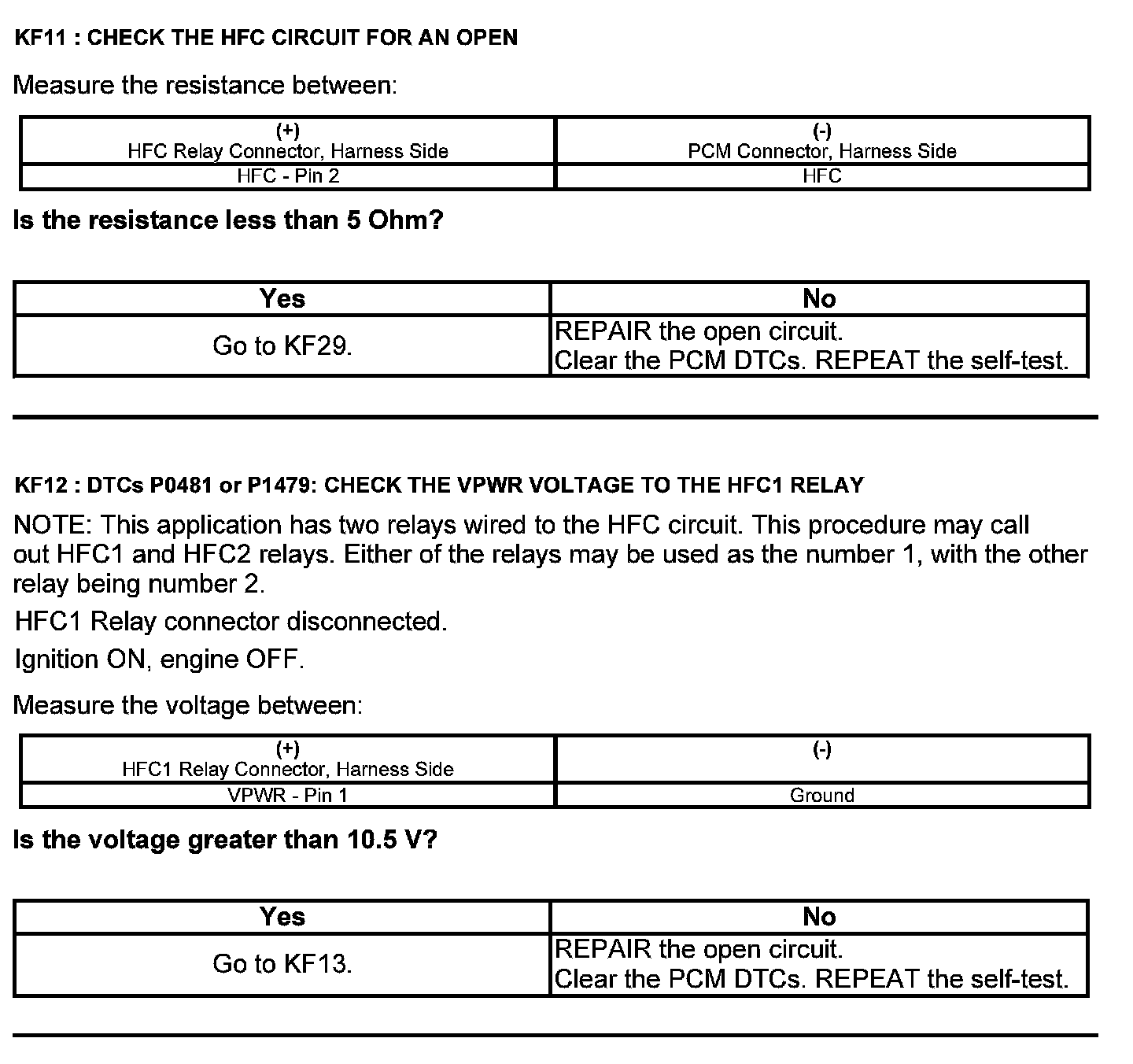

High Fan Control (HFC) Relay Connector






Harness Side





Component side

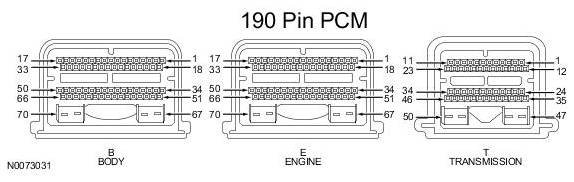

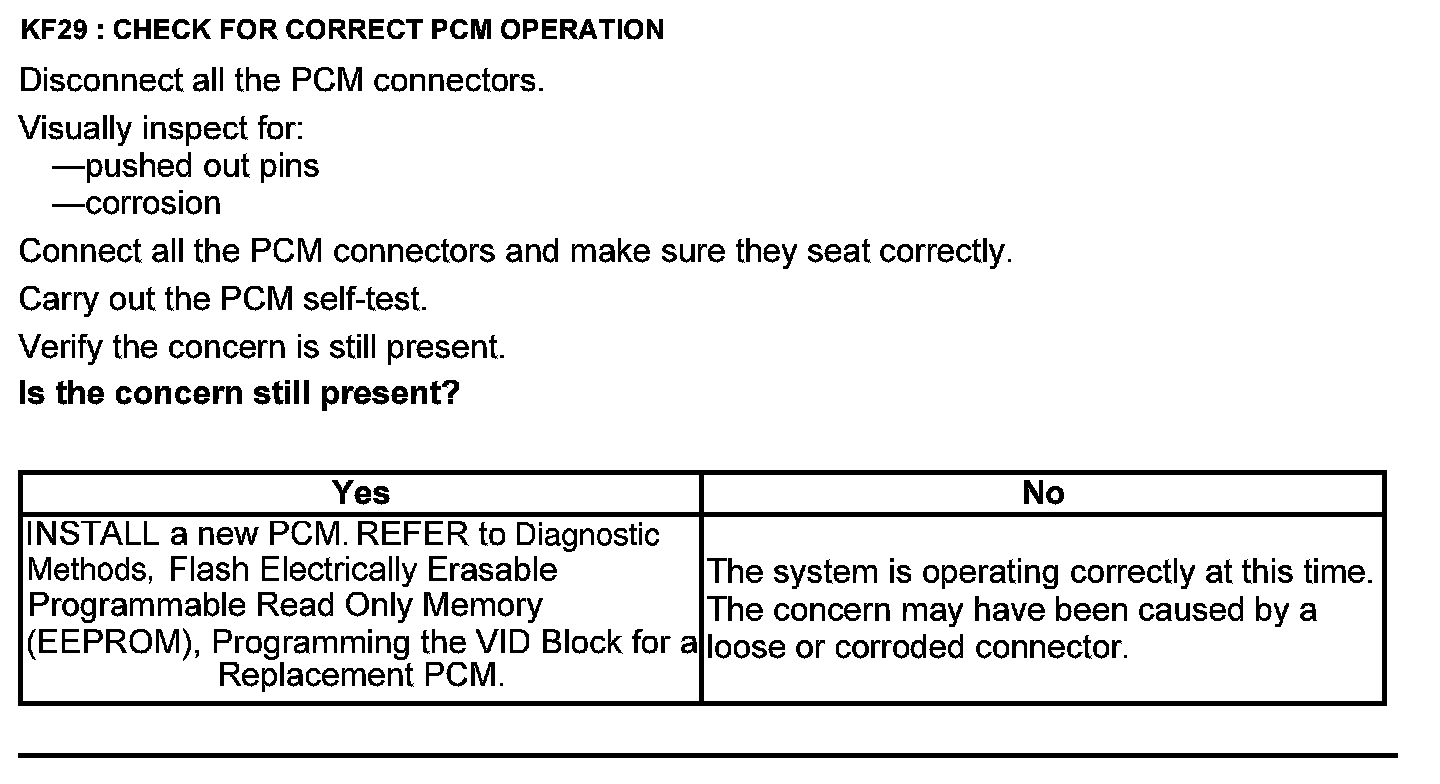

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
