Idler Pulley

Front End Accessory Drive (FEAD) - Exploded View

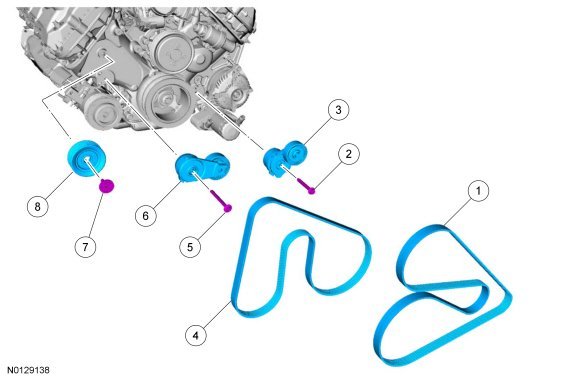

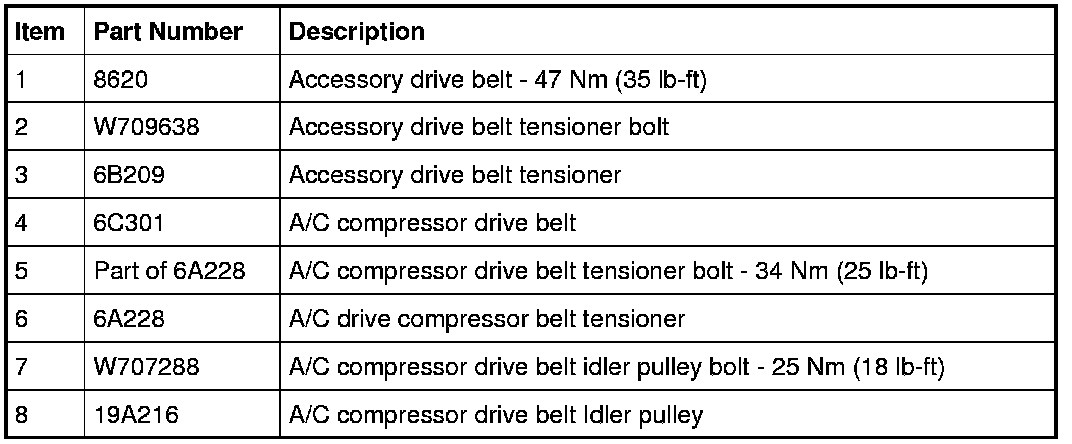

3.5L and 3.7L

NOTE: 3.7L shown 3.5L similar.

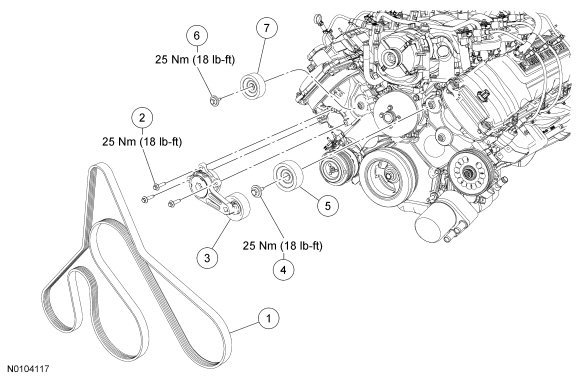

5.0L (4V)

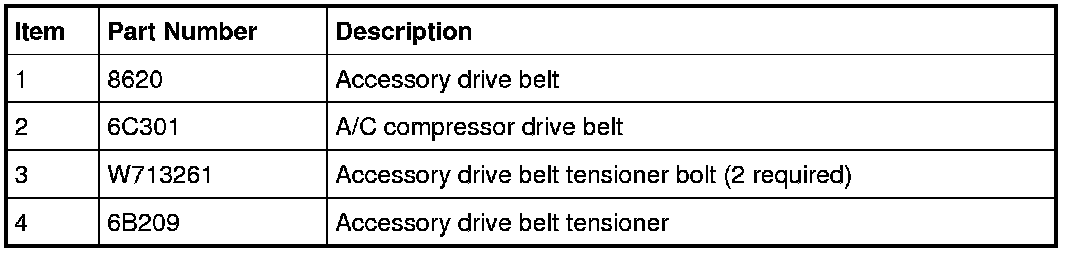

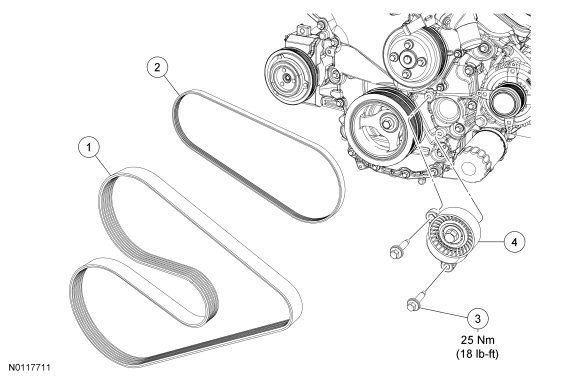

6.2L (2V)










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
