Brake Disc

Brake Disc





Removal

1. Remove the wheel and tire.

2. NOTICE: Do not allow the caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.
Discard the specified component. Follow local disposal regulations.
Relocate and support the component.
- To install, tighten the 2 new bolts to 250 Nm (184 lb-ft).






3.





Installation

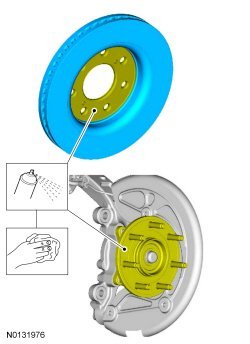

1. Apply the specified chemical with a spray can.

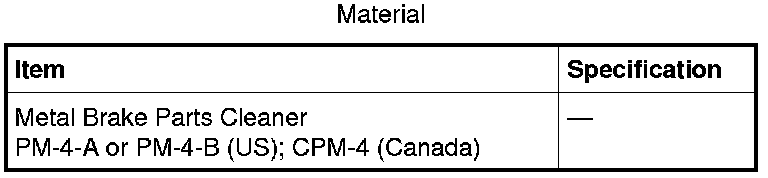

Clean the specified component with the specified material.





2. To install, reverse the removal procedure.
