Brake Disc

Brake Disc





Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire.

2. NOTICE: Do not allow the caliper assembly to hang from the brake hose or damage to the hose can occur.
Relocate and support the component.
- To install, tighten to 150 Nm (111 lb-ft).






3.





Installation

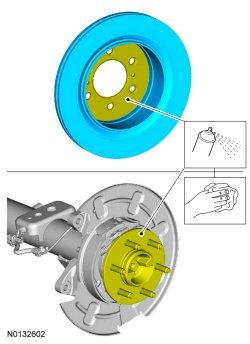

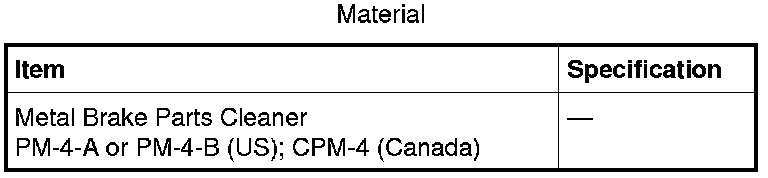

1. Apply the specified chemical with a spray can. Clean the specified component with the specified material.





2. To install, reverse the removal procedure.
- Apply brakes several times to verify correct brake operation.
