Rear Drive Axle/Differential - Ford 9.75-Inch Ring Gear




Specifications

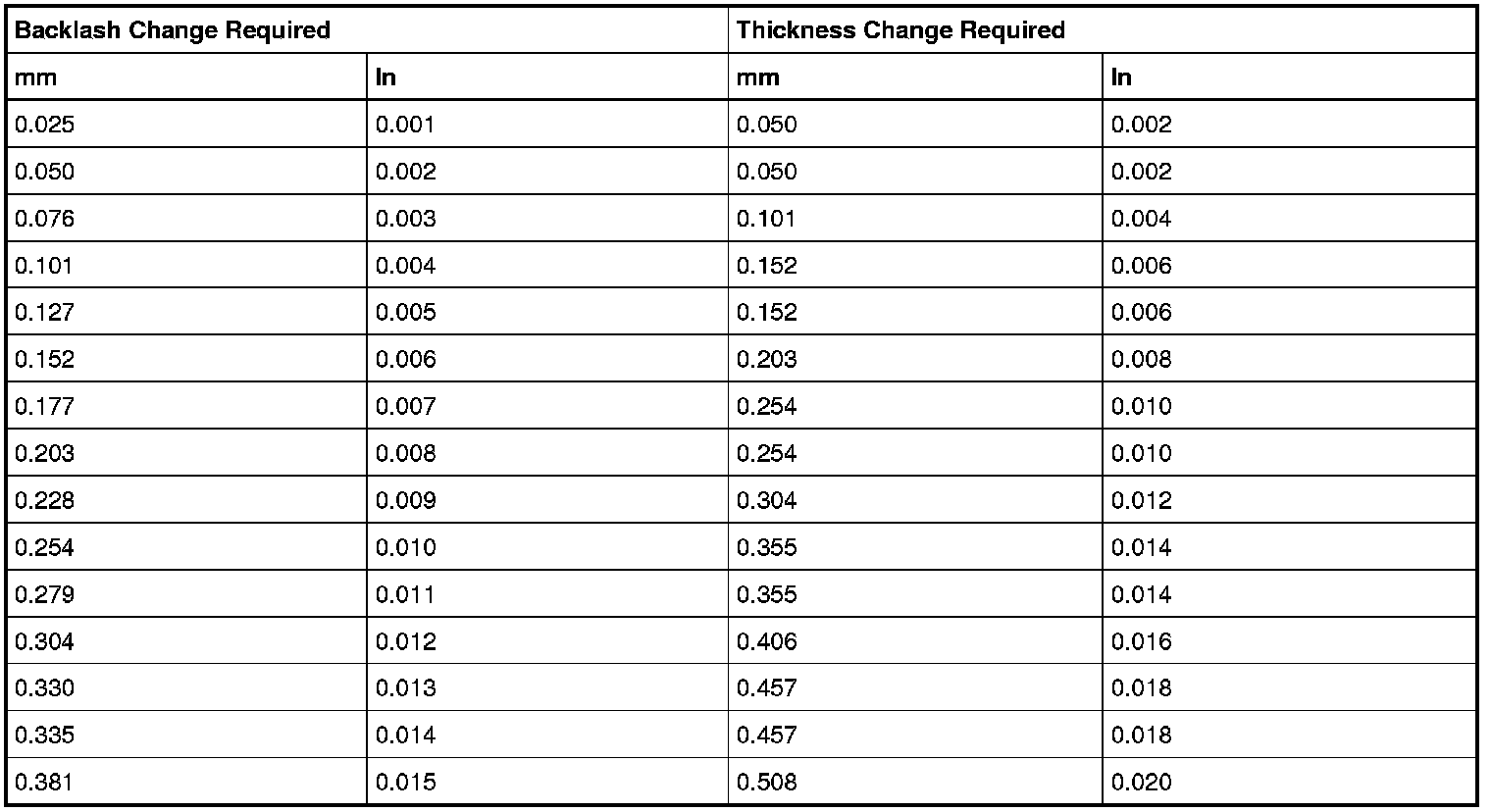

Rear Axle Backlash Shim Adjustment Table

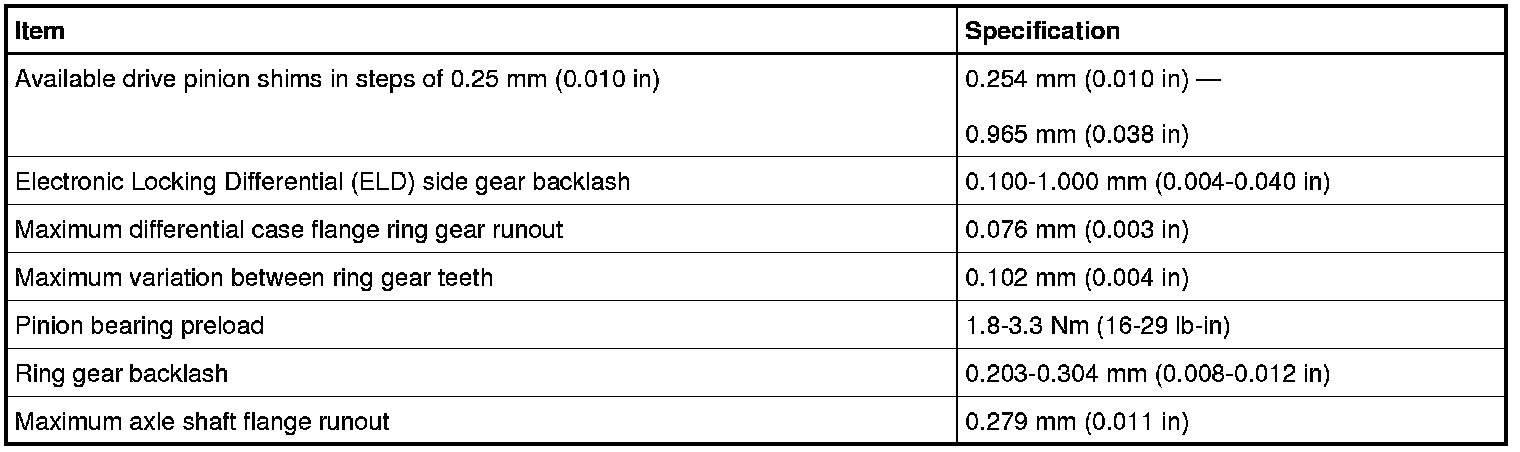

General Specifications

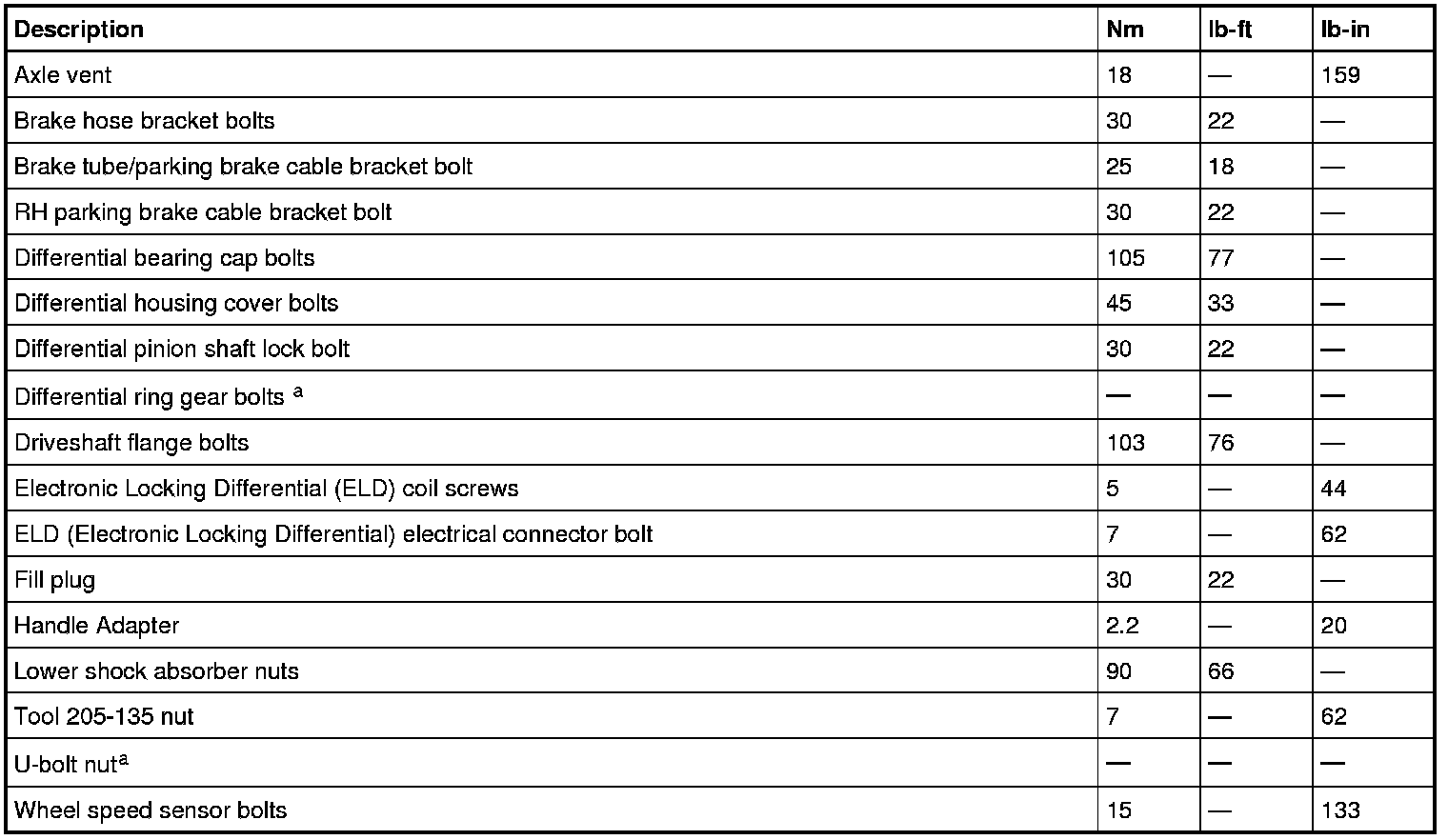

Torque Specifications





a Refer to the procedure.
