Test DD: Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors
Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors
Tables and Graphs

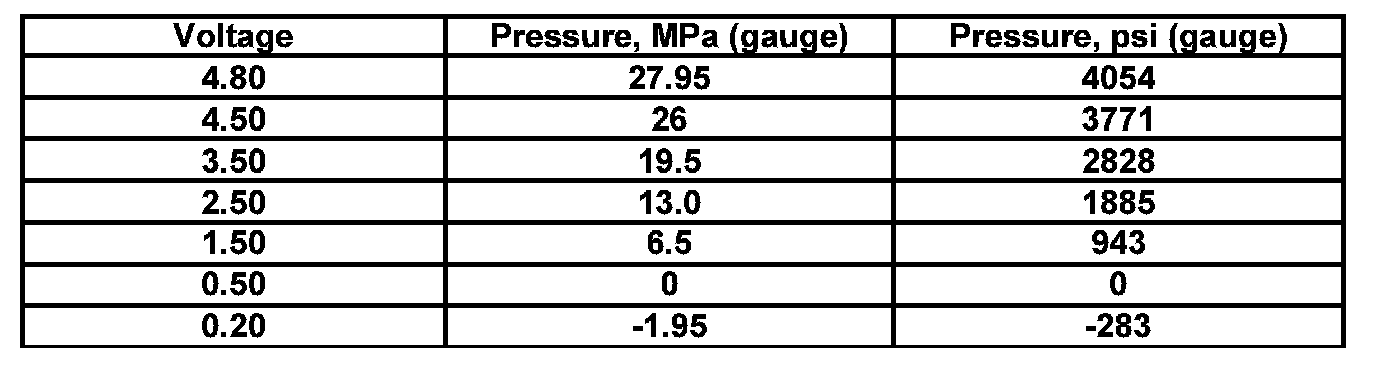

FRP SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
FRPT SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
FRPT SENSOR TEMPERATURE, VOLTAGE, AND RESISTANCE SPECIFICATIONS

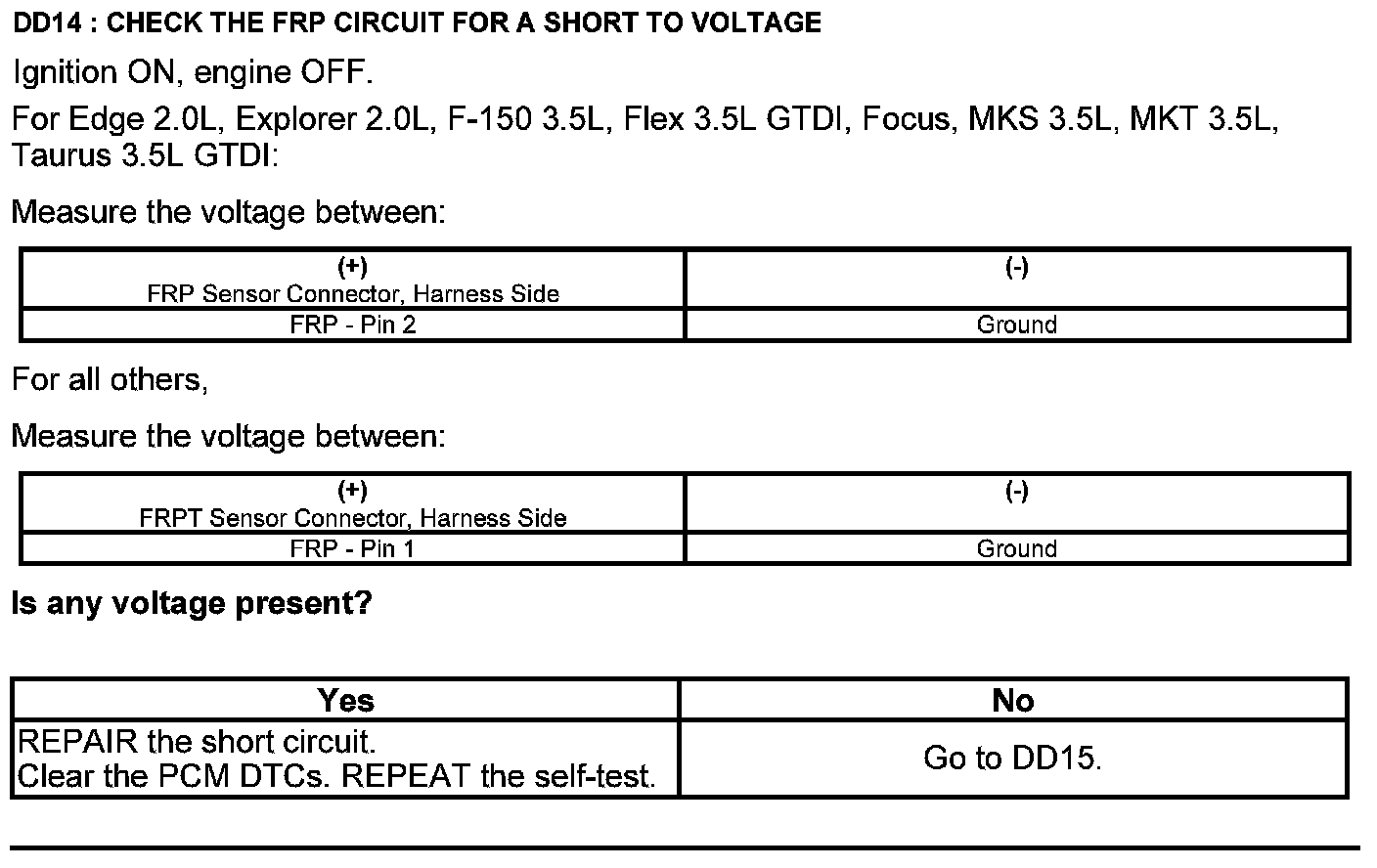

Fuel Pressure Sensor Connector
Harness Side
Fuel Rail Pressure (FRP) Sensor Connector
Harness Side
Fuel Rail Pressure Temperature (FRPT) Sensor Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
