Power Steering Pump: Service and Repair

Power Steering Pump

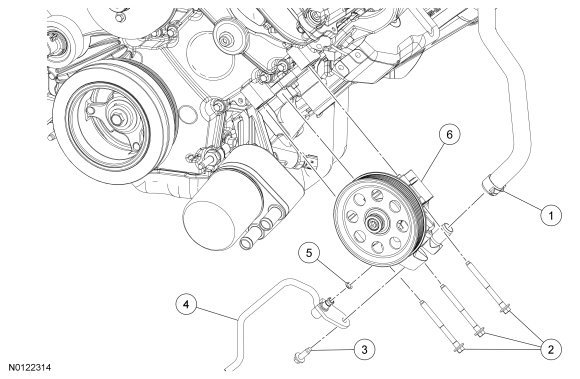

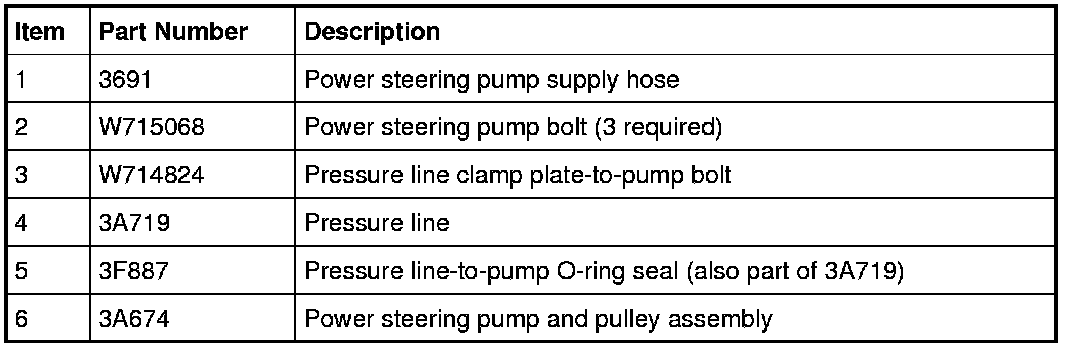

Removal and Installation

NOTICE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Using a suitable suction device, remove the power steering fluid from the fluid reservoir.

3. Release the clamp and disconnect the supply hose.

4. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the power steering pump pulley.

5. Remove and discard the pressure line clamp plate-to-pump bolt.
- Disconnect the pressure line from the pump.

- To install, tighten to 25 Nm (18 lb-ft).


6. Remove the 3 power steering pump bolts and the power steering pump.
- To install, tighten to 25 Nm (18 lb-ft).


7. To install, reverse the removal procedure.

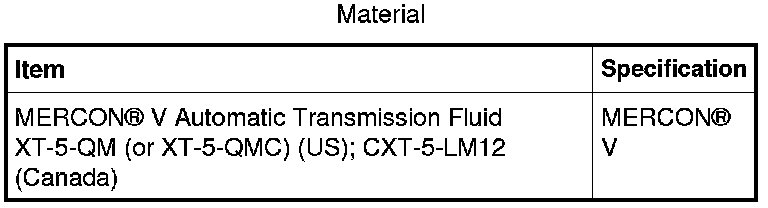

8. Fill the power steering system. For additional information, refer to Steering System - Hydraulic Power Assist Steering (HPAS).
