Receiver Dryer: Service and Repair

Receiver Drier Cartridge





Removal and Installation

1. Remove the condenser core. For additional information, refer to Condenser Core- 6.2L and 6.8L Condenser Core or Condenser Core- 6.7L Diesel Condenser Core.

2. Unscrew and remove the plastic receiver/drier cap.

3. Remove the receiver/drier plug.
1. Push the receiver/drier plug upwards and remove the snap ring.

2. Install an M5 bolt in the center of the receiver drier plug and remove the plug.






4. Using a suitable tool, grasp the receiver/drier cartridge grab handle and remove the receiver/drier cartridge.





5. To install, reverse the removal procedure.

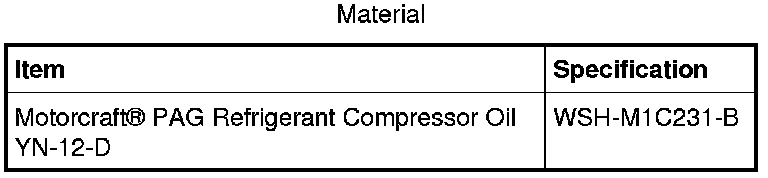

- Lubricate the receiver/drier plug O-ring seals using residual refrigerant oil from inside the receiver/drier.
