Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
F 250 4WD Super Duty V8-6.2L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Four Wheel Drive (4WD) Systems - Mechanical Shift
>>

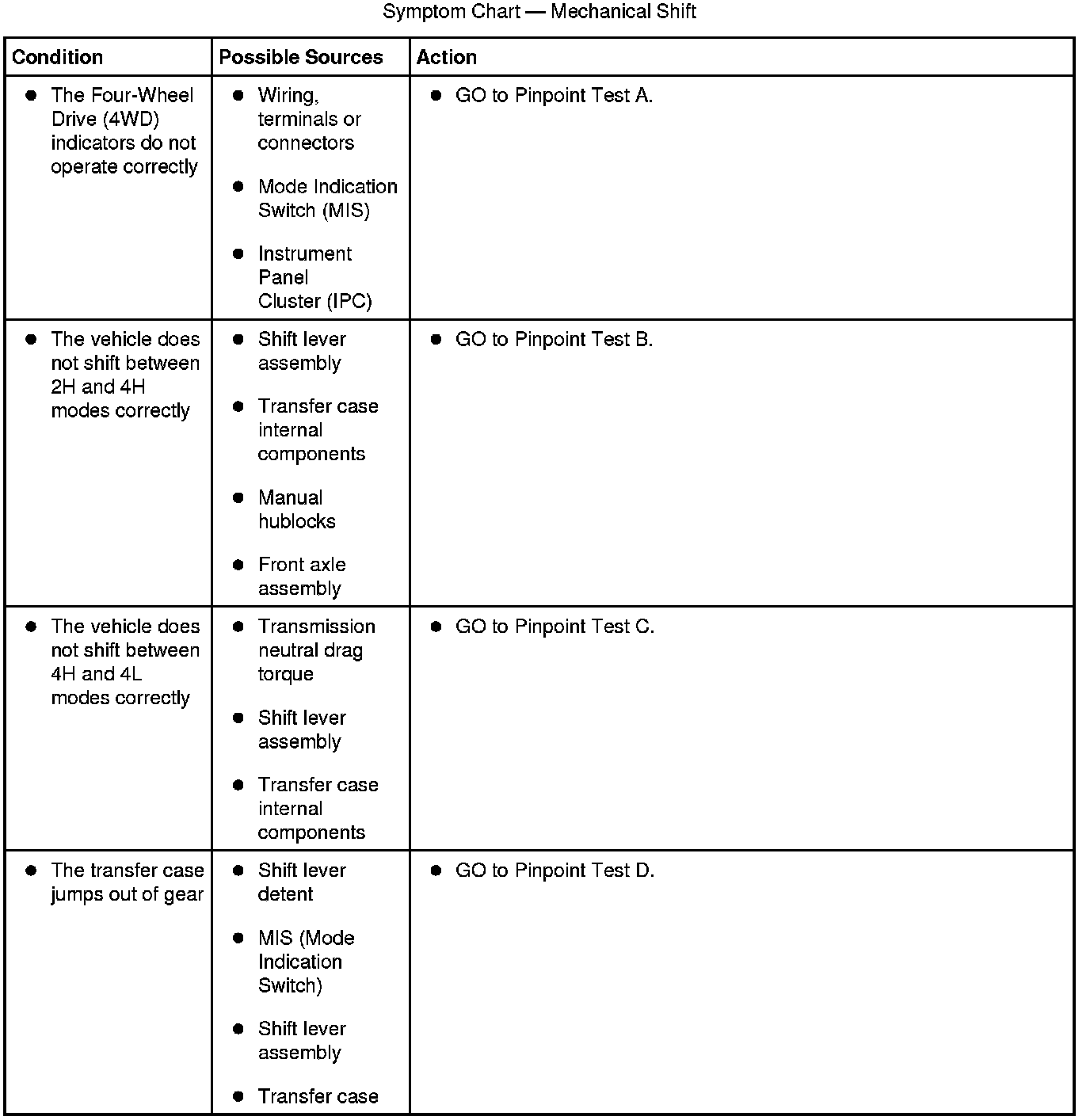

Symptom Chart - Mechanical Shift
Symptom Chart - Mechanical Shift
Four Wheel Drive (4WD) Systems - Mechanical Shift

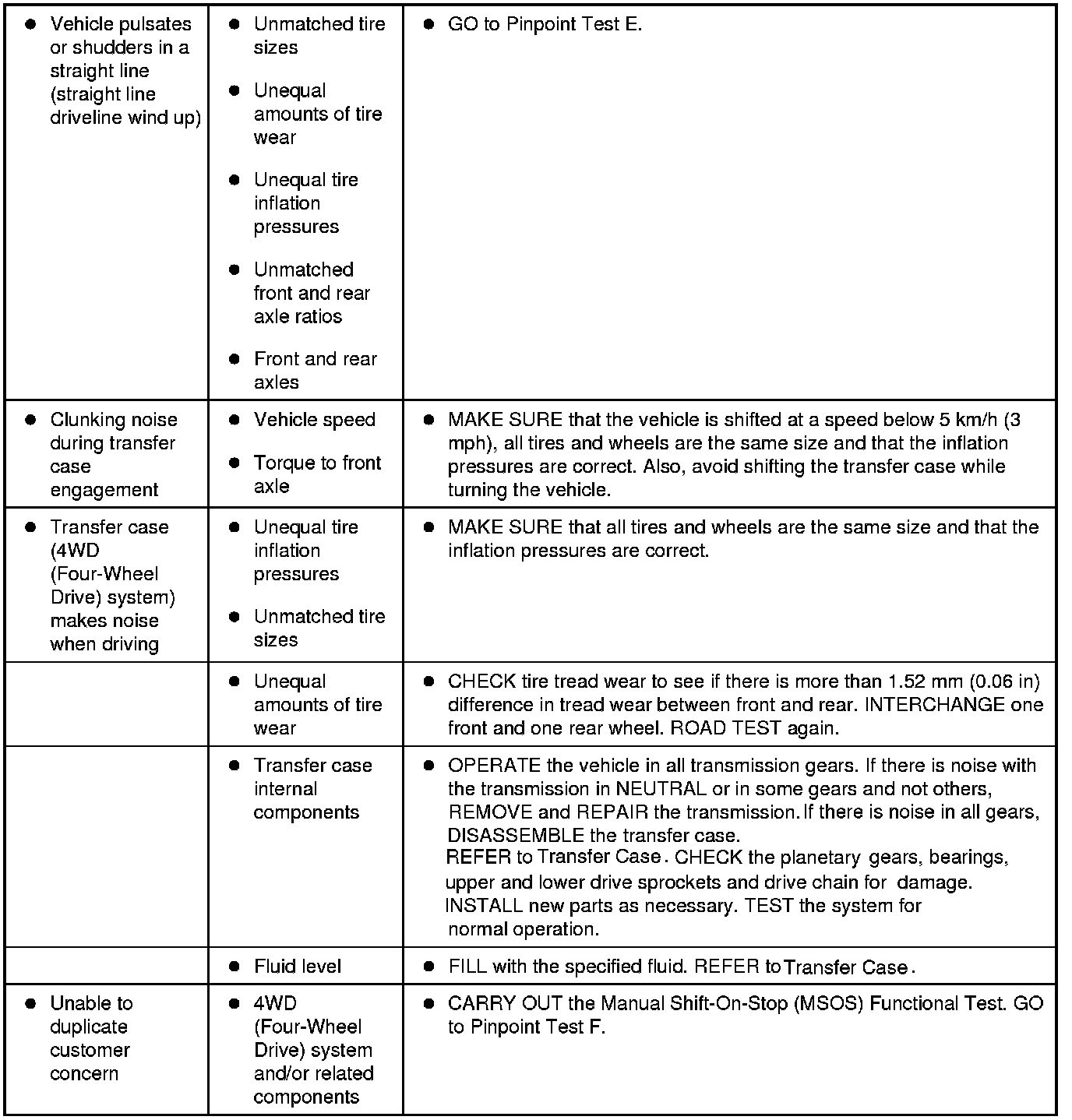

Symptom Chart - Mechanical Shift
