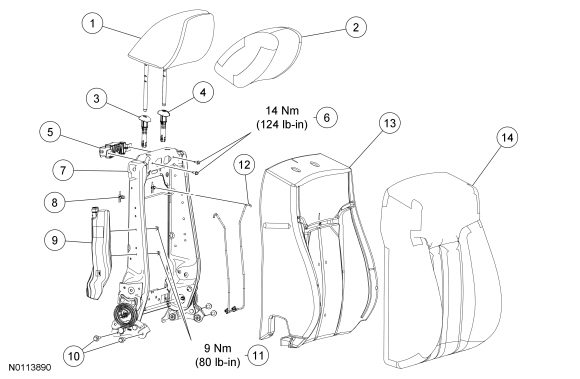

Seat Backrest Components - Installation Steps

Seat Backrest - Front, Bucket Seat

Bucket Seat Backrest with Power and Climate Control

NOTE: Refer to the installation steps for recliner-to-seat track bolt tightening sequence and specification.










Bucket Seat Backrest without Power

NOTE:

NOTE:

NOTE: Refer to the installation steps for recliner-to-seat track bolt tightening sequence and specification.










Driver Bucket Seat with Power Seat Track and Climate Control

NOTE:

NOTE:










Passenger Bucket Seat with Power Seat Track and Climate Control

NOTE:

NOTE:










Bucket Seat with Manual Seat Track

NOTE:

NOTE:

NOTE: Driver seat shown, passenger similar.









Disassembly

WARNING: Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side air bags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.

WARNING: Before installing the seat side air bag module/deployment chute assembly:
- Inspect the side air bag module and mounting surfaces for any damage or foreign material.
- Remove any foreign material from the mounting surfaces of the deployment chute, the seat backrest frame mounting bracket and the air bag module cavity in the seat backrest foam pad.
- Install new parts if damaged.
Failure to follow these instructions may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

NOTE: If a side air bag deployment took place, a new seat backrest foam pad, backrest trim cover, deployment chute and side air bag module and nuts must be installed. Install a new seat backrest frame if necessary.

1. To remove individual parts, only carry out the listed steps as identified in the following table.

Seat Backrest Components- Removal Steps






2. Remove the seat. For additional information, refer to Seat- Front, Bucket Seat .

3. Remove the 2 head restraint guide sleeves. For additional information, refer to Head Restraint Guide Sleeve .

4. If equipped, remove the manual recline handle.
- Lift the recline handle and, through the opening, locate and remove the retaining clip.






5. If equipped, remove the retaining clip and the lumbar handle.

6. Remove the cushion side shield insert.
1. From between the cushion side shield and the seat track, pry and detach the cushion side shield insert clip attached to the seat track wire.

2. Pull out slightly on the cushion side shield insert and detach the 2 plastic retainers.

3. Slide the cushion side shield insert rearward and remove.
- If equipped, disconnect the seat control switch electrical connector.

7. Disengage the cushion side shield insert retainers and remove the seat control switch.

8. From under the rear of the seat track, disengage the cushion cover rear J-clip attached to the rear of the seat track.

9. Remove the cushion side shield.
1. Remove the 3 screws.

2. Remove the scrivet at the rear.

3. From between the cushion side shield and the seat track, pry and detach the cushion side shield clip attached to the seat track wire.

4. Remove the cushion side shield.


10. NOTE: Note wire harness routing for assembly.
If equipped, from under the seat track, disconnect the side air bag module and backrest feed electrical connector(s) then detach and route out the wire harness(es).


11. If equipped, separate the manual lumbar cable cover.
1. Detach the cushion cover outboard J-clips and position the cushion cover flap up.

2. Separate the cable retainer.

3. Pull the cable cover out of the manual lumbar adjuster.






12. If equipped, remove the manual lumbar cable from the adjuster.





13. If installing a new manual lumbar assembly, remove the rivet heads, push the remaining rivet through and remove the adjuster mechanism.

14. At the inboard side, remove the pin-type retainer, detach the cushion cover flap and expose the recliner-to-backrest frame bolts.





15. At the outboard side, detach the cushion cover flap and expose the recliner-to-backrest frame bolts.





16. Remove the 4 recliner-to-seat track bolts and remove the backrest.

17. From the rear of the seat backrest, detach the backrest cover lower and side J-clips.

18. Detach the backrest cover J-clip attached to the backrest frame wire.





19. If equipped, remove the backrest Thermo-Electric Device (TED).
1. Disconnect the electrical connector and separate the pin-type retainer from the backrest frame.

2. Remove the tie strap.

3. Disengage the backrest TED (Thermo-Electric Device) upper retainers from the backrest frame wire.

4. Remove the tie strap and disengage the TED (Thermo-Electric Device) from the backrest foam pad wire.

5. Slide the TED (Thermo-Electric Device) out from between the power lumbar and cable.






20. Remove the side air bag module.
1. Detach the side air bag module wire harness retainers from the backrest frame.

2. Remove the side air bag nuts.

3. Disconnect the side air bag module electrical connector.

4. Slide the side air bag module out of the deployment chute.


21. Remove the backrest frame assembly from the backrest foam pad.

22. NOTE: Reclining the backrest can aid in pulling the backrest cover out from between the cushion and backrest.
Remove the backrest cover from the backrest foam pad.

1. Remove the 2 hog rings at the bottom of the backrest cover.

2. Detach the backrest foam pad clips from the backrest cover plastic strips.
- Pry open one end of the clip and roll the plastic strip out of the clip.


23. If equipped, remove the 2 bolts and the damper.

24. If equipped, remove the static lumbar.
1. Squeeze the retainers together at the bottom and separate from the backrest frame.

2. Remove and discard the clips at the top.


25. If equipped, remove the manual lumbar.
- Detach the cable and manual lumbar retainers.






26. If equipped, disconnect the power lumbar motor electrical connector, disengage the retainers on both sides and remove the power lumbar assembly.
- If necessary, disconnect the TED (Thermo-Electric Device) electrical connector and detach the pin-type retainer from the backrest frame, then remove the tie strap retainer around the duct.






27. NOTICE: Do not rotate the inboard and outboard recliners separately from each other. Doing so causes the recliners to become out of synchronization.

Remove the E-clip from the recliner shaft and the recliner motor bolt.
- If only servicing the power recliner motor, pull the bottom of the backrest foam pad and backrest cover forward and away from the backrest frame to gain access.






28. Release the 2 clips (1 shown) and slide the sleeve back on the recliner shaft.





29. Remove the power recliner motor.
1. Slide the recliner shaft assembly out of the recliner and remove the short recliner shaft.

2. Slide the long recliner shaft out of the recliner and power recliner motor.

3. Disconnect and remove the power recliner motor.






30. NOTE: Note the backrest wire harness routing for assembly.
If equipped, remove the backrest wire harness.


Assembly

1. To install individual parts, only carry out the listed steps as identified in the following table.

Seat Backrest Components- Installation Steps






2. If equipped, install the backrest wire harness.

3. NOTICE: Do not rotate the inboard and outboard recliners separately from each other. Doing so causes the recliners to become out of synchronization.

If equipped, install the power recliner motor in the following sequence.
1. Connect the power recliner motor.

2. Slide the long recliner shaft into the power recliner motor and recliner.
- Once the shaft is through the motor, it may be necessary to use a remote power supply to turn the motor so the shaft aligns to the recliner hole.

3. Slide the sleeve and short recliner shaft onto the long recliner shaft.

4. Slide the short recliner shaft into the recliner on that side.

5. Position the recliner motor and install the bolt.
- Tighten to 5 Nm (44 lb-in).

6. Install the E-clip on the recliner shaft, near the recliner motor.

4. If necessary, position the TED (Thermo-Electric Device) duct between the power lumbar and the cable.





5. Engage the power lumbar assembly retaining clips to the backrest frame and connect the power lumbar motor.
- If necessary, connect the TED (Thermo-Electric Device) electrical connector and attach the pin-type retainer to the backrest frame then install the tie strap retainer around the TED (Thermo-Electric Device) duct and wire harness.

- For passenger seat, install the foam pad onto the lumbar motor.






6. If equipped, position and attach the manual lumbar retaining clips and the cable retainer.

7. If equipped, install the static lumbar in the following sequence.
1. Position the static lumbar to the backrest frame and install the retainers at the bottom.

2. Position the static lumbar in front of the backrest frame wire and install 2 new retainers.
- After installation, make sure the retainers are holding the static lumbar tightly against the backrest frame wire or squeaks can occur.






8. If equipped, position the damper and install the 2 bolts.
- Tighten to 14 Nm (124 lb-in).

9. Position the backrest frame assembly into the backrest foam pad.

10. Position the backrest cover onto the backrest foam pad.

11. WARNING: Inspect the seat side air bag module cavity in the seat backrest foam pad for any foreign material. If any foreign material is found, remove it. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

WARNING: Check the seat side air bag deployment chute for damage. The deployment chute must not be repaired. If there is any damage to the deployment chute, a new seat back trim cover and deployment chute must be installed as a unit. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.

WARNING: Inspect the seat side air bag module and mounting surfaces for any damage or foreign material before installing the seat side air bag module. If any damage is found, install new components. If any foreign material is found, remove it. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: The side air bag modules are keyed left and right. If the side air bag module does not align to the backrest frame holes, the wrong side air bag module is being installed.
Position the side air bag module into the deployment chute.
- Position the 2 side air bag module studs through the deployment chute holes.






12. Connect the side air bag module electrical connector.

13. Position the 2 side air bag module studs through the backrest frame and install the 2 nuts.
- Tighten to 9 Nm (80 lb-in).


14. Route and attach the side air bag module wire harness retainers to the backrest frame.

15. Attach the backrest cover to the backrest foam pad.
1. Attach the backrest cover plastic strips to the backrest foam pad clips.

2. Install the 2 hog rings at the bottom of the backrest cover to the backrest foam pad.


16. If equipped, install the backrest TED (Thermo-Electric Device).
1. Position the TED (Thermo-Electric Device) between the power lumbar and cable.

2. Engage the backrest TED (Thermo-Electric Device) to the backrest foam pad wire.
- Tie strap the TED (Thermo-Electric Device) to the wire in the backrest foam pad.

3. Engage the TED (Thermo-Electric Device) upper retainers to the backrest frame wire.

4. Connect the electrical connector and attach the pin-type retainer to the backrest frame.

5. Install the tie strap retainer around the duct, wire harness and backrest frame.


17. From the rear of the backrest, attach the backrest cover J-clip to the backrest frame wire.

18. Attach the backrest cover lower and side J-clips.

19. Position the backrest assembly to the cushion/seat track and if equipped, route the lumbar cable between the backrest and cushion.

20. Install the 4 recliner-to-seat track bolts by hand, then tighten in the following sequence.
1. Tighten the rear outboard bolt to 50 Nm (37 lb-ft).

2. Tighten the rear inboard bolt to 50 Nm (37 lb-ft).

3. Tighten the front inboard bolt to 50 Nm (37 lb-ft).

4. Tighten the front outboard bolt to 50 Nm (37 lb-ft).


21. If equipped, from under the seat, route the wire harness(es) and connect the electrical connectors.
- Connect the side air bag electrical connector, engage the locking clip and attach the wire harness retainers.

- Connect the backrest feed electrical connector and attach the wire harness retainers.


22. If installing a new manual lumbar assembly, align the adjuster mechanism to the seat track and install 2 rivets.

23. If equipped, attach the manual lumbar cable to the adjuster.

24. At the outboard side, wrap and attach the cushion cover flap.

25. At the inboard side, wrap and attach the cushion cover flap and install the pin-type retainer.

26. Install the cushion side shield.
1. Align and engage the clip to the seat track wire.

2. Install the 3 screws.

3. Install the scrivet at the rear.


27. Install the seat control switch into the cushion side shield insert.

28. Install the cushion side shield insert.
- If equipped, connect the seat control switch electrical connector.


29. If equipped, install the retaining clip and the lumbar handle.

30. If equipped, install the retaining clip and recline handle.

31. From under the rear of the seat track, attach the cushion cover rear J-clip.

32. Install the 2 head restraint guide sleeves. For additional information, refer to Head Restraint Guide Sleeve .

33. Install the seat. For additional information, refer to Seat- Front, Bucket Seat .
