Test P: Fuel Injector

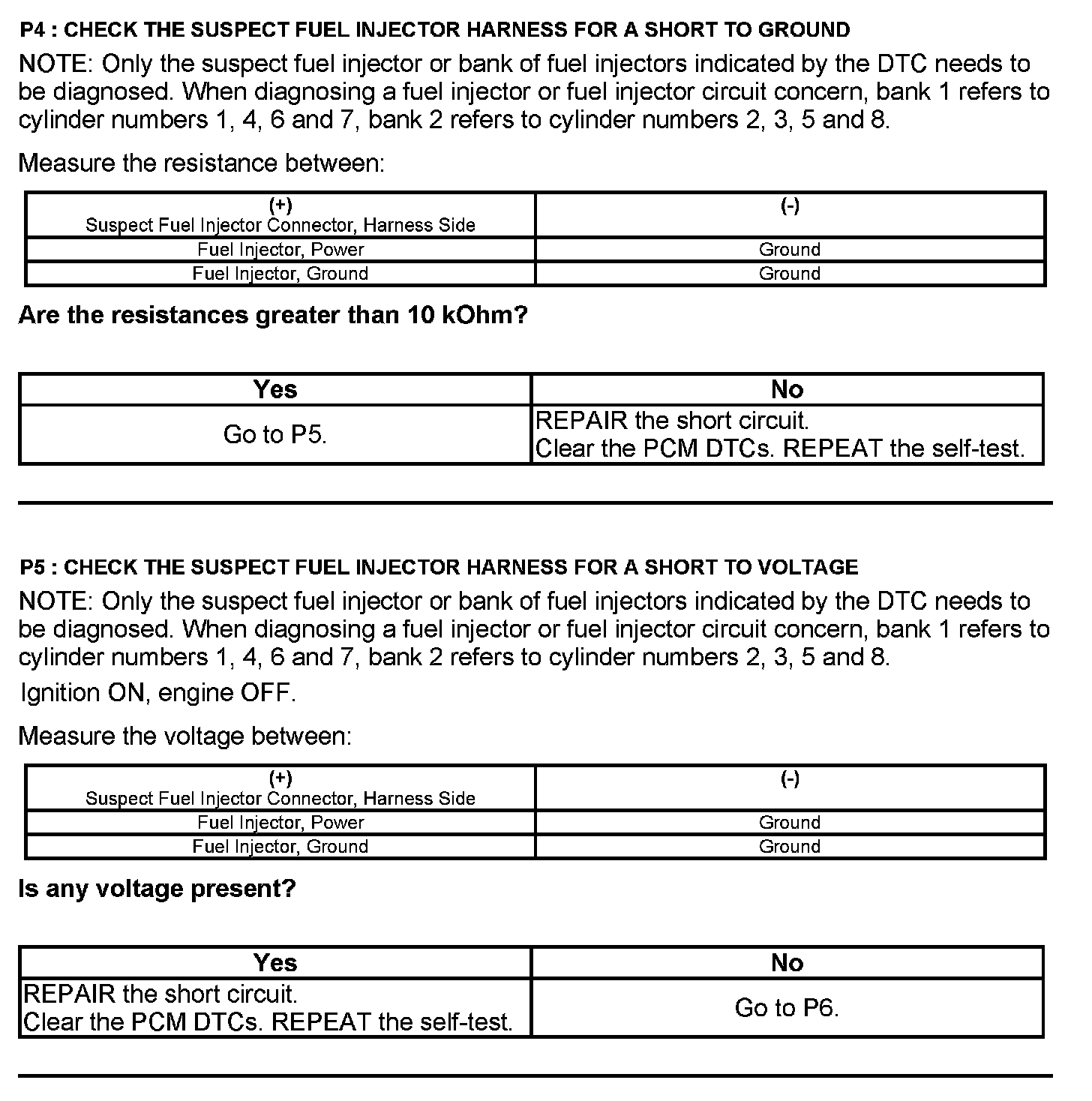

PINPOINT TEST P: FUEL INJECTOR












Fuel Injector Connector





Harness Side







Powertrain Control Module-B (PCM-B) Connector





Harness Side







Powertrain Control Module-E (PCM-E) Connector





Harness Side
