Test E: Manifold Absolute Pressure (MAP) Sensor

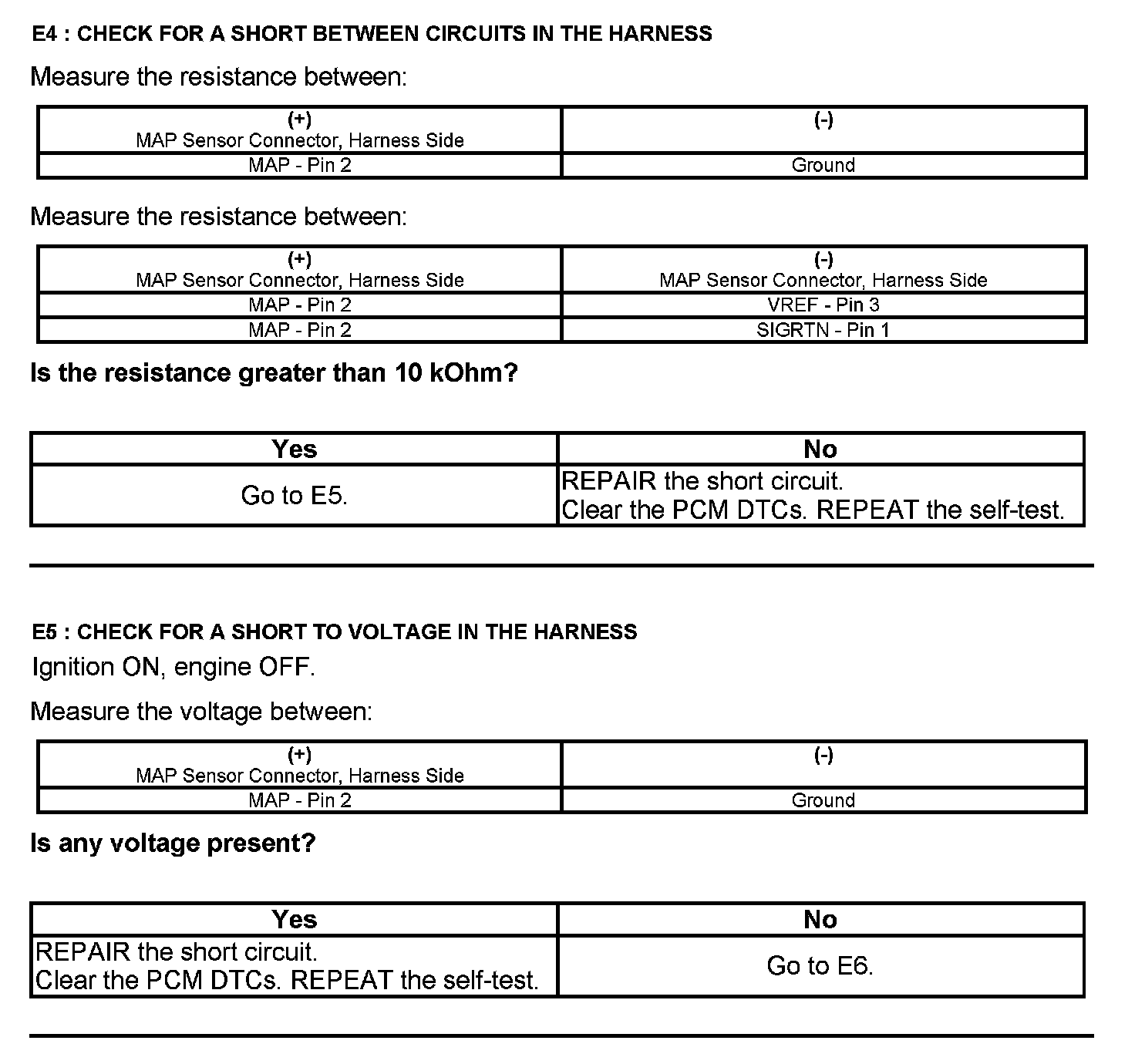

PINPOINT TEST E: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR












Manifold Absolute Pressure (MAP) Sensor Connector





Harness Side







Powertrain Control Module-E (PCM-E) Connector





Harness Side
