Rivet Removal

Rivet Replacement

Rivet Removal

WARNING: Always wear protective equipment including eye protection with side shields, and a dust mask when sanding or grinding. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not drill outside the rivet into the frame as that will weaken the frame.

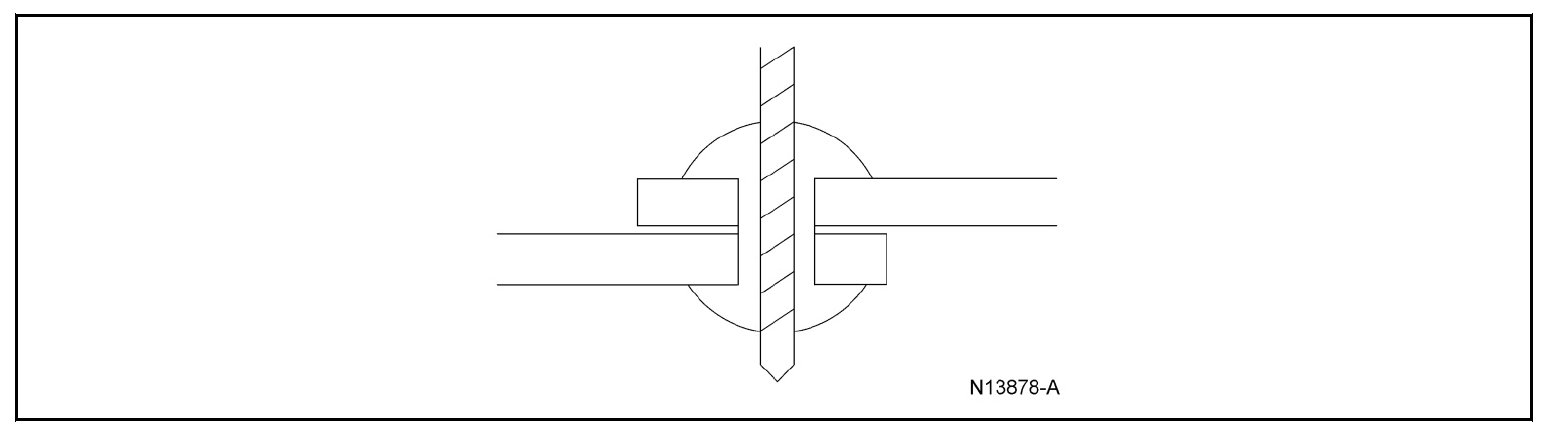

1. Drill a 3.20 mm (1/8 in) pilot hole through the center of the rivet.
2. Drill an 8.5 mm (11/32 in) hole through the pilot hole.







3. Remove the rivet head using an air chisel.

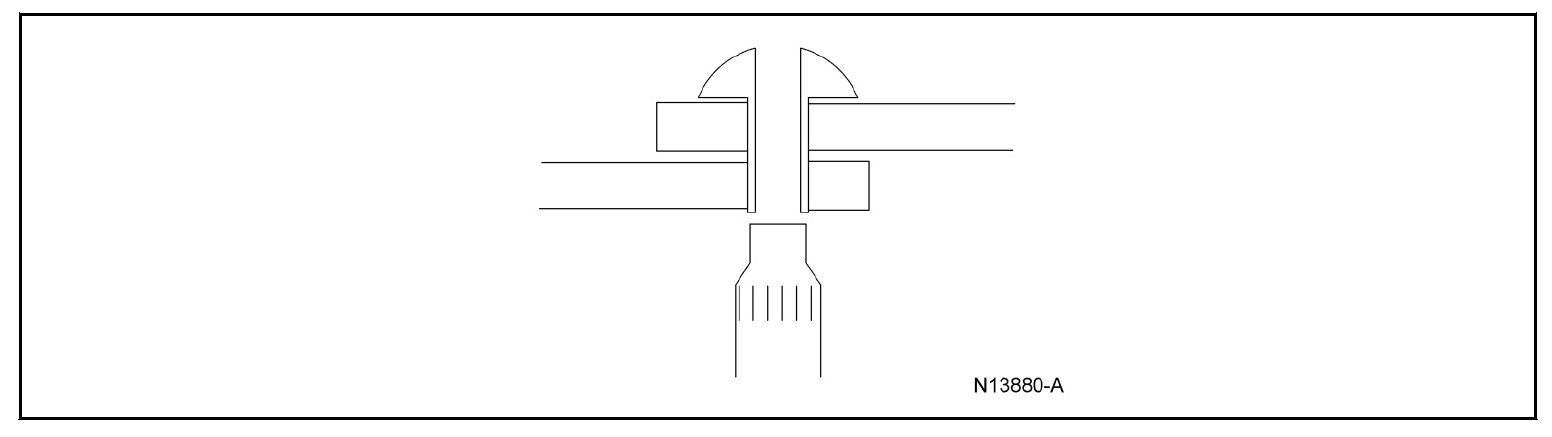

4. Drive out the rivet with a punch.







5. Remove the support.
