System Diagram

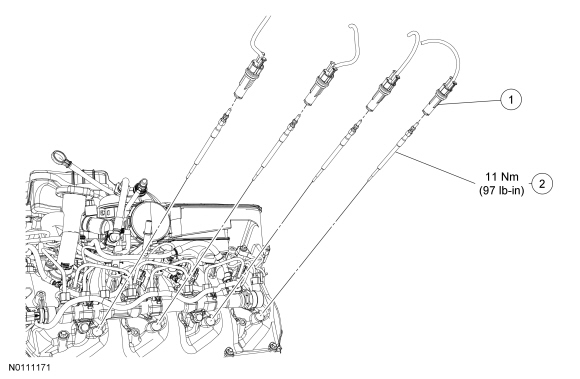

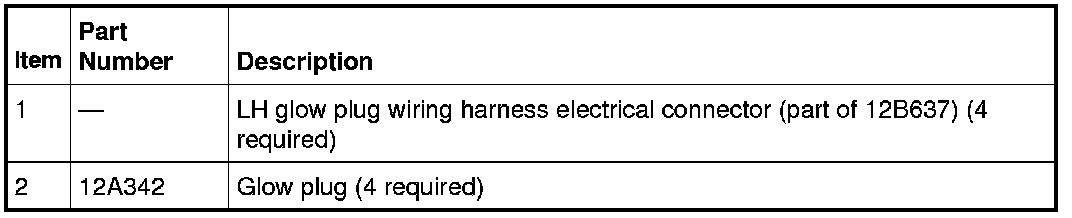

Glow Plug - Exploded View

NOTE: LH shown, RH similar.










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
