Test AH: Cooling Fan

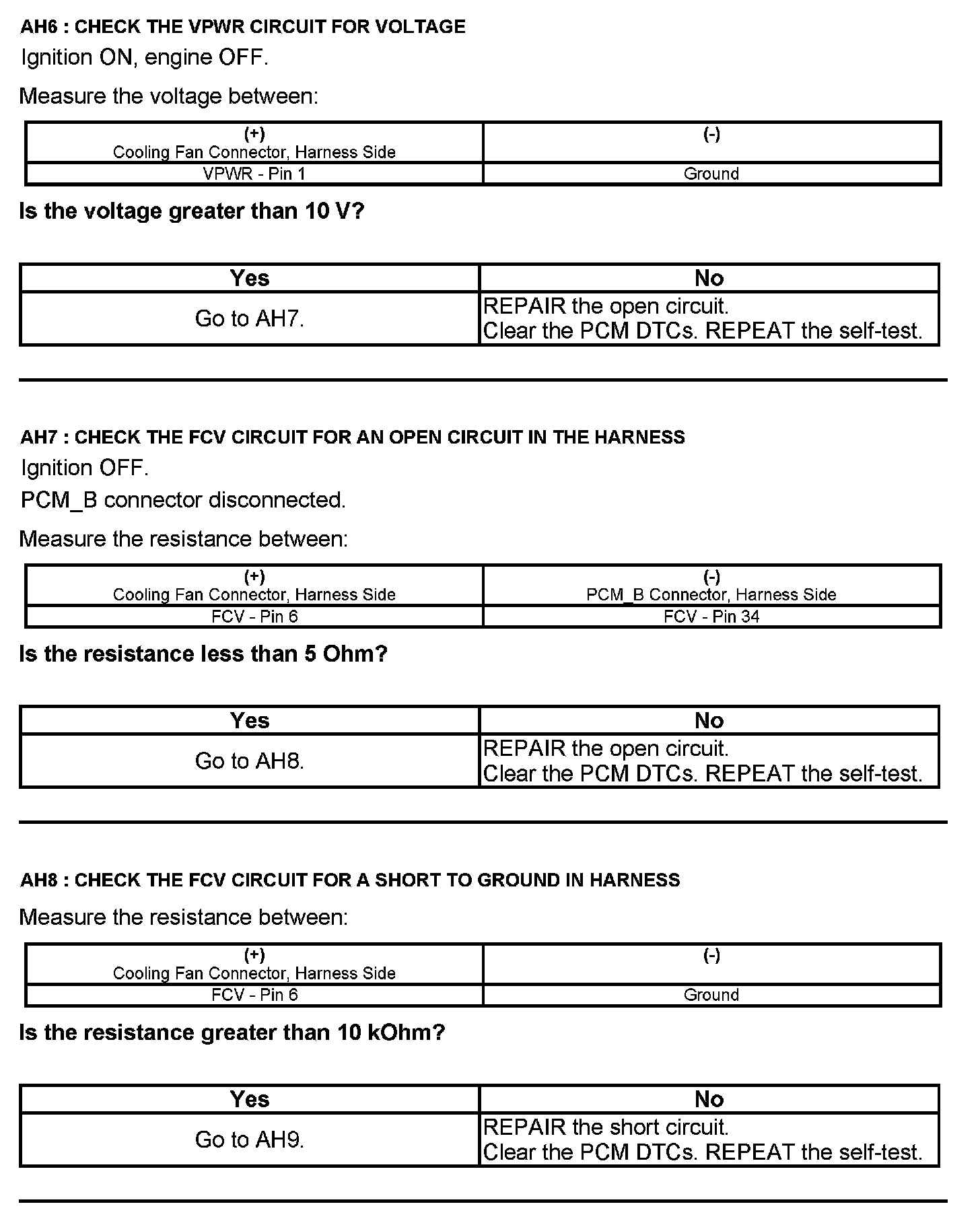

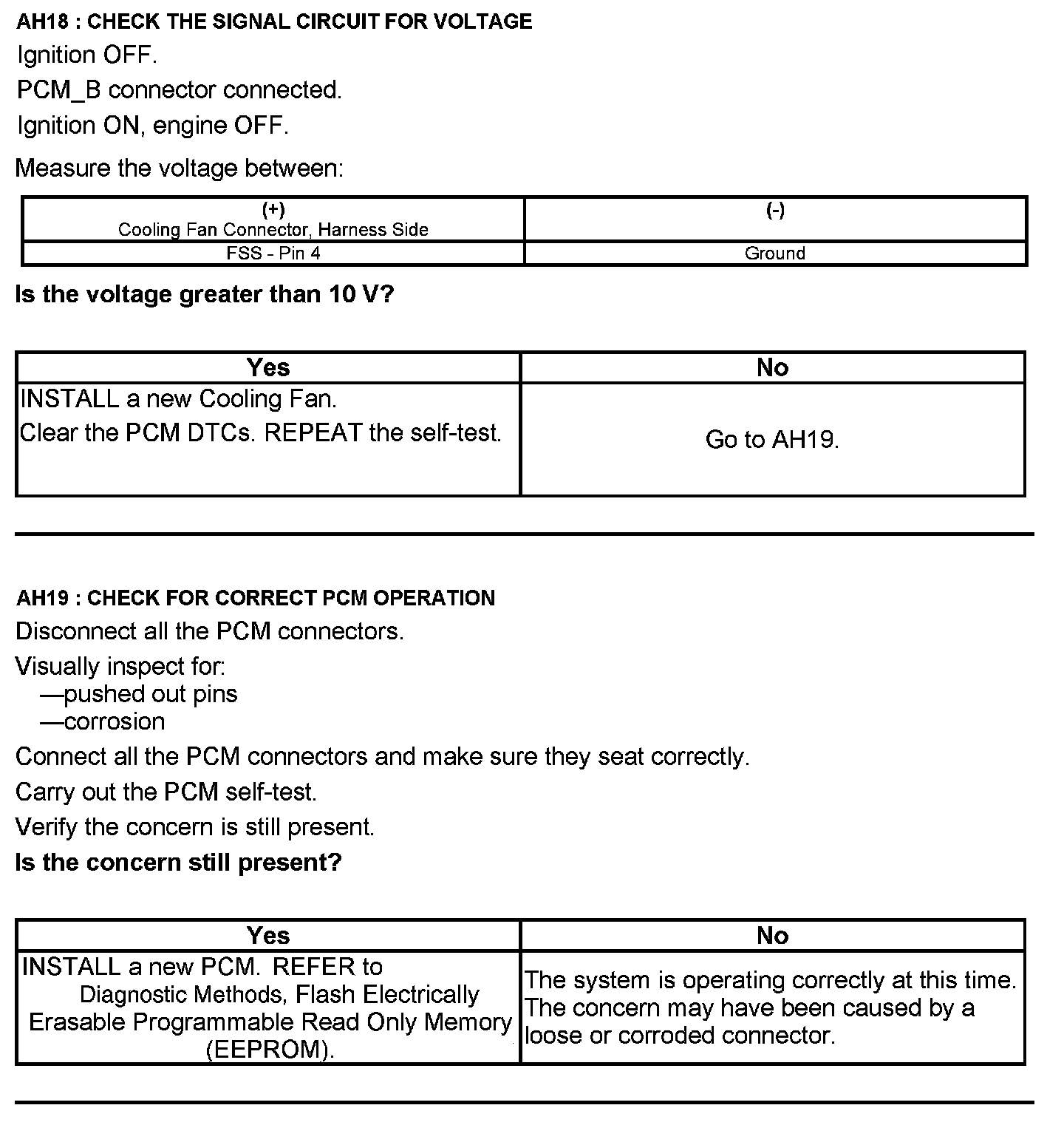

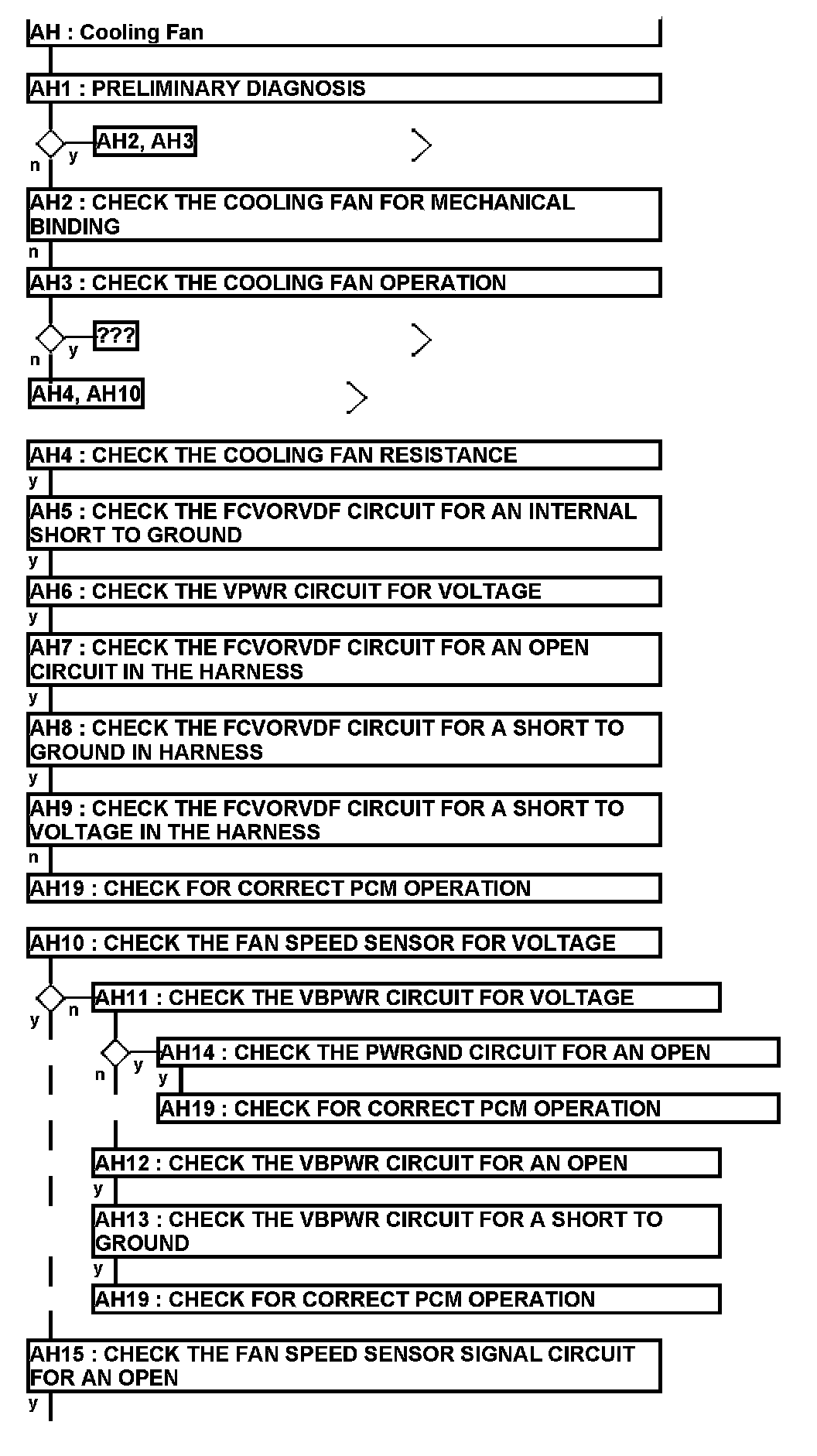

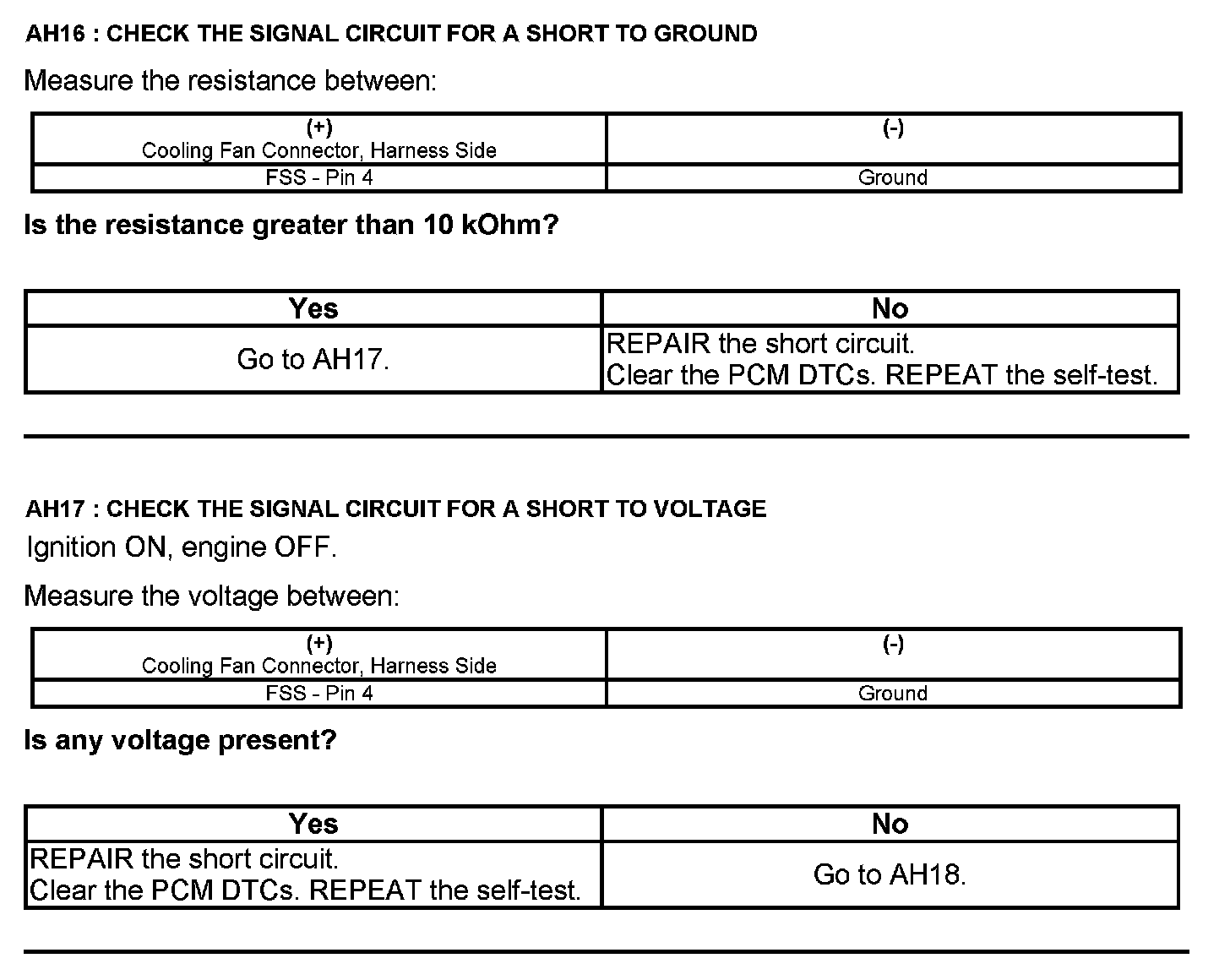

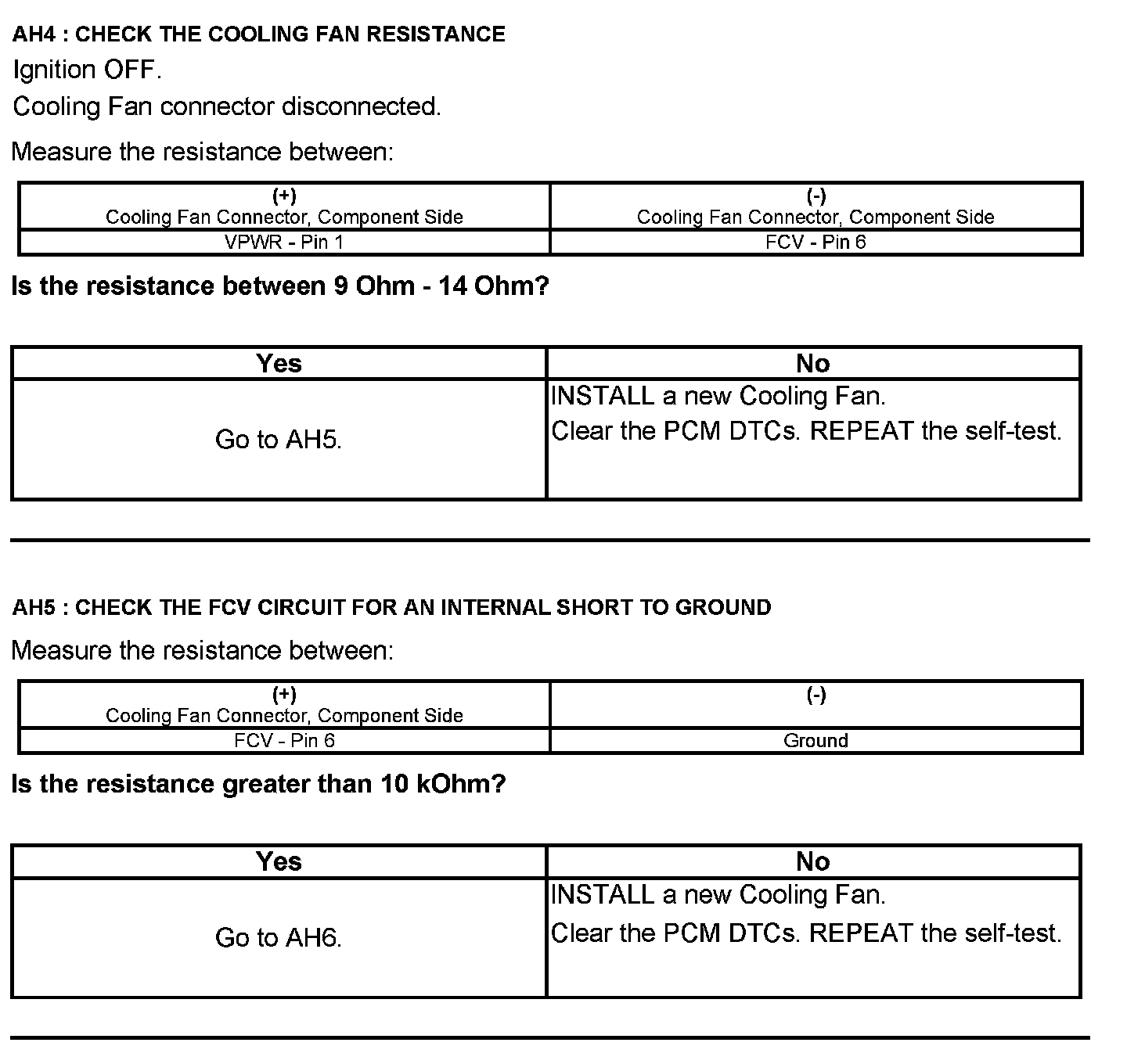

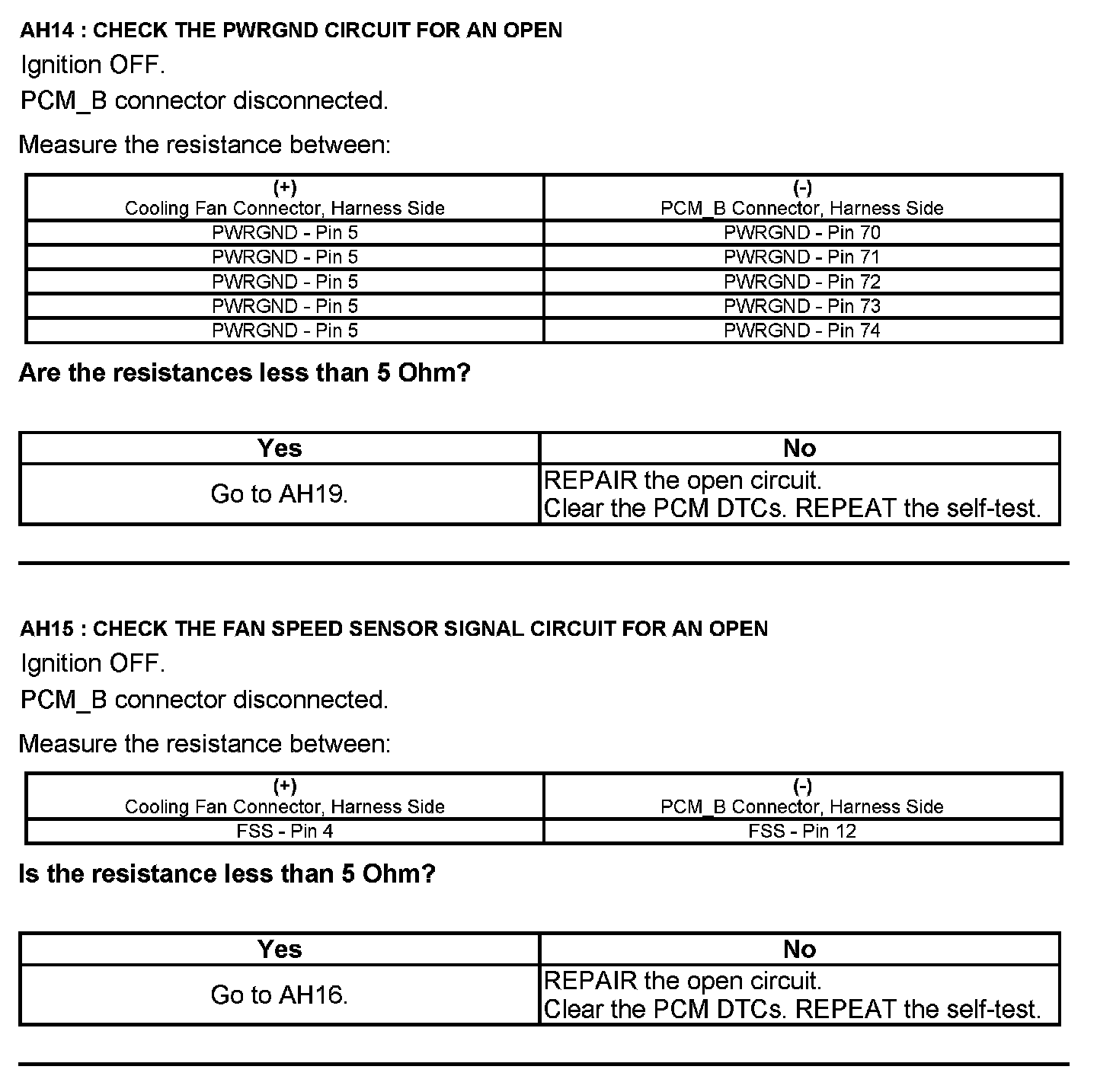

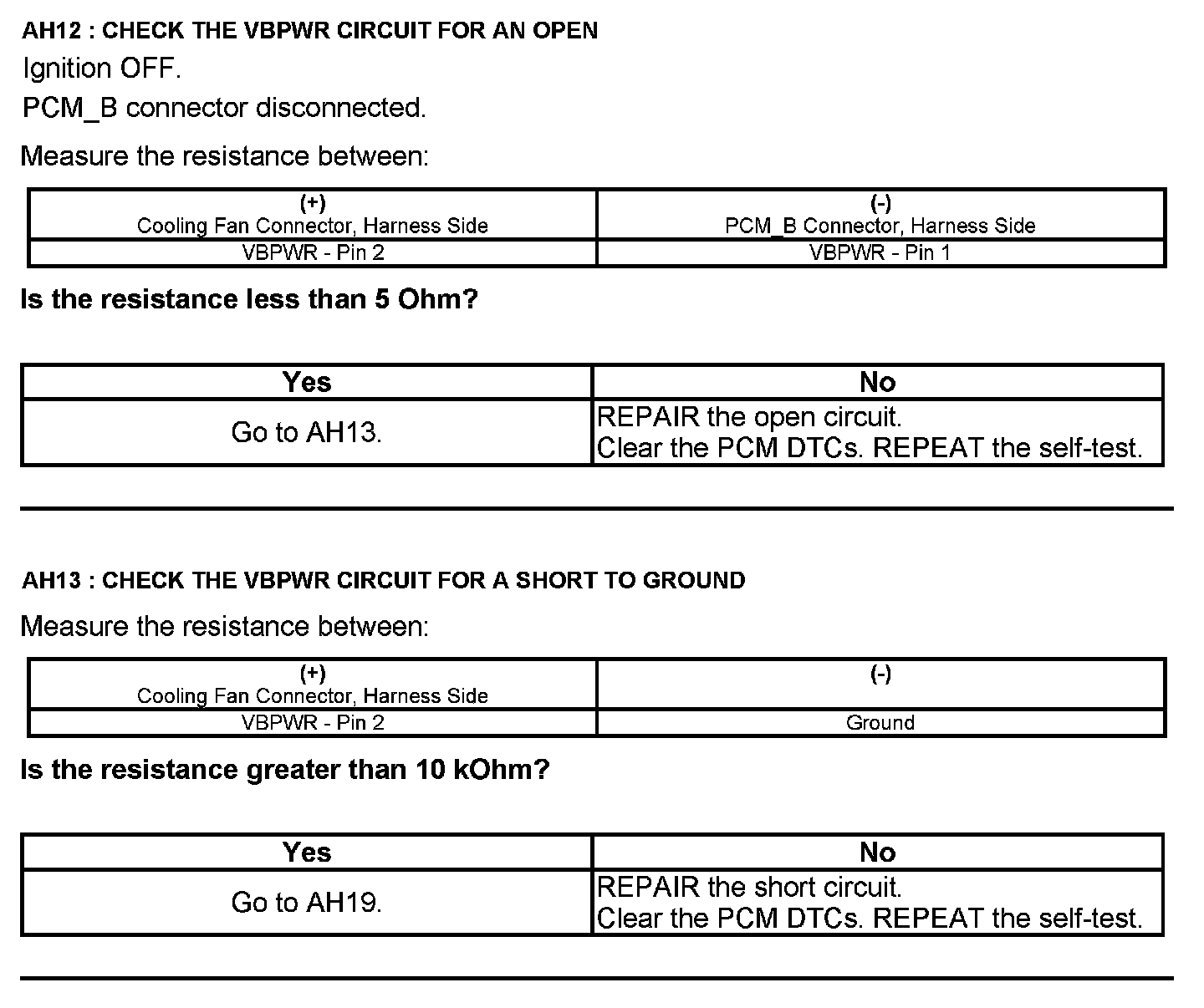

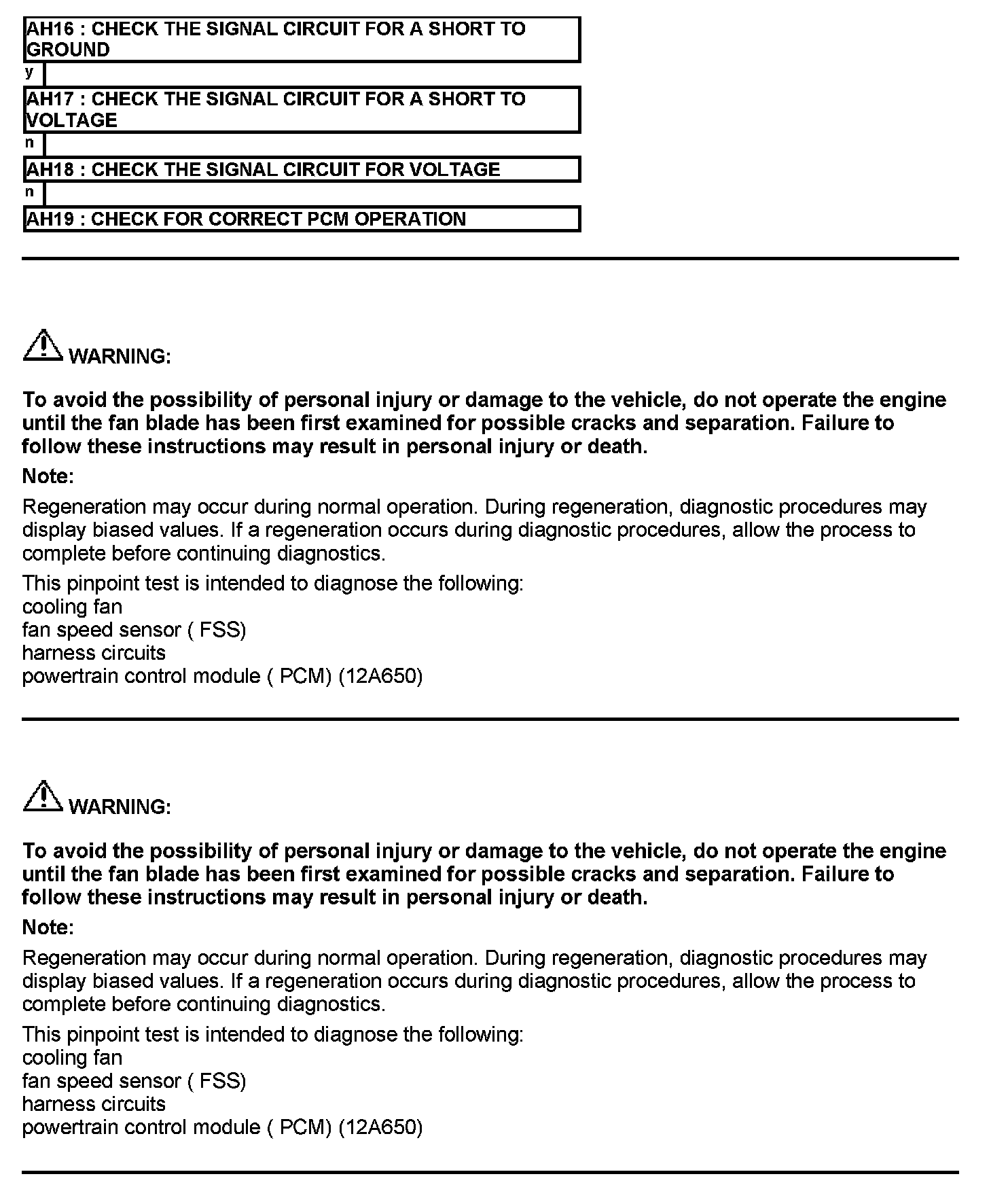

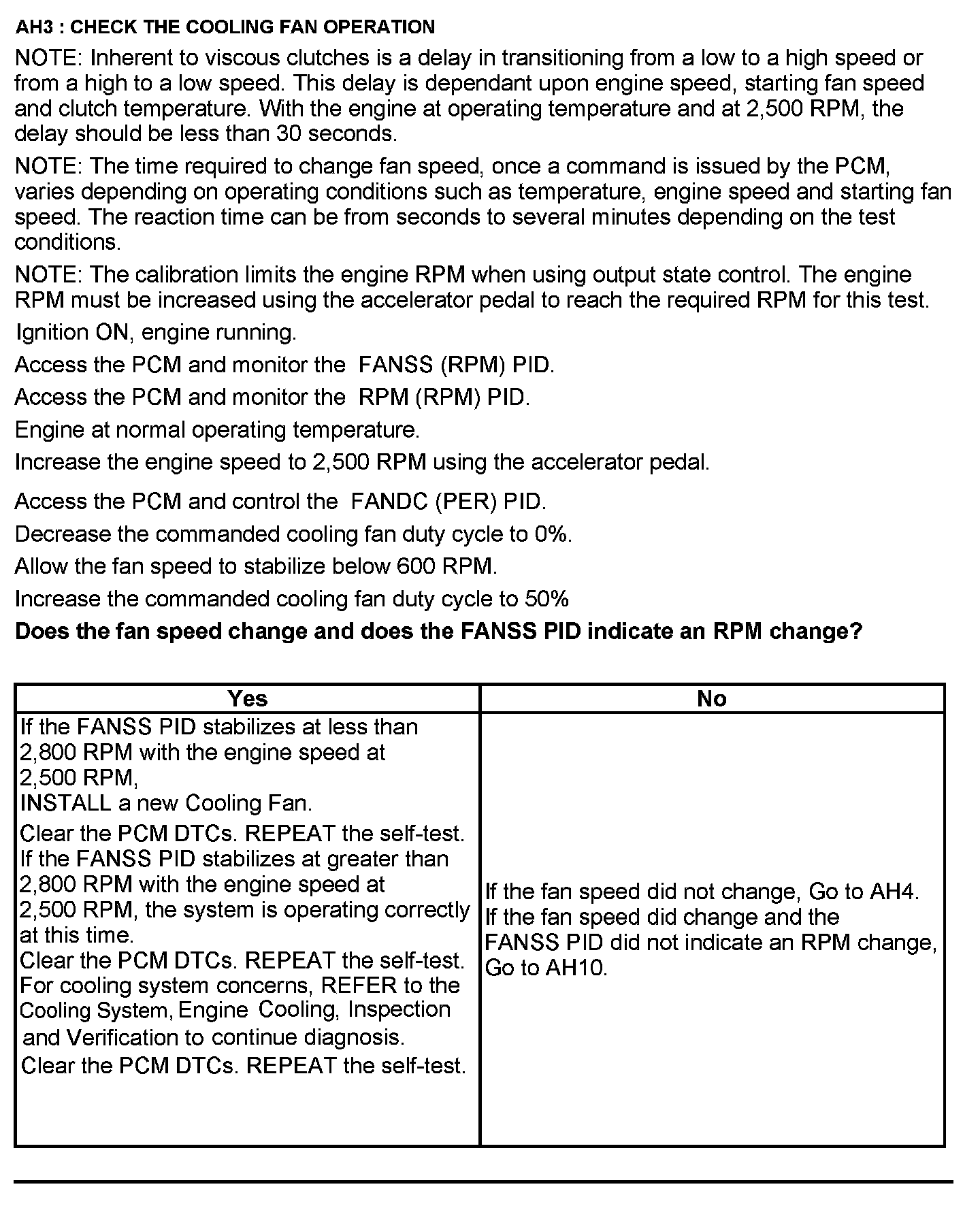

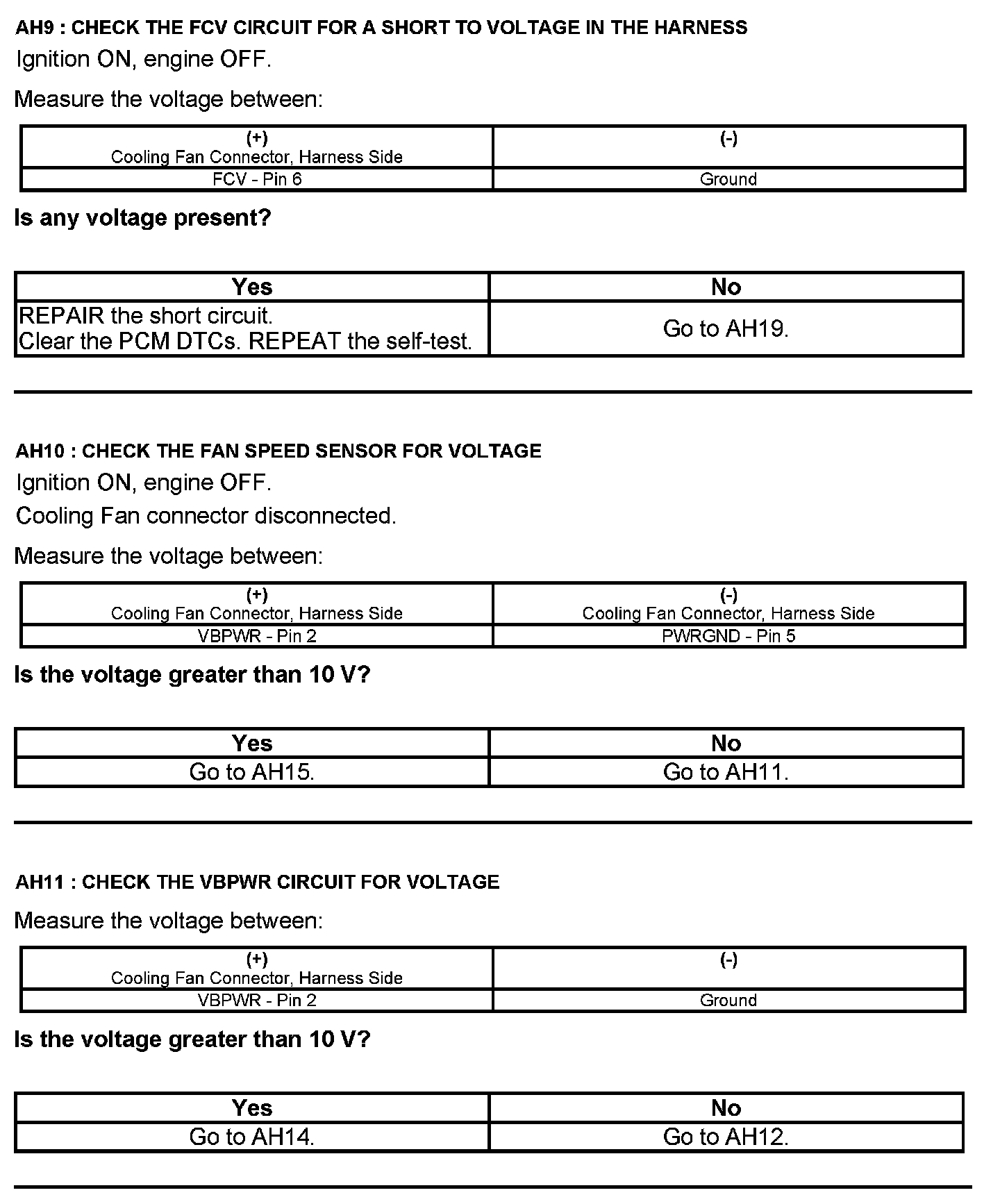

PINPOINT TEST AH: COOLING FAN

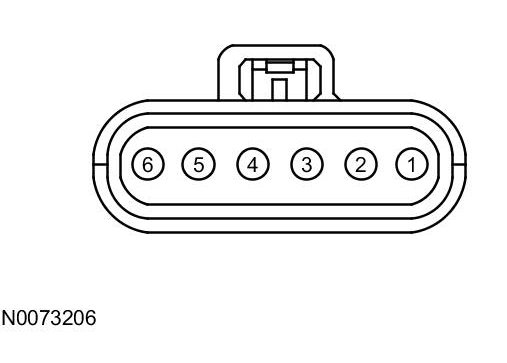

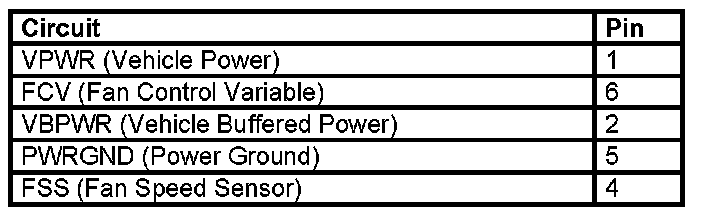

Cooling Fan Connector





Harness Side

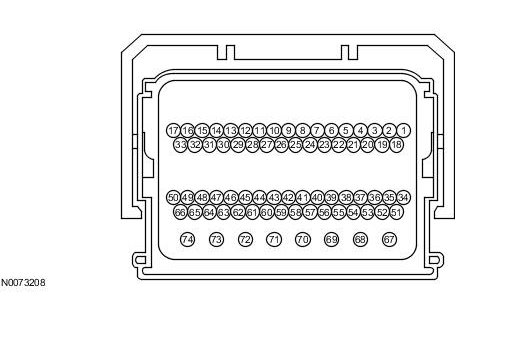

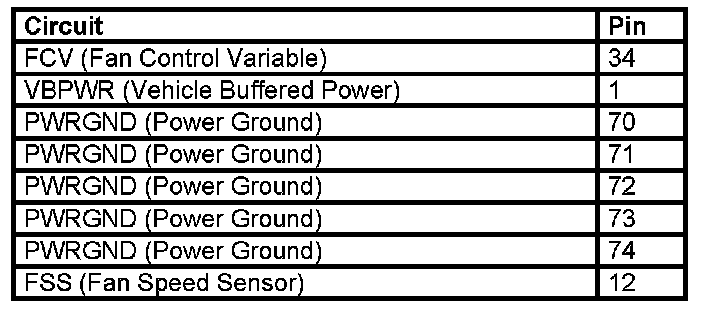

Powertrain Control Module-B (PCM-B) Connector





Harness Side
