Test AR: Misfire

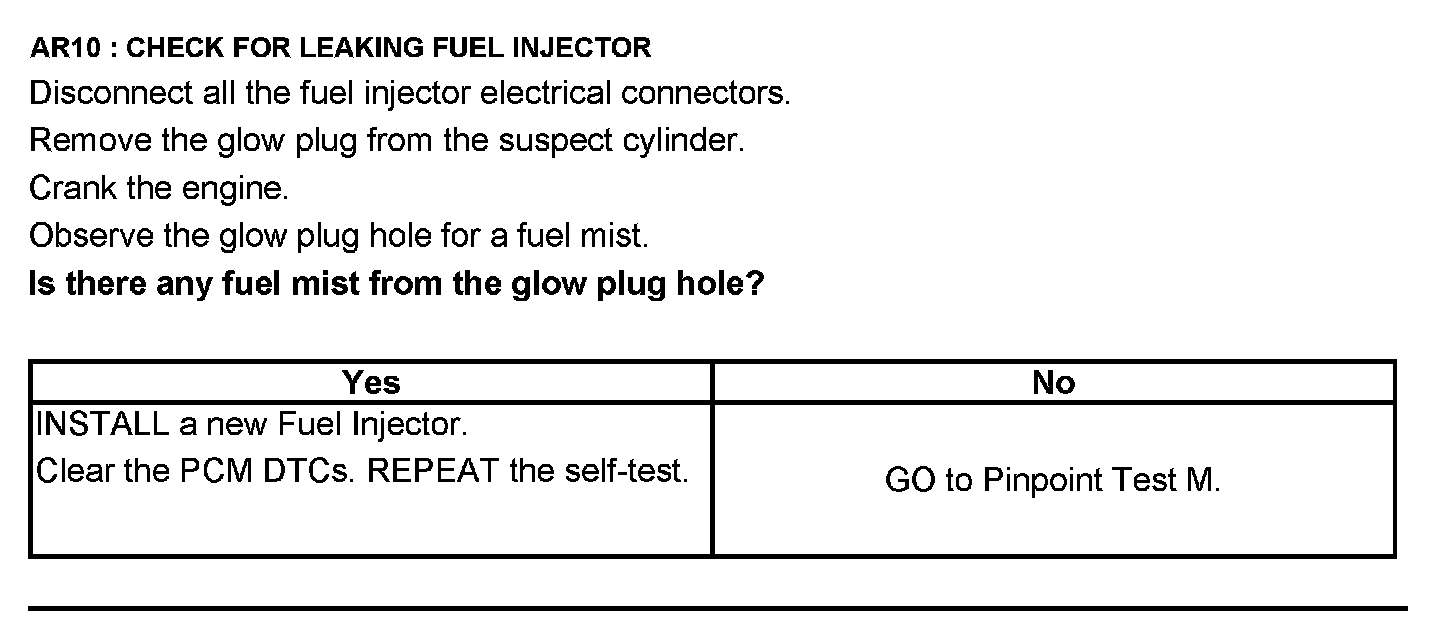

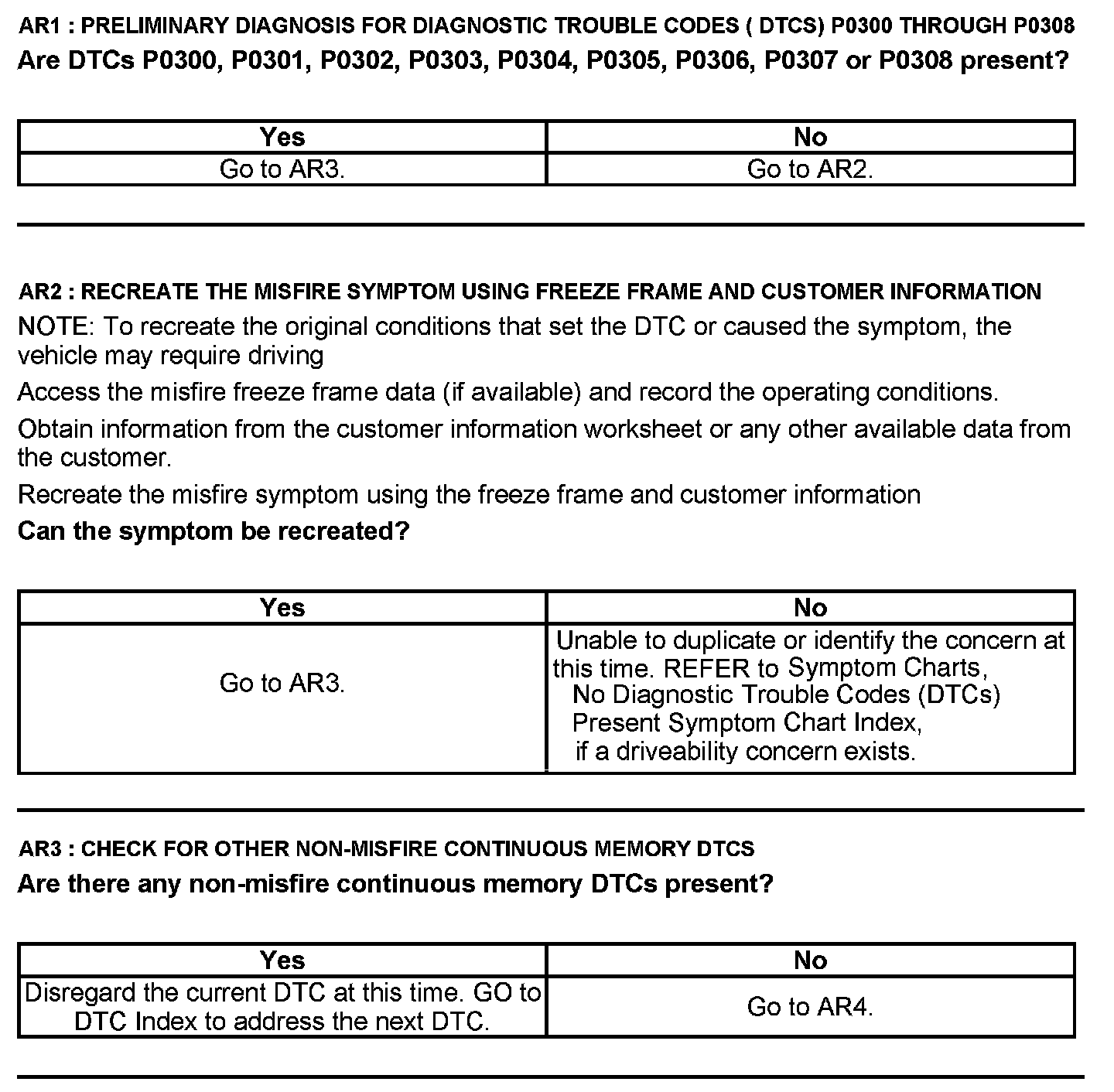

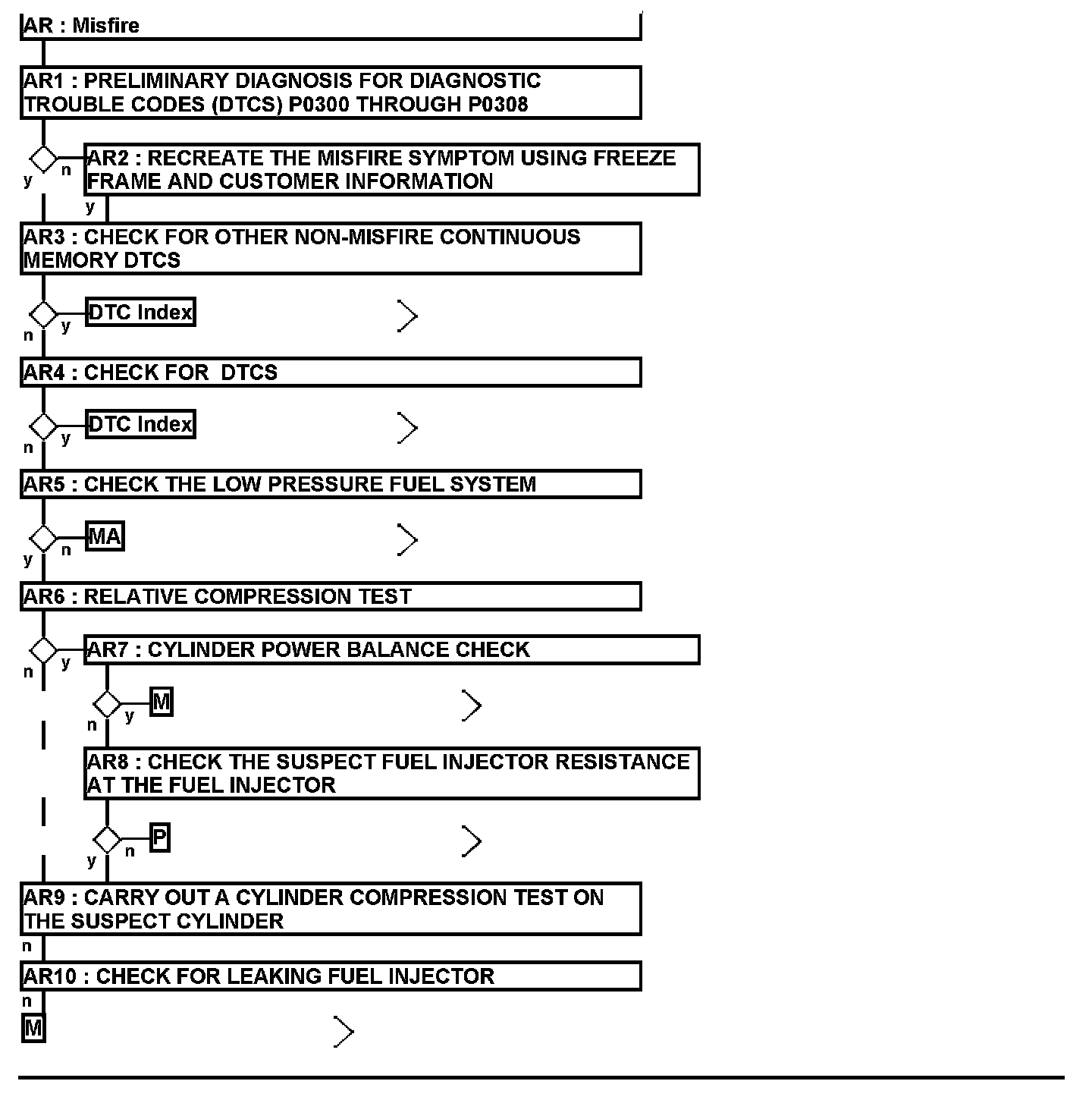

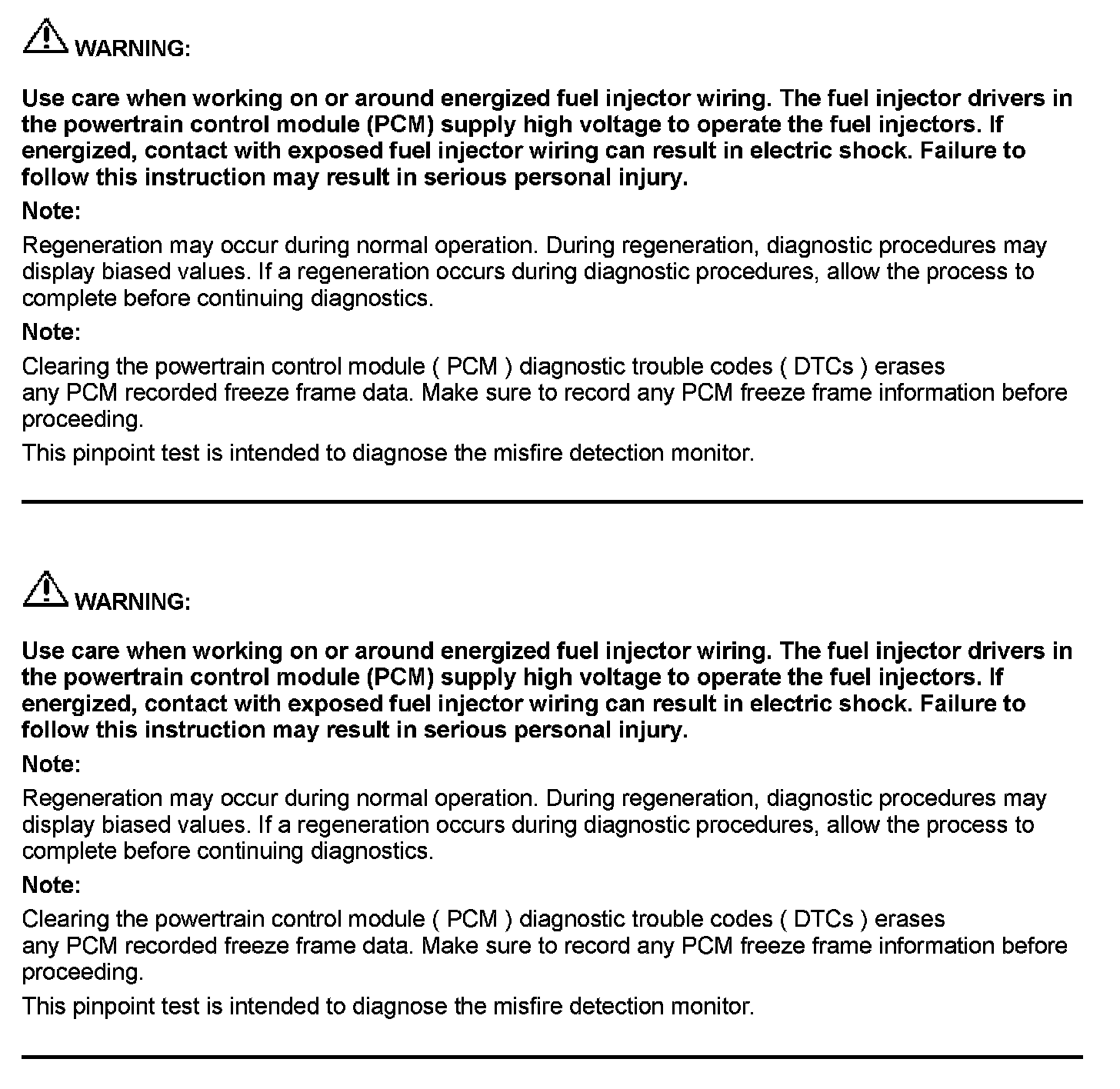

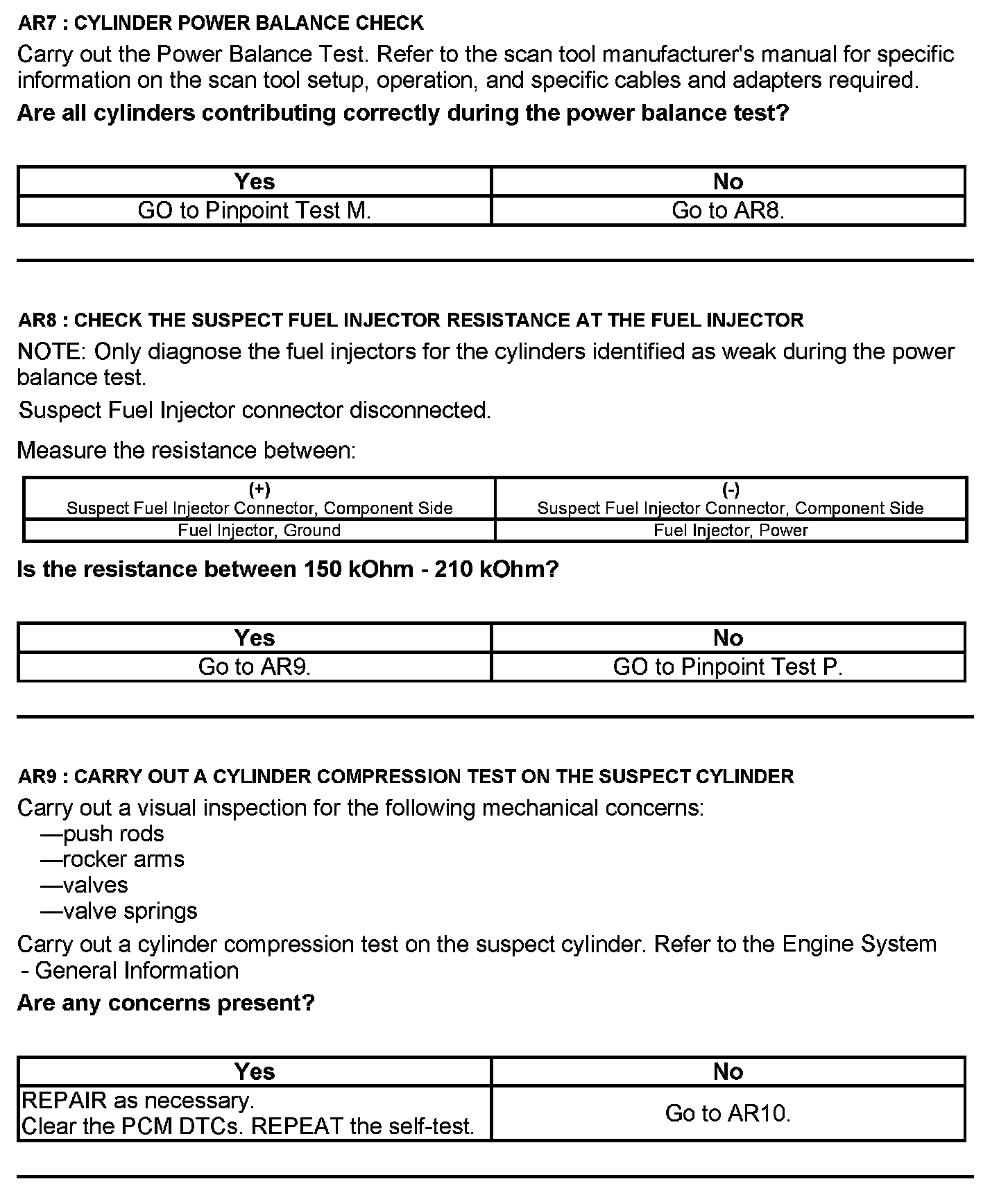

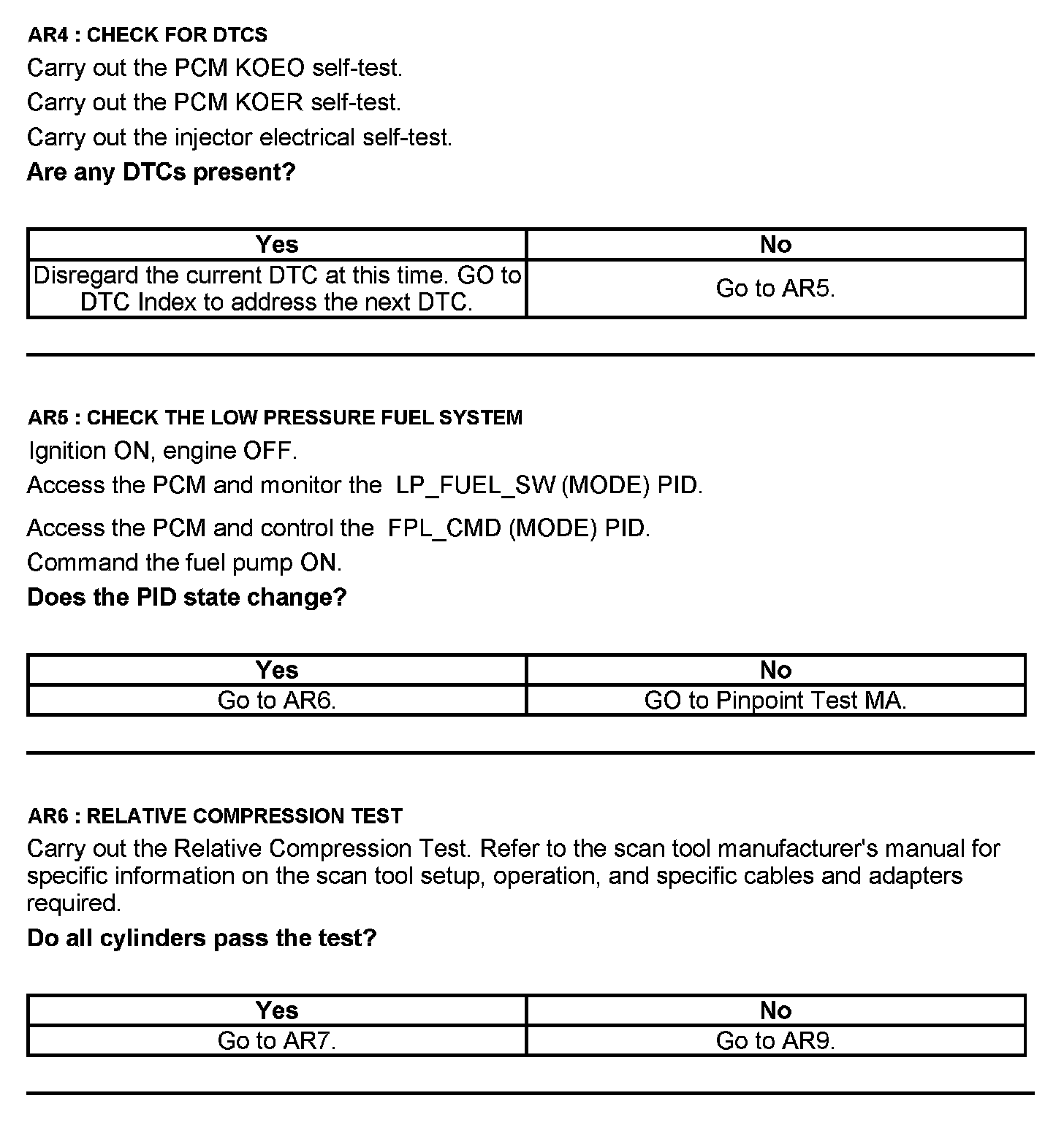

PINPOINT TEST AR: MISFIRE

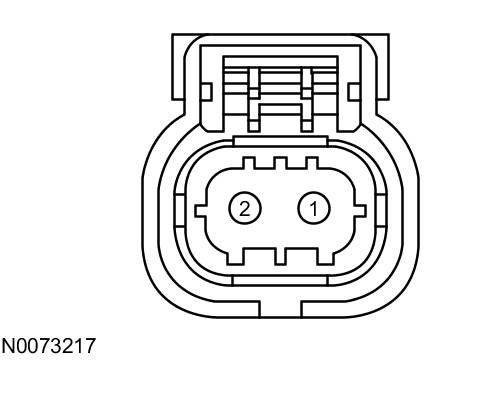

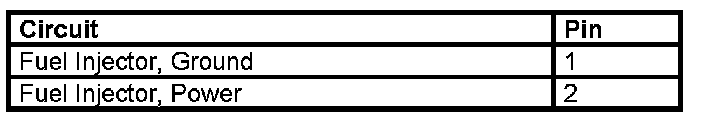

Fuel Injector Connector





Harness Side

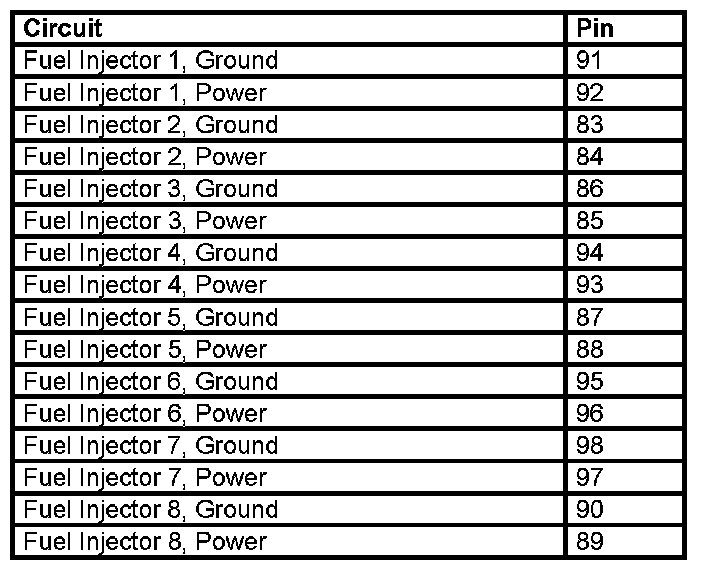

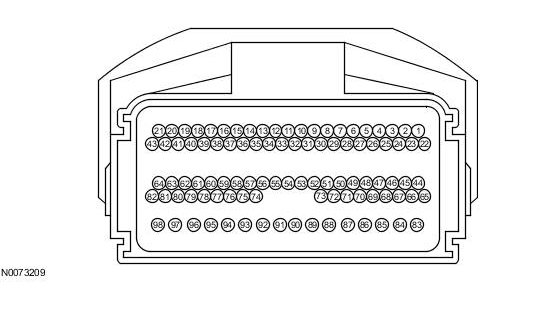

Powertrain Control Module-E (PCM-E) Connector





Harness Side
