Test AT: Engine Coolant Temperature and Engine Oil Temperature Correlation
Test AT: Engine Coolant Temperature and Engine Oil Temperature Correlation

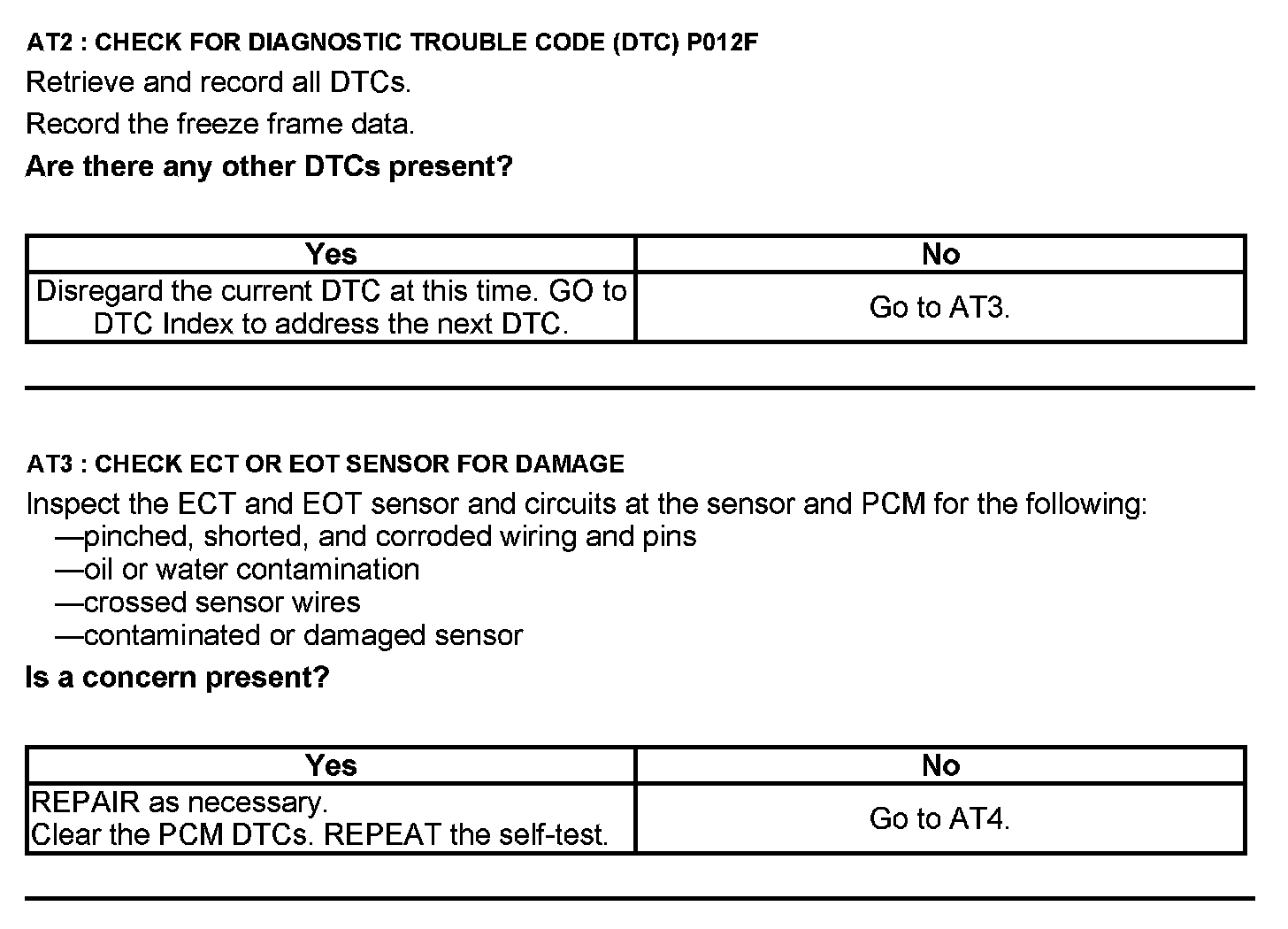

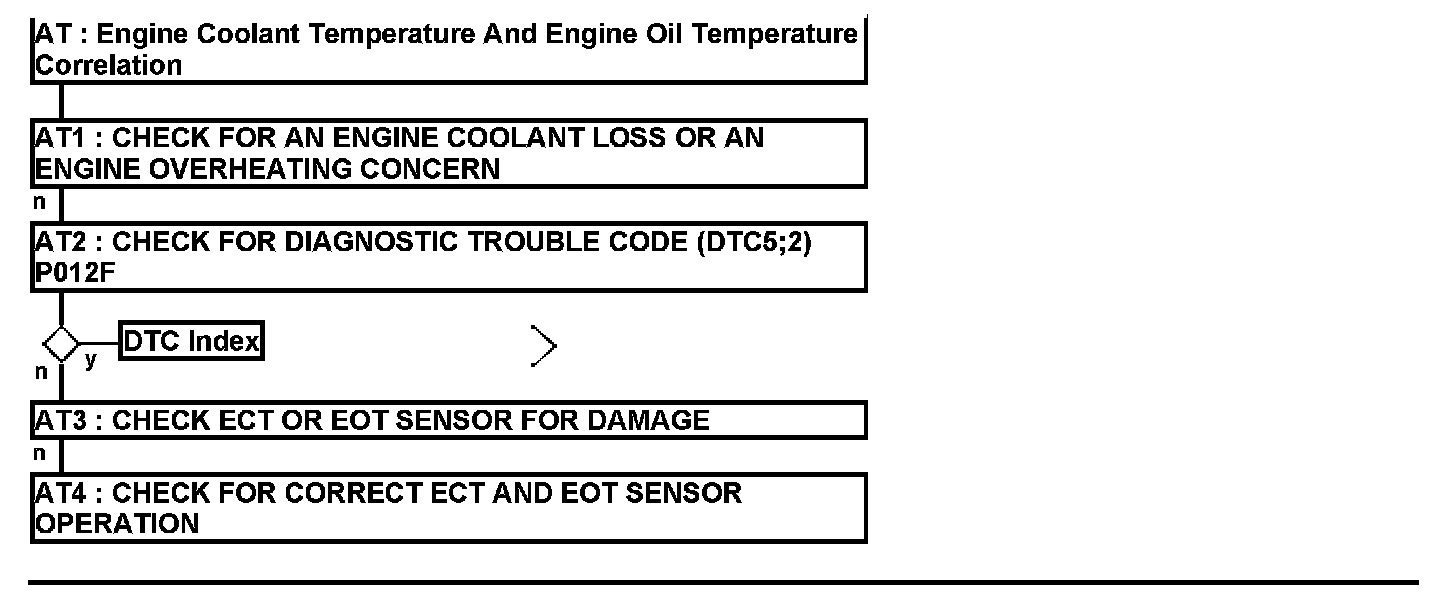

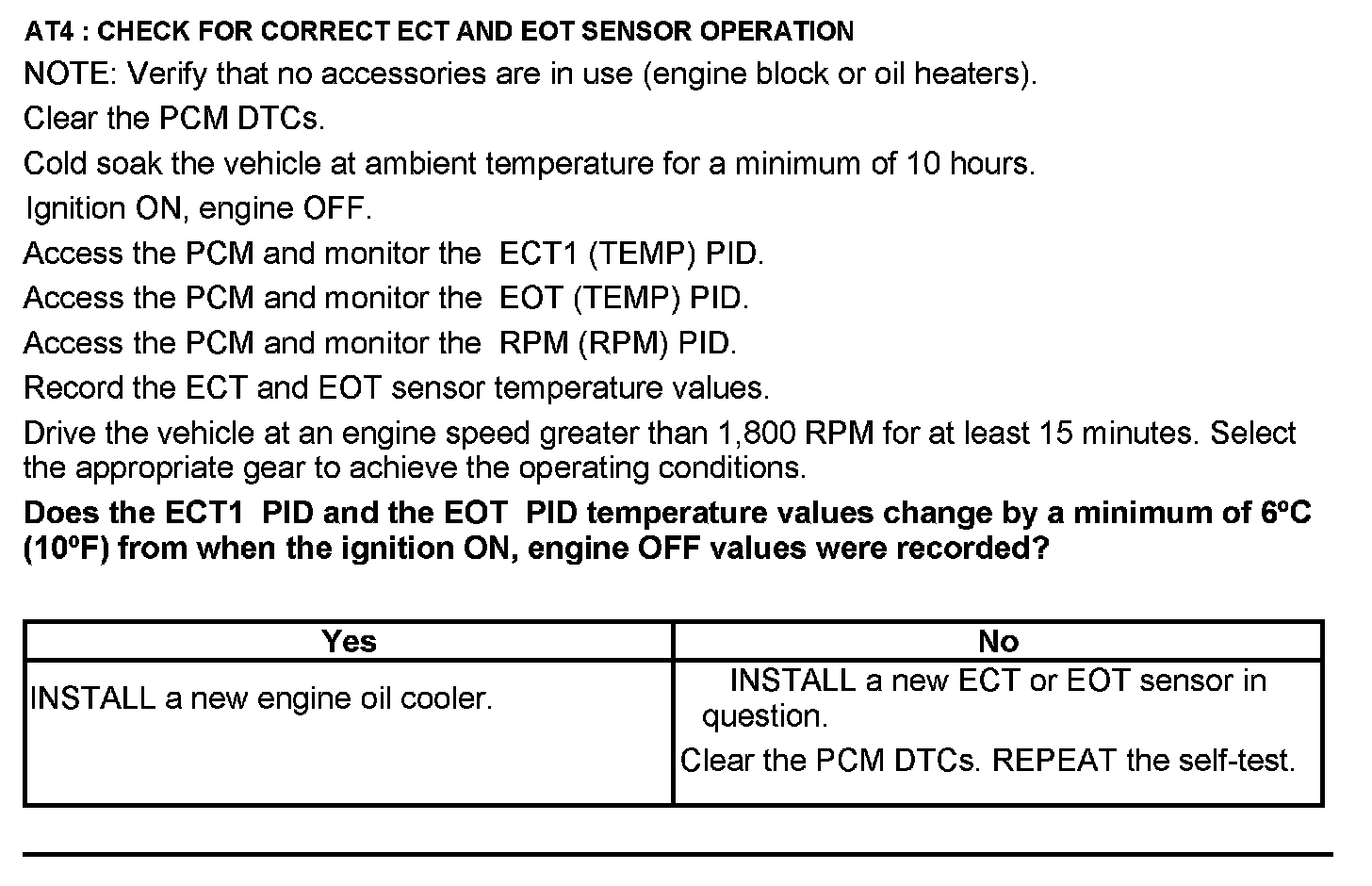

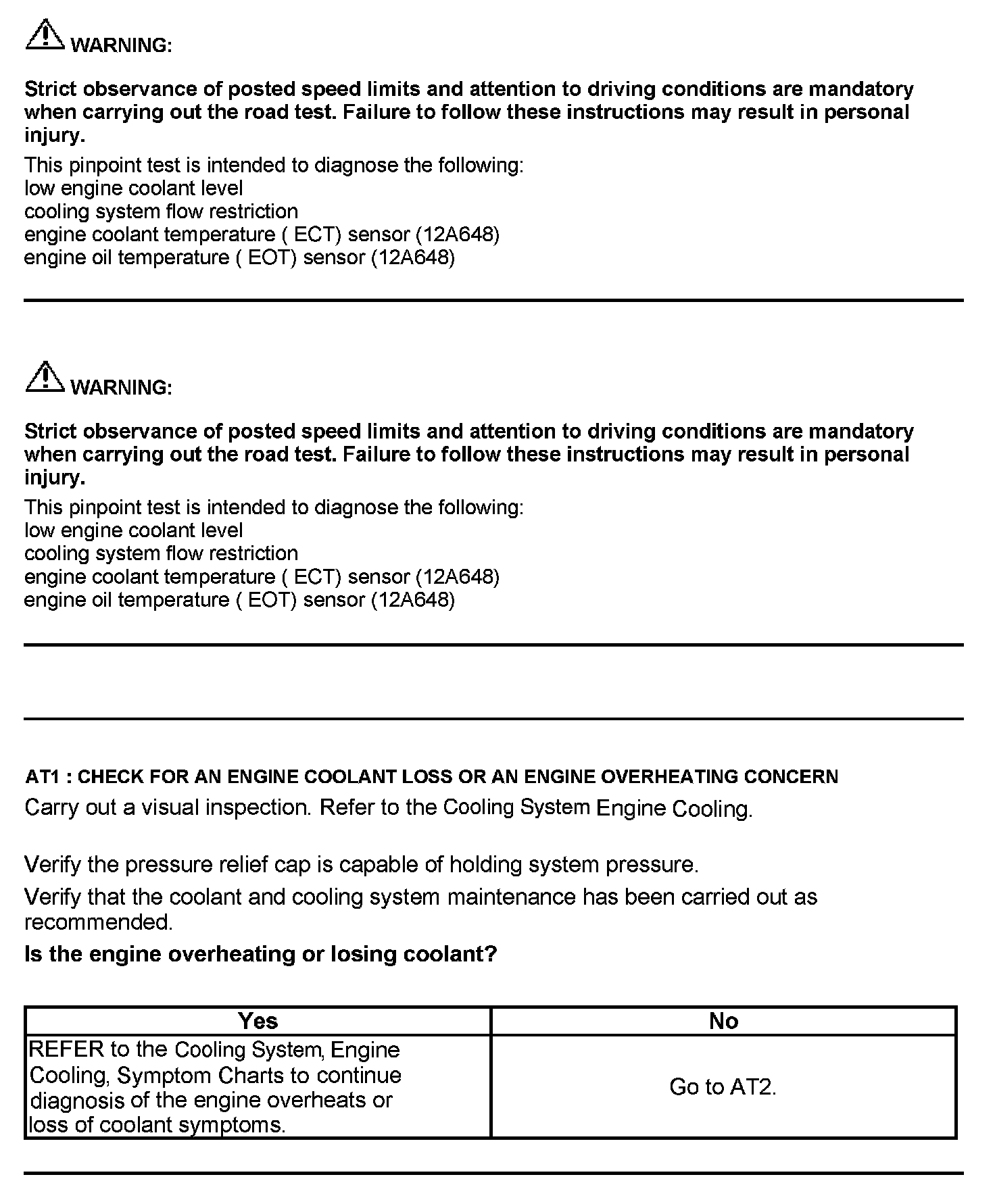

PINPOINT TEST AT: ENGINE COOLANT TEMPERATURE AND ENGINE OIL TEMPERATURE CORRELATION
