Test RI: Reductant Temperature Sensor

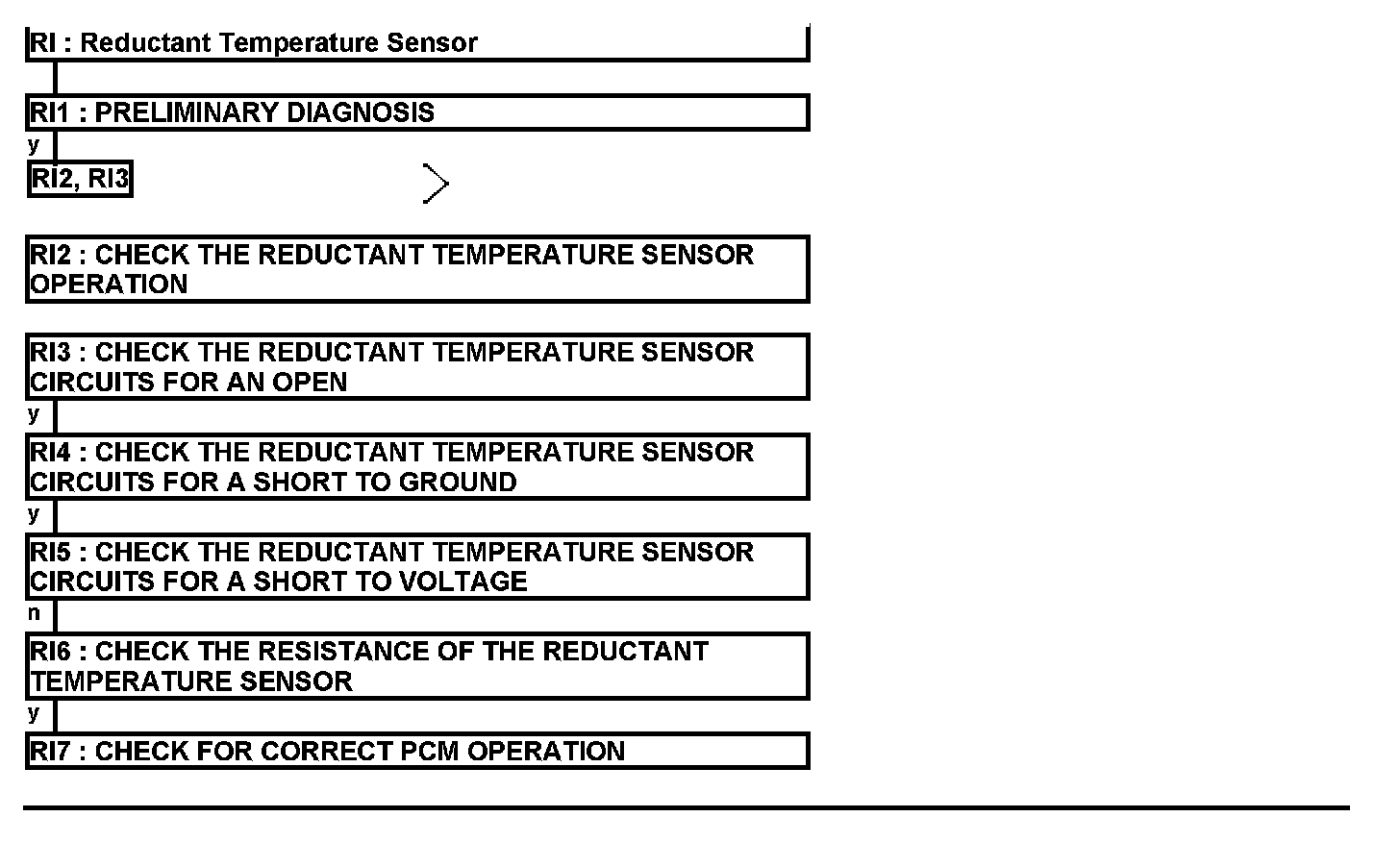

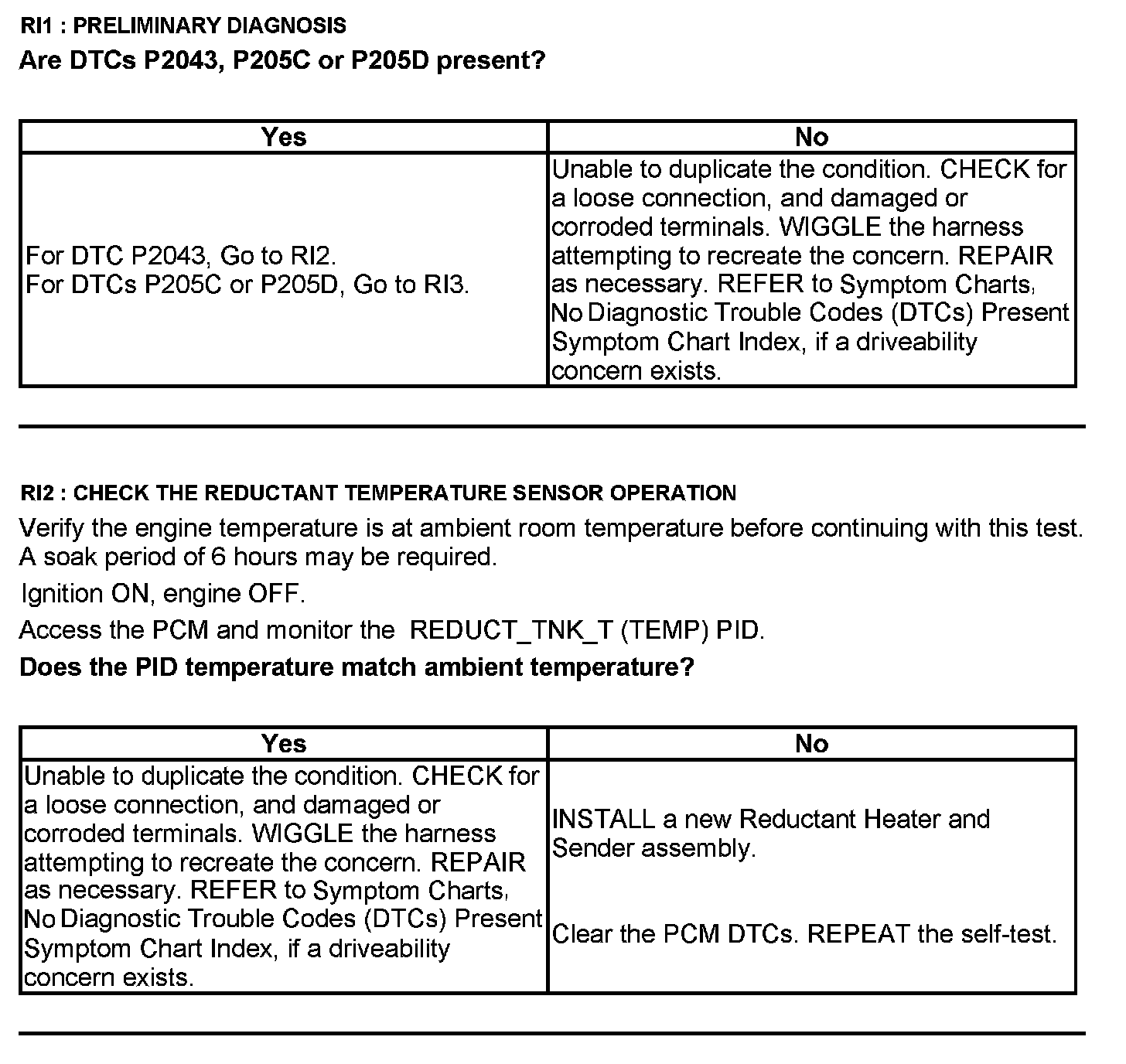

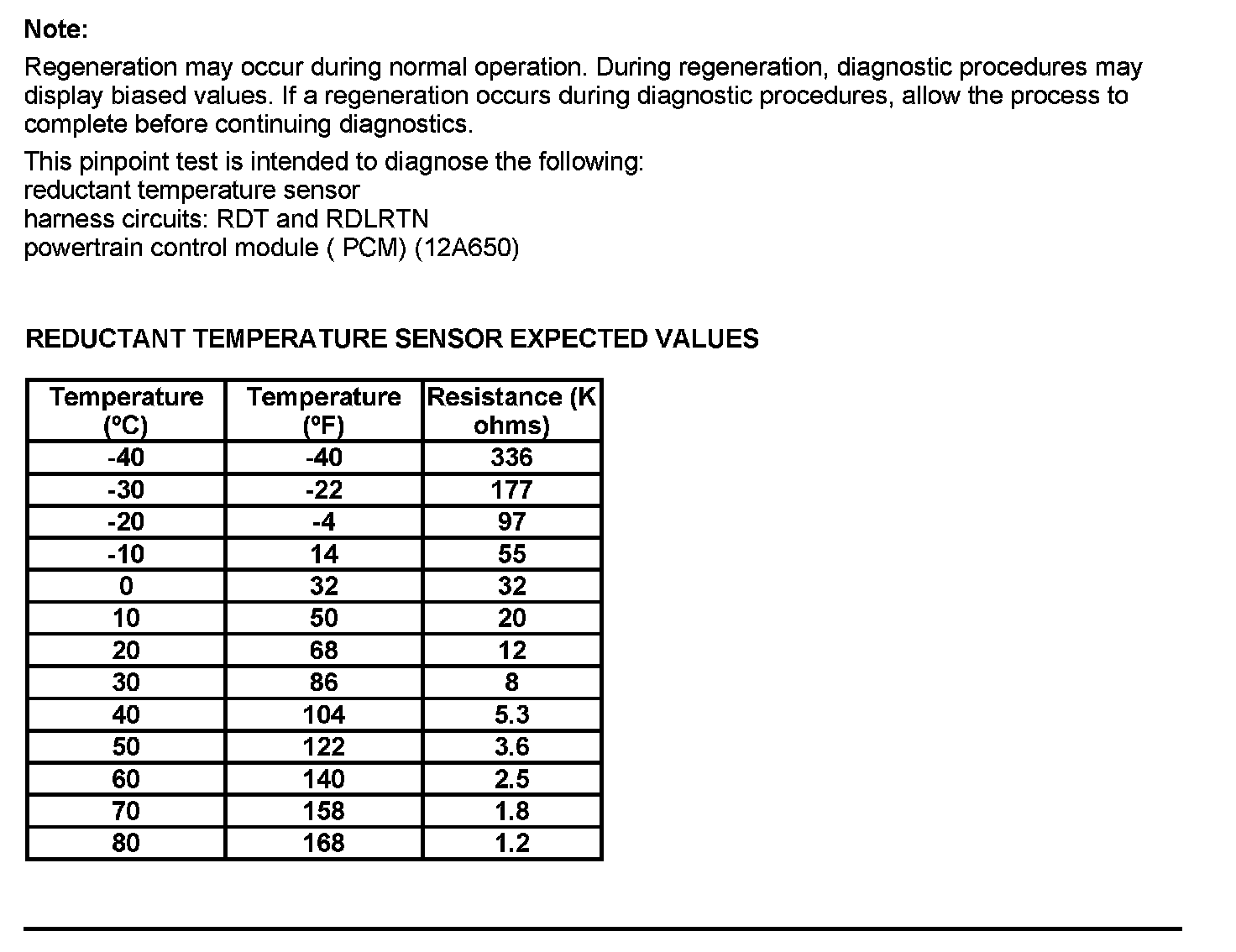

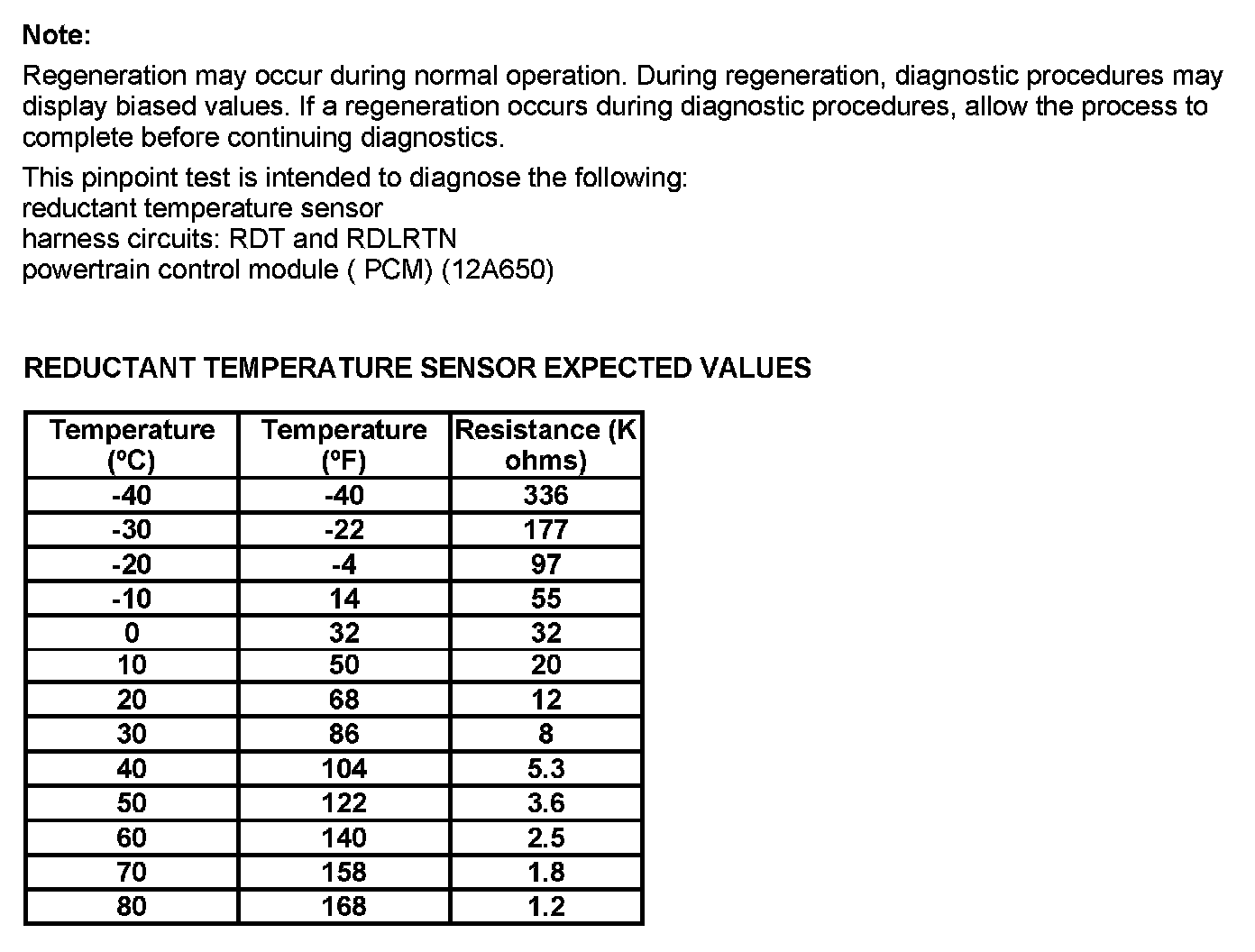

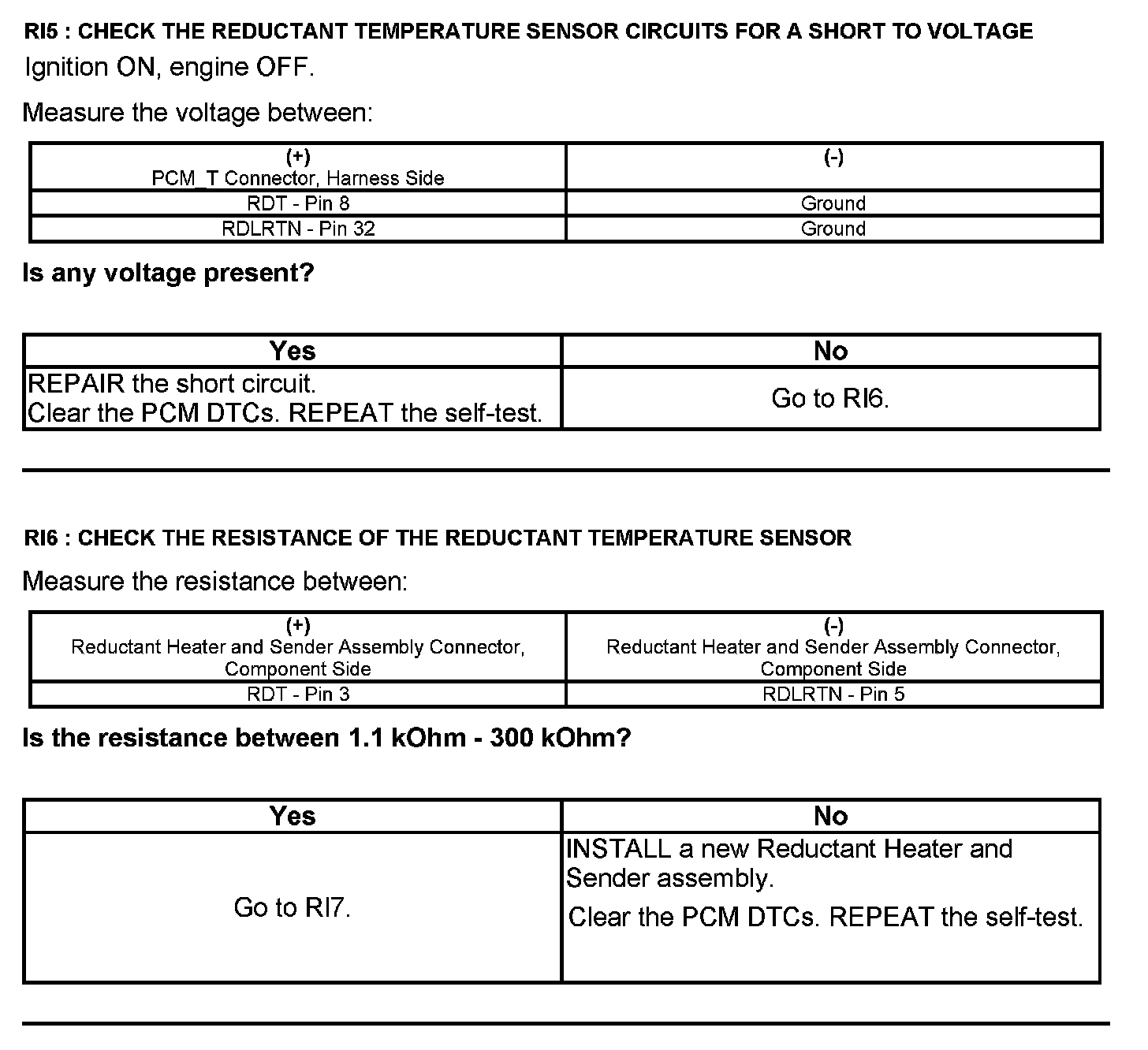

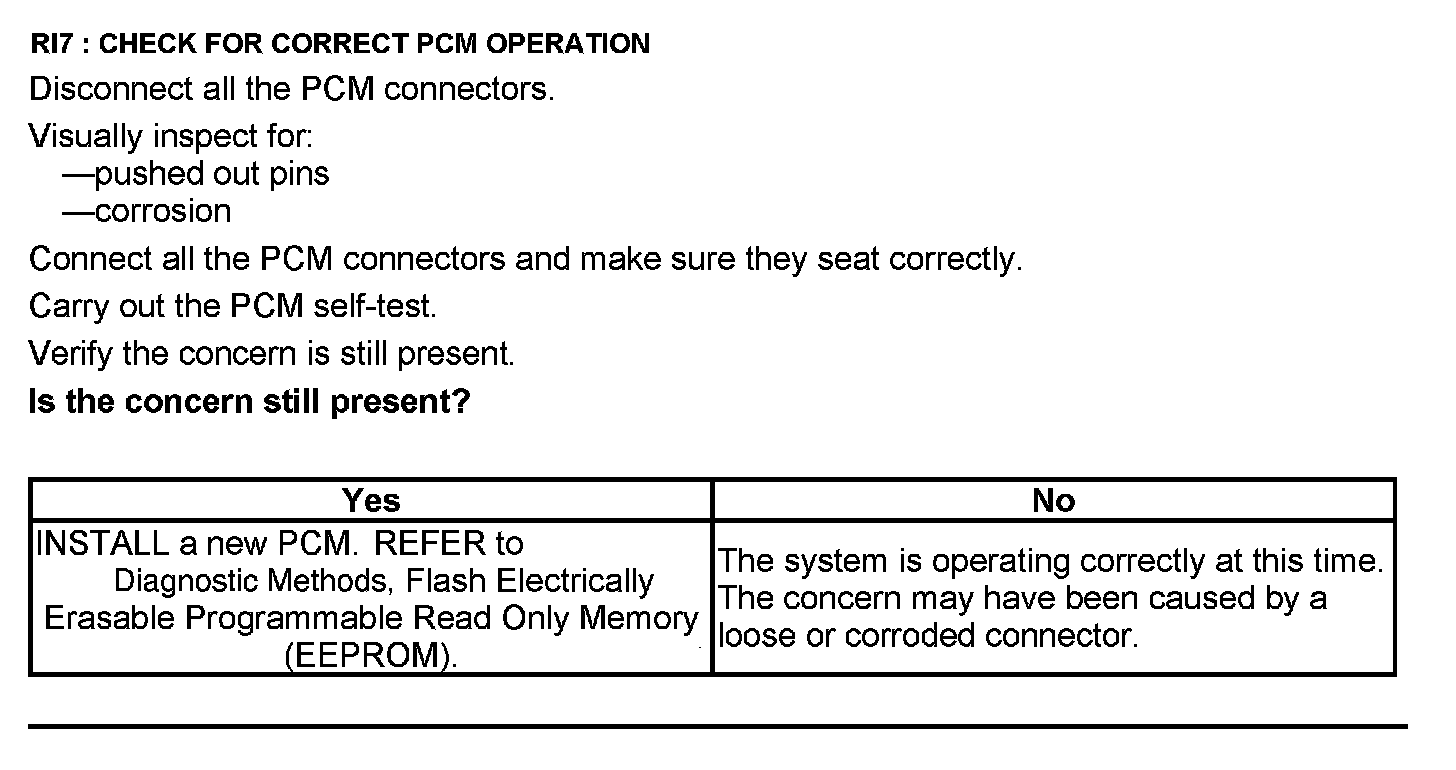

PINPOINT TEST RI: REDUCTANT TEMPERATURE SENSOR

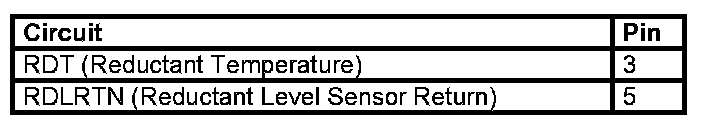

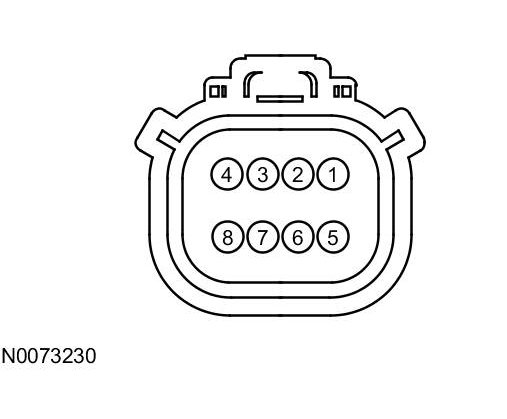

Reductant Heater and Sender Assembly Connector





Harness Side

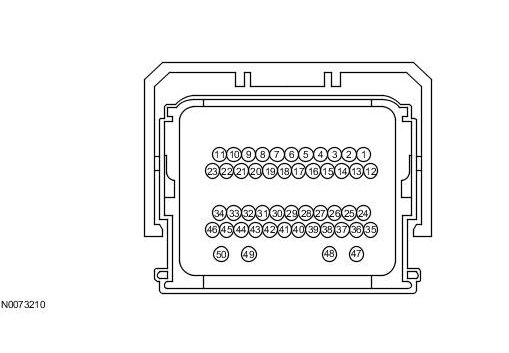

Powertrain Control Module-T (PCM-T) Connector





Harness Side
