Home >> Ford >> 2012 >> F 550 2WD Super Duty V8-6.7L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test RK: Reductant Injector

Test RK: Reductant Injector

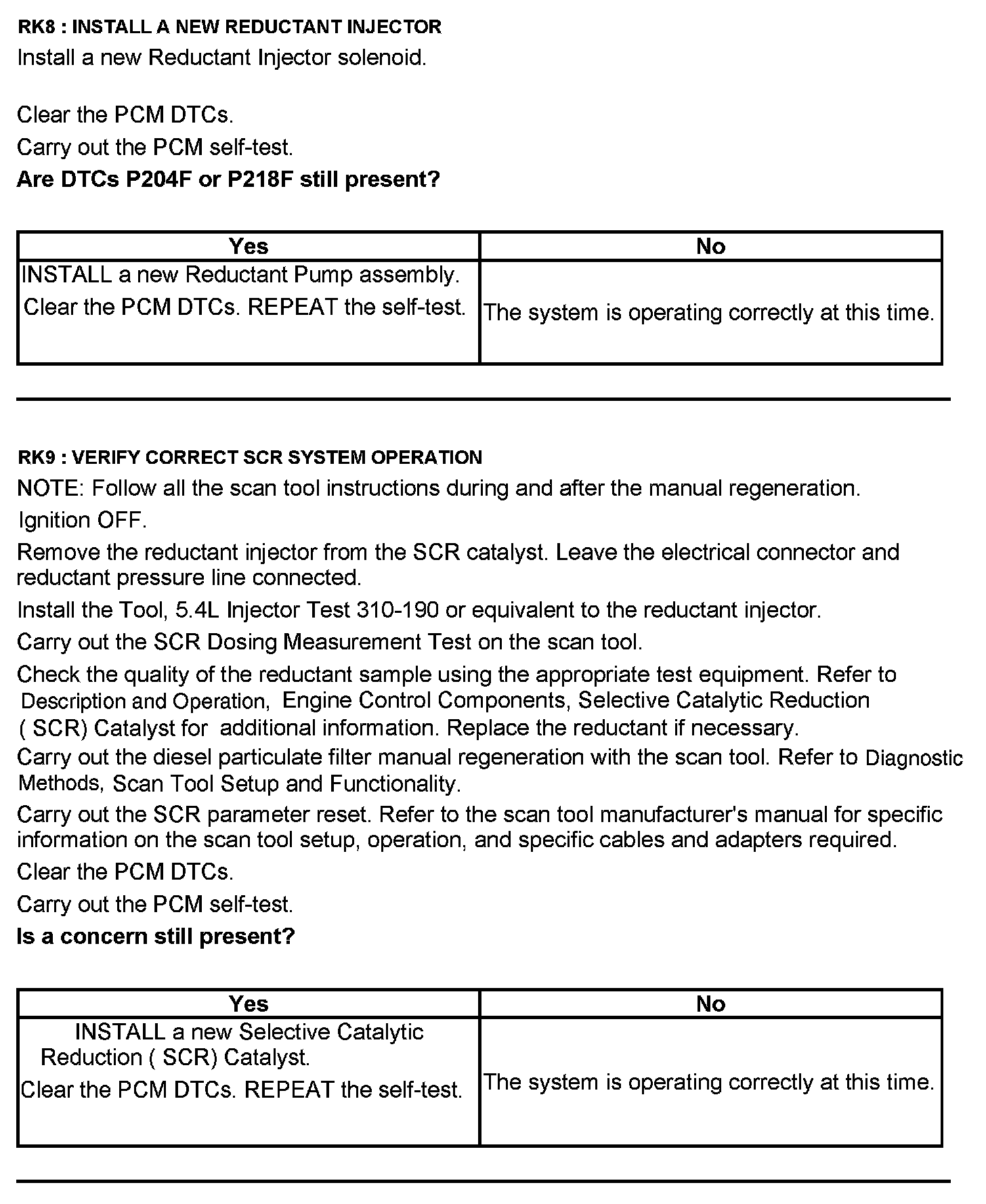

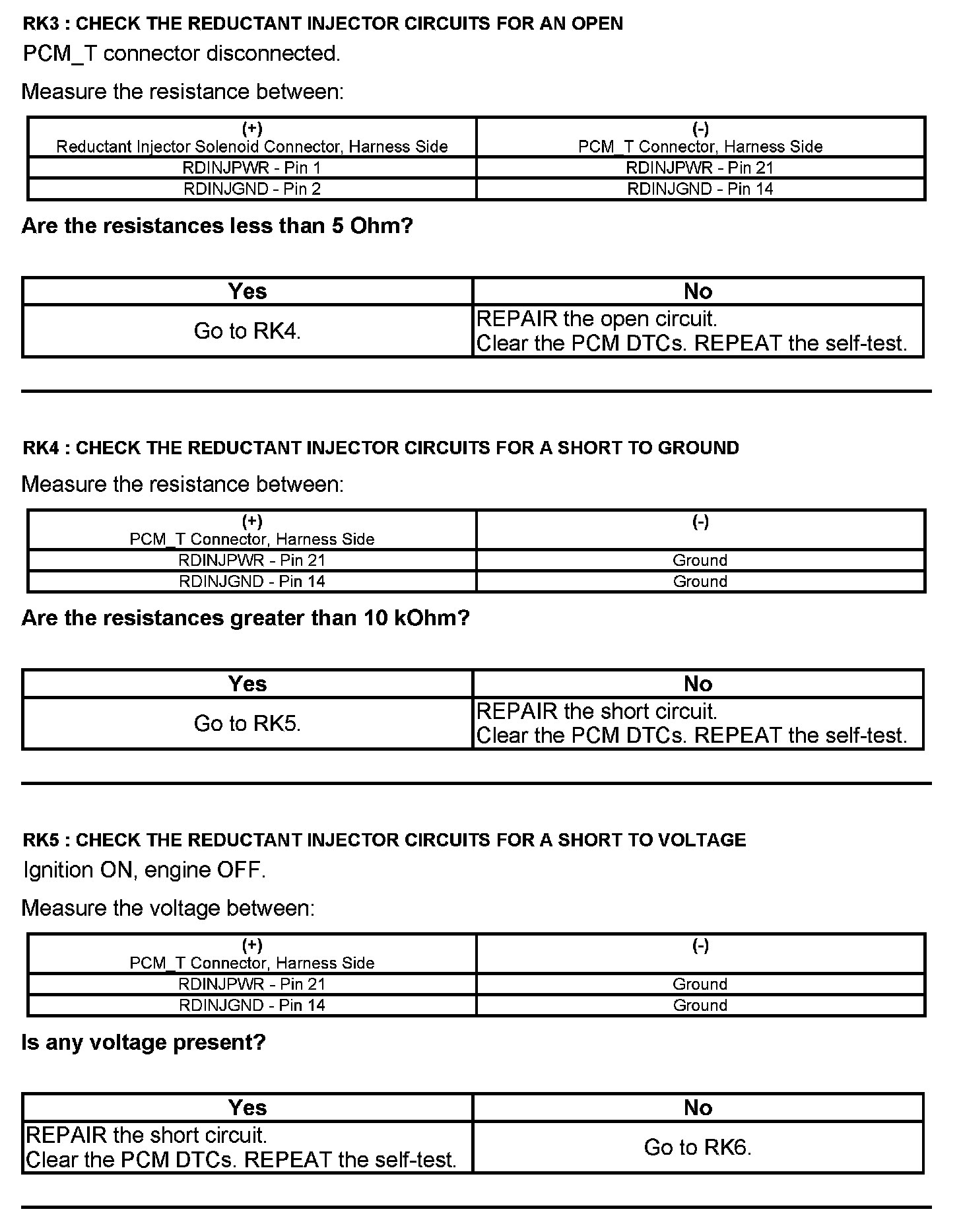

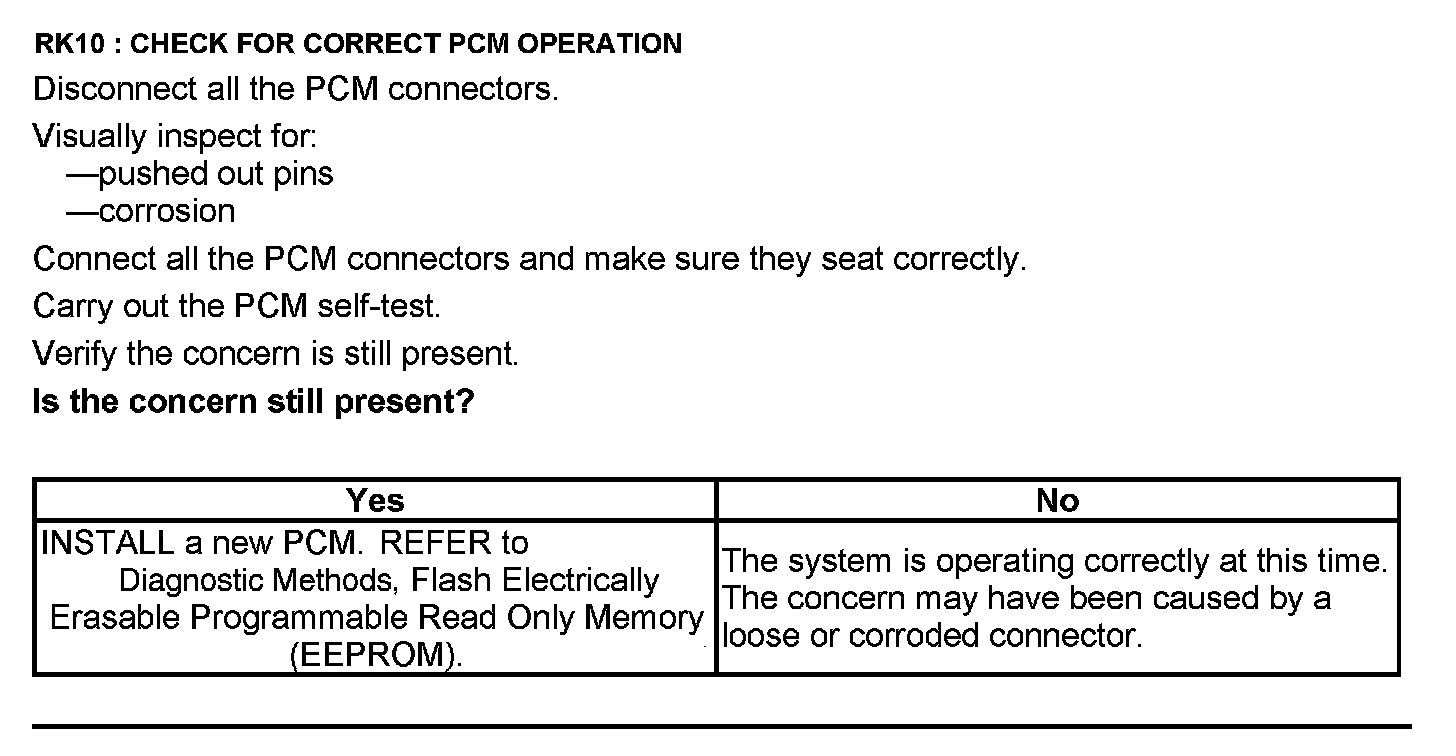

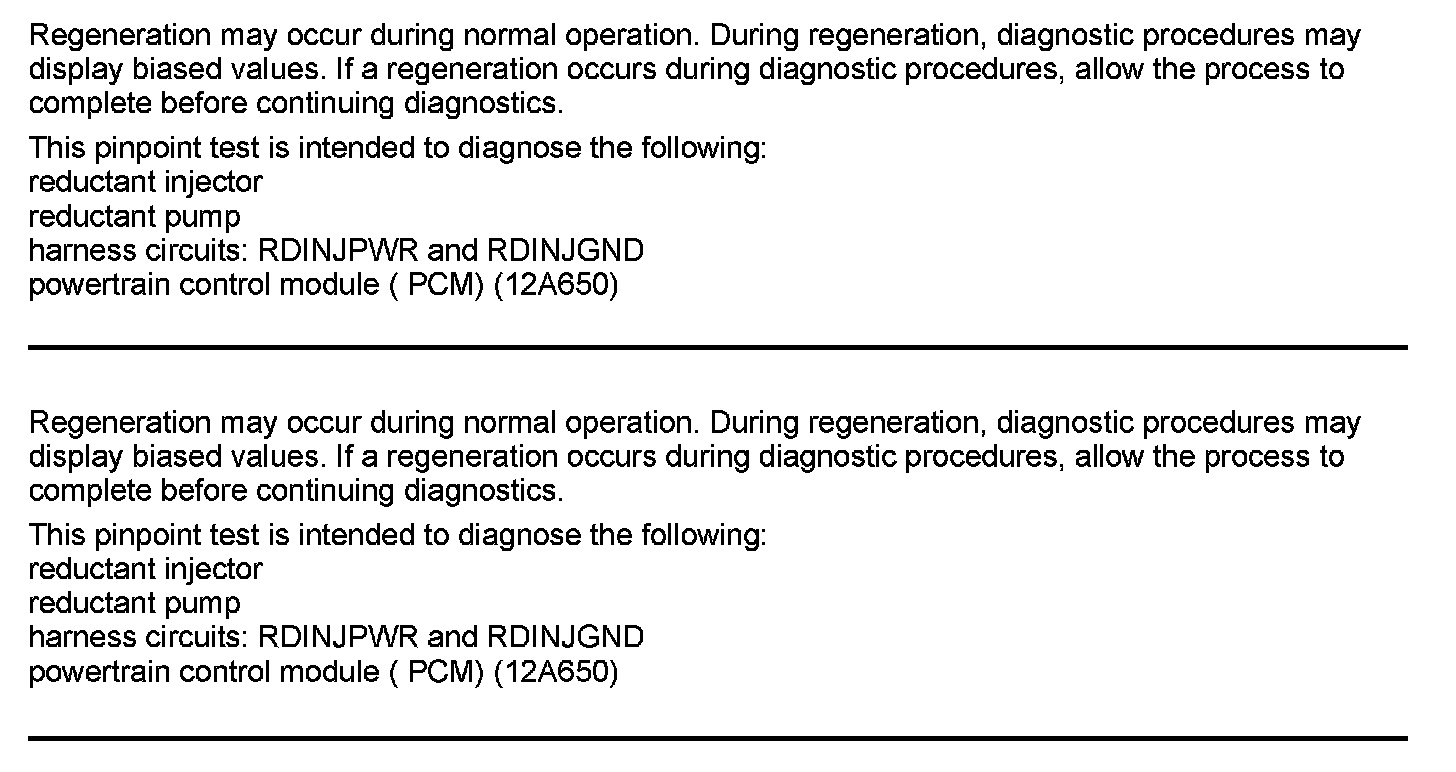

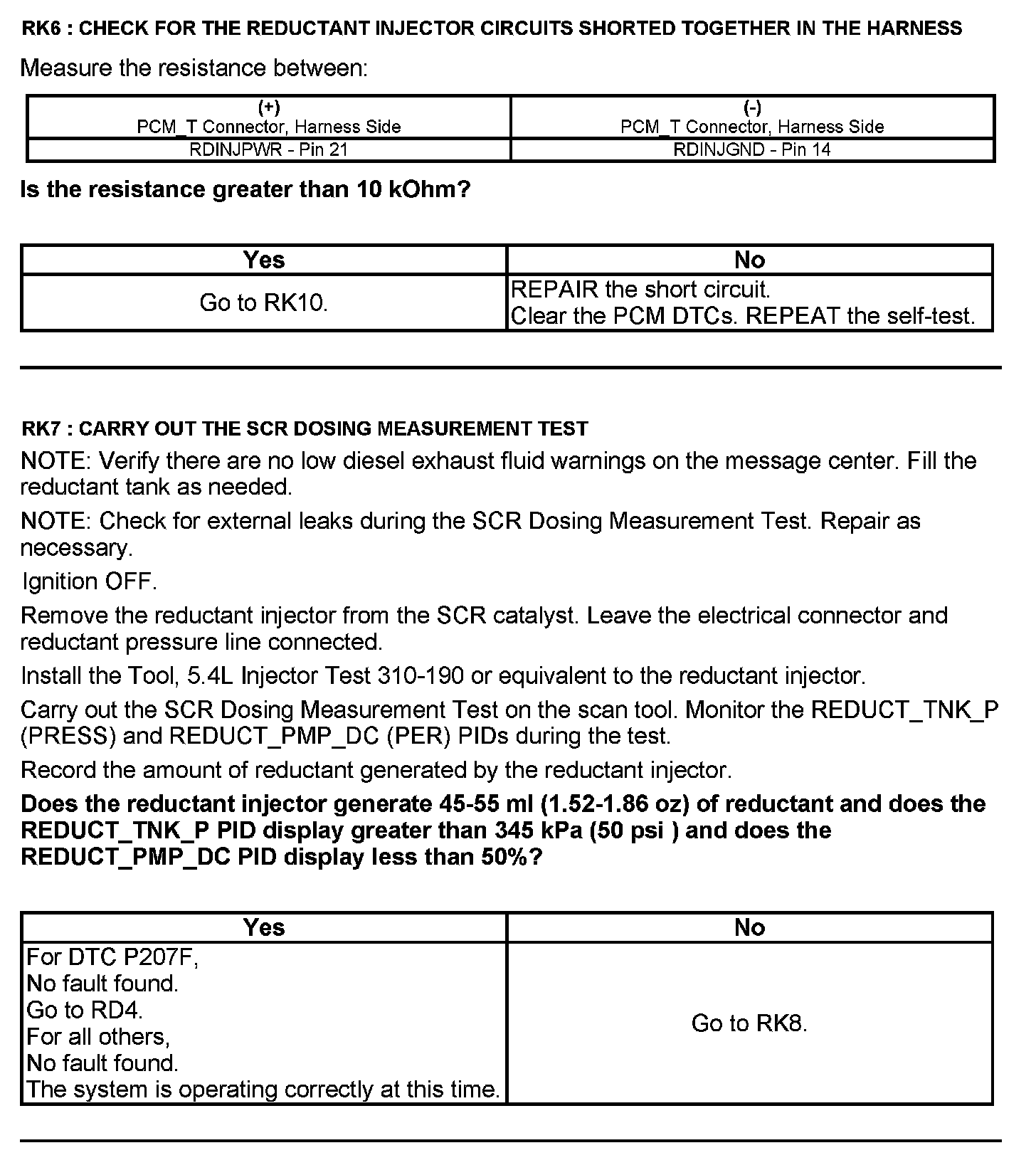

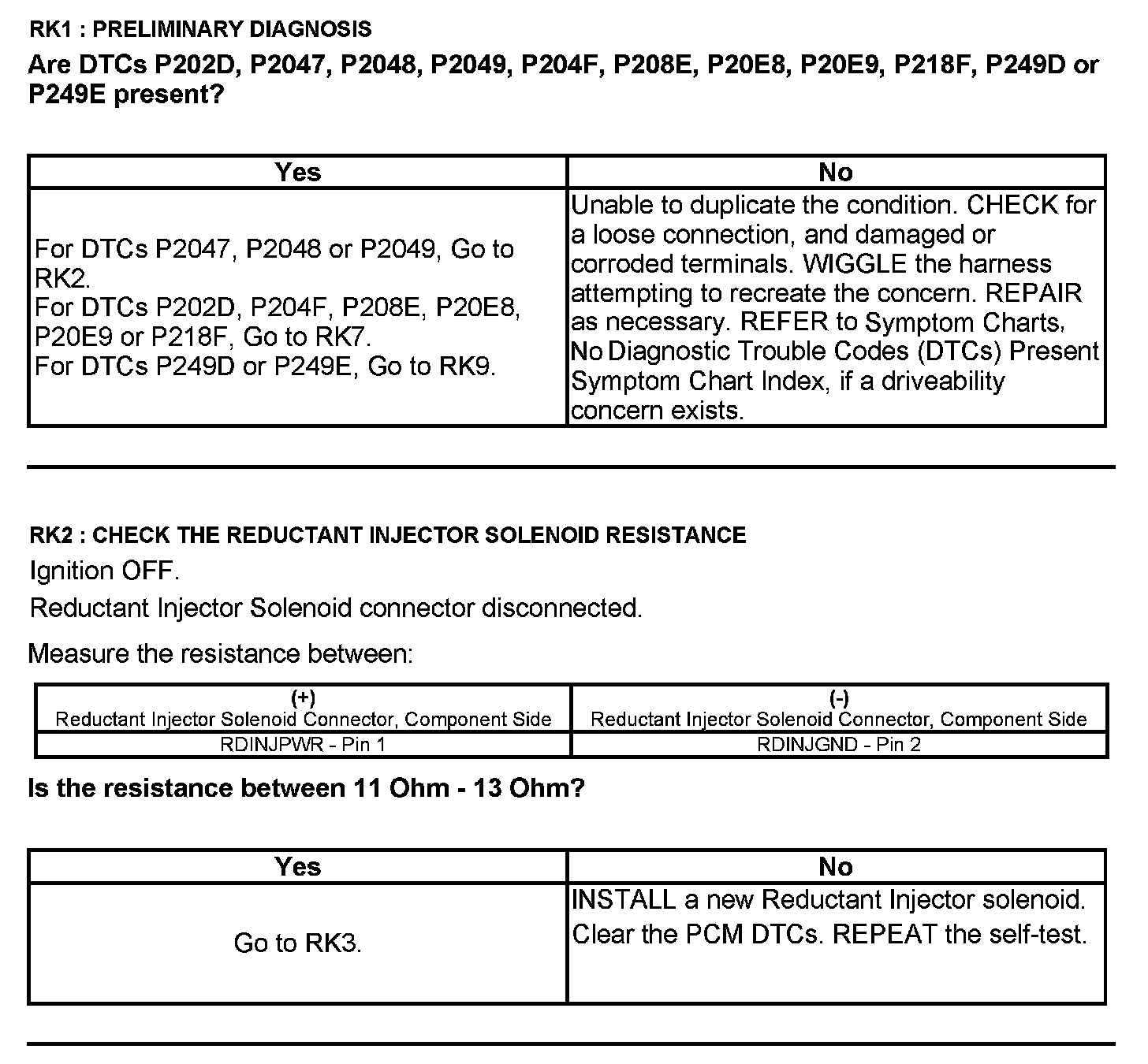

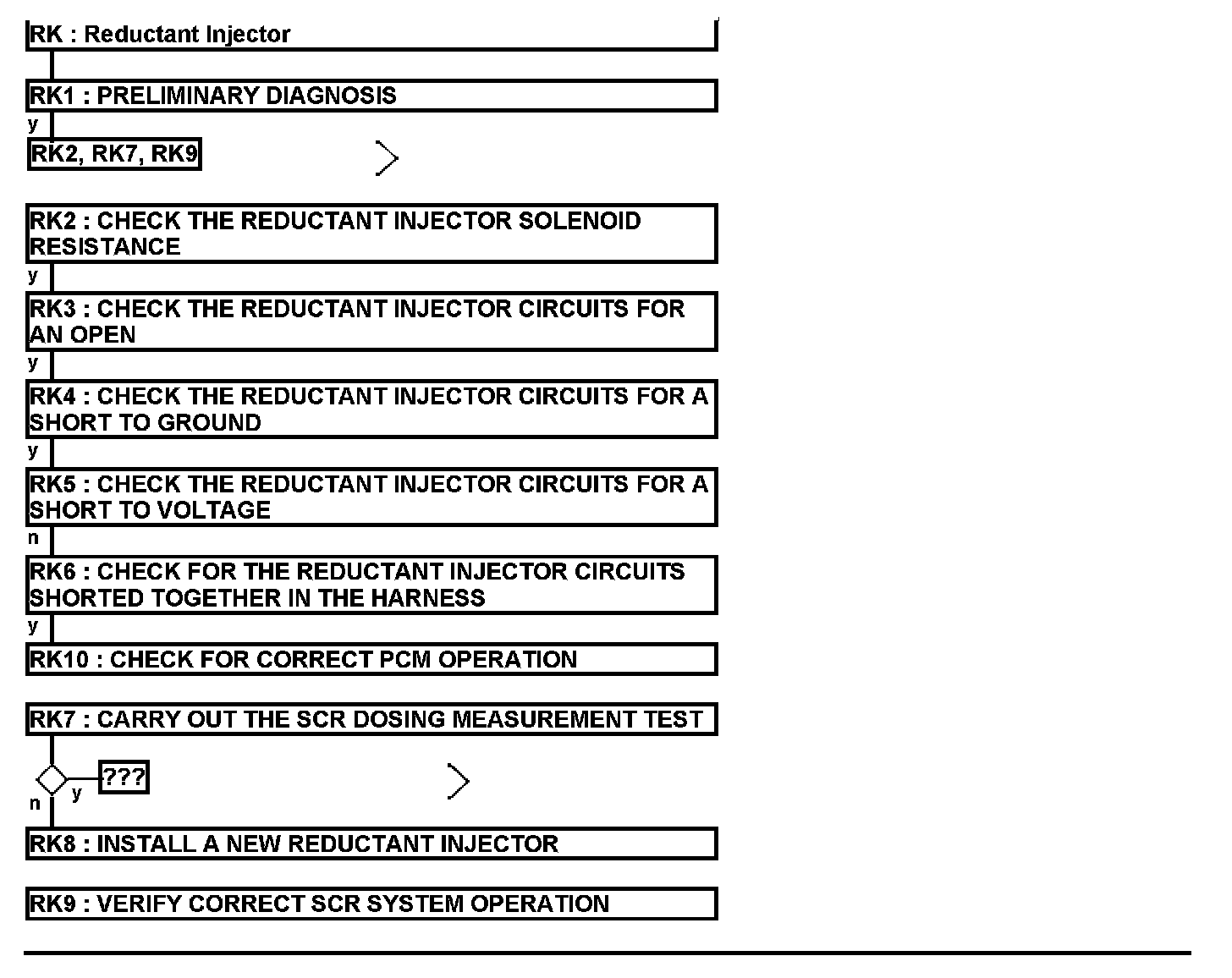

PINPOINT TEST RK: REDUCTANT INJECTOR

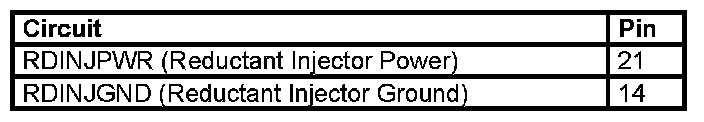

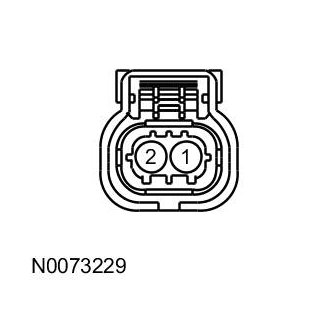

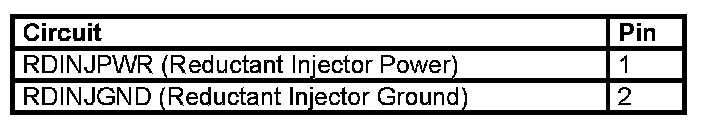

Reductant Injector Solenoid Connector





Harness Side

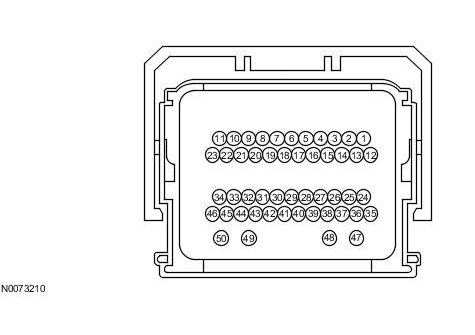

Powertrain Control Module-T (PCM-T) Connector





Harness Side
