Test W: Exhaust Gas Recirculation (EGR) System

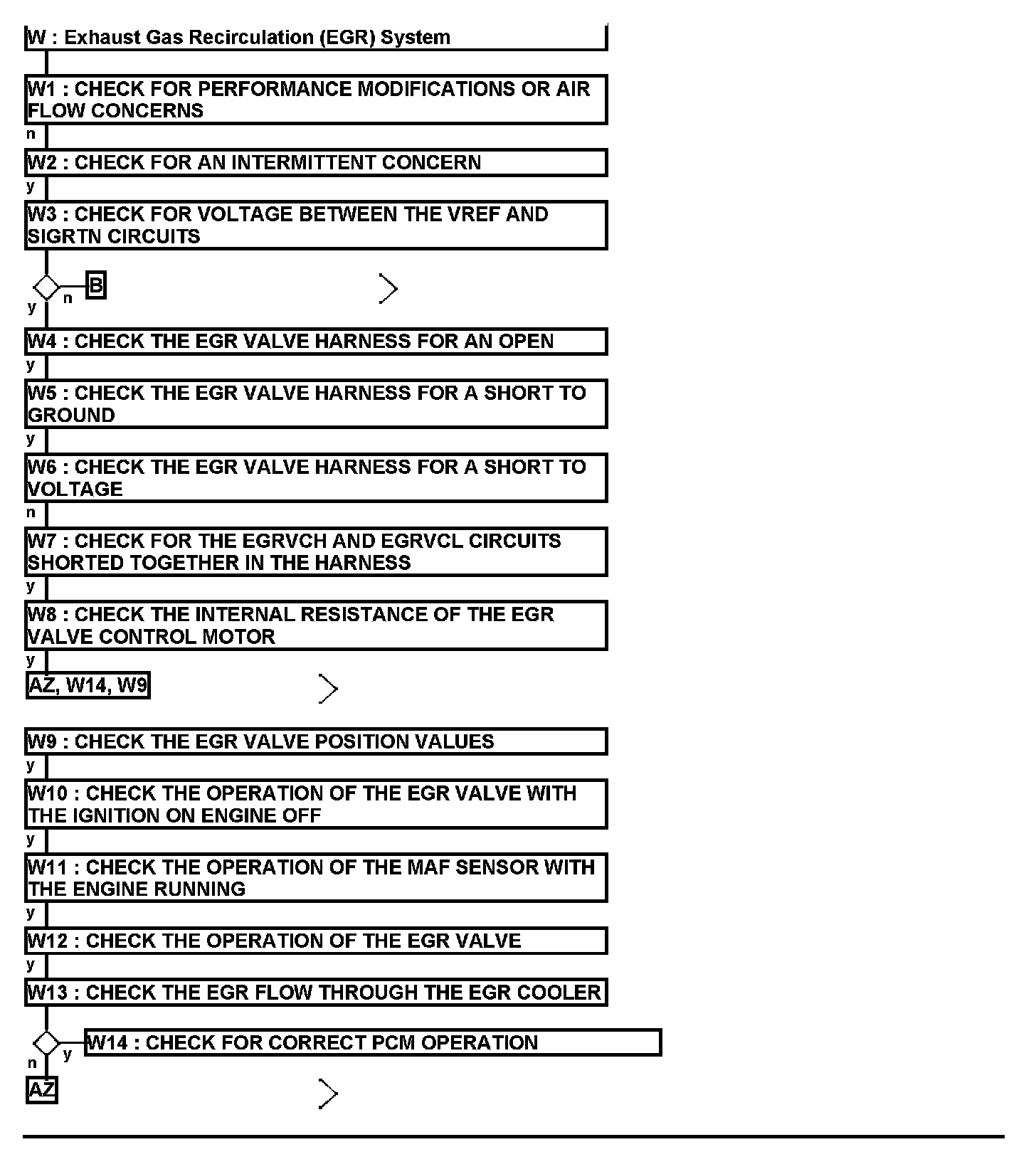

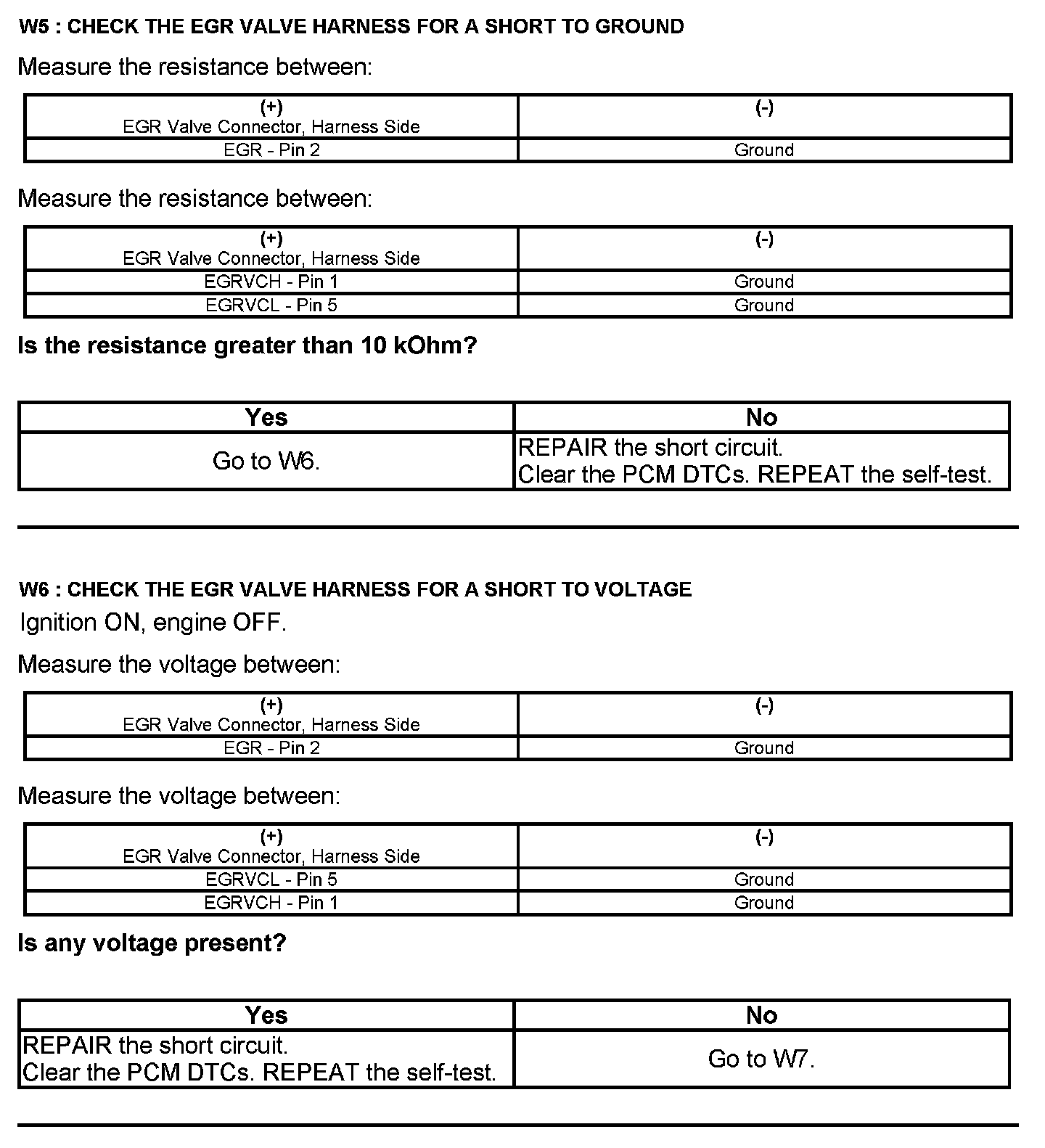

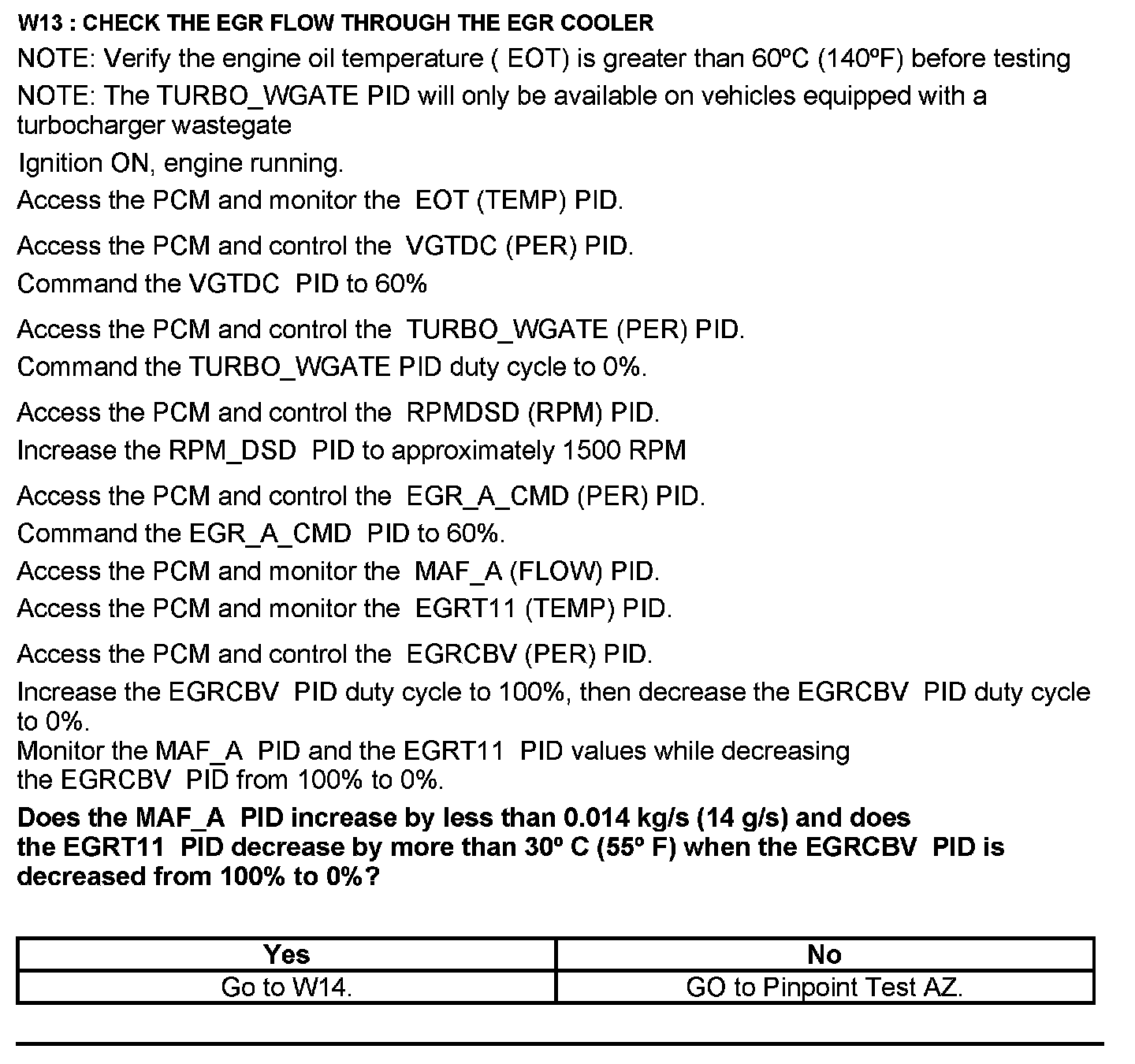

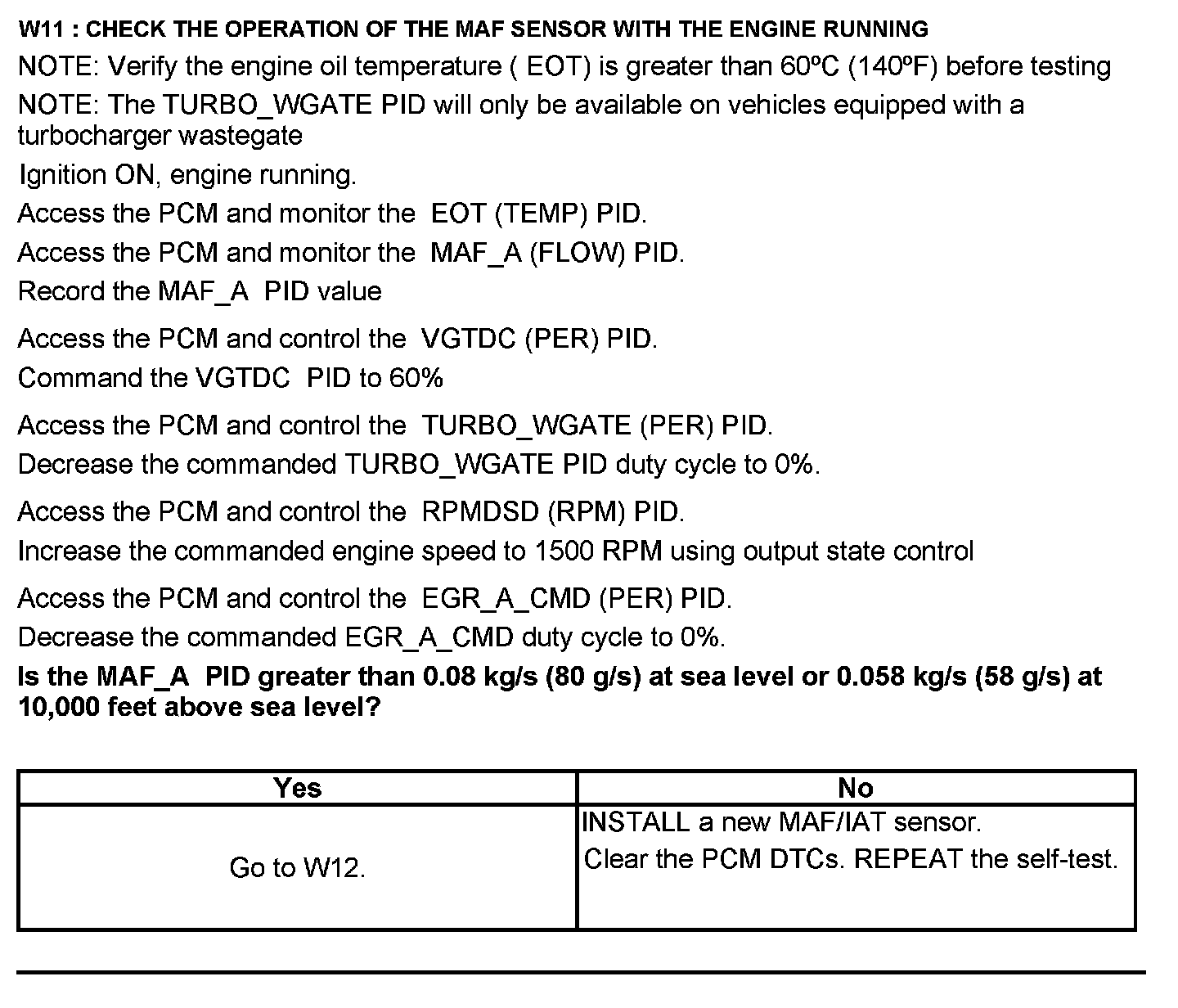

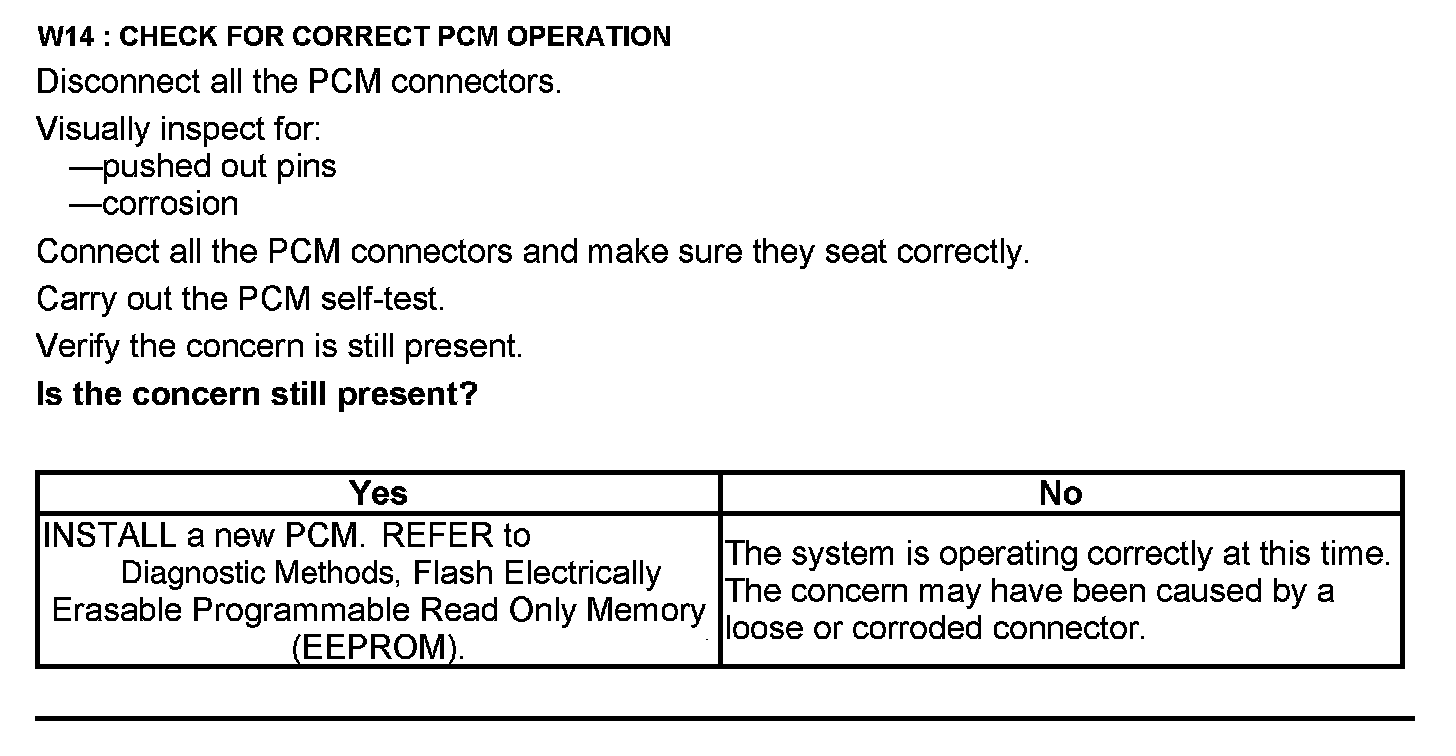

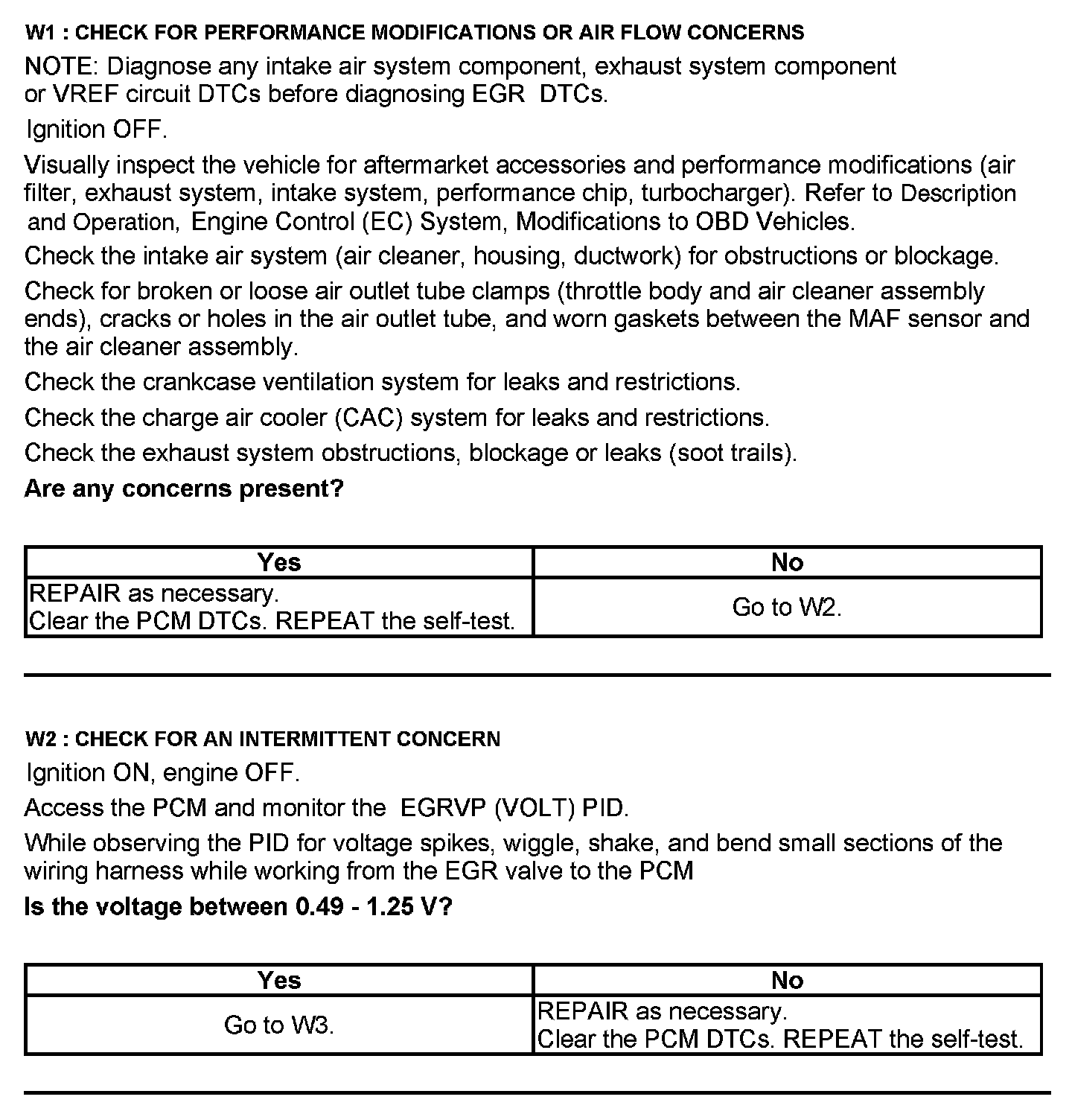

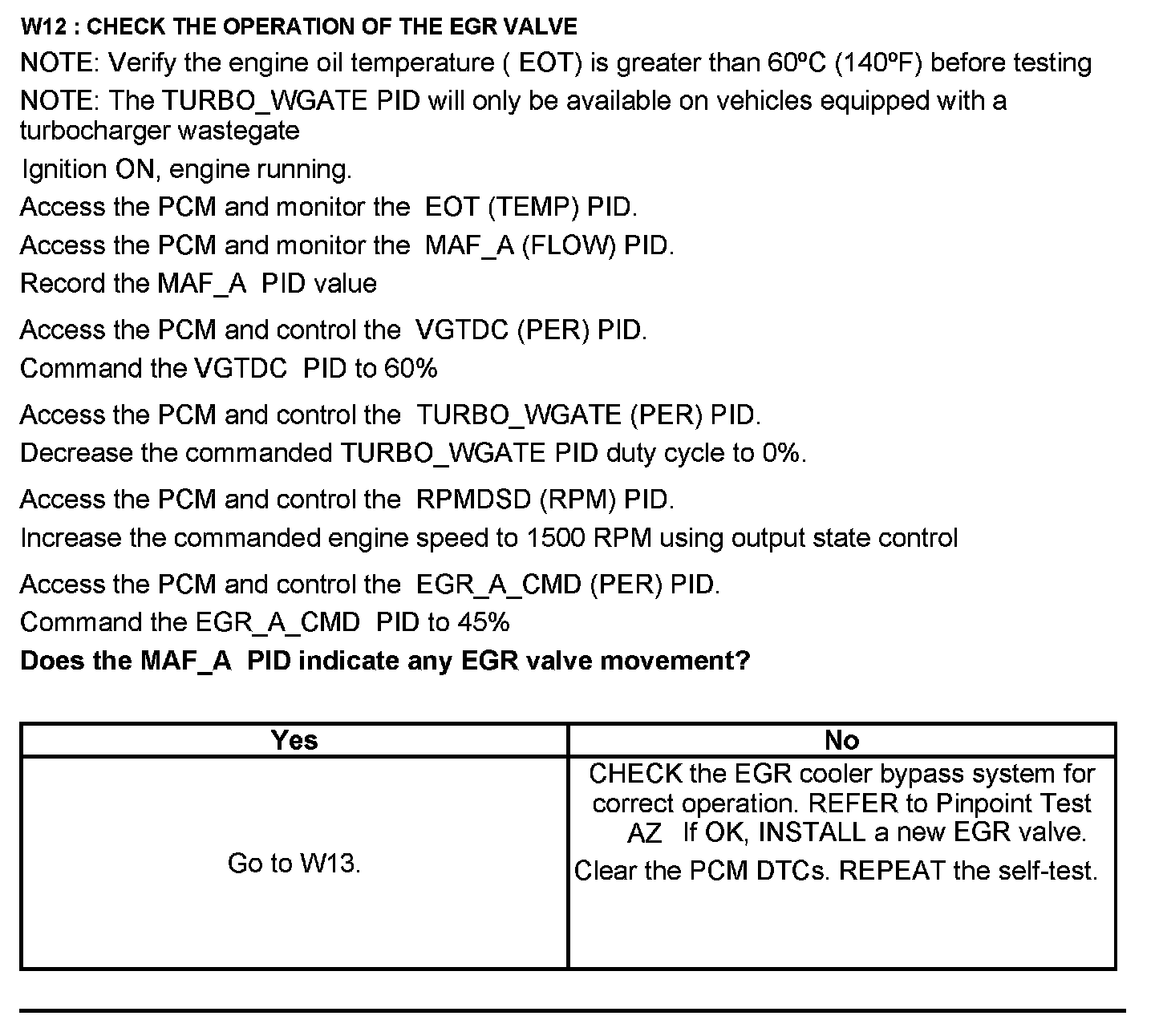

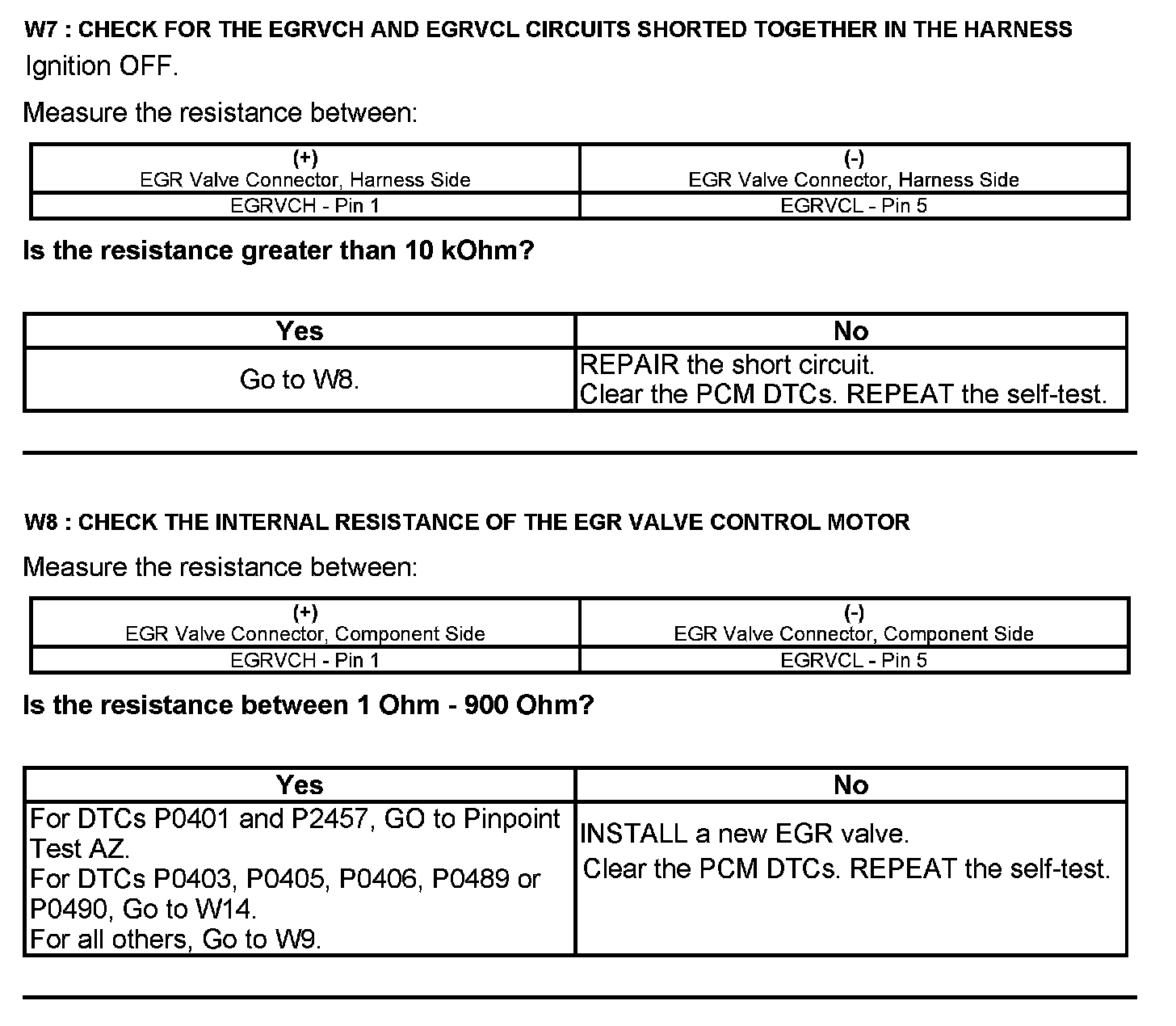

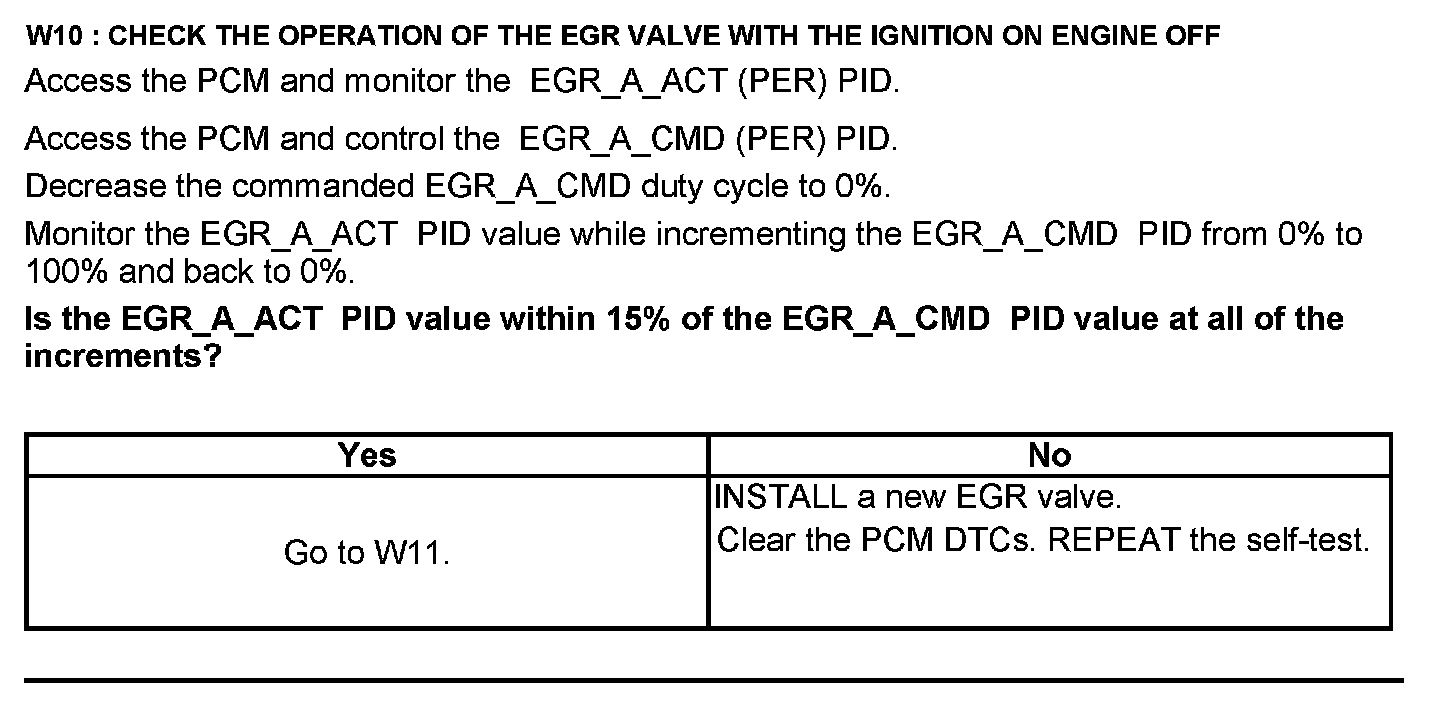

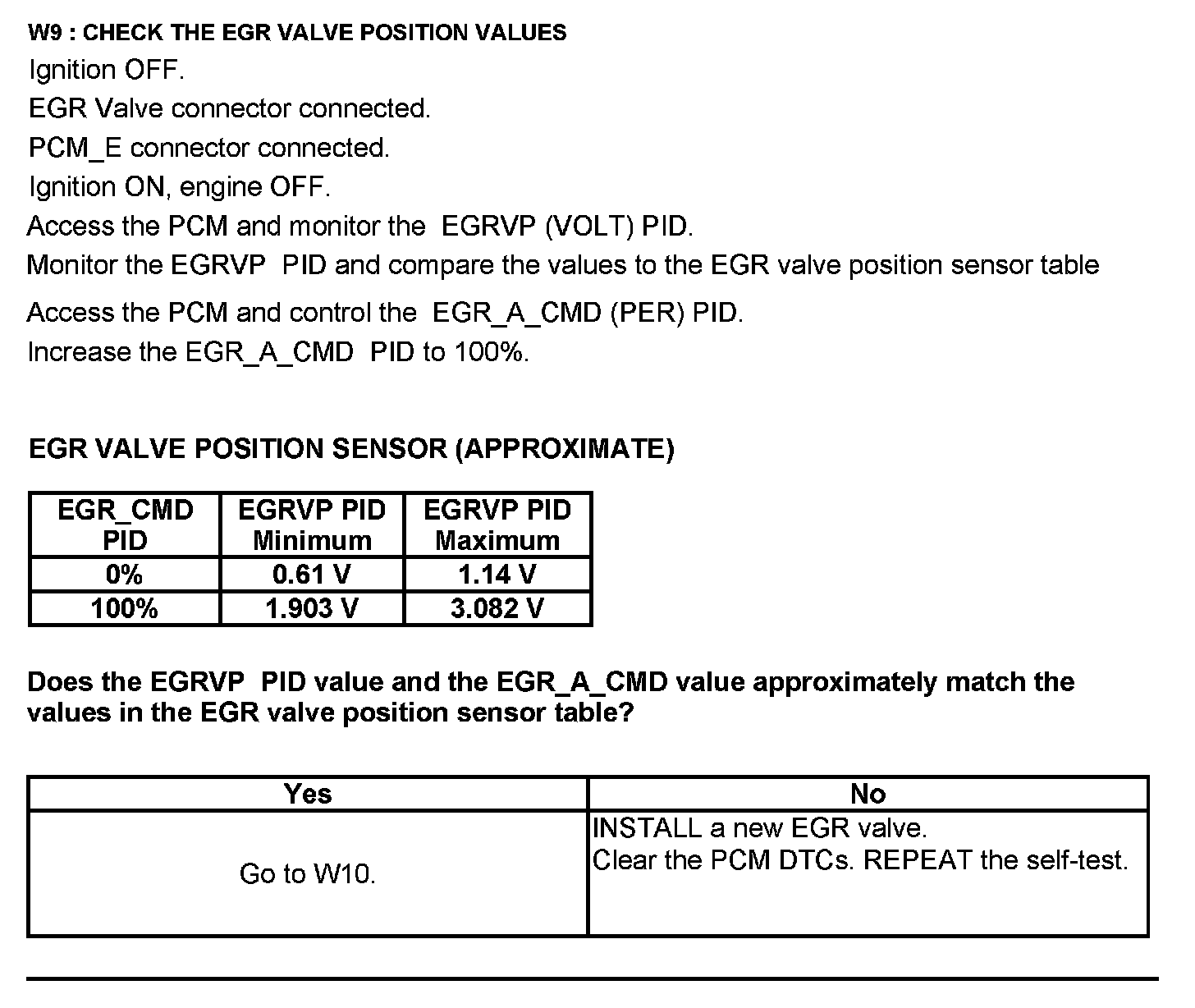

PINPOINT TEST W: EXHAUST GAS RECIRCULATION (EGR) SYSTEM

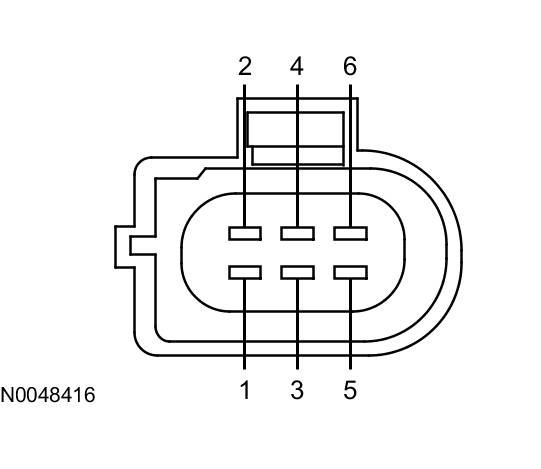

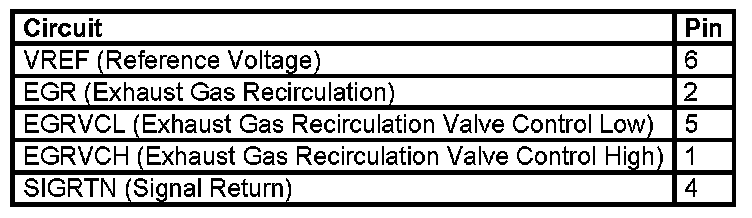

Exhaust Gas Recirculation (EGR) Valve Connector





Harness Side

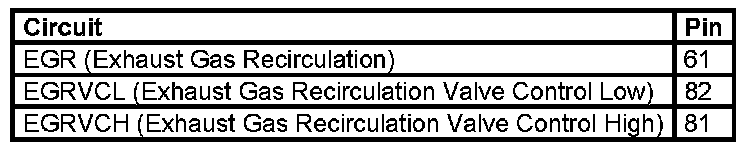

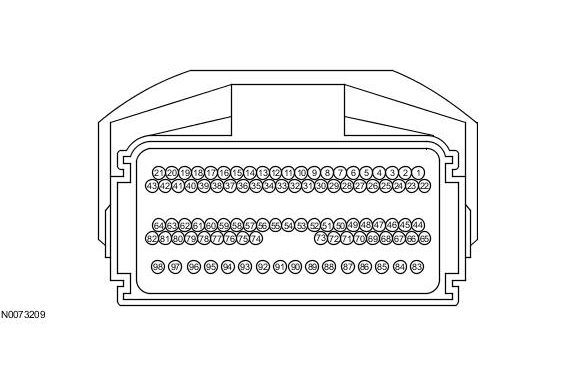

Powertrain Control Module-E (PCM-E) Connector





Harness Side
