Exploded Views

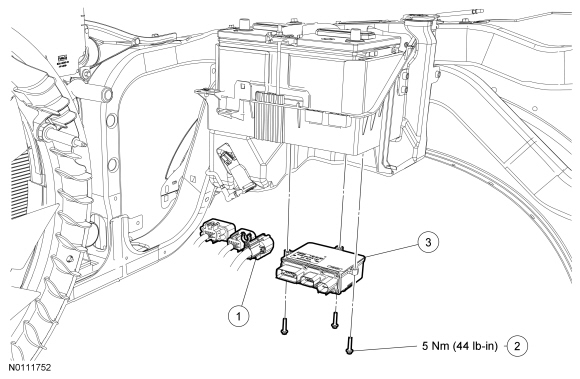

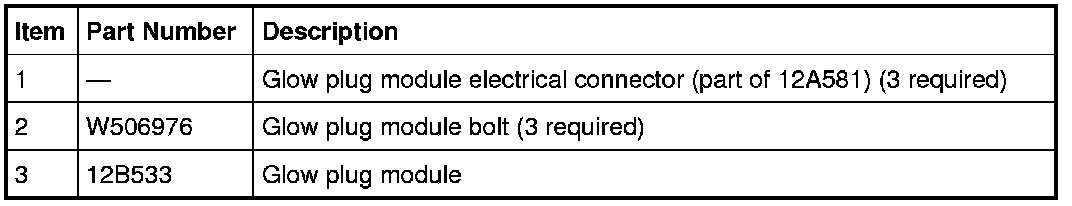

Glow Plug Module - Exploded View









Removal and Installation

1. NOTE: Disconnect the battery ground cable.

NOTE: Remove the RH fender splash shield.
Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
